SI Engine Fuel Injection Explained

Understanding SI Engine Fuel Injection

The internal combustion engine, a cornerstone of modern transportation, has undergone continuous evolution to meet ever-increasing demands for efficiency, performance, and environmental responsibility. At the heart of this evolution lies the fuel delivery system, and among the most significant advancements is the advent of fuel injection. Specifically, Spark Ignition (SI) engine fuel injection systems have revolutionized how petrol engines operate. Unlike older carburettor systems, fuel injection delivers fuel directly into the engine's intake manifold or combustion chamber with remarkable precision, leading to substantial improvements across the board.

The Evolution from Carburettors to Fuel Injection

For decades, the carburettor was the undisputed king of fuel delivery in petrol engines. It worked by atomizing fuel and mixing it with incoming air through the Venturi effect. While effective for its time, carburettors were inherently limited in their ability to precisely control the air-fuel mixture under varying engine conditions. This often resulted in suboptimal combustion, leading to reduced fuel economy, higher emissions, and less responsive performance. The transition to fuel injection was driven by the need for greater control and efficiency, spurred on by stricter emissions regulations and a growing consumer demand for better-performing, more economical vehicles.

How SI Engine Fuel Injection Works

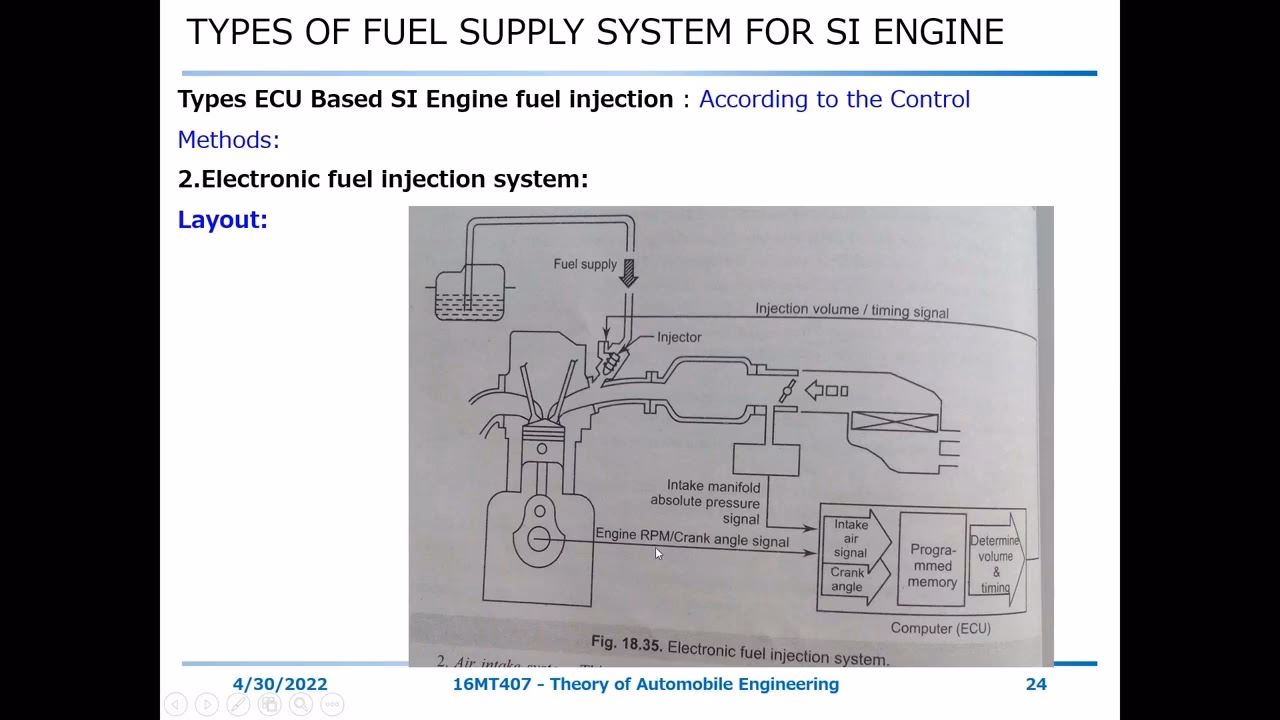

At its core, an SI engine fuel injection system is a sophisticated electronic control system. It comprises several key components working in harmony to ensure the correct amount of fuel is delivered at the precise moment for optimal combustion. The fundamental principle is to replace the mechanical mixing of fuel and air in a carburettor with an electronically controlled, pressurized fuel delivery system.

Key Components of an SI Fuel Injection System

• Fuel Pump: This electric pump, usually located within the fuel tank, draws fuel from the tank and pressurizes it for delivery to the injectors. The pressure is critical for the atomization process.
• Fuel Filter: Essential for removing contaminants from the fuel before it reaches the injectors, preventing blockages and ensuring a clean spray pattern.
• Fuel Rail: A pipe that distributes pressurized fuel to each injector. It often incorporates a pressure regulator to maintain a consistent fuel pressure.
• Fuel Injectors: These are electronically controlled solenoid valves. When an electrical signal is sent from the Engine Control Unit (ECU), the injector opens for a specific duration, spraying a fine mist of fuel into the intake manifold (in Port Injection) or directly into the cylinder (in Direct Injection).
• Engine Control Unit (ECU): This is the brain of the system. It receives data from various sensors and, based on pre-programmed maps and algorithms, calculates the precise amount of fuel to be injected and when.
• Sensors: A network of sensors provides the ECU with vital information about the engine's operating conditions. These include:
• Mass Airflow (MAF) Sensor: Measures the amount of air entering the engine.
• Oxygen (O2) Sensor: Monitors the amount of unburnt oxygen in the exhaust gases, allowing the ECU to adjust the air-fuel mixture for optimal combustion and emissions.
• Throttle Position Sensor (TPS): Indicates how far the throttle is open, signalling the driver's demand for power.
• Engine Coolant Temperature (ECT) Sensor: Informs the ECU about the engine's operating temperature, influencing fuel delivery for cold starts and warm-up.
• Crankshaft Position Sensor: Determines the engine speed (RPM) and the position of the crankshaft, crucial for timing fuel injection.

Types of SI Fuel Injection Systems

While the fundamental principle remains the same, SI fuel injection systems have evolved into different configurations, each with its own advantages:

1. Single-Point Injection (SPI) / Throttle Body Injection (TBI)

This was an early form of fuel injection, often seen as a transitional technology from carburation. In SPI systems, a single injector is mounted in the throttle body, spraying fuel into the intake manifold, similar to how a carburettor would. While an improvement over carburation, it offered less precise fuel distribution compared to multi-point systems.

2. Multi-Point Injection (MPI) / Port Injection (PFI)

This is the most common type of fuel injection system found in modern petrol engines. In MPI systems, each cylinder has its own dedicated fuel injector located in the intake manifold, just before the intake valve. This allows for much more precise fuel delivery to each individual cylinder, leading to better performance, fuel economy, and reduced emissions. The injectors can operate in two modes:

• Throttle Body Sequential (TS): Injectors fire in a sequence, but still in batches.
• Sequential (SFI): Each injector fires individually, timed precisely with the opening of its respective intake valve. This offers the highest degree of control and efficiency.

3. Direct Injection (DI) / Gasoline Direct Injection (GDI)

This is the most advanced form of SI fuel injection. In GDI systems, fuel is injected directly into the combustion chamber under very high pressure. This allows for even greater control over the air-fuel mixture, enabling benefits such as:

• Improved Fuel Efficiency: Precise fuel atomization and control lead to more complete combustion.
• Increased Power and Torque: The cooling effect of fuel evaporation within the cylinder allows for higher compression ratios and more aggressive ignition timing.
• Reduced Emissions: More efficient combustion leads to lower CO2 and other harmful emissions.

However, GDI systems can be more complex and costly to manufacture and maintain, and they can sometimes be susceptible to carbon buildup on intake valves due to the lack of fuel washing over them.

Advantages of SI Engine Fuel Injection

The adoption of fuel injection over carburettors has brought about a host of significant advantages:

• Improved Fuel Economy: Precise control of the air-fuel mixture ensures that only the necessary amount of fuel is used, leading to better mileage.
• Reduced Emissions: Optimal combustion minimizes the production of harmful pollutants like unburnt hydrocarbons (HC), carbon monoxide (CO), and nitrogen oxides (NOx).
• Enhanced Performance: Better atomization and distribution of fuel result in a more consistent and powerful combustion process, leading to improved throttle response and overall power output.
• Smoother Operation: The precise fuel delivery contributes to a smoother idle and more consistent engine operation across all speed and load ranges.
• Better Cold Starts: The ECU can enrich the mixture automatically during cold starts, eliminating the need for manual choke operation and ensuring easier starting in cold weather.
• Adaptability: Fuel injection systems can automatically adjust to changes in atmospheric pressure and temperature, maintaining optimal performance regardless of altitude or weather conditions.

Potential Issues and Maintenance

While fuel injection systems are generally very reliable, like any complex mechanical and electronic system, they can encounter issues. Regular maintenance is key to ensuring longevity and optimal performance.

Common Issues Include:

• Clogged Injectors: Over time, deposits can build up in the injectors, restricting fuel flow and affecting the spray pattern. This can lead to rough idling, misfires, and reduced power.
• Faulty Fuel Pump: A failing fuel pump can result in insufficient fuel pressure, causing hesitation, stalling, or a complete lack of power.
• Sensor Malfunctions: A faulty sensor can send incorrect information to the ECU, leading to poor engine performance, increased fuel consumption, or the illumination of the 'check engine' light.
• Fuel Filter Blockage: A clogged fuel filter restricts fuel flow, putting a strain on the fuel pump and potentially leading to fuel starvation.

Maintenance Tips:

• Regular Fuel Filter Replacement: Follow your vehicle manufacturer's recommended service intervals for fuel filter replacement.
• Use Quality Fuel: Using high-quality fuel can help minimize the buildup of deposits in the fuel system.
• Fuel System Cleaners: Periodically using a reputable fuel injector cleaner can help keep injectors free of deposits.
• Professional Diagnosis: If you suspect an issue with your fuel injection system, it's best to have it diagnosed by a qualified mechanic who has the necessary tools and expertise.

Fuel Injection vs. Carburettor: A Comparative Look

To truly appreciate the benefits of fuel injection, a direct comparison with carburettors is instructive:

Frequently Asked Questions (FAQs)

Q1: What is the main benefit of fuel injection over a carburettor?
A1: The primary benefit is the significantly more precise control over the air-fuel mixture, leading to better fuel economy, lower emissions, and improved performance.

Q2: Can I convert a carburetted engine to fuel injection?
A2: Yes, it is possible, but it's a complex conversion that involves replacing the carburettor, fuel pump, fuel lines, and installing sensors and an ECU. It's often a costly undertaking.

Q3: Why is my car's 'check engine' light on, and could it be related to fuel injection?
A3: The 'check engine' light can be illuminated for a multitude of reasons, but issues with fuel injection components (like sensors, injectors, or fuel pump) are common culprits. A diagnostic scan is necessary to identify the specific fault code.

Q4: What is GDI and why is it becoming more popular?
A4: GDI stands for Gasoline Direct Injection. It's becoming popular because it offers superior fuel efficiency and power output compared to traditional port injection, allowing manufacturers to meet stricter fuel economy and emissions standards.

Conclusion

The SI engine fuel injection system represents a monumental leap forward in automotive engineering. By leveraging sophisticated electronic control and precise fuel delivery, these systems ensure that modern petrol engines operate at peak efficiency, deliver exhilarating performance, and tread more lightly on our environment. Understanding the principles behind fuel injection not only demystifies a crucial aspect of your vehicle but also highlights the ongoing innovation that keeps the automotive world moving forward. Regular maintenance and awareness of potential issues will ensure your fuel injection system continues to perform optimally for years to come.
