Fuel Injection Explained

Fuel injection is a sophisticated system that precisely delivers fuel into an internal combustion engine, replacing the older, less accurate carburettor technology. Understanding where and how this vital process occurs is key to appreciating its impact on modern vehicle performance, fuel economy, and emissions. In essence, fuel injection takes place at specific points within the engine's air intake or directly into the combustion chamber itself, managed by an electronic control unit (ECU).

The Core Principle: Precise Fuel Delivery

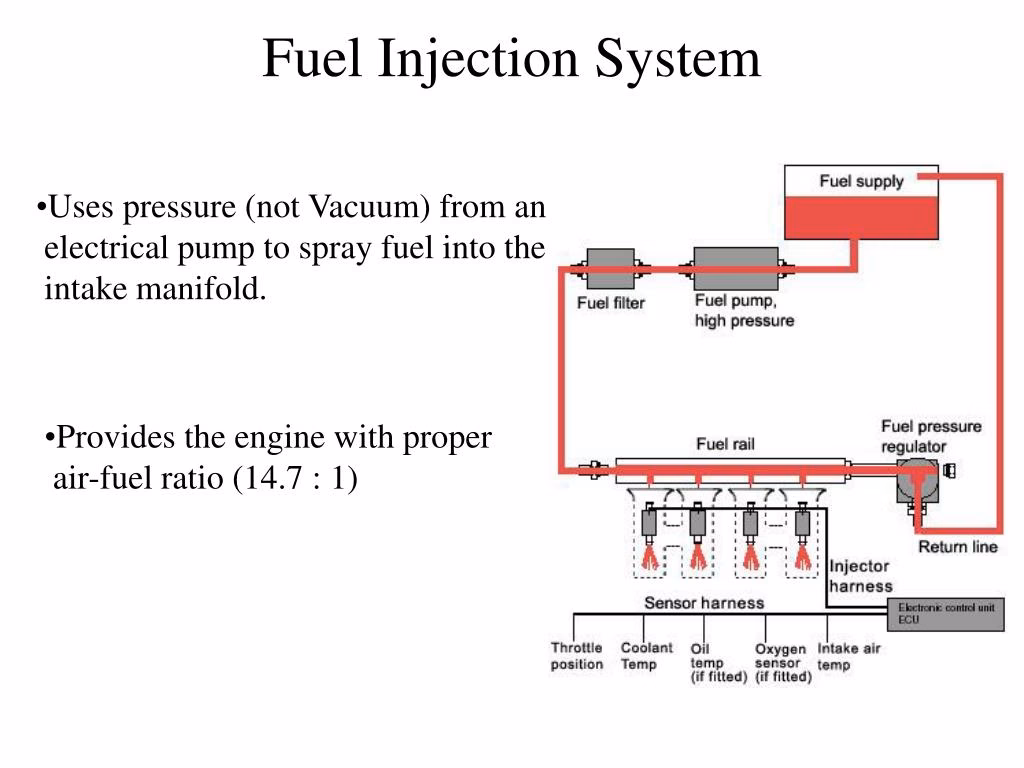

At its heart, fuel injection is about atomising fuel and delivering it in the correct amount, at the right time, and to the optimal location within the engine. This contrasts sharply with carburettors, which relied on vacuum pressure to draw fuel into the airstream. Fuel injection systems use high-pressure pumps and electronically controlled injectors to achieve this precision. The ECU, acting as the engine's brain, receives data from various sensors (like throttle position, engine speed, air temperature, and oxygen levels) and calculates the precise amount of fuel needed for each combustion cycle. It then signals the injectors to open for a specific duration, spraying a fine mist of fuel.

Key Locations for Fuel Injection

The primary distinction in fuel injection systems lies in where the fuel is injected. The two most common types are:

1. Port Fuel Injection (PFI) / Multi-Point Fuel Injection (MPI)

In PFI or MPI systems, the fuel is injected into the intake manifold, just before the intake valve of each cylinder. Each cylinder typically has its own injector. The fuel mixes with the incoming air in the intake port before being drawn into the combustion chamber when the intake valve opens.

• How it works: The ECU commands the injector for a specific cylinder to spray fuel into the intake manifold. This fuel then combines with the air that is being pulled into the cylinder.
• Advantages: Offers better fuel distribution and atomisation compared to older systems. It's a well-established and relatively cost-effective technology.
• Disadvantages: Can sometimes lead to fuel pooling on the intake port walls, especially during cold starts, which can affect emissions and performance.

2. Direct Fuel Injection (DFI) / Gasoline Direct Injection (GDI)

DFI or GDI systems are more advanced. Here, the fuel is injected directly into the combustion chamber itself. This allows for even greater control over the fuel-air mixture and combustion process.

• How it works: The injector is positioned in the cylinder head, spraying fuel directly into the cylinder. This often happens during the compression stroke, allowing for a very precise mixture and potentially enabling higher compression ratios.
• Advantages: Improved fuel efficiency, increased power output, and reduced emissions due to more precise control over combustion. It also helps prevent fuel dilution of engine oil.
• Disadvantages: Can be more complex and expensive to manufacture and maintain. Requires higher fuel pressures and more robust injector designs. Potential for carbon buildup on intake valves due to the fuel bypassing them.

Other Less Common Systems

While PFI and DFI are the most prevalent, some other systems exist:

• Single-Point Injection (SPI) / Throttle Body Injection (TBI): This is an older, simpler form of fuel injection, often seen as a transitional technology from carburation. It uses one or two injectors located in the throttle body, spraying fuel into the intake manifold for all cylinders. It's less precise than PFI or DFI.
• Common Rail Diesel Injection (CRDI): While the question is about general fuel injection, it's worth noting that diesel engines use a highly sophisticated direct injection system called Common Rail. Fuel is stored under extremely high pressure in a common rail and then injected into each cylinder via electronically controlled injectors.

The Role of the Injector

The fuel injector itself is a small, electronically controlled valve. When the ECU sends an electrical pulse to the injector, it momentarily opens, allowing pressurised fuel to spray out. The duration of this pulse (pulse width) determines the amount of fuel delivered. The spray pattern is also crucial; it's designed to atomise the fuel into a fine mist for efficient mixing with air and complete combustion. Modern injectors can open and close thousands of times per minute with incredible accuracy.

Factors Influencing Injection Timing and Amount

The ECU's decision-making process is complex, taking into account numerous factors:

Benefits of Modern Fuel Injection

The move from carburation to fuel injection has brought about significant improvements:

• Enhanced Fuel Economy: Precise fuel delivery means less fuel is wasted, leading to better miles per gallon (MPG) or litres per 100 kilometres.
• Improved Performance: Better control over the fuel-air mixture results in smoother power delivery, quicker throttle response, and increased horsepower.
• Reduced Emissions: More efficient combustion and the ability to precisely control the fuel-air ratio significantly lower harmful exhaust emissions (like CO, HC, and NOx).
• Better Cold Start Performance: Systems can automatically adjust the fuel mixture for easier and more reliable starting in cold weather.
• Adaptability: Fuel injection systems can adapt to varying altitudes and atmospheric conditions more effectively than carburetors.

Frequently Asked Questions (FAQs)

Q1: Can I upgrade my carburettor to fuel injection?
Yes, it's possible to convert older carburetted vehicles to fuel injection, but it's a complex and often expensive modification requiring significant expertise.

Q2: What is the most common type of fuel injection today?
Direct Fuel Injection (DFI/GDI) is becoming increasingly common in modern petrol engines due to its efficiency and performance benefits, while Port Fuel Injection (PFI) is still widely used, especially in less performance-oriented vehicles.

Q3: How do I know if my fuel injectors need cleaning or replacing?
Symptoms can include rough idling, poor acceleration, reduced fuel economy, engine misfires, and the check engine light illuminating. A professional mechanic can diagnose injector issues.

Q4: What pressure do fuel injectors operate at?
This varies significantly. PFI systems might operate between 30-60 PSI, while DFI systems can operate at pressures ranging from 500 PSI up to over 2,000 PSI.

Conclusion

Fuel injection systems, whether injecting into the intake port or directly into the cylinder, represent a significant leap forward in engine technology. By precisely controlling the amount of fuel delivered and when it's delivered, these systems ensure optimal combustion, leading to better performance, improved fuel efficiency, and cleaner emissions. The continuous evolution of sensors and control software means fuel injection will remain a cornerstone of internal combustion engine design for the foreseeable future.
