Unravelling Electronic Fuel Injection

The Precision of Modern Engine Management

In the quest for optimal engine performance, fuel efficiency, and reduced emissions, the advent of Electronic Fuel Injection (EFI) systems has been nothing short of revolutionary. Gone are the days of carburetors, with their often temperamental nature and limited control. EFI systems represent a sophisticated leap forward, orchestrating the precise delivery of fuel to your engine with remarkable accuracy. At the heart of this intricate dance lies the Electronic Control Unit (ECU), a marvel of modern engineering that acts as the brain of your vehicle's engine.

What is an ECU?

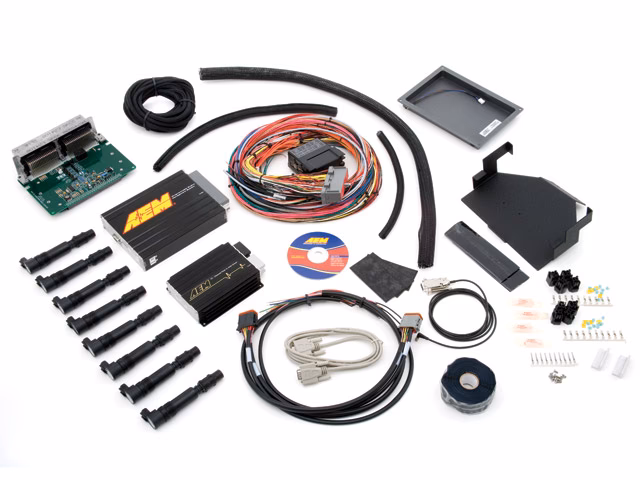

The ECU, often referred to as the Engine Control Module (ECM), is essentially a miniature computer specifically designed for automotive applications. While ECUs are found in various sectors, their role in the automotive industry is perhaps their most widely recognised and discussed. Physically, an ECU typically presents itself as a compact, robust box, often square or rectangular, equipped with numerous connectors. These connectors serve as the vital links, allowing the ECU to interface with a multitude of sensors scattered throughout the vehicle and to communicate with various actuating mechanisms. The fundamental function of an ECU is to gather real-time data from an array of sensors. These sensors monitor everything from engine temperature and manifold pressure to oxygen levels in the exhaust and throttle position. Once this information is collected, the ECU processes it according to meticulously programmed algorithms. Based on this analysis, it then sends precise electronic signals to actuators, such as fuel injectors, ignition coils, and idle air control valves, to make minute adjustments that ensure the engine runs as efficiently and powerfully as possible.

Beyond Engine Management: The Integrated ECU Network

It's a common misconception that ECUs are solely dedicated to engine management. In reality, modern vehicles are replete with ECUs, each managing a specific system. You'll find dedicated ECUs for critical components like the Anti-lock Braking System (ABS), the Supplemental Restraint System (SRS) – commonly known as airbags – and the Electronic Automatic Transmission control. These individual ECUs are not isolated entities; they are interconnected through sophisticated communication networks, the most prevalent of which is the Controller Area Network (CAN) bus. This network allows for the seamless and rapid exchange of information between different ECUs, fostering a collaborative environment where various vehicle systems can work in harmony. For instance, the ABS ECU might communicate with the engine ECU to momentarily reduce engine power during hard braking, aiding stability. Similarly, the transmission ECU communicates with the engine ECU to ensure smooth gear changes. This integrated network system is what truly elevates modern vehicles, enabling advanced features and a more refined driving experience.

Robustness and Reliability in Demanding Conditions

Automotive environments are notoriously harsh, characterised by extreme temperatures, constant vibrations, and fluctuating electrical supplies. ECUs are engineered to withstand these challenges, ensuring consistent and reliable operation. They are typically designed to operate on a 12V or 24V battery supply but can function reliably within a broader voltage range, often from 6V to 40V. Their operational temperature range is equally impressive, typically spanning from -40°C to a scorching 120°C. Furthermore, ECUs are built to endure significant vibrations, often up to 1000Hz, making them exceptionally resilient. This inherent robustness ensures that your vehicle's critical systems continue to function even under the most demanding driving conditions, from freezing winter mornings to sweltering summer commutes.

Advanced Features: Diagnostics, Self-Protection, and Learning

ECUs are not just passive processors of information; they are equipped with advanced features that enhance their functionality and longevity. One of the most crucial is fault diagnostics. If a sensor begins to malfunction or a component operates outside its expected parameters, the ECU can detect this anomaly. It often logs this fault information in its internal memory, usually a type of Random Access Memory (RAM), and may trigger a warning light on the dashboard, such as the 'Check Engine' light. Beyond mere detection, ECUs incorporate self-protection mechanisms. In the event of a critical malfunction, instead of simply shutting down, the ECU might enter a 'limp-home' mode. This mode often utilises stored driver programs within its RAM to allow the engine to continue running, albeit with reduced performance. This crucial feature enables the driver to safely reach a service centre without causing further damage to the engine. Furthermore, many modern ECUs possess active learning capabilities. This means they can adapt their fuel and ignition strategies over time based on the driving conditions and the performance of various components. For example, if a particular sensor's readings subtly change due to wear, the ECU can adjust its calculations to compensate, maintaining optimal performance and efficiency.

How EFI Systems Work: A Deeper Dive

Let's break down the core operation of an EFI system: 1. Air Intake Measurement: A crucial sensor, often the Mass Air Flow (MAF) sensor or Manifold Absolute Pressure (MAP) sensor, measures the amount of air entering the engine. This is a primary factor in determining how much fuel is needed. 2. Throttle Position: The Throttle Position Sensor (TPS) tells the ECU how far the throttle pedal is depressed, indicating the driver's demand for power. 3. Engine Speed and Position: The Crankshaft Position Sensor (CPS) and Camshaft Position Sensor (CMP) inform the ECU about the engine's rotational speed (RPM) and the precise position of the pistons and valves. This is vital for timing fuel injection and ignition. 4. Engine Temperature: The Coolant Temperature Sensor (CTS) informs the ECU about the engine's operating temperature. A cold engine requires a richer fuel mixture (more fuel), while a warm engine needs a leaner mixture (less fuel). 5. Oxygen Sensors (Lambda Sensors): Located in the exhaust system, these sensors measure the amount of unburnt oxygen in the exhaust gases. This provides critical feedback to the ECU about the efficiency of the combustion process. If the mixture is too rich (not enough oxygen), the ECU injects less fuel. If it's too lean (too much oxygen), the ECU injects more fuel. 6. Fuel Delivery: Based on all the data from these sensors and its programmed logic, the ECU calculates the precise moment and duration for which the electronic fuel injectors should open. The injectors are essentially small, electronically controlled valves that spray a fine mist of fuel directly into the intake manifold or, in more advanced systems, directly into the combustion chamber (Direct Injection). 7. Ignition Timing: The ECU also controls the ignition timing – when the spark plug fires. This is coordinated with fuel injection and engine speed to ensure optimal combustion.

Benefits of Electronic Fuel Injection

The advantages of EFI systems over older carburetor technology are numerous: * Improved Fuel Economy: Precise fuel delivery means no wasted fuel, leading to significant improvements in miles per gallon (MPG) or litres per 100 kilometres (L/100km). * Reduced Emissions: By optimising the air-fuel mixture, EFI systems ensure more complete combustion, drastically reducing harmful exhaust emissions like carbon monoxide, hydrocarbons, and nitrogen oxides. * Enhanced Performance: EFI systems can provide more power and better throttle response across the entire RPM range. * Easier Starting: Cold starts are generally smoother and more reliable, as the ECU can automatically adjust the fuel mixture for cold conditions. * Consistent Performance: EFI systems are less affected by altitude and temperature changes, providing more consistent performance regardless of environmental conditions. * Self-Diagnostic Capabilities: As mentioned, the ECU can alert the driver to potential problems, facilitating timely repairs.

Common EFI System Faults and Troubleshooting

While incredibly reliable, EFI systems can experience issues. Some common culprits include: * Faulty Sensors: A malfunctioning MAF, MAP, TPS, or oxygen sensor can send incorrect data to the ECU, leading to poor performance, increased fuel consumption, or failed emissions tests. * Clogged Fuel Injectors: Over time, deposits can build up in the fuel injectors, restricting fuel flow and leading to misfires or rough idling. * Fuel Pump Issues: A weak or failing fuel pump can result in insufficient fuel pressure, causing hesitation or power loss. * Wiring Problems: Damaged or corroded wiring to sensors or actuators can interrupt communication with the ECU. Troubleshooting EFI systems often involves using a diagnostic scanner to read fault codes stored by the ECU and then systematically testing individual components.

Frequently Asked Questions (FAQs)

Q1: Can I upgrade my car's carburetor to an EFI system?A1: Yes, it is possible, but it's a complex conversion that requires significant modifications, including installing sensors, an ECU, fuel injectors, a fuel pump, and a fuel pressure regulator. It's often more cost-effective to purchase a vehicle already equipped with EFI. Q2: How often should EFI systems be serviced?A2: EFI systems generally require very little routine maintenance. However, regular replacement of the fuel filter is crucial. Following the manufacturer's recommended service intervals for spark plugs and air filters also contributes to the overall health of the EFI system. Q3: What does the 'Check Engine' light mean?A3: The 'Check Engine' light indicates that the ECU has detected a problem with the engine or its emissions control system. It could be anything from a loose gas cap to a more serious sensor or component failure. It's advisable to have the codes read promptly to diagnose the issue. Q4: Is EFI better than Direct Injection (DI)?A4: Both are forms of fuel injection. EFI typically injects fuel into the intake manifold, while DI injects fuel directly into the combustion chamber. DI systems can offer even greater precision and efficiency, leading to higher power output and lower emissions, but they can also be more prone to carbon buildup on intake valves. Q5: Can I clean my own fuel injectors?A5: You can use off-the-shelf fuel injector cleaners added to your fuel tank, which can help remove minor deposits. For more stubborn blockages, professional cleaning using specialised equipment is recommended. In conclusion, Electronic Fuel Injection systems, powered by sophisticated ECUs, are the backbone of modern automotive engineering. Their ability to precisely control fuel delivery, adapt to changing conditions, and diagnose faults makes them indispensable for achieving the high standards of performance, efficiency, and environmental responsibility demanded by today's vehicles.
