Understanding Your Car's Electronic Fuel Injection

In the evolving landscape of automotive engineering, few advancements have had as profound an impact as the Electronic Fuel Injection (EFI) system. Replacing the venerable but less precise carburettor, EFI systems have become the cornerstone of modern vehicle performance, efficiency, and environmental compliance. If you've ever wondered how your car achieves such smooth acceleration, impressive fuel economy, and remarkably low emissions, the answer often lies within the intricate workings of its EFI system. This sophisticated technology is far more than just a fuel delivery mechanism; it's a dynamic, intelligent system that continuously optimises engine operation, adapting to a myriad of driving conditions to ensure your vehicle performs at its absolute best.

The Brains and Brawn: How EFI Systems Work

At its core, an EFI system operates on a principle of precision and real-time adjustment, a stark contrast to the mechanical nature of its carburettor predecessors. Imagine an orchestra where every instrument plays its part perfectly in sync; the EFI system orchestrates the delivery of fuel to your engine with similar harmony. The process begins with a network of sophisticated sensors strategically placed throughout the engine. These sensors are constantly gathering vital data, such as the engine's temperature, the amount of oxygen in the exhaust, the position of the throttle pedal, and even the ambient air pressure.

This torrent of information is then relayed to the Engine Control Unit (ECU), often referred to as the vehicle's brain. The ECU is a powerful computer, pre-programmed with complex algorithms and maps that dictate the optimal fuel-air mixture for virtually any operating condition. Based on the real-time sensor data, the ECU instantly calculates precisely how much fuel the engine needs at that very moment. It then sends electrical signals to the fuel injectors, commanding them to open for a specific duration, allowing a finely atomised mist of fuel to enter the engine's intake manifold or, in more advanced systems, directly into the combustion chamber. This continuous monitoring and adjustment ensure that the engine always receives the ideal fuel-air ratio for efficient combustion, leading to improved performance, reduced emissions, and exceptional fuel efficiency.

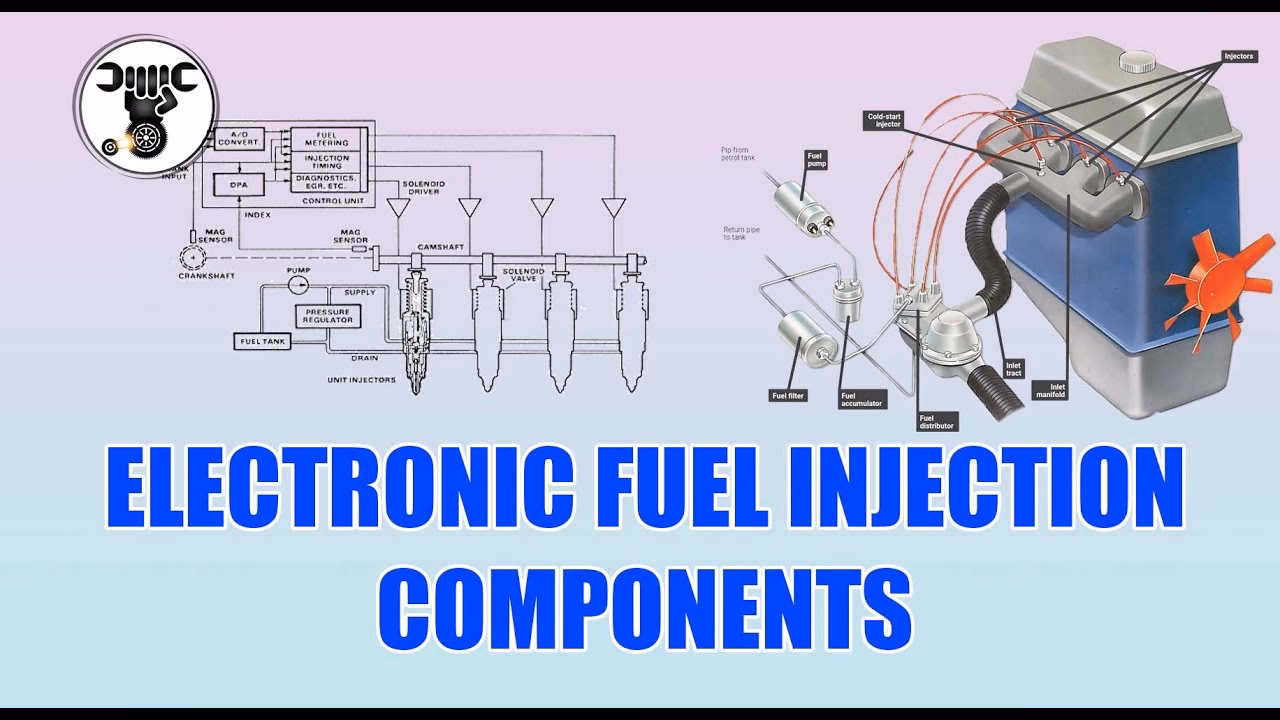

Key Components of an EFI System

To truly appreciate the elegance of EFI, it's helpful to understand the individual components that collaborate to achieve its remarkable precision. Each part plays a crucial role in the seamless operation of the system:

• Electronic Control Unit (ECU): As mentioned, this is the central processing unit. It processes sensor data, performs calculations, and sends commands to the fuel injectors and other actuators to control fuel delivery and ignition timing.
• Fuel Injectors: These are electromechanical valves that receive signals from the ECU. When activated, they spray a precise amount of fuel into the engine as a fine mist, ensuring efficient mixing with air for combustion.
• Fuel Pump: Located typically in the fuel tank, the fuel pump is responsible for drawing fuel from the tank and delivering it under high pressure through the fuel lines to the injectors. Modern vehicles almost exclusively use electric fuel pumps for their efficiency and reliability.
• Fuel Pressure Regulator: This component maintains a constant and optimal fuel pressure within the EFI system, ensuring that the injectors receive fuel at the correct pressure regardless of engine load or throttle position.
• Sensors: A variety of sensors provide crucial input to the ECU. These include:
• Throttle Position Sensor (TPS): Measures how much the throttle pedal is pressed, indicating engine load.
• Oxygen (O2) Sensor: Located in the exhaust, it measures the oxygen content, indicating how rich or lean the fuel-air mixture is after combustion.
• Mass Airflow (MAF) Sensor: Measures the amount of air entering the engine.
• Manifold Absolute Pressure (MAP) Sensor: Measures the pressure inside the intake manifold, another indicator of engine load.
• Coolant Temperature Sensor: Monitors engine temperature, vital for cold starts and warm-up enrichment.
• Air Intake System: Comprising the air filter, throttle body, and intake manifold, this system ensures a clean, controlled flow of air into the engine cylinders, which is then mixed with the injected fuel.
• Idle Air Control Valve (IACV): Regulates the engine's idle speed by controlling the amount of air bypassing the throttle plate when the throttle is closed, ensuring a smooth and stable idle.
• Wiring and Connectors: A complex network of electrical wiring and connectors transmits signals between all these components and the ECU, ensuring proper communication and functionality.

Different Breeds of EFI Systems

While the fundamental principle of EFI remains consistent, the technology has evolved, leading to several distinct types, each offering specific advantages. Understanding these variations can help you appreciate the nuances of different vehicle designs:

Why Go EFI? The Advantages

The widespread adoption of EFI systems isn't by chance; it's driven by a compelling list of advantages that significantly enhance vehicle performance, economy, and environmental impact:

• Improved Fuel Efficiency: The precise control over the fuel-air mixture ensures that every drop of fuel is utilised effectively, leading to reduced consumption and lower running costs.
• Enhanced Engine Performance: EFI systems deliver the optimal amount of fuel for any operating condition, resulting in consistent power output, smoother acceleration, and better throttle response. They eliminate common carburettor issues like hesitation, stalling, and flat spots.
• Reduced Emissions: By maintaining a precise fuel-air ratio, EFI allows for more complete combustion, significantly reducing harmful exhaust emissions. This precision is crucial for meeting stringent environmental regulations.
• Reliable Cold Starts: Unlike carburetors, which often require manual adjustments or chokes for cold starts, EFI systems automatically adjust the air-fuel mixture based on temperature sensors, ensuring quick and reliable engine starts even in freezing conditions.
• Easy Starting at High Altitudes: EFI systems automatically compensate for changes in atmospheric pressure at high altitudes, ensuring optimal fuel delivery and consistent engine performance where carburettors would struggle.
• Adaptability to Changing Conditions: The system constantly monitors various engine parameters (load, temperature, altitude) and adjusts fuel delivery accordingly, providing optimal performance across diverse driving scenarios.
• Improved Reliability and Reduced Maintenance: EFI systems are generally more robust and less prone to mechanical failure than older carburetted systems. Their diagnostic capabilities also make troubleshooting quicker and more accurate, translating to lower long-term maintenance costs.

Keeping Your EFI Running Smoothly: Maintenance Tips

While EFI systems are highly reliable, regular maintenance is crucial to ensure their longevity and optimal performance. Neglecting these simple steps can lead to costly repairs down the line:

• Regular Fuel Filter Replacement: The fuel filter is your EFI system's first line of defence against contaminants. A clogged filter restricts fuel flow, leading to poor performance and potential damage to the fuel pump or injectors. Replace it according to your manufacturer's recommended schedule.
• Use Quality Fuel: Always fill up with high-quality fuel from reputable stations. Low-quality or contaminated fuel can lead to deposits and clogging in your injectors and other fuel system components.
• Fuel Injector Cleaning: Over time, carbon deposits can build up on injectors, affecting their spray pattern. Periodically using a quality fuel injector cleaning additive, or having a professional cleaning service, can help maintain optimal fuel atomisation.
• Regular Engine Maintenance: A well-maintained engine, with regular oil changes, spark plug inspections, and air filter replacements, indirectly benefits the EFI system by ensuring clean combustion and proper airflow.
• Keep Intake Components Clean: The throttle body and intake manifold can accumulate carbon deposits. Regular cleaning with appropriate cleaners prevents airflow restrictions, ensuring the correct air-fuel mixture.
• Check and Maintain Sensors: The various sensors are vital for accurate fuel delivery. Periodically inspect and clean sensors like the MAF and TPS to ensure they are functioning correctly and providing accurate data to the ECU.
• Regular System Inspection: Routinely check your EFI system for any visible signs of leaks, loose electrical connections, or worn-out hoses and components. Addressing these promptly can prevent more significant issues.
• Follow Manufacturer’s Service Recommendations: Adhere strictly to the service intervals outlined in your vehicle's owner's manual. This includes scheduled diagnostics and inspections by a qualified technician who can spot potential issues early.

Troubleshooting Common EFI Gremlins

Even with excellent maintenance, EFI systems can occasionally develop issues. Here are some common problems and what they might indicate:

• Clogged Injectors: Symptoms include rough idling, misfires, poor acceleration, or reduced fuel economy. Often caused by fuel deposits, they may require cleaning or replacement.
• Fuel Pressure Issues: If the engine sputters, struggles to start, or lacks power, it could be due to insufficient or excessive fuel pressure. This often points to a failing fuel pump or a faulty fuel pressure regulator.
• Oxygen (O2) Sensor Problems: A faulty O2 sensor can lead to improper fuel mixtures, causing poor performance, increased emissions, and sometimes a 'check engine' light.
• Throttle Position Sensor (TPS) Malfunction: Symptoms include erratic idle, hesitation during acceleration, or a sudden loss of power.
• Vacuum Leaks: Leaks in the intake manifold or vacuum lines can introduce unmetered air, leading to a rough idle, stalling, or poor fuel economy.
• Wiring or Connector Problems: Loose, corroded, or damaged wiring can disrupt communication within the EFI system, leading to various performance issues or system failures.
• ECU Issues: While rare, a malfunctioning ECU can cause erratic engine behaviour, incorrect fuel delivery, or complete system failure. This typically requires professional diagnosis and replacement.
• Ignition System Problems: Misfires or a lack of power, although not directly an EFI component issue, can affect how the EFI system perceives engine health. Faulty spark plugs, ignition coils, or control modules should be checked.

For complex EFI issues, it is always advisable to consult a professional mechanic with expertise in these systems, as specialised diagnostic tools are often required.

The Road Ahead: Future of EFI Technology

The evolution of EFI systems is far from over. As the automotive industry pushes towards even greater efficiency, lower emissions, and the integration of new technologies, EFI continues to adapt and innovate:

• Increased Precision and Efficiency: Future systems will leverage even more sophisticated sensors and algorithms to achieve ultra-fine control over fuel delivery, pushing the boundaries of fuel economy and performance.
• Advanced Direct Injection: GDI technology will continue to be refined, potentially integrating with variable compression ratios and other engine innovations for even greater efficiency gains.
• Integration with Hybrid and Electric Powertrains: As hybrid and electric vehicles become more prevalent, EFI systems will adapt to work seamlessly within these complex powertrains, optimising fuel usage in hybrid modes and contributing to overall energy management.
• Artificial Intelligence and Machine Learning: The integration of AI and machine learning into the ECU will allow for real-time adaptive learning, enabling the system to optimise fuel delivery based on individual driving styles, environmental conditions, and even predicted road conditions.
• Alternative Fuel Compatibility: EFI systems are being designed to handle a broader range of alternative fuels, including advanced biofuels and potentially hydrogen, as the world moves away from traditional fossil fuels.
• Miniaturisation and Integration: Components will become smaller and more integrated into the engine design, improving reliability and reducing complexity.

Frequently Asked Questions (FAQs)

Here are some common questions vehicle owners have about Electronic Fuel Injection systems:

Q: Can I convert my old carburetted car to EFI?
A: Yes, it is possible to convert older carburetted vehicles to aftermarket EFI systems. This can significantly improve performance, fuel economy, and reliability, though it requires significant mechanical work and investment.

Q: How often should fuel injectors be cleaned?
A: There isn't a fixed schedule, as it depends on fuel quality and driving conditions. However, using a good quality fuel system cleaner every 10,000 to 15,000 miles is a good preventative measure. If you notice symptoms like rough idle or misfires, a professional cleaning might be necessary sooner.

Q: What are the main signs of a failing EFI system?
A: Common signs include a 'check engine' light, reduced fuel economy, rough idling, engine misfires, difficulty starting (especially in cold weather), hesitation during acceleration, or a noticeable decrease in engine power.

Q: Is EFI more expensive to maintain than a carburettor?
A: While individual EFI components can sometimes be more expensive to replace than carburettor parts, EFI systems generally require less frequent maintenance and offer greater reliability, potentially leading to lower overall long-term costs. Their diagnostic capabilities also make troubleshooting more efficient.

Q: Does EFI work with turbochargers?
A: Absolutely. Modern EFI systems, especially Gasoline Direct Injection (GDI) systems, are highly compatible with turbocharging. The precise fuel control offered by EFI is crucial for managing the increased air intake and combustion demands of turbocharged engines, allowing for both power and efficiency.

Conclusion

The Electronic Fuel Injection system is a true marvel of modern automotive engineering, silently working behind the scenes to deliver optimal performance, impressive fuel economy, and a significant reduction in harmful emissions. From its intricate network of sensors to the intelligent calculations of the ECU and the precise delivery by the injectors, every component plays a vital role in ensuring your vehicle runs smoothly and efficiently. Understanding this technology not only deepens your appreciation for your car but also empowers you to undertake basic maintenance and recognise potential issues. As the automotive world continues its journey towards electrification and sustainable mobility, EFI systems will undoubtedly evolve further, remaining at the forefront of engine technology, ensuring that future vehicles are even cleaner, more powerful, and remarkably efficient.
