Electric Scooter Braking Systems Explained

Understanding Your Electric Scooter's Stopping Power

When it comes to electric scooters, the ability to stop safely and effectively is paramount. While the electric motor provides the propulsion, it's the braking system that ensures you can navigate traffic, descend hills, and come to a halt with confidence. Over the years, electric scooters have adopted various braking technologies, each with its own set of advantages and disadvantages. Understanding these systems can help you make informed decisions about maintenance, performance, and even choosing your next scooter. Let's delve into the common types of braking systems you'll find on electric scooters today.

Drum Brakes: The Enclosed Workhorse

Drum brakes might evoke a sense of nostalgia, harking back to older automotive designs, but they remain a surprisingly effective and low-maintenance option for electric scooters. The fundamental principle behind a drum brake is elegantly simple yet robust. Encased within the wheel hub, a rotating drum is met by brake shoes or pads that are forced outwards. This outward pressure creates friction against the inner surface of the drum, gradually slowing the wheel's rotation. A key benefit of this design is its enclosed nature. By being housed within the hub, the braking mechanism is shielded from the elements – water, dirt, and dust are largely kept at bay, which can contribute to a longer lifespan and reduced need for frequent cleaning.

However, this enclosure does present a potential drawback: heat dissipation. Compared to their more exposed counterparts, drum brakes tend to struggle with overheating, especially under heavy or prolonged braking. While this is a significant concern for heavier and faster vehicles like cars, it's generally less of an issue for electric scooters, which operate at lower speeds and weights. When a drum brake is functioning optimally, its stopping power can be nearly as effective as that of a disc brake. It's important to note that the presence of drum brakes on an electric scooter is not a sign of inferior quality; it simply represents a different engineering approach.

The activation of drum brakes on most electric scooters is typically mechanical, initiated by a cable that connects to the brake lever. When you pull the lever, this cable actuates a mechanism, often involving a cylinder with pistons that uses hydraulic pressure to push the brake shoes firmly against the drum. This combination ensures a reliable engagement of the braking force.

Advantages of Drum Brakes:

• Low Maintenance: They are generally less prone to wear and tear, requiring less frequent adjustments or replacements.
• Environmental Protection: The enclosed design offers excellent protection against dirt, water, and dust.
• Consistent Wet Performance: They tend to perform well even in wet conditions, as the internal components are shielded.

Disadvantages of Drum Brakes:

• Less Powerful Than Disc Brakes: In terms of sheer stopping force, they are often outmatched by disc brake systems.
• Heat Sensitivity: They can lose braking effectiveness quickly when they overheat.
• Complexity for Repairs: If maintenance or repair is needed, they can be more intricate to work on.
• Bulkier Design: They are typically larger and heavier than disc brake components, adding to the overall weight and volume of the wheel.

Disc Brakes: The Modern Standard

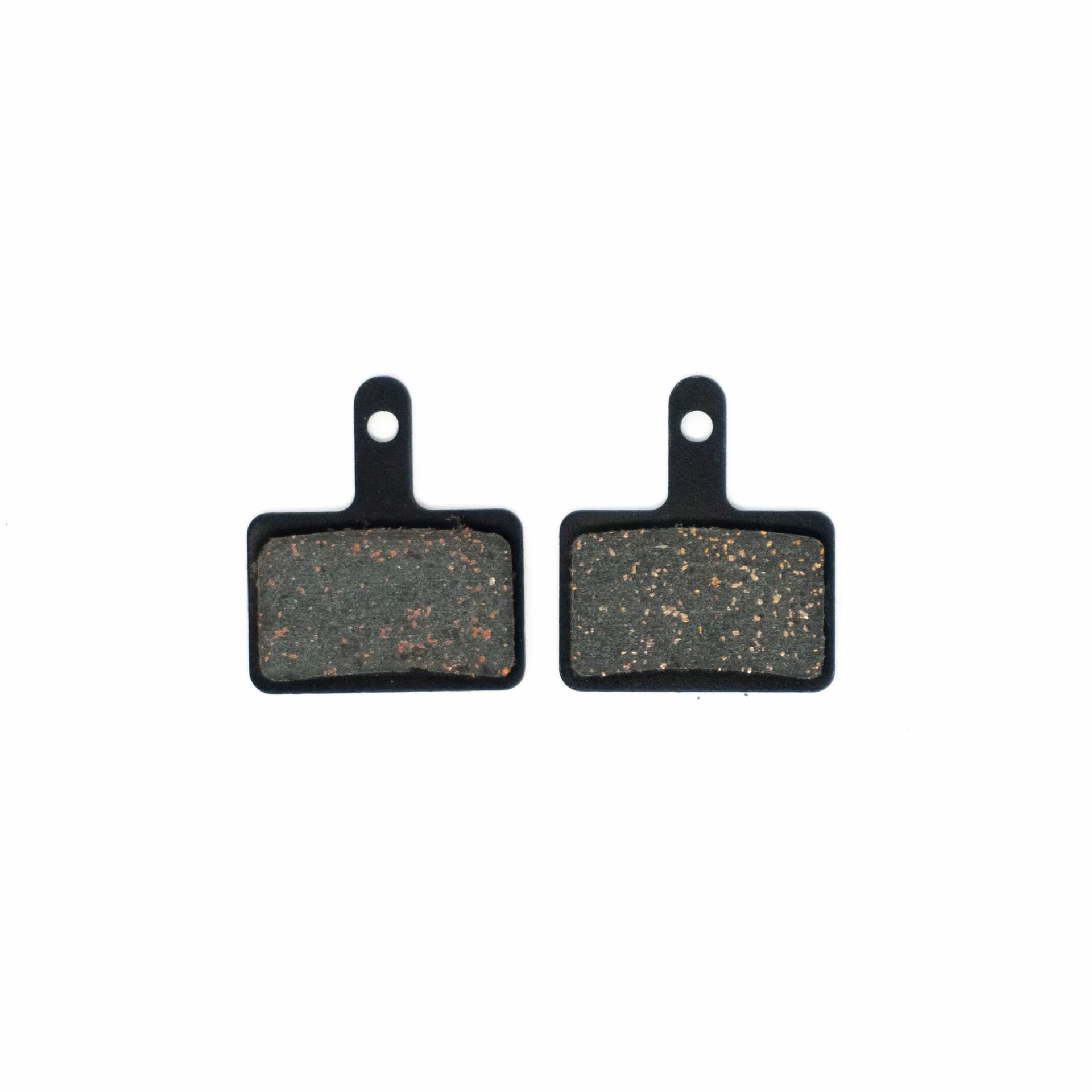

Disc brakes have become the dominant braking technology in both the automotive and electric scooter industries, and for good reason. They offer superior performance, particularly in terms of stopping power and heat management. A disc brake system consists of a rotor (a metal disc) that is attached to the wheel hub and a caliper that houses brake pads. When you apply the brakes, hydraulic fluid (in hydraulic systems) or a cable (in mechanical systems) pushes the brake pads inwards, clamping them onto the rotor. The resulting friction between the pads and the rotor is what slows the wheel down. This direct friction is incredibly effective at converting kinetic energy into heat, which is then dissipated.

The primary advantage of disc brakes lies in their excellent ability to handle heat. The rotor is exposed to the air, allowing for efficient cooling. This means that even during repeated or heavy braking, disc brakes are less likely to experience the dreaded brake fade that can plague drum brakes. This makes them ideal for descents, enthusiastic riding, or situations where frequent stopping is required. Furthermore, the direct application of force makes them generally more powerful than drum brakes, offering a more responsive and immediate braking feel. The simpler design of the caliper and pads also often makes them easier to maintain and service compared to the enclosed nature of drum brakes.

Disc brakes can be further categorised into mechanical and hydraulic systems:

Mechanical Disc Brakes:

These systems use a cable to transmit the braking force from the lever to the caliper. When you pull the brake lever, the cable tightens, pulling on a mechanism within the caliper that forces the brake pads against the rotor. Mechanical disc brakes are generally simpler, cheaper to manufacture, and easier to adjust than hydraulic systems. However, they can require more frequent cable adjustments as the cables stretch over time, and they may not offer the same level of modulation or power as hydraulic brakes.

Hydraulic Disc Brakes:

In hydraulic disc brake systems, the brake lever is connected to a master cylinder that pushes brake fluid through a hose to the caliper. The fluid pressure then forces pistons within the caliper to engage the brake pads with the rotor. Hydraulic systems offer several advantages: they provide a more powerful and consistent braking feel, require less force at the lever for the same stopping power, and are generally self-adjusting as the pads wear. The sealed nature of hydraulic systems also means they are less susceptible to contamination from the elements compared to mechanical cables. However, they can be more complex to bleed (remove air from the system) and may require more specialised tools for maintenance.

Advantages of Disc Brakes:

• Superior Stopping Power: Offer greater force and quicker stopping distances.
• Excellent Heat Dissipation: Less prone to brake fade due to efficient cooling.
• Consistent Performance: Reliable stopping power in various conditions.
• Easier Maintenance (Pads): Brake pad replacement is often more straightforward.
• Better Modulation: Allows for finer control over braking force.

Disadvantages of Disc Brakes:

• More Exposed to Elements: Rotors and pads can be more susceptible to dirt and water ingress.
• Higher Maintenance (Hydraulic): Hydraulic systems can require bleeding and specialised fluid.
• Potentially Higher Cost: Often found on more premium scooter models.
• Can Be Noisy: Squealing or grinding can occur if not properly maintained or if debris is present.

Other Braking Systems

While drum and disc brakes are the most prevalent, some electric scooters might feature other braking mechanisms or supplementary systems:

Electronic Brakes (E-Brakes):

Many electric scooters incorporate an electronic braking system, often referred to as an e-brake. This system typically works in conjunction with the motor. When you engage the brake lever or a dedicated button, the motor's controller reverses its function, acting as a generator. This process converts the scooter's kinetic energy back into electrical energy, which can then be stored in the battery or dissipated as heat. This regenerative braking provides a gentle slowing effect and can help to extend the battery range. The intensity of e-braking can often be adjusted in the scooter's settings.

Foot Brakes (Fenders):

Some entry-level or simpler electric scooters might feature a foot brake, often integrated into the rear fender. Pressing down on the fender with your foot forces it against the rear tyre, creating friction to slow the scooter. While simple and intuitive, these are generally the least powerful braking option and are best used as a supplementary or emergency brake rather than a primary stopping method.

Braking System Comparison

To summarise the key differences, consider this comparison:

Frequently Asked Questions (FAQ)

Which type of brake is best for an electric scooter?

For most riders, hydraulic disc brakes offer the best combination of stopping power, control, and reliability. However, for those prioritising low maintenance and protection from the elements, drum brakes can be a perfectly adequate choice, especially for less demanding riding conditions.

How often should I check my scooter's brakes?

It's recommended to visually inspect your brake pads and rotors (if applicable) for wear at least once a month. For mechanical brakes, check cable tension. For hydraulic brakes, ensure there are no fluid leaks. Always test your brakes before each ride.

What is brake fade?

Brake fade is a phenomenon where brakes lose their effectiveness, primarily due to overheating. When components like brake pads and rotors get too hot, their friction properties diminish, leading to reduced stopping power. This is why efficient heat dissipation, as seen in disc brakes, is crucial.

Can I upgrade my scooter's brakes?

Yes, in many cases, it is possible to upgrade your scooter's braking system, for example, from mechanical disc brakes to hydraulic disc brakes, or even to larger rotors for increased stopping power. However, compatibility needs to be carefully checked, and professional installation might be advisable.

Do electronic brakes replace traditional brakes?

Electronic brakes are typically designed to supplement, not replace, traditional mechanical or hydraulic brakes. They provide an additional layer of braking and can help conserve battery life through regenerative braking, but the primary stopping force usually comes from the conventional brake system.

Conclusion

The braking system of your electric scooter is a critical safety feature. Whether your scooter is equipped with the low-maintenance, protected drum brakes, the powerful and responsive disc brakes (mechanical or hydraulic), or benefits from the efficiency of electronic braking, understanding how these systems work ensures you can maintain them properly and ride with confidence. Regular checks and prompt attention to any signs of wear or malfunction are essential for keeping your electric scooter's stopping power in top condition.
