Electric Log Splitter Hydraulic Fluid Guide

Keeping your electric log splitter in optimal working condition is crucial for efficient wood processing. One of the most vital aspects of this maintenance is ensuring the correct level of hydraulic fluid. This fluid is the lifeblood of the splitter's ram mechanism, providing the power to cleave even the toughest logs. However, a common question that arises is: how much hydraulic fluid does an electric log splitter actually take? The answer, as with many mechanical queries, is not a one-size-fits-all figure. It largely depends on the specific model and its capabilities, particularly its tonnage rating.

Understanding Hydraulic Fluid in Log Splitters

Hydraulic fluid is a non-compressible liquid that transmits power in hydraulic systems. In an electric log splitter, this fluid is pumped from a reservoir, through hoses and valves, to a hydraulic cylinder. The pressure built up by the pump forces the piston within the cylinder to extend, driving the splitting wedge into the log. When the cycle is complete, the fluid is redirected, allowing the ram to retract. The type and amount of fluid are critical for efficient operation and to prevent damage to the pump, seals, and cylinder.

Factors Influencing Hydraulic Fluid Capacity

The primary factor determining the hydraulic fluid capacity of an electric log splitter is its tonnage rating. Tonnage refers to the splitting force the machine can exert. Generally, larger and more powerful log splitters, those with higher tonnage ratings, will have larger hydraulic systems and thus require more hydraulic fluid.

Another factor can be the design of the hydraulic system itself, including the size of the reservoir and the diameter and stroke length of the hydraulic cylinder. Even within the same tonnage category, different manufacturers might employ slightly different system designs, leading to minor variations in fluid requirements.

Typical Hydraulic Fluid Capacities by Tonnage

While it's essential to consult your owner's manual for the precise amount, we can provide general guidelines based on common electric log splitter tonnage:

A good rule of thumb is that smaller, lighter-duty electric log splitters, often in the 5-ton to 10-ton range, typically require less hydraulic fluid. For these units, you might find the capacity to be around 1.5 to 3 quarts (approximately 1.4 to 2.8 litres).

Moving up to mid-range electric log splitters, typically those rated between 15 and 20 tons, the hydraulic fluid requirement increases. These machines often need between 2 to 4 quarts (approximately 1.9 to 3.8 litres) of hydraulic fluid.

For more robust electric log splitters, particularly those in the 24-ton range, the hydraulic fluid capacity generally falls between 2 to 4 quarts (approximately 1.9 to 3.8 litres). This is a common and popular size for home and semi-professional use.

If your electric log splitter operates using a system larger than 24-ton, such as 25-ton or higher, then you may require up to 6 quarts (approximately 5.7 litres) of hydraulic fluid. These larger units have more substantial hydraulic cylinders and pumps to generate their increased splitting force.

Table: Estimated Hydraulic Fluid Capacity by Tonnage

Please note: These are general estimates. Always refer to your log splitter's owner's manual for precise specifications.

What Type of Hydraulic Fluid to Use?

Using the correct type of hydraulic fluid is just as important as using the correct amount. Most electric log splitters are designed to use standard hydraulic fluid, often a high-quality AW (Anti-Wear) hydraulic oil. Common specifications include:

• ISO VG 32 or **ISO VG 46: These are viscosity grades. ISO VG 32 is a lighter oil, suitable for cooler climates or splitters that operate in a wider temperature range. ISO VG 46 is a slightly heavier oil, often preferred for warmer conditions or when a bit more viscosity is beneficial for seal retention.
• Detergent-free hydraulic oil: It's important to use a fluid that doesn't contain detergents, as these can sometimes degrade seals over time.

Always check your owner's manual for the manufacturer's specific recommendation. Using the wrong type of fluid can lead to poor performance, overheating, and potential damage to the hydraulic components.

Checking and Topping Up Hydraulic Fluid

Regularly checking your hydraulic fluid level is a key part of log splitter maintenance. Here’s how to do it:

1. Ensure the machine is off and cool: Never check or add fluid when the machine is running or the hydraulic system is hot.
2. Locate the reservoir: The hydraulic fluid reservoir is typically a translucent tank or a metal tank with a dipstick or a fill port.
3. Check the fluid level: Most reservoirs have a sight glass or markings indicating the 'Full' and 'Add' levels. If there's a dipstick, remove it, wipe it clean, reinsert it fully, and then remove it again to read the level.
4. Add fluid if necessary: If the level is low, add the recommended hydraulic fluid slowly, checking the level frequently as you go. Do not overfill.
5. Replace the cap securely: Ensure the reservoir cap or fill plug is tightly secured after topping up.

It's also a good practice to inspect the fluid for contamination. If the fluid appears milky, foamy, or contains debris, it may need to be completely drained and replaced.

When to Replace Hydraulic Fluid

Hydraulic fluid doesn't last forever. Over time, it can degrade due to heat, contamination, and oxidation. Manufacturers typically recommend changing the hydraulic fluid:

• Annually, especially if the log splitter is used frequently.
• After a specific number of operating hours (e.g., every 100-200 hours).
• If the fluid appears contaminated or discoloured.

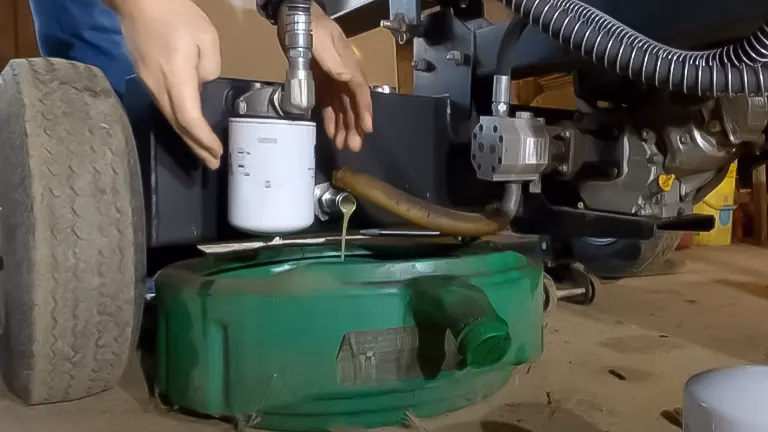

Replacing the fluid involves draining the old fluid, flushing the system if necessary (though this is less common for consumer-grade electric splitters), and refilling with fresh, recommended hydraulic fluid. Dispose of old hydraulic fluid responsibly, as it is an environmental pollutant.

Troubleshooting Low Hydraulic Fluid

If you find yourself constantly needing to top up the hydraulic fluid, it indicates a potential leak in the system. Common sources of leaks include:

• Damaged hydraulic hoses
• Worn or damaged seals on the hydraulic cylinder or pump
• Loose fittings or connections

If you suspect a leak, it's crucial to identify and repair it promptly. Operating a log splitter with a low hydraulic fluid level can cause the pump to cavitate, leading to premature wear and potential failure. Furthermore, a leak means the system isn't operating at the correct pressure, reducing splitting efficiency.

Frequently Asked Questions

Q1: Can I use motor oil instead of hydraulic fluid in my electric log splitter?

A1: No, it is generally not recommended to use motor oil. Hydraulic fluid has specific properties, such as viscosity stability and anti-wear additives, that are essential for the proper functioning and longevity of hydraulic systems. Motor oil can have different viscosity characteristics and additive packages that may not be suitable and could potentially damage your log splitter.

Q2: How often should I check the hydraulic fluid level?

A2: It's a good practice to check the hydraulic fluid level before each use, especially if you've been using the splitter for an extended period or notice any changes in performance. Regular checks are key to preventing issues.

Q3: What happens if I overfill the hydraulic fluid?

A3: Overfilling can cause the fluid to expand with heat, potentially leading to increased pressure within the system, which could damage seals or even the reservoir itself. It can also lead to the fluid aerating (forming bubbles), which reduces efficiency and can cause damage to the pump.

Q4: Where can I find my log splitter's owner's manual?

A4: Your owner's manual should have come with your log splitter when you purchased it. If you've misplaced it, you can usually find a digital copy (PDF) on the manufacturer's website by searching for your specific model number.

Q5: Is there a difference between hydraulic fluid for gas and electric log splitters?

A5: While the fundamental principles are the same, the specific recommendations for fluid type and viscosity might differ slightly between gas and electric models due to variations in engine/motor heat and pump types. Always refer to the manual for your specific unit, regardless of its power source.

In conclusion, understanding and maintaining the correct hydraulic fluid level in your electric log splitter is fundamental to its performance and lifespan. While general guidelines exist, always prioritize the specific recommendations found in your owner's manual to ensure your machine splits wood efficiently and safely for years to come.
