Revive Your Mower: PTO Clutch Troubleshooting

A well-maintained lawn is a source of pride for many homeowners across the UK. However, the heart of your riding mower's cutting capability lies within its Power Take-Off (PTO) clutch. This crucial component transfers power from the engine to the cutting blades, making grass-cutting possible. Without a functional PTO clutch, your riding mower becomes little more than a slow, single-passenger vehicle, rendering your gardening efforts futile. Understanding how this vital part works and, more importantly, how to troubleshoot common issues can save you time, money, and a great deal of frustration.

This article will delve into the intricacies of electric PTO clutches, outlining their function, identifying common symptoms of failure, and providing a step-by-step guide to diagnosing and resolving these problems. Whether your clutch isn't engaging, slips under load, or is making an alarming racket, we've got you covered. Let's get your mower back to tip-top shape!

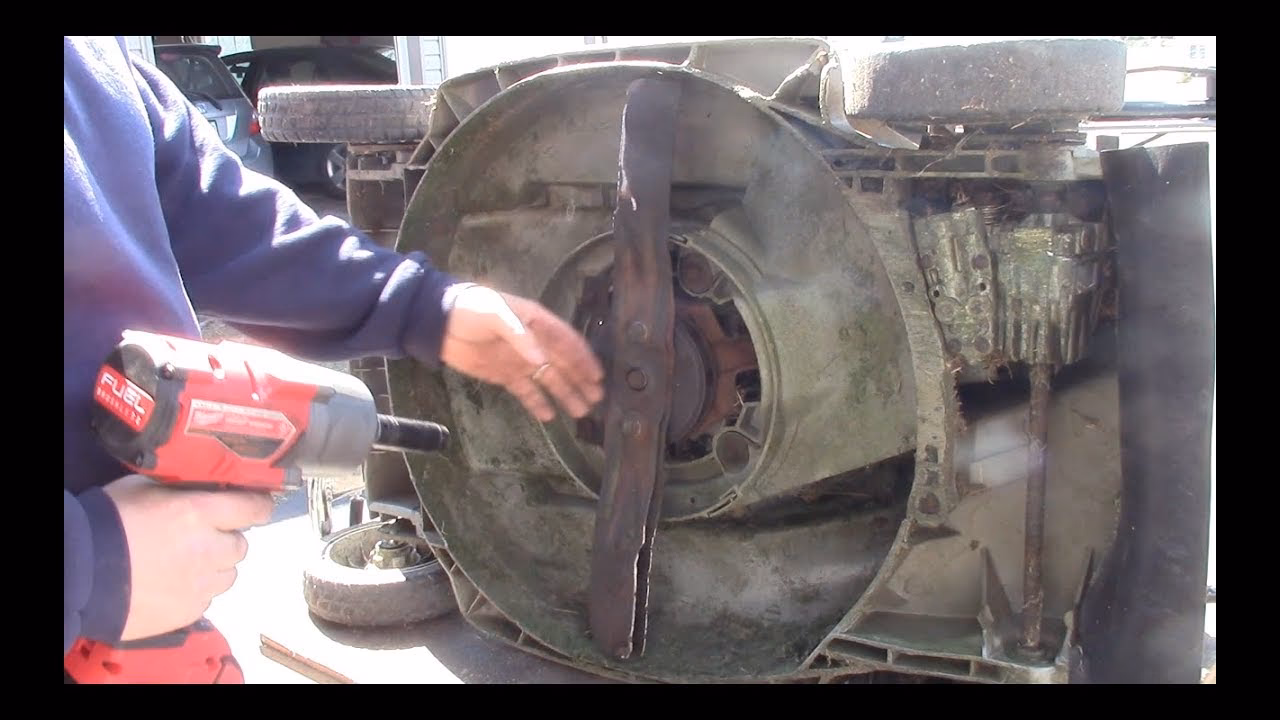

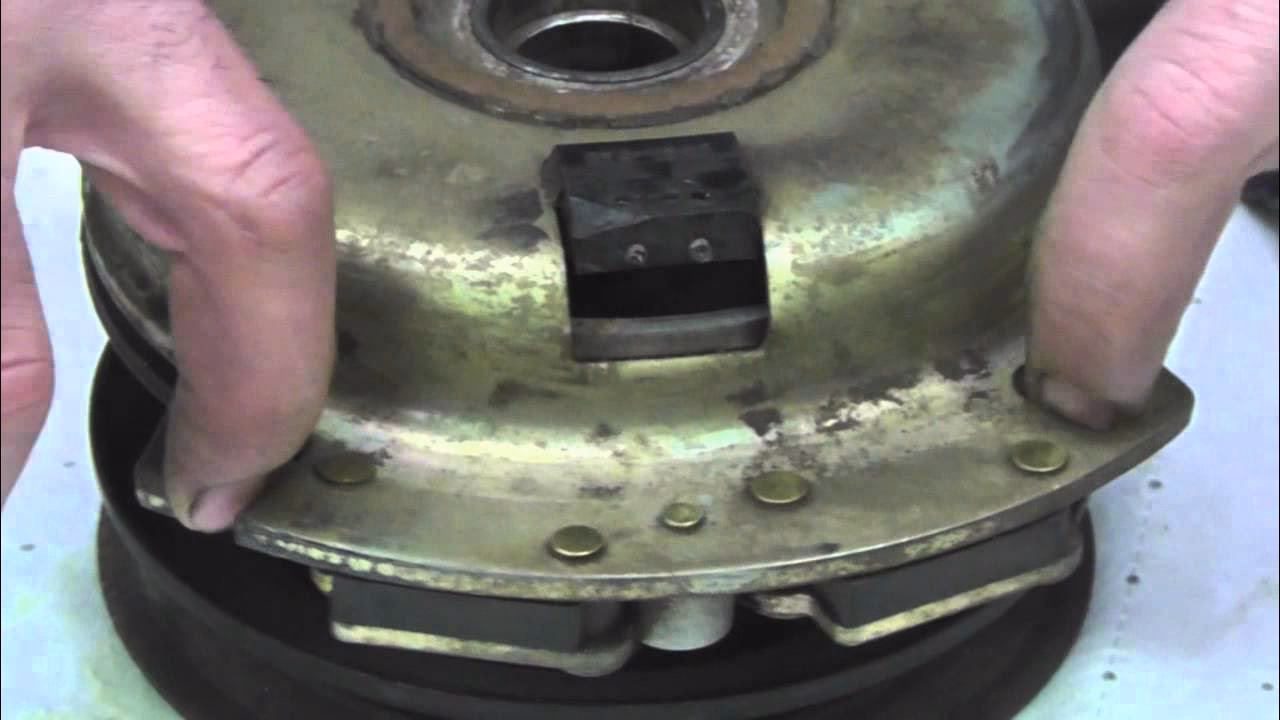

Understanding Your Electric PTO Clutch

The electric PTO clutch is an ingenious device that serves as the critical link between your mower's powerful engine and its cutting blades. When you activate the PTO switch, typically located on your mower's dashboard, you send an electrical current to an internal electromagnetic coil within the clutch assembly. This coil, when energised, creates a powerful magnetic field.

This magnetic field then pulls a flat metal disc, known as the armature, towards the spinning rotor, which is directly connected to the engine's crankshaft. This magnetic attraction brings the two clutch plates together, effectively engaging the clutch and transferring the engine's rotational power to the blade shaft. Suddenly, your mower's blades spring to life, ready to tackle even the toughest lawns.

Conversely, when you disengage the PTO switch, the electrical flow to the coil is interrupted, causing the magnetic field to collapse. The clutch plates then separate, and the blades rapidly decelerate and stop spinning. This 'on-demand' power transfer system allows you to control the blades independently of the engine, providing a crucial safety feature and enhancing operational flexibility. However, like any mechanical component, PTO clutches are subject to wear and can develop faults. Recognising the signs of trouble early is key to effective troubleshooting.

Common Symptoms of a Faulty PTO Clutch

Before diving into specific fixes, it's important to identify the tell-tale signs that your PTO clutch might be on the fritz. Early detection can prevent more severe damage and simplify the repair process. Here are the most common symptoms you should be worried about:

• Clutch Does Not Engage: You flick the PTO switch, but the blades remain stubbornly still. There's no whirring sound, no engagement, just the engine running idly.
• Clutch Slips During Operation: The blades engage, but as soon as they encounter resistance (e.g., thick grass), they slow down or stop completely, even though the engine continues to run at full throttle. This indicates a loss of grip.
• Clutch Vibrates or Makes Unnecessary Noise: When the PTO is engaged, you might notice excessive vibration emanating from the clutch area, or hear unusual grinding, squealing, or rattling noises that weren't present before.

Each of these symptoms points to different underlying issues, requiring specific diagnostic steps and solutions. Let's break down the troubleshooting process for each scenario.

Troubleshooting Guide: When Your Clutch Won't Engage

When your PTO clutch fails to engage, it's often an electrical problem, but mechanical issues can also play a role. A systematic approach is essential to pinpoint the exact cause.

Low Voltage & Battery Issues

The electromagnetic coil within the PTO clutch requires a specific voltage to generate a strong enough magnetic field for engagement. Insufficient power is a common culprit.

• Diagnosis: Begin by checking the voltage at the clutch wire using a voltmeter. Connect the voltmeter's positive lead to the clutch wire (with the PTO switch activated) and the negative lead to a good ground point on the mower chassis. Your battery, assuming it's a 12-volt system, should be delivering between 8 and 16 volts to the clutch.
• Causes: A defective battery that isn't holding a charge, a faulty charging circuit (alternator/stator), or excessive resistance in the wiring can all lead to low voltage.
• Fixes:
  1. Check Battery Voltage: First, ensure your mower's battery itself has adequate charge, ideally 12-14 volts at its terminals. If not, charge or replace the battery.
  2. Inspect Charging Circuit: If the battery is good but still not delivering power, the charging system might be at fault. This is a more complex repair that might require professional assistance.

Wiring Integrity

Damaged or compromised wiring can prevent the necessary voltage from reaching the clutch, leading to erratic behaviour or complete failure to engage.

• Diagnosis: Visually inspect the entire wiring harness leading from the battery and PTO switch to the clutch. Look for any cuts, frays, kinks, pinches, or signs of corrosion on the terminals.
• Causes: Rodent damage, abrasion against moving parts, or simply age can cause wires to break internally or short out intermittently. An intermittently grounding lead wire can cause the clutch to turn on and off erratically or not receive full voltage. A kinked or pinched wire with an internal break might manifest as erratic engagement.
• Fixes:
  1. Repair or Replace Damaged Wires: If you find any damage, repair the section of the wire using appropriate connectors and heat shrink tubing, or replace the entire lead wire if the damage is extensive or internal.
  2. Check In-Line Fuses: Many mower electrical systems include in-line fuses to protect components. Locate and check any fuses in the PTO circuit. A blown fuse will certainly prevent engagement.
  3. Verify Ground Connection: Ensure the clutch has a solid ground connection to the mower chassis. Poor grounding is a frequent cause of electrical issues. Clean any rusty or corroded ground points.

Internal Coil Problems

Even if voltage is reaching the clutch, an internal fault with the electromagnetic coil can prevent engagement.

• Diagnosis: If you have confirmed proper voltage and wiring, the issue might be an open or shorted coil. You can test the coil's resistance using an ohmmeter. Disconnect the clutch's electrical connector and measure the resistance across the coil terminals.
• Causes: Overheating, physical damage, or simply age can cause the coil windings to break (open circuit) or short out, preventing the magnetic field from forming. A typical resistance range for a healthy coil at an ambient temperature of 20°C (70°F) is usually around 3 to 4 ohms. Consult your mower's service manual for the exact specification.
• Fixes: If the ohmmeter reading is significantly outside the specified range (e.g., infinite resistance for an open circuit, or zero/very low resistance for a short), the coil is defective. In most cases, the coil is an integral part of the clutch assembly, meaning you'll need to replace the entire clutch.

When to Consider Replacement

If you've systematically checked all electrical connections, verified voltage and grounding, and tested the coil, yet the clutch still refuses to engage, it's highly probable that the clutch has suffered unidentified internal mechanical or electrical damage that cannot be easily repaired. In such scenarios, replacing the entire electric PTO clutch unit with a new one is the most reliable and often the only solution.

Tackling a Slipping PTO Clutch

A slipping PTO clutch is not only frustrating but also inefficient, leading to uneven cuts and excessive wear on the clutch itself. Slipping occurs when the clutch can't maintain sufficient grip to transfer the required torque.

Contamination and Debris

Foreign substances on the clutch surfaces are a primary cause of slipping.

• Diagnosis: If your clutch is slipping, the first suspect is contamination. This often becomes evident after disassembling the clutch. Look for physical evidence such as burnt oil, a greasy metallic surface, or a buildup of dirt and grass clippings between the armature, rotor, and brake surfaces.
• Causes: Oil or other lubricants might have been accidentally sprayed onto the clutch surfaces during maintenance. Excessive grass buildup on the mowing deck, pulleys, or worn bearings in the driven system can also create resistance, causing the clutch to slip.
• Fixes:
  1. Clean Surfaces: Carefully disassemble the clutch to access the friction surfaces. Clean off any oil, grease, dirt, or gunk using a suitable solvent (e.g., brake cleaner or a dedicated degreaser). Ensure the surfaces are completely dry and free of residue.
  2. Re-burnish: After cleaning, it's often recommended to 're-burnish' the clutch surfaces by engaging and disengaging the PTO a few times under light load to help them seat properly again.
  3. Remove Grass Buildup: Thoroughly clean any accumulated grass clippings from the mowing deck, pulleys, and around the clutch assembly. Excessive buildup creates drag.

Overload and Wear

Sometimes, the clutch simply isn't up to the task, or its components are worn out.

• Diagnosis: If the clutch slips continuously despite being clean, consider if the output torque required for the application (e.g., cutting very tall, dense grass) is greater than what the clutch is designed to handle. This can lead to excessive slipping, generating heat that can 'gall' or damage the clutch surfaces. Similarly, if the output is stalled (e.g., blades jammed by an obstruction), the clutch will slip continuously, potentially burning up and destroying bearings or the field coil. Worn clutch plates, pulleys, or bearings in the driven system (where the belt goes) can also contribute to slipping.
• Causes: Undersized clutch for the application, consistent overloading, or worn-out internal components like the clutch plates themselves, or worn pulleys and bearings in the drive system.
• Fixes:
  1. Check Drive System: Remove the belt from the clutch and manually check the pulleys and bearings of the driven system. They should spin smoothly without resistance. If they are stiff, wobbly, or noisy, replace them.
  2. Assess Application: Ensure the clutch is correctly sized for your mower's intended use. If you're consistently overloading it, you might need to consider a heavy-duty replacement.
  3. Replace Clutch: If contamination has been ruled out and the clutch surfaces are severely galled or worn due to prolonged slipping or stalling, the entire clutch unit will need to be replaced.

Diagnosing Noise and Vibration

Unusual noises or excessive vibration from your PTO clutch are clear indicators of mechanical issues that need immediate attention. Ignoring these can lead to catastrophic failure.

Anti-Rotation Device and Mounting

The clutch needs to be securely mounted and have a functioning anti-rotation mechanism to prevent it from spinning with the engine.

• Diagnosis: Listen carefully to the type of noise. Is it a rattle, a grind, or a wobble? Often, excessive noise and vibration occur when the anti-rotation device (a bracket or pin that keeps the clutch housing from spinning) becomes worn or loose, or if the clutch bolt isn't tightened correctly. A wobbling clutch can also indicate a loose mounting.
• Causes: Worn anti-rotation pins/brackets, loose clutch mounting bolt, or an improperly seated clutch on the crankshaft.
• Fixes:
  1. Inspect Anti-Rotation Mechanism: Check the anti-rotation device. If it's worn, bent, or damaged, replace it. There should be some noise and vibration, but if it's excessive, sometimes increasing the air gap (the small space between the clutch components when disengaged) can help, though this is less common for user adjustment.
  2. Tighten Clutch Bolt: Ensure the main clutch bolt that secures it to the crankshaft is tightened to the manufacturer's specified torque. A loose bolt will cause wobble and vibration.

Internal Components and Crankshaft

Internal wear or damage within the clutch or to the crankshaft itself can also lead to noise and vibration.

• Diagnosis: If the clutch is making noise even when securely mounted, the issue might be internal components or even the crankshaft. Check for a bent or warped clutch washer or D-spacer. Observe if the clutch wobbles excessively when rotating.
• Causes: Worn clutch bearings, a bent or warped clutch washer or D-spacer (which helps space the clutch correctly on the crankshaft), or damage to the engine's crankshaft itself (e.g., bent or out of round).
• Fixes:
  1. Check Clutch Washer/D-Spacer: Remove the clutch and inspect the clutch washer and D-spacer. If they are bent, warped, or damaged, they must be replaced.
  2. Inspect Clutch Bearings: The clutch has internal bearings. If they are worn, they will cause excessive play, wobbling, and noise. If the bearings are replaceable, do so; otherwise, the entire clutch may need replacement.
  3. Examine Crankshaft: With the clutch removed, carefully inspect the engine's crankshaft for any signs of bending or damage. A bent crankshaft is a serious issue that usually requires professional repair or engine replacement. If the clutch doesn't rotate smoothly without wobbling when installed, it could point to crankshaft damage.

If, after applying these fixes, the noise or vibration persists, or if you discover severe damage to critical components, replacing the electric PTO clutch is often the most practical and safest course of action. Do not operate a mower with a severely vibrating or noisy clutch, as it could lead to further damage or pose a safety risk.

Quick Reference: PTO Clutch Troubleshooting Table

Frequently Asked Questions (FAQs)

Can an Electric PTO Clutch Slip?

Yes, your electric PTO clutch can absolutely slip. This often occurs due to a heavy load (e.g., cutting very tall grass), worn clutch plates that no longer provide adequate friction, or the presence of dirt, debris, oil, or grease on the clutch surfaces. Electrical issues like loose wires or a faulty PTO switch can also cause intermittent slipping by reducing the magnetic field strength.

What Would Make a PTO Not Engage?

Several factors can prevent a PTO clutch from engaging. The most common reasons include insufficient power reaching the clutch (due to low battery voltage, damaged wiring, or a blown fuse), a defective clutch solenoid or electromagnetic coil (which prevents the creation of the magnetic field), or the entire clutch mechanism being worn out or seized internally. Faulty safety switches (like seat switches) can also prevent engagement.

Can A PTO Clutch Be Repaired?

Yes, in many cases, a PTO clutch can be repaired, especially for issues related to wiring, contamination, or worn external components like anti-rotation devices or washers. However, if the internal electromagnetic coil is open or shorted, or if the friction surfaces are severely galled or damaged beyond repair, the entire clutch unit will typically need to be replaced. The specific repair process depends heavily on the make and model of your clutch and the nature of the fault.

Conclusion

Dealing with a faulty electric PTO clutch can be a frustrating experience, but with a systematic approach to troubleshooting, many common issues can be resolved at home. Remember to always prioritise safety when working on your mower by disconnecting the spark plug lead and ensuring the machine is stable. By understanding the symptoms – non-engagement, slipping, or excessive noise and vibration – and methodically checking the electrical supply, wiring integrity, and mechanical components, you'll be well on your way to diagnosing the problem.

While some issues might necessitate a full clutch replacement, often a simple clean, wire repair, or component adjustment is all that's required. Keeping your PTO clutch in prime condition ensures efficient grass cutting and prolongs the life of your valuable riding mower. Happy mowing!
