The Exhaust Gas Recirculation (EGR) valve is a crucial component in modern vehicle emissions control systems. Its primary function is to reduce the amount of nitrogen oxides (NOx) produced during combustion. By recirculating a portion of the exhaust gases back into the engine's intake manifold, the EGR system lowers combustion temperatures, which in turn significantly reduces NOx formation. As environmental regulations become stricter and the focus on reducing vehicle pollution intensifies, understanding and maintaining the EGR valve is more important than ever for keeping modern vehicles running both efficiently and eco-friendly. Ensuring your EGR valve is in good condition is essential for smooth engine operation, and that's where EGR cleaning plays a vital role.
- What Exactly is an EGR Valve and How Does it Function?
- Why is Regular EGR Valve Maintenance Necessary?
- The Process of EGR Valve Cleaning
- Common Problems and Repairs Associated with the EGR System
- Why Might You Need a New EGR Valve?
- Signs That Indicate a Faulty EGR System
- Frequently Asked Questions about EGR Cleaning
- Conclusion
What Exactly is an EGR Valve and How Does it Function?

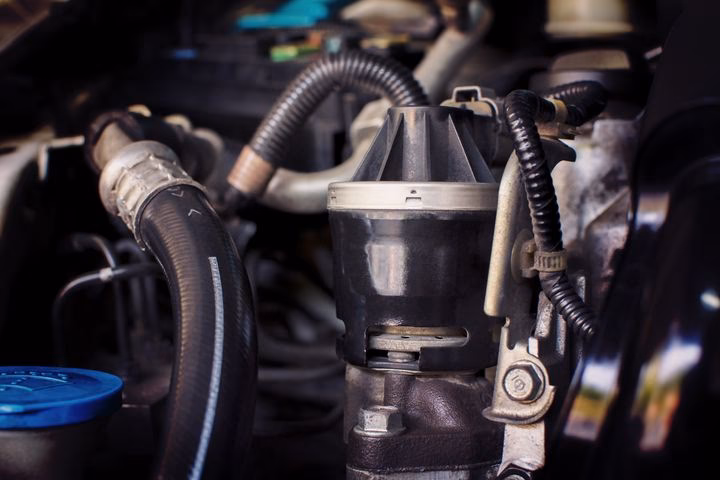

At its core, the EGR valve is an electronically or vacuum-controlled valve. It's strategically placed in the exhaust system, allowing a controlled amount of exhaust gas to flow back into the intake manifold. This recycled exhaust gas mixes with the fresh air-fuel mixture entering the combustion chamber. Because exhaust gas contains less oxygen than fresh air, its introduction into the combustion process has a cooling effect. This reduction in combustion temperature is the key to its effectiveness in limiting NOx emissions, as NOx is primarily formed at very high temperatures. The amount of exhaust gas recirculated is carefully managed by the vehicle's Engine Control Unit (ECU) based on various factors like engine load, speed, and temperature.
Why is Regular EGR Valve Maintenance Necessary?
Over time, the exhaust gases that pass through the EGR valve contain soot, carbon deposits, and other particulate matter. These by-products of combustion can accumulate within the valve and its associated passages, leading to a gradual build-up of grime. This build-up can cause the EGR valve to stick or become partially blocked, preventing it from operating correctly. A malfunctioning EGR valve can manifest in several ways, impacting your vehicle's performance and potentially leading to costly repairs if left unaddressed. Regular maintenance, including cleaning, can prevent these issues from developing.
Consider the following scenario: a customer experienced their car entering 'limp mode' due to a blocked Diesel Particulate Filter (DPF). Upon investigation, it was found that the EGR system was also significantly affected by carbon build-up. Instead of opting for an expensive replacement of the DPF, which was quoted at a substantial amount by a main dealer, the customer removed the DPF themselves. They then utilised a specialist service that offered a rapid turnaround for DPF cleaning. The service provided was highly efficient, with the unit ready for collection within 24 hours and clear instructions for refitting. This proactive approach, which implicitly involves ensuring other related components like the EGR are functioning optimally, saved the customer a significant amount of money and restored their car to its best condition.
The Process of EGR Valve Cleaning
EGR valve cleaning is a process designed to remove the accumulated carbon deposits and soot that hinder its proper function. There are generally two main approaches to cleaning an EGR valve:
DIY Cleaning Methods:
For those with some mechanical aptitude, a DIY approach can be a cost-effective solution. This typically involves:

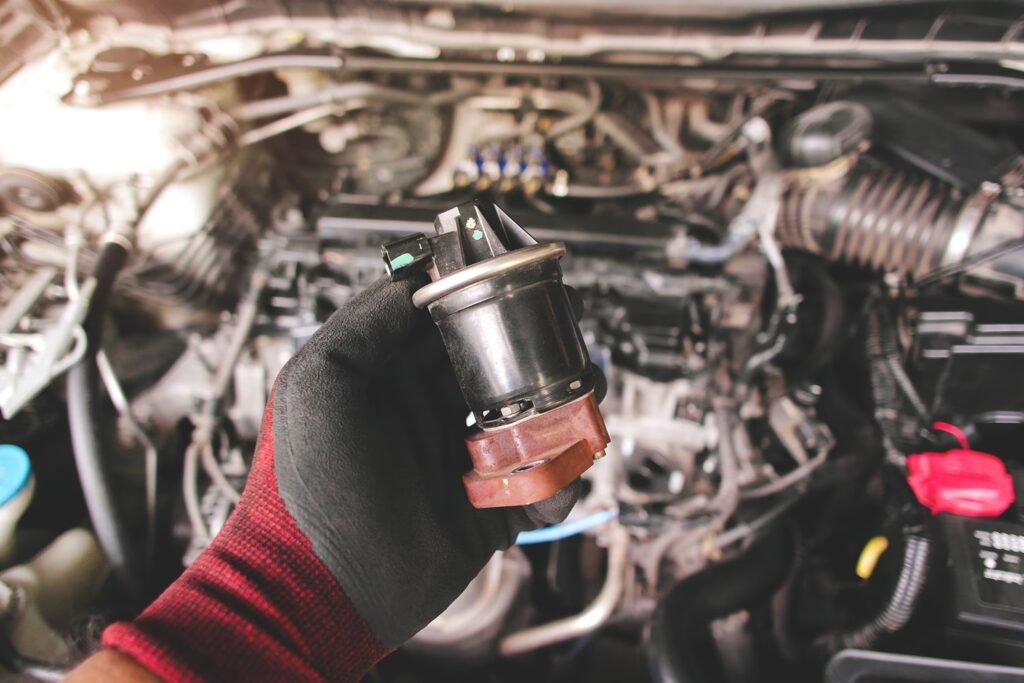

- Removal: Carefully removing the EGR valve from the engine. This often requires disconnecting hoses and electrical connectors.
- Soaking: Immersing the EGR valve in a specialised EGR cleaner or a strong solvent like carburettor cleaner. The soaking time can vary from a few hours to overnight, depending on the severity of the build-up.
- Scrubbing: Using brushes (like old toothbrushes or specialised cleaning brushes) and rags to manually scrub away loosened deposits from the valve's internals, especially around the valve seat and plunger.
- Flushing: Rinsing the valve thoroughly with cleaner to remove any remaining debris.
- Drying: Ensuring the valve is completely dry before reinstallation to prevent any damage from residual moisture.
Professional Cleaning Services:
Many garages and specialist workshops offer professional EGR cleaning services. This can involve:
- Chemical Cleaning: Using specialised, more potent chemical cleaners that are often circulated through the EGR system while the engine is running or partially disassembled. This method can be very effective at dissolving stubborn deposits.
- Ultrasonic Cleaning: For heavily fouled valves, ultrasonic cleaning can be employed. The EGR valve is placed in an ultrasonic bath filled with a cleaning solution, and high-frequency sound waves agitate the fluid, dislodging even the most tenacious carbon build-up.
- Component Replacement: In cases where the EGR valve is severely damaged or beyond cleaning, professional services will advise on replacement.
Common Problems and Repairs Associated with the EGR System
The EGR system, while beneficial, is susceptible to several issues that can affect its performance and, by extension, the overall health of your engine. Understanding these problems can help in early diagnosis and prevention.
| Component | Function | Common Issues | Symptoms of Failure |
|---|---|---|---|
| EGR Valve | Regulates exhaust gas recirculation into the intake manifold. | Carbon build-up, sticking, electrical faults, diaphragm failure. | Rough idling, poor acceleration, increased emissions, 'Check Engine' light, stalling. |
| EGR Cooler | Cools exhaust gases before they re-enter the engine. | Coolant leaks, internal blockages, cracking. | Reduced engine power, coolant loss, white smoke from exhaust (if leaking into combustion), overheating. |
| EGR Module/Solenoid | Controls the operation of the EGR valve. | Electrical faults, internal wear, vacuum leaks (if applicable). | Erratic EGR operation, 'Check Engine' light, poor engine performance. |
| Air Intake Valve/Throttle Body | Regulates the volume of air entering the engine. | Carbon build-up, sticking, electrical faults. | Engine noise, harsh shutdown, vibration, poor idling. |
Why Might You Need a New EGR Valve?
While cleaning can often resolve issues caused by carbon build-up, there are instances where an EGR valve may need to be replaced. This is typically due to:
- Irreparable Damage: The valve itself might have internal components that are broken or worn out, such as the diaphragm or the plunger mechanism.
- Severe Corrosion: In some cases, especially in older vehicles or those exposed to harsh conditions, the metal components of the EGR valve can corrode to the point where cleaning is ineffective.
- Electrical Failure: For electronically controlled EGR valves, the internal electric motor or sensors can fail, requiring a complete unit replacement.
- EGR Cooler Failure: If the EGR cooler develops a leak or becomes internally blocked with solidified soot, it can lead to a complete system failure, often necessitating replacement of both the cooler and potentially the valve if it has been subjected to contaminated exhaust gases.
Signs That Indicate a Faulty EGR System
Recognising the symptoms of a failing EGR system is key to addressing problems before they escalate. Several indicators can point towards an issue:
- Illuminated 'Check Engine' Light: This is a universal warning sign for a multitude of engine-related problems, and a faulty EGR system is a common culprit. The ECU detects deviations from expected EGR operation and triggers this warning. You should correlate this with other symptoms or seek professional diagnosis.
- Rough Idling: If the EGR valve is stuck open, it can allow exhaust gases into the intake manifold even when they shouldn't be, disrupting the air-fuel mixture and causing the engine to idle unevenly.
- Poor Engine Performance: A sticking or blocked EGR valve can lead to a loss of power, hesitation during acceleration, and generally sluggish performance.
- Increased Fuel Consumption: When the EGR system isn't functioning correctly, the engine's efficiency can be compromised, leading to higher fuel usage.
- Engine Knocking or Pinging: In some instances, a malfunctioning EGR can lead to incorrect combustion temperatures, resulting in the characteristic 'knocking' or 'pinging' sound from the engine.
- Failed Emissions Tests: A malfunctioning EGR system will almost certainly cause a vehicle to fail an emissions test due to elevated NOx levels.
- Stalling: In severe cases, particularly if the EGR valve is stuck open, it can lead to the engine stalling, especially at idle.
Frequently Asked Questions about EGR Cleaning
Q1: How often should I get my EGR valve cleaned?
A1: The frequency of EGR cleaning depends on your driving habits and the type of vehicle. If you frequently drive short distances or in stop-start traffic, your EGR valve may accumulate soot faster. A general recommendation is to have it inspected or cleaned every 30,000 to 50,000 miles, or if you notice any of the symptoms mentioned above.
Q2: Can I clean the EGR valve myself?
A2: Yes, if you have some mechanical experience and the necessary tools, you can clean the EGR valve yourself. However, it's crucial to follow the correct procedures to avoid damaging the valve or other engine components. If you're unsure, it's best to entrust the job to a professional.
Q3: What happens if I don't clean my EGR valve?
A3: If left uncleaned, the carbon build-up can cause the EGR valve to seize or fail completely. This can lead to poor engine performance, increased emissions, reduced fuel efficiency, and potentially trigger the 'Check Engine' light, leading to a failed MOT or emissions test. In the long run, it could also contribute to more significant engine problems.
Q4: Is EGR cleaning a permanent fix?
A4: EGR cleaning is a maintenance procedure that removes existing build-up. However, the EGR system will continue to accumulate soot as the engine operates. Therefore, it's not a permanent fix but a way to restore proper function and extend the life of the valve. Regular checks and cleaning are necessary.
Q5: What is the difference between EGR cleaning and EGR replacement?
A5: EGR cleaning involves removing existing carbon deposits to restore the valve's function. EGR replacement involves fitting a brand-new EGR valve unit. Replacement is necessary when the valve is damaged beyond repair, has electrical faults, or is excessively corroded.
Conclusion
The EGR valve is a vital component for modern vehicles, playing a significant role in reducing harmful emissions. Regular maintenance, including thorough cleaning, is essential to ensure it operates effectively. By understanding the signs of a faulty EGR system and taking proactive steps towards cleaning or professional servicing, you can maintain optimal engine performance, improve fuel efficiency, and contribute to a cleaner environment. If you suspect an issue with your EGR system, it's always advisable to consult a qualified mechanic for a comprehensive diagnosis and repair.
