Understanding Your EFI Fuel System Diagram

In the intricate world of modern automotive engineering, the Electronic Fuel Injection (EFI) system stands as a cornerstone of engine performance and efficiency. Gone are the days when carburetors dominated fuel delivery; today, EFI has become the prevailing method for optimising the fuel/air ratio entering your vehicle's engine. While you might not see a physical diagram in your engine bay, understanding the conceptual 'EFI fuel system diagram' – how its components interconnect and operate – is crucial for any car owner or enthusiast looking to grasp the heart of their vehicle's power train, diagnose issues, or simply appreciate the sophisticated technology under the bonnet.

This article delves into the essence of the EFI system, exploring its architecture, the roles of its various components, how they interact, and why this system is so vital for contemporary vehicles. By grasping the flow and function, you'll gain a clearer picture of what makes your engine tick so efficiently.

What is an Electronic Fuel Injection System (EFI)?

At its core, an Electronic Fuel Injection System is designed to precisely regulate and optimise the fuel/air mixture that feeds into an engine. Its primary goal is to ensure the engine receives the ideal amount of fuel for various operating conditions, leading to better performance, improved fuel economy, and significantly reduced emissions. This precision is a stark contrast to older carburetor systems, which, while capable, were inherently less accurate and suffered from limitations such as vague fuel metering, inconsistent performance across different tunes, and a greater propensity for mechanical wear and gummy build-up, requiring more frequent maintenance.

The move to EFI was largely driven by manufacturers' need to meet increasingly stringent emission standards. Early EFI systems were essentially processor-controlled carburetors, but they quickly evolved into sophisticated electronic networks. The system comprises a complex interplay of electronic components and sensors, all working in unison to boost engine strength and efficiency while cutting down petrol consumption. Keeping these components clean and well-calibrated is paramount for optimal operation.

The Conceptual EFI Fuel System Diagram: Understanding the Flow

While a physical diagram might vary between vehicle models, the underlying conceptual 'diagram' of an EFI system illustrates a continuous loop of sensing, processing, and actuating. Fuel is drawn from the tank, pressurised, filtered, and then delivered to the engine's intake system or directly into the combustion chambers. Simultaneously, numerous sensors throughout the engine monitor critical parameters. This data is fed to the Electronic Control Unit (ECU), the 'brain' of the system. The ECU processes this information in real-time and sends precise commands to the fuel injectors and other actuators, determining exactly when and how much fuel to spray. This constant feedback loop ensures the engine always receives the optimal fuel/air ratio.

Key Components of the EFI System

To truly understand the EFI diagram, one must familiarise themselves with its vital components:

• Fuel Pump: This essential component is responsible for pumping petrol from the vehicle's fuel tank to the engine, distributing it to the fuel injection system under significant pressure. This high pressure is crucial for effective fuel atomisation.
• Fuel Filter: Positioned between the fuel pump and the injectors, the fuel filter ensures that any dirt or contaminants in the petrol are removed, protecting the delicate injectors and engine components from damage.
• Fuel Injectors: These are the nozzles that spray atomised fuel into the engine's intake ports or directly into the combustion chambers. Each injector typically consists of a nozzle and a solenoid-controlled valve. The ECU precisely controls the duration (pulse width) for which the injector valve remains open, thereby metering the exact amount of fuel delivered.
• Sensors: Located at various points within the engine, these are the 'eyes and ears' of the EFI system, constantly sending crucial data to the ECU. Common sensors include:
  • Engine Temperature Sensor: Monitors the coolant temperature, influencing cold start enrichment.
  • Intake Air Temperature Sensor: Measures the temperature of the incoming air, affecting air density calculations.
  • Exhaust Gas/Oxygen Sensor (Lambda Probe): Measures the oxygen concentration in the exhaust gases, providing feedback on combustion efficiency and helping the ECU adjust the fuel/air ratio to optimal levels for emissions control.
  • Engine Speed Sensor (Crankshaft Position Sensor): Detects the engine's rotational speed and crankshaft position, crucial for ignition timing and injection timing.
  • Throttle Position Sensor (TPS): Monitors the throttle valve's angle, indicating driver demand for power.
  • Manifold Absolute Pressure (MAP) Sensor: Measures the pressure inside the intake manifold, indicating engine load.
  • Camshaft Position Sensor: Provides information about the camshaft's position, critical for sequential fuel injection.
  • Knock Sensor: Detects engine knocking or pre-ignition, allowing the ECU to retard ignition timing to prevent damage.
• Electronic Control Unit (ECU): Often referred to as the Engine Control Unit or Powertrain Control Module (PCM), this is the central 'brain' of the EFI system. It receives and processes all the data from the sensors, performs complex calculations, and then sends precise commands to the actuators (like the fuel injectors and spark plugs) to manage fuel delivery, ignition timing, and other engine parameters. The ECU operates under strict timing constraints, needing to process sensor readings and calculate actuator timings within milliseconds to ensure optimal engine performance, even at high RPMs.
• Actuators: These components receive commands from the ECU and perform physical actions within the feeding system. Besides fuel injectors, other actuators include spark plugs (for ignition) and throttle body actuators (for idle speed control).
• "Check Engine" Light / "Service Engine Soon" Light: This light on your dashboard serves as a diagnostic indicator. It illuminates if the ECU detects a malfunction within the EFI system or other engine-related components. It typically comes on during the initial system scan at start-up and extinguishes if all sensors are functional, remaining lit if a fault is detected.

How the EFI System Works: A Detailed Process Flow

The operational sequence of an EFI system is a finely tuned process designed for continuous optimisation:

1. Initial Scan: Every time you start your vehicle, the ECU performs a rapid diagnostic scan of all connected sensors to verify their functionality. This is why the "Check Engine" light briefly illuminates and then turns off.
2. Continuous Data Collection: Once running, the sensors continuously detect and relay values for numerous parameters – air pressure, air temperature, throttle angle, air density, fuel temperature, fuel pressure, oil pressure, coolant temperature, exhaust temperature, crankshaft angle, timing, engine RPM, vehicle speed, and more.
3. ECU Processing: All these raw data points stream into the ECU. The ECU, using sophisticated algorithms and pre-programmed maps, processes this information in real-time. It cross-references the current engine conditions with ideal operating parameters.
4. Fuel Injection Calculation: Based on its calculations, the ECU determines the precise amount of fuel required for the current conditions. It then translates this into a specific 'pulse width' – the exact duration for which each fuel injector should remain open.
5. Fuel Delivery: The fuel pump maintains high pressure in the fuel rail. When the ECU sends an electrical pulse to an injector, its solenoid activates, opening the valve. This high pressure forces the fuel through the tiny nozzle, atomising it into a fine mist. The injectors are typically open for only a few milliseconds at a time.
6. Feedback Loop: The exhaust gas/oxygen sensor plays a critical role in the feedback loop. By analysing the exhaust gases, it provides the ECU with information about the actual combustion efficiency. If the mixture is too rich or too lean, the ECU makes immediate, minute adjustments to the injection pulse width to maintain the optimal air/fuel ratio (stoichiometric ratio).

This continuous cycle of sensing, processing, and actuating allows the EFI system to dynamically adapt to varying driving conditions, from cold starts and idling to full throttle acceleration and deceleration, ensuring maximum efficiency and minimal emissions.

Types of Fuel Injection Systems

While the core principles remain, EFI systems have evolved into several distinct types, each with its own advantages and applications:

1. Single-Point or Throttle Body Injection (TBI):

• This was an early form of EFI, often replacing the carburetor directly.
• One or two fuel injector nozzles are located in the throttle body, at the throat of the engine's air intake manifold.
• Fuel is sprayed centrally into the air stream, and the mixture is then drawn into the cylinders via the intake manifold.
• Economical and easier to service, TBI was a stepping stone to more complex multi-point systems.

2. Port or Multi-Point Fuel Injection (MPFI):

• A significant advancement where a separate injector nozzle is dedicated to each cylinder, positioned right outside its intake port.
• Injects fuel much closer to the intake valve, ensuring nearly complete fuel delivery into the cylinder and reducing the chance of fuel condensing or pooling in the manifold.
• Offers more precise fuel metering than TBI, leading to better fuel/air ratio control and improved fuel economy.
• Allows for lighter-weight intake manifolds (even plastic) as they no longer need to conduct engine heat to vaporise fuel.

3. Sequential Fuel Injection (SFI or SPFI):

• A refinement of Multi-Port Injection. While MPFI injectors might spray simultaneously or in groups, sequential injection triggers each injector nozzle independently.
• Injectors are timed precisely, much like spark plugs, spraying fuel immediately before or as their corresponding intake valve opens.
• Though seemingly a minor step, this precise timing further enhances efficiency and reduces emissions by preventing fuel from 'hanging around' in the port.

4. Direct Injection (DI or DIG for Gasoline):

• The most advanced form of fuel injection, where fuel is injected directly into the combustion chambers, bypassing the intake valves entirely.
• Common in diesel engines for a long time, it's increasingly found in petrol engines.
• Offers the most accurate fuel proportioning and allows engineers greater control over the combustion process, including how the fuel/air mixture swirls and how the explosion propagates.
• Enables the use of low-emission lean-burn engine designs.

Comparison of Fuel Injection Types

Advantages of Electronic Fuel Injection Systems

The widespread adoption of EFI technology is due to its numerous benefits over older carbureted systems:

• Enhanced Volumetric Efficiency: Less resistance in the intake manifold due to the absence of a venturi, allowing more air into the cylinders.
• Improved Fuel Economy: Precise metering of fuel for optimal combustion across all engine speeds and loads.
• Reduced Emissions: Accurate fuel/air ratio control, especially with feedback from oxygen sensors, drastically lowers harmful exhaust pollutants.
• Better Engine Performance: Consistent fuel delivery leads to improved power output, better throttle response, and quicker acceleration.
• Consistent Cold-Weather Drivability: EFI provides better mixture enrichment control during cold starts, eliminating issues like carburetor icing.
• Elimination of Manifold Wetting: Direct injection or close-to-port injection reduces fuel condensation in the intake manifold.
• Superior Fuel Atomisation: Fuel is forced through a small nozzle under high pressure, breaking it into a fine mist, regardless of engine cranking speed.
• Less Knocking: Improved atomisation and vaporisation contribute to a more stable combustion process, reducing detonation.
• Adaptability to Fuel Volatility: Can use fuels of lower volatility as distribution is independent of vaporisation.
• Self-Correction: The ECU continuously monitors and adjusts, meaning the engine doesn't need frequent manual tuning like carbureted systems.
• Vapor Lock Elimination: The electric fuel pump maintains sufficient pressure, preventing fuel from vaporising in the lines during hot weather.
• Compact Design: The injection unit's position is less critical, potentially allowing for a lower engine height.

Disadvantages and Common Problems with EFI Systems

Despite their significant advantages, EFI systems do come with certain drawbacks:

• Higher Maintenance Cost: The sophisticated electronic components and sensors can be expensive to replace if they fail.
• Difficulty in Servicing: Diagnosing and repairing EFI issues often requires specialised electronic diagnostic tools and expertise, making DIY repairs more challenging for the average mechanic.
• Possibility of Sensor Malfunction: While robust, sensors can fail, leading to incorrect data being sent to the ECU, which in turn can cause performance issues, poor fuel economy, or illumination of the "Check Engine" light.
• Complexity: The sheer number of interconnected electronic components can make troubleshooting intricate without a thorough understanding of the system's diagram and operation.

Troubleshooting with an Understanding of the EFI Diagram

An intuitive grasp of the EFI system's 'diagram' – its components and their interactions – is invaluable for troubleshooting. If your engine is running poorly, exhibiting symptoms like rough idling, poor acceleration, or excessive fuel consumption, considering the conceptual diagram can help narrow down the potential cause:

• Is it a fuel delivery problem? Check the fuel pump for proper pressure, the filter for blockages, and the injectors for clogs or leaks.
• Is it a sensor issue? If the "Check Engine" light is on, retrieving fault codes (which a diagnostic scanner plugs into your car's OBD-II port) can point directly to a failing sensor (e.g., a faulty oxygen sensor might lead to an incorrect fuel mixture).
• Is the ECU functioning correctly? While rare, a malfunctioning ECU can cause widespread issues, as it's the central control unit.

By visualising the flow of information and fuel, you can logically trace potential problems, making diagnosis more efficient, even if you're not performing the repair yourself.

Frequently Asked Questions (FAQs)

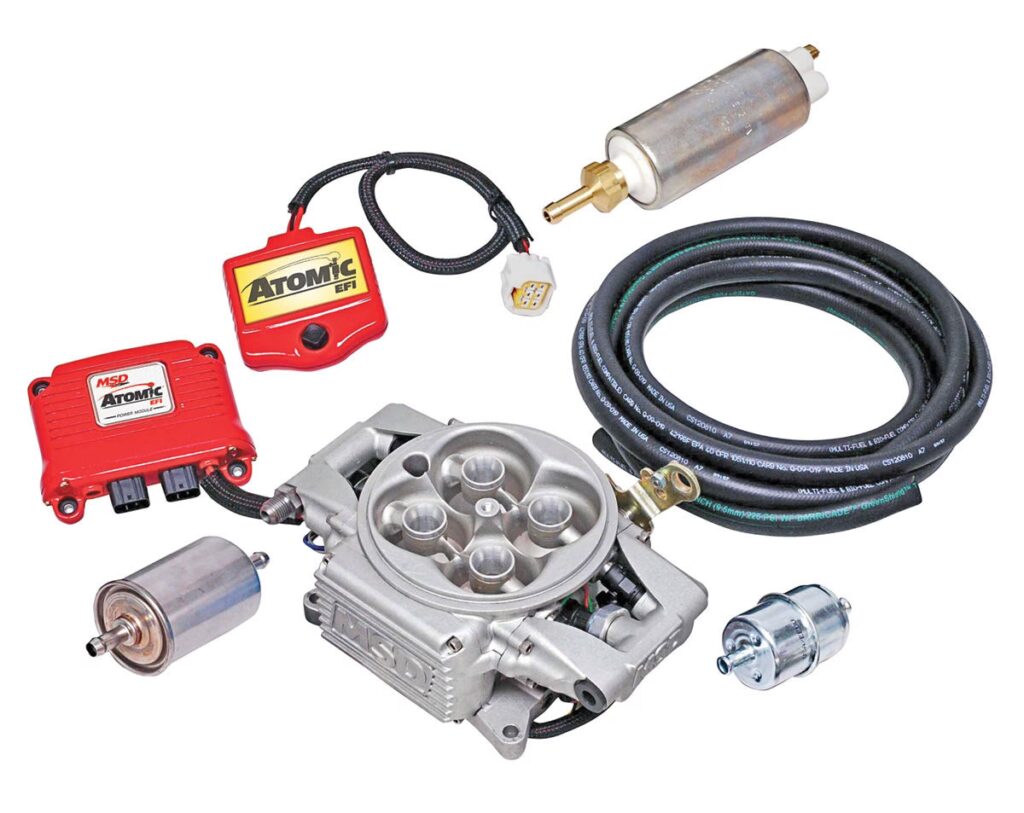

Q: Can I convert my old carbureted engine to EFI?

A: Yes, EFI conversions are possible for many older carbureted engines. However, they can be complex and expensive, requiring the installation of a new fuel pump, fuel lines, injectors, sensors, and a programmable ECU. It's often a significant undertaking best left to experienced professionals.

Q: What are the most common problems with EFI systems?

A: Common issues include clogged or faulty fuel injectors, a failing fuel pump (leading to low fuel pressure), dirty or malfunctioning sensors (like the oxygen sensor or mass airflow sensor), and sometimes issues with the ECU itself, though ECU failures are less common than component failures.

Q: How often should EFI components be serviced?

A: While EFI systems are generally low maintenance, regular vehicle servicing should include checking the fuel filter (replacement intervals vary by manufacturer, but often every 20,000-60,000 miles), and ensuring no warning lights are illuminated. Fuel injector cleaning can be beneficial if deposits build up, though this is often only necessary if symptoms arise.

In conclusion, the Electronic Fuel Injection system is a marvel of modern automotive engineering, providing unparalleled precision in fuel delivery and playing a critical role in your vehicle's performance, efficiency, and environmental footprint. While an actual 'diagram' might be a complex schematic, understanding the conceptual flow and the function of its key components – from the fuel pump and injectors to the array of sensors and the all-important ECU – empowers you with a deeper appreciation for your car's inner workings. This knowledge is not just for mechanics; it's for every driver who wants to truly understand and care for their vehicle.
