EFI Intake Manifolds: Unleashing Race Power

In the relentless pursuit of speed and power on the racetrack, every component under the bonnet plays a pivotal role. While carburettors have long served the racing community, the advent of Electronic Fuel Injection (EFI) has revolutionised engine performance, offering a level of precision and tunability previously unattainable. Central to an EFI system's ability to deliver optimum power is the EFI intake manifold, a meticulously engineered component designed to seamlessly integrate with modern fuel injection technology and maximise an engine's potential, particularly at higher engine speeds.

Understanding the intricacies of an EFI intake manifold is crucial for any serious racer or engine builder looking to gain a competitive edge. Unlike traditional carburettor manifolds, EFI variants are specifically designed to accommodate fuel injectors, sensors, and the precise control offered by an Engine Control Unit (ECU). This integration allows for superior fuel atomisation, more consistent air-fuel ratios, and ultimately, more predictable and higher horsepower output across the entire RPM range.

The Evolution from Carburettors to EFI

For decades, carburettors were the standard for fuel delivery in internal combustion engines, including high-performance racing applications. They operate on a simple principle: using the vacuum created by the engine to draw fuel into the air stream. While effective, carburettors have inherent limitations, particularly in their ability to adapt to varying atmospheric conditions, engine loads, and RPMs with absolute precision. This often led to compromises in fuel efficiency and peak power delivery.

Electronic Fuel Injection, by contrast, is a far more sophisticated system. It uses an ECU to monitor numerous engine parameters—such as engine speed, throttle position, air temperature, and oxygen levels—and then precisely meters the exact amount of fuel required through electronic injectors. This computerised control allows for real-time adjustments, ensuring the engine always receives the optimal air-fuel mixture for maximum efficiency and power, regardless of the operating conditions. For racing, this means consistent performance lap after lap, and the ability to fine-tune the engine for specific track conditions or fuel types.

What Defines an EFI Intake Manifold?

An intake manifold's primary function is to evenly distribute the air-fuel mixture (or just air, in the case of port fuel injection) to each cylinder. In an EFI system, the intake manifold is engineered to house the fuel injectors, which are typically positioned close to the intake ports of each cylinder. This strategic placement ensures that fuel is delivered directly into the air stream just before it enters the combustion chamber, leading to more efficient combustion and improved throttle response.

Key design considerations for EFI intake manifolds include:

• Runner Design: The length, diameter, and shape of the runners (the passages that direct air to each cylinder) are critical for optimising airflow and tuning the engine's power band. Longer runners generally favour low-to-mid RPM torque, while shorter, larger runners are designed for high-RPM horsepower.
• Plenum Volume: The plenum is the large central chamber that collects air before it enters the runners. Its volume influences throttle response and the engine's ability to breathe at high RPMs.
• Injector Bosses: Dedicated mounting points for the fuel injectors, ensuring precise placement and spray pattern.
• Sensor Ports: Provisions for various sensors, such as Manifold Absolute Pressure (MAP) sensors, Intake Air Temperature (IAT) sensors, and throttle position sensors, which feed crucial data to the ECU.
• Fuel Rail Mounts: Secure attachment points for the fuel rails, which deliver pressurised fuel to the injectors.

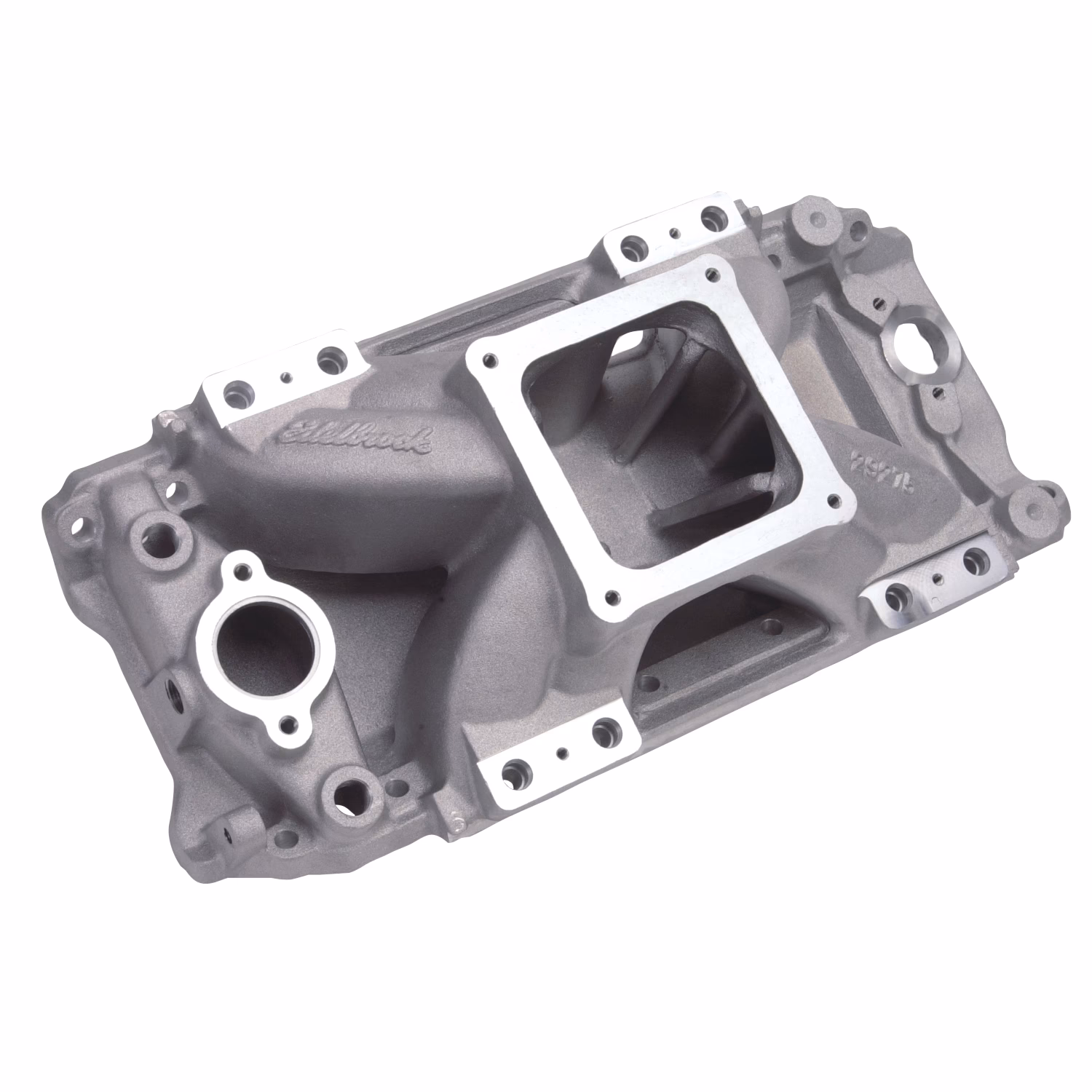

The Power of Edelbrock Victor Series EFI Intake Manifolds

When it comes to high-performance racing, the Edelbrock Victor Series EFI Intake Manifolds stand out as a premier choice. These manifolds are specifically engineered to provide maximum race-winning power, particularly at higher engine speeds, making them ideal for competitive motorsport applications.

The core design philosophy behind the Victor Series is centred on a single-plane, high-rise configuration. Let's break down what this means for performance:

• Single-Plane Design: In a single-plane manifold, all runners originate from a common plenum. This design typically features shorter, straighter runners compared to dual-plane manifolds. The primary benefit of a single-plane layout is its superior ability to support high-RPM power. By allowing for a more direct and less restrictive path for airflow at higher engine speeds, it maximises the volumetric efficiency of the engine when it's really screaming. While it might slightly sacrifice low-end torque compared to a dual-plane, for dedicated racing applications where the engine operates predominantly in its upper RPM range, this is a distinct advantage.
• High-Rise Configuration: A high-rise design positions the plenum and runners higher above the engine block. This increased height allows for longer, more gradual runner curves, or simply more volume within the plenum and runners themselves. The advantage here is an improved line of sight for airflow into the cylinder heads, reducing turbulence and promoting better cylinder filling. This design contributes significantly to the manifold's ability to generate maximum power at elevated engine speeds, a crucial factor in winning races.

Edelbrock's commitment to performance is further underscored by their collaborative approach. They work closely with top engine builders across various forms of competition. This direct feedback loop from the cutting edge of motorsport ensures that Victor Series manifolds are not only compatible with, but also designed to leverage, the latest engine technology and racing strategies. This continuous development means that these manifolds are at the forefront of performance, ready to help racers push the boundaries of what's possible on the track.

Why Choose Edelbrock Victor Series for Racing?

The combination of single-plane, high-rise architecture, coupled with Edelbrock's engineering expertise and collaboration with leading engine builders, results in several key benefits for racers:

• Optimised Airflow: The design minimises restrictions and turbulence, ensuring a smooth, high-velocity flow of air into the cylinders, crucial for high-RPM breathing.
• Peak Power Delivery: Specifically tuned for maximum horsepower at the top end of the RPM spectrum, where races are often won.
• Superior Tunability: Designed for EFI systems, these manifolds allow for precise fuel mapping and tuning, enabling racers to extract every bit of power from their engines and adapt to diverse track conditions.
• Robust Construction: Built to withstand the extreme demands of racing, ensuring reliability and longevity under pressure.

EFI vs. Carburettor Manifold: A Comparative Look

While both EFI and carburettor manifolds serve to deliver air to the cylinders, their operational principles and performance characteristics differ significantly, especially in a racing context. Here's a brief comparison:

Installation and System Integration

Installing an EFI intake manifold like the Edelbrock Victor Series is part of a larger system conversion or upgrade. It's not just swapping out a manifold; it requires careful integration with the entire EFI setup. This includes:

• Fuel System: Upgrading to a high-pressure fuel pump, fuel lines, fuel rails, and a return-style fuel system to maintain consistent fuel pressure.
• Fuel Injectors: Selecting injectors with the correct flow rate for the engine's power output.
• Sensors: Ensuring all necessary sensors (MAP, IAT, TPS, O2, coolant temp) are properly installed and wired to the ECU.
• ECU: A standalone or programmable ECU is essential to control the fuel injection and ignition timing based on sensor inputs. This is where the true power and tunability of an EFI system come into play, allowing for custom maps tailored to the engine's specific characteristics and racing conditions.
• Wiring Harness: A dedicated wiring harness to connect all EFI components to the ECU.

Given the complexity, professional installation and tuning are highly recommended to ensure optimal performance and reliability, especially in a high-stakes racing environment. The precision required for high-performance EFI systems means that every detail, from sensor calibration to fuel map adjustments, must be spot-on.

Frequently Asked Questions About EFI Intake Manifolds

Q1: Can I convert my existing carburetted engine to EFI using an EFI intake manifold?

Yes, many engines can be converted to EFI. This typically involves replacing the carburettor intake manifold with an EFI-specific manifold, adding fuel injectors, a high-pressure fuel system, an ECU, and various sensors. It's a significant upgrade that requires careful planning and often professional installation and tuning.

Q2: What is the main advantage of an EFI intake manifold for racing?

The main advantage is the ability to achieve precise fuel delivery and optimal air-fuel ratios across the entire RPM range, especially at high engine speeds. This leads to more consistent power, improved throttle response, better fuel efficiency, and the flexibility to tune the engine for specific racing conditions.

Q3: Do I need a new ECU when installing an EFI intake manifold?

Absolutely. An EFI intake manifold is designed to work with electronic fuel injectors and sensors, which are controlled by an Engine Control Unit (ECU). A carburettor system does not use an ECU for fuel metering. You will need a programmable or standalone ECU to manage the fuel injection and ignition timing.

Q4: Are all EFI intake manifolds the same?

No, EFI intake manifolds vary significantly in design, much like carburettor manifolds. They can be single-plane (like the Edelbrock Victor Series, optimised for high RPM) or dual-plane (better for street performance or lower RPM torque). They also differ in plenum volume, runner length, and material, all of which affect an engine's power characteristics.

Q5: Why is a "single-plane, high-rise" design preferred for racing?

A single-plane design, with its common plenum and typically shorter runners, allows for superior airflow at high RPMs, maximising top-end horsepower. The high-rise aspect provides more volume and better air path geometry, further enhancing high-RPM breathing and overall power output in the upper rev range, which is critical for competitive racing.

Conclusion

The EFI intake manifold, particularly high-performance designs like the Edelbrock Victor Series, represents a significant leap forward in engine technology for racing applications. By enabling precise fuel delivery and optimised airflow, these manifolds are instrumental in unleashing maximum race-winning power at high engine speeds. Their single-plane, high-rise architecture is purpose-built to meet the rigorous demands of competition, ensuring that every ounce of potential is extracted from the engine.

For serious racers and builders, understanding and leveraging the capabilities of advanced EFI intake manifolds is not just an option, but a necessity. The ability to fine-tune fuel delivery with exceptional precision and consistency translates directly into improved lap times and a definitive competitive advantage. As automotive technology continues to evolve, components like the Edelbrock Victor Series EFI Intake Manifolds stand as a testament to the ongoing pursuit of ultimate performance, keeping you ahead of the pack.
