Embarking on the Journey of ECU Remapping
ECU remapping, often referred to as engine tuning or chip tuning, is the process of modifying the software within your vehicle's Engine Control Unit (ECU) to optimise its performance, fuel efficiency, and responsiveness. This intricate process involves altering parameters such as fuel injection timing, boost pressure, ignition timing, and throttle response. While the allure of unlocking hidden power and improving your car's efficiency is strong, it’s crucial to understand that this is not a task for the faint-hearted or for those without the correct equipment and knowledge. This guide will delve into the essential tools and software you'll need to embark on the journey of ECU remapping, ensuring you have the foundational knowledge to undertake this advanced automotive modification safely and effectively.
Understanding the ECU and the Need for Remapping
The ECU is the brain of your vehicle, a sophisticated computer that controls virtually every aspect of the engine's operation. It receives data from various sensors located throughout the vehicle – such as the oxygen sensor, throttle position sensor, and mass airflow sensor – and uses this data to calculate the optimal settings for combustion. Manufacturers often program ECUs with a degree of conservatism to account for varying fuel qualities, environmental conditions, and to ensure longevity and emissions compliance across a broad spectrum of driving scenarios. Remapping allows tuners to bypass these conservative settings, unlocking the engine's true potential. This can result in increased horsepower and torque, improved throttle response, and potentially better fuel economy if driven considerately.
Essential Hardware Tools for ECU Remapping

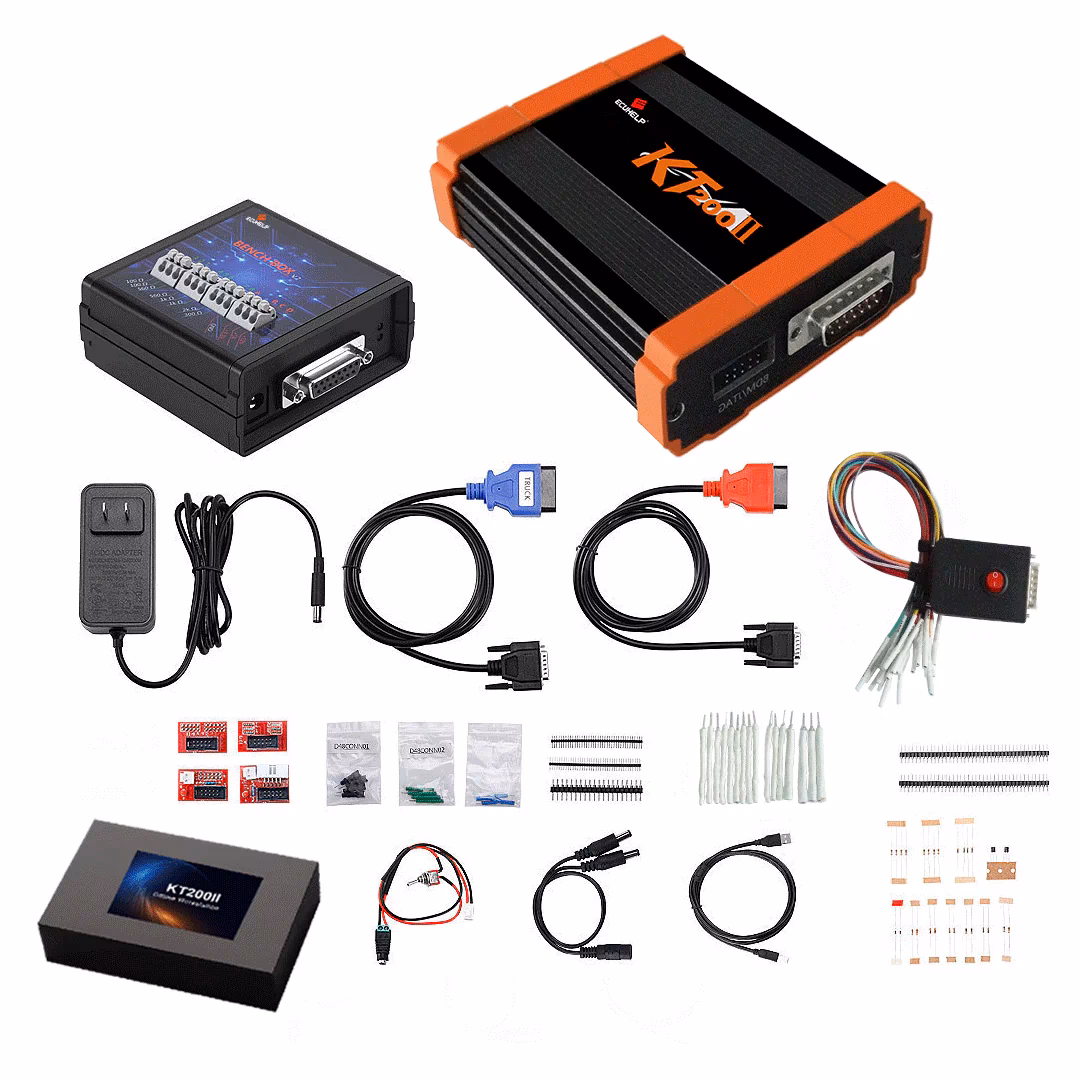

The primary piece of hardware you will require is a reliable ECU programming tool. These tools act as the interface between your computer and the vehicle's ECU. They allow you to read the original software from the ECU, modify it (using remapping software), and then write the new software back to the ECU. Several high-profile tools are available on the market, each with its own strengths:
The Alientech KESS3: A Modern Powerhouse
The Alientech KESS3 is a leading-edge tool in the ECU tuning landscape. It represents the latest advancement in ECU and TCU tuning technology, boasting superior speed and power compared to its predecessors. The KESS3 offers unparalleled flexibility, supporting a wide array of tuning methods:
- OBD Tuning: This is the most straightforward method, where the ECU programming tool connects directly to the vehicle's On-Board Diagnostics (OBD-II) port. It's convenient and requires minimal physical access to the ECU itself.
- Bench Tuning: This method involves removing the ECU from the vehicle and connecting it directly to the programming tool on a workbench. It often allows for more direct and sometimes faster communication with the ECU, bypassing potential limitations of the OBD port.
- Boot Tuning: This is considered the most secure method for certain ECUs. It involves opening the ECU casing and connecting directly to specific points on the ECU's circuit board, often requiring the removal of a protective coating (hence 'boot' mode). This method is typically used for ECUs that cannot be accessed via OBD or bench methods due to security protocols.
The KESS3 is designed for both ease of use and advanced functionality, making it suitable for beginners and seasoned professionals alike. Its intuitive software and extensive vehicle support make it a comprehensive solution for unlocking vehicle performance.
Other Notable ECU Programming Tools
While the KESS3 is a top-tier option, other reputable tools exist, such as:
- OBDSTAR MK70 (with Subscription): While primarily marketed for motorcycle diagnostics, tools like the OBDSTAR MK70, especially when paired with an update subscription, can offer capabilities for certain vehicle ECUs. It's essential to verify specific vehicle compatibility for ECU remapping.
- K-TAG: Another offering from Alientech, the K-TAG is a dedicated tool for bench and boot tuning, often used in conjunction with other Alientech tools for a complete tuning solution.
Essential Accessories
Beyond the primary programming tool, you will need:
- A reliable laptop or PC: This will run your tuning software and communicate with the ECU programming tool. Ensure it has sufficient processing power and storage.
- High-quality USB cables: For connecting the programming tool to your laptop.
- Vehicle-specific connectors and adapters: These are crucial for establishing a secure connection to the OBD port or directly to the ECU.
- A stable power supply: A dedicated power supply unit (PSU) or a fully charged vehicle battery with a charger is essential to prevent power interruptions during the read/write process, which could damage the ECU.
Essential Software for ECU Remapping
Hardware is only half the equation; the right software is critical for interpreting and modifying the ECU's data.
ECM Titanium: The Software of Choice
ECM Titanium is a highly regarded software suite used for remapping ECUs. It is a powerful and versatile tool that allows users to modify engine control maps. Key features include:
- Map Identification: ECM Titanium can automatically identify the various maps within an ECU file, such as ignition timing, fuel injection, boost pressure, and torque limiters.
- 2D and 3D Graphing: It provides intuitive 2D and 3D graphical representations of these maps, making it easier to understand the engine's parameters and how changes will affect performance.
- Real-time Data Editing: While not always possible directly via OBD, when working with read files, it allows for precise adjustments to specific parameters.
- Checksum Correction: When software is modified, the checksum (a form of data integrity check) can become invalid. ECM Titanium automatically recalculates the checksum to ensure the ECU can accept the modified file.
It's important to note that ECM Titanium is a sophisticated tool, and effective use requires a good understanding of engine mechanics and tuning principles. Often, this software is used in conjunction with original ECU files (often referred to as 'stock' or 'original' files) that have been read from the vehicle.
Other Software Considerations
- Tuning Suites: Many ECU programming tools come with their own proprietary software that includes drivers, diagnostic functions, and sometimes basic tuning interfaces.
- File Editing Software: While ECM Titanium is a dedicated remapping tool, other general-purpose hex editors can be used for manual map editing, though this is an extremely advanced technique requiring deep knowledge of binary data.
- Diagnostic Software: Software like VCDS (for VAG group vehicles) or other generic OBD-II scanners can be useful for diagnosing existing issues before attempting a remap and for checking for error codes afterwards.
The Remapping Process: A Step-by-Step Overview
While the specifics vary depending on the vehicle and the tools used, a general remapping process involves the following stages:
- Vehicle Diagnosis: Before any tuning, it's essential to ensure the vehicle is in good mechanical health. Perform a full diagnostic scan to identify and rectify any existing fault codes or issues.
- Reading the ECU Data: Connect your ECU programming tool to the vehicle's OBD port or directly to the ECU (for bench/boot methods). Use the tool's software to read the original ECU software file. This file contains all the engine's operating parameters.
- Software Modification: Load the read ECU file into your remapping software (e.g., ECM Titanium). Identify the maps you wish to adjust (e.g., increase boost, advance ignition timing). Make the necessary modifications, ensuring you understand the implications of each change.
- Checksum Correction: After making changes, use the software to recalculate and update the checksum.
- Writing the New Software: Connect the programming tool back to the ECU. Use the tool's software to write the modified file back into the ECU. This process must not be interrupted.
- Verification and Testing: After writing the new software, clear any diagnostic trouble codes. Start the engine and check for any unusual behaviour. Perform test drives to evaluate the performance gains and ensure the engine is running smoothly and efficiently. Re-scan for fault codes after testing.
Important Considerations and Warnings
ECU remapping is a powerful modification that carries risks if not performed correctly:
- Voiding Warranty: Remapping your ECU will almost certainly void your vehicle's manufacturer warranty.
- Engine Damage: Incorrectly modified parameters can lead to severe engine damage, including blown head gaskets, damaged pistons, or turbocharger failure.
- Emissions: Modifications that increase power or alter combustion can affect emissions and may render your vehicle illegal for road use in some regions.
- Legality: Always ensure that any modifications comply with local regulations regarding vehicle emissions and modifications.
- Insurance: You must declare any engine modifications to your insurance provider, as failure to do so could invalidate your policy.
- Professional Advice: If you are new to ECU remapping, it is highly recommended to seek guidance from experienced professionals or consider having the work carried out by a reputable tuning company.
Frequently Asked Questions
Q1: What is the difference between OBD tuning and bench tuning?
OBD tuning involves connecting to the vehicle's OBD-II port, which is the most common and convenient method. Bench tuning requires removing the ECU from the vehicle and connecting directly to it on a workbench, often allowing for faster communication and access to ECUs that may have security measures preventing OBD access.
Q2: Can I remap my ECU with just a laptop?
No, a laptop alone is insufficient. You need a dedicated ECU programming tool (like the Alientech KESS3) to interface with the ECU and the software (like ECM Titanium) to modify the data.
Q3: Is ECU remapping safe for my car?
ECU remapping can be safe if performed correctly by someone with the necessary knowledge and tools. However, incorrect modifications can lead to significant engine damage.
Q4: How long does it take to remap an ECU?
Reading the original file can take anywhere from a few minutes to over an hour, depending on the ECU and the tool. The modification process itself depends on the complexity of the changes. Writing the new file typically takes a few minutes. The entire process, including diagnosis and testing, can take several hours.
Q5: What are the benefits of ECU remapping?
Benefits can include increased horsepower and torque, improved throttle response, and potentially better fuel economy. However, these benefits are directly related to the quality of the tune and how the vehicle is driven.
Conclusion
ECU remapping offers a compelling way to enhance your vehicle's performance. However, it demands a significant investment in the right hardware and software, coupled with a deep understanding of engine management systems. Tools like the Alientech KESS3 and software such as ECM Titanium provide the capabilities needed for this advanced tuning. Always prioritise safety, legality, and consider seeking professional expertise to ensure a successful and satisfying outcome. The journey into ECU remapping is rewarding, but it requires diligence, precision, and a commitment to continuous learning.
