ECU Tuning: Unleash Your Car's Potential
In the world of automotive performance, the Engine Control Unit (ECU) plays a pivotal role. It's the brain of your vehicle, managing everything from fuel injection and ignition timing to turbo boost pressure and emissions. While manufacturers program ECUs with a 'one-size-fits-all' approach, often incorporating compromises to account for diverse global conditions, there's a significant amount of untapped potential waiting to be unlocked. This is where ECU tuning, also known as remapping, comes into play. At Evans Parker, our specialist technician, Martin, with his extensive VW/Audi specialist knowledge, can help you harness this potential, offering advanced ECU tuning services for a wide range of vehicles, including Audi, Volkswagen, Seat, and Skoda brands, as well as most other vehicle manufacturers. We even extend our expertise to motorhomes and vans.
What is ECU Remapping?
ECU remapping is the process of accessing and modifying the software (the 'map') stored within your vehicle's ECU. When manufacturers develop new cars, they must consider a vast array of potential operating conditions across different regions. This can include variations in fuel quality, extreme temperatures, varying altitudes, different emissions regulations, and even the possibility of inconsistent servicing schedules. To ensure reliable operation under all these circumstances, the original ECU map is often programmed with built-in compromises, meaning the engine isn't performing at its absolute peak potential. ECU remapping involves reading this original, compromised map and carefully adjusting various parameters. These adjustments can include fuel pressure, turbo boost pressure (for turbocharged engines), ignition advance, and throttle pedal response, among others. The goal is to release the true performance that the engine is capable of, without compromising safety or reliability. It’s essentially restoring the engine’s performance to what it should have been before the factory-imposed compromises.
The Benefits of ECU Remapping
The advantages of a well-executed ECU remap are manifold and can significantly enhance your driving experience. The most common outcomes are improvements in performance, driveability, and fuel economy. Let's delve deeper into these:
Enhanced Performance and Driveability
A remap can lead to a substantial increase in your vehicle's power and torque figures. This translates to a sharper throttle response, meaning your car reacts more quickly and eagerly when you press the accelerator. The power-band, which is the range of engine speeds where the engine produces its best power and torque, is often widened. This makes the power delivery feel more linear and consistent, resulting in a vehicle that feels more responsive and lively to drive. The engine becomes more flexible, requiring fewer gear changes, especially when accelerating or climbing hills. In many instances, manufacturers deliberately restrict the power output of certain models to fit them into specific tax or fleet categories. By remapping the ECU, you can effectively bypass these restrictions and unlock the hidden power and torque that your engine management system is capable of delivering.
Improved Fuel Economy
While enhanced performance is a major draw, a significant benefit of ECU remapping is the potential for improved fuel economy. With the added torque, particularly at lower engine speeds, you'll find that you need to apply less throttle to maintain motorway speeds. This allows you to drive in a higher gear at a slower speed, reducing engine strain and fuel consumption. The increased efficiency is also noticeable in stop-start traffic, when the vehicle is fully laden, or when towing. For those whose primary focus is on efficiency, we also offer dedicated ‘ECO Tune’ remaps, which prioritise fuel savings above all else.
ECU Remapping for Turbocharged Engines
Turbocharged engines, both diesel and petrol, are particularly well-suited to ECU remapping and offer fantastic potential for reliable, cost-effective tuning. These engines are already designed for performance, and remapping can further enhance their inherent capabilities without compromising their economy, reliability, or longevity.
Turbocharged Diesel Engines
Modern turbocharged diesel engines are increasingly popular, even in markets traditionally favouring petrol. They offer a great blend of power and economy. After an ECU upgrade on a turbo diesel, you can typically expect:
- Increased horsepower
- Increased torque
- Better throttle response
- Smoother power delivery
- Improved fuel economy
- Safer and more confident overtaking
Turbocharged Petrol Engines
Turbocharged petrol engines have long been the flagship for performance, boasting significantly higher power and torque figures than naturally aspirated engines of similar displacement. They are ideal candidates for remapping because the ECU directly controls crucial components like the wastegate, which regulates turbo boost pressure. By optimising these parameters, we can unlock substantial performance gains.
ECU Remapping for Non-Turbocharged Petrol Engines
While naturally aspirated petrol engines may not offer the same dramatic gains as their turbocharged counterparts, they can still benefit significantly from careful ECU remapping. A well-executed remap can deliver a power increase of 10-15% with added torque by fine-tuning various engine parameters, such as fuel and ignition curves. In some cases, camshaft timing can also be adjusted within the ECU map for further improvements. Furthermore, if you've invested in aftermarket tuning components like free-flowing exhausts, high-flow air filters, or re-profiled camshafts, ECU remapping is often essential to unlock the full potential of these upgrades. By recalibrating the ECU, these parts can work in harmony with the engine's management system, maximising their benefit. Using higher octane fuel can also allow for more advanced ignition timing, leading to further power gains.
Our ECU Remapping Process

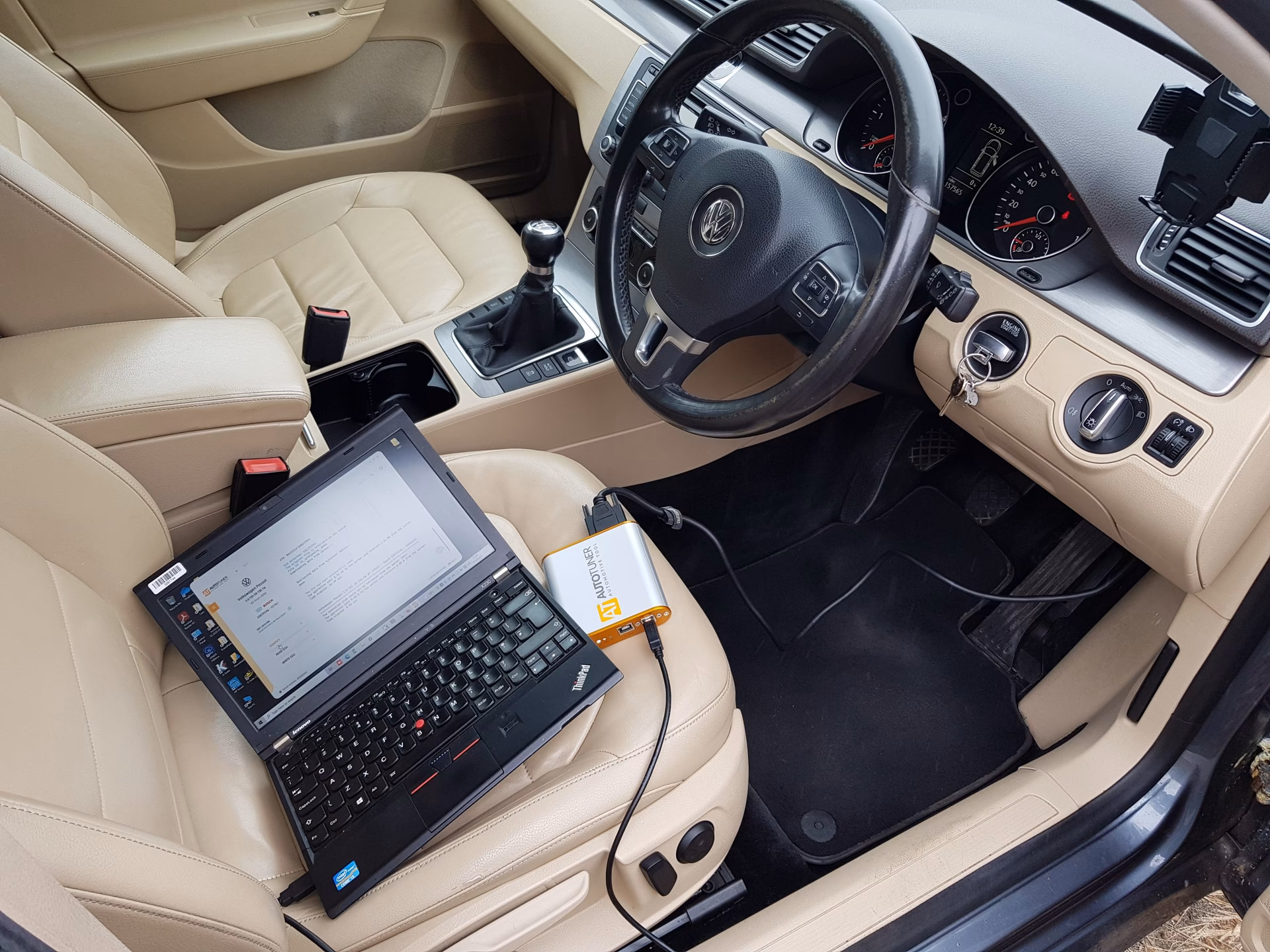

Our ECU remapping service is a meticulous and technologically advanced process. We begin by connecting our specialised interface to your vehicle's diagnostic port. This allows us to create an accurate copy of the original software file stored within the engine's ECU. This file is then securely transmitted to Quantum Tuning, a leading global tuning company renowned for its extensive network and expertise. Quantum Tuning boasts a network of over 1000 dealers in 95 countries and works on thousands of vehicles each month. Their dedicated team of expert file writers will then modify the original file according to your specific performance or economy requirements. Once the custom file is ready, it's sent back to us, and we carefully write it back onto your vehicle's ECU. The entire process is designed to be completely safe and non-invasive.
Who are Quantum Tuning & DCP Autos?
Evans Parker is proud to partner with Quantum Tuning, a globally recognised leader in automotive ECU remapping. Quantum Tuning Chichester specialises in both diesel and petrol remapping, focusing on enhancing performance, reliability, and fuel economy. DCP Autos shares this specialisation, ensuring that all our remapping technicians are trained to the highest standards. Our power and economy gains are achieved through the precise calibration of parameters such as boost pressure, fuel delivery rates, and pump timing, alongside adjustments to electronic torque and throttle response limiters. Crucially, all Quantum-trained remapping technicians are independently qualified and certified by the IMI (the Institute of the Motor Industry). This is the only recognised remapping qualification of its type within the motor trade, assuring you of the utmost professionalism and expertise.
Our ECU Remapping Service Locations
We are pleased to offer our comprehensive ECU remapping service at our dedicated centre in Bognor Regis, conveniently serving areas such as Chichester, Littlehampton, Selsey, Worthing, and Havant. For ultimate convenience, we can also undertake the ECU tuning work at your home or office, bringing our expertise directly to you.
Frequently Asked Questions
| Question | Answer |
|---|---|
| Will ECU remapping affect my vehicle's warranty? | This can vary depending on the manufacturer and the specific terms of your warranty. While remapping is a software change, some manufacturers may consider it a modification. It's advisable to check your warranty documentation or consult with the manufacturer. However, our process is designed to be discreet and reversible. |
| Is ECU remapping safe for my engine? | Yes, when carried out by qualified professionals like our technicians using reputable tuning files, ECU remapping is a safe process. We work within the safe operating parameters of your engine, often unlocking performance that was deliberately limited by the manufacturer. |
| How long does ECU remapping take? | The process typically takes between 1 to 2 hours to complete, depending on the specific vehicle and the complexity of the ECU. |
| Can ECU remapping be reversed? | Yes, the original factory map can always be reloaded onto the ECU if required, for example, before a vehicle is sold or returned to a dealer. |
| Will remapping increase my insurance premium? | As remapping can increase your vehicle's performance, it is considered a modification. You should declare any ECU remapping to your insurance provider to ensure your policy remains valid. Failure to do so could invalidate your insurance. |
For a personalised performance quote and pricing for your specific vehicle, or if you have any further questions about our ECU tuning services, please do not hesitate to contact us. Let us help you unlock the true potential of your vehicle!
