Stage 2 Remap: Unleash Your Car's Potential

Understanding Engine Remapping: A Primer

Modern vehicles are remarkably sophisticated, with their performance capabilities often being deliberately constrained by the manufacturer. This is often done to cater to a wide range of driving conditions, emissions regulations, and to differentiate between various models within a manufacturer's range. Engine remapping, also known as ECU (Engine Control Unit) remapping or chip tuning, is a process that involves modifying the software within your car's ECU. This software dictates a multitude of engine parameters, including fuel injection timing, boost pressure (for turbocharged engines), ignition timing, and throttle response. By recalibrating these parameters, a remap can unlock hidden performance potential, making your car feel more powerful, responsive, and sometimes even more fuel-efficient.

What Exactly is a Stage 2 Remap?

A Stage 2 remap represents a significant step up from a basic ECU remap (often referred to as a Stage 1). While a Stage 1 remap typically involves software modifications only, a Stage 2 remap is designed to work in conjunction with specific hardware upgrades. These hardware modifications are crucial because they allow the engine to breathe more freely and handle the increased performance demands that a Stage 2 remap imposes. Think of it as a more comprehensive tuning strategy where the software is optimised to take full advantage of the improved airflow and exhaust flow capabilities of the upgraded hardware.

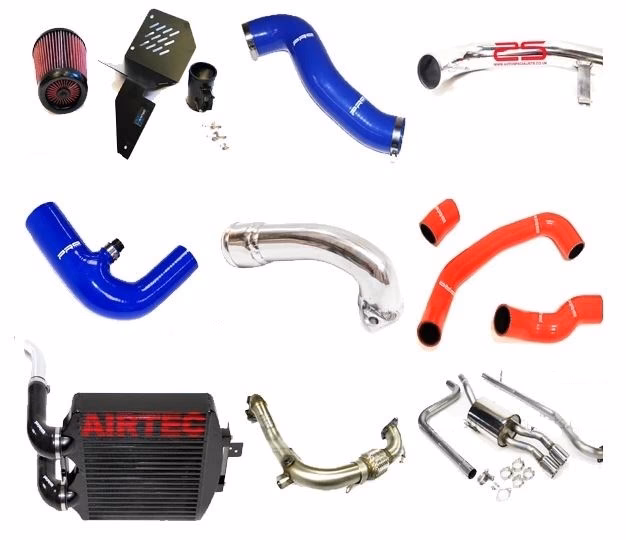

The Essential Hardware Requirements for a Stage 2 Remap

To successfully and safely implement a Stage 2 remap, certain hardware upgrades are not just recommended, but often essential. These upgrades are designed to support the increased power output and ensure the longevity and reliability of your engine. The most common and critical hardware components include:

1. High-Flow Air Filter

At the heart of any performance enhancement is the engine's ability to breathe. A high-flow air filter is a fundamental upgrade for a Stage 2 remap. Unlike standard paper filters, performance air filters are designed with a more open weave, allowing a greater volume of air to enter the engine. This improved airflow, when coupled with the remapped ECU software, leads to a more efficient air-fuel mixture. A better air-fuel ratio facilitates a more complete and powerful combustion process, directly translating into increased horsepower and torque. Beyond the performance boost, a more efficient combustion can also, in some instances, lead to improved fuel economy, especially during steady cruising.

2. Intercooler Upgrade

For vehicles equipped with a turbocharger or supercharger, managing intake air temperature is paramount. When an engine is tuned for higher performance, the turbocharger spins faster and generates more boost pressure. This increased pressure leads to hotter intake air. If this hot air is not adequately cooled before entering the engine, it becomes less dense, reducing the amount of oxygen available for combustion. This can lead to a loss of performance and, in severe cases, engine damage. An upgraded intercooler is designed to dissipate heat more effectively than the factory unit. By ensuring the intake air remains cool and dense, the ECU can deliver the optimal amount of fuel for maximum power, safely. This is a critical component for any Stage 2 remap on a forced-induction engine.

3. Exhaust System Upgrade

The exhaust system plays a vital role in an engine's performance by removing spent combustion gases. A standard exhaust system can be restrictive, creating back pressure that hinders the engine's ability to expel gases efficiently. For a Stage 2 remap, an upgraded exhaust system, often featuring larger diameter piping and a less restrictive catalytic converter (or a sports cat), is usually required. This allows exhaust gases to exit the engine more quickly and with less resistance. Reduced back pressure means the engine doesn't have to work as hard to clear its cylinders, leading to improved volumetric efficiency. This, in turn, allows for a better air-fuel mixture and supports the higher performance levels targeted by the remap. The result is not only a performance gain but often a more satisfying and sporty exhaust note.

4. Downpipe Upgrade (Turbocharged Vehicles)

For turbocharged vehicles, the downpipe is the first section of the exhaust system, connecting directly to the turbocharger's exhaust housing. The factory downpipe often contains a restrictive catalytic converter designed to meet emissions standards. Upgrading to a larger diameter, free-flowing downpipe, often with a high-flow catalytic converter or even a de-cat pipe (where legally permissible), can significantly reduce exhaust back pressure. This allows the turbocharger to spool up faster and reach higher boost levels more efficiently, which is a key enabler for a successful Stage 2 remap. A performance downpipe is a crucial element for maximising the benefits of this tuning stage.

Table: Stage 1 vs. Stage 2 Remap Requirements

Expected Performance Gains from a Stage 2 Remap

The gains experienced from a Stage 2 remap can be quite substantial and truly transform the driving experience. While exact figures will always vary depending on the specific vehicle, its engine, and the quality of the hardware and tuning, you can generally anticipate the following:

• Increased Horsepower and Torque: This is the most significant benefit. Expect gains of anywhere from 20-50 BHP (Brake Horsepower) or even more on some performance cars. Torque figures also see a healthy increase, making the car feel much more potent, especially in the mid-range, which is crucial for everyday driving and overtaking.
• Enhanced Throttle Response: The engine will feel far more eager and responsive to your inputs. The slight delay often present in factory software is reduced, providing a more direct and engaging connection between your right foot and the engine's power delivery.
• Improved Fuel Economy: While it might seem counterintuitive, a well-executed Stage 2 remap can improve fuel efficiency. By optimising the air-fuel ratio and ensuring more efficient combustion, the engine can operate more economically, particularly during steady cruising speeds on the motorway. However, it's important to note that aggressive driving with the increased power will naturally consume more fuel.
• Broader Power Band: The engine will often pull more strongly across a wider rev range. This means you'll have usable power available for longer, making both spirited driving and overtaking manoeuvres more effortless and enjoyable.
• Optimised Air-Fuel Ratio: With the improved airflow and exhaust flow, the ECU can be precisely calibrated to achieve the ideal air-fuel mixture for optimal combustion under all conditions. This not only boosts performance but also ensures the engine runs as efficiently as possible within its new parameters.
• Sportier Exhaust Note: The hardware upgrades, particularly the exhaust system and downpipe, often result in a deeper, more aggressive, and sportier exhaust sound, adding another layer of auditory enjoyment to the driving experience.

Is a Stage 2 Remap Right for You?

A Stage 2 remap is an excellent option for drivers who are looking to significantly enhance their vehicle's performance and are willing to invest in the necessary hardware upgrades. It's a more involved process than a simple software remap, requiring careful consideration of component compatibility and professional installation and calibration. If you're seeking a noticeable uplift in power, torque, and overall driving engagement, and are prepared for the associated hardware modifications, a Stage 2 remap can be a truly rewarding upgrade.

Frequently Asked Questions (FAQs)

Q1: Will a Stage 2 remap affect my car's warranty?

A1: Yes, in most cases, significant engine modifications like a Stage 2 remap can affect your manufacturer's warranty. It's always advisable to check with your dealership or the remapping specialist regarding potential warranty implications.

Q2: Is a Stage 2 remap safe for my engine?

A2: When carried out by reputable professionals using quality components and appropriate software calibration, a Stage 2 remap is generally safe. However, it does push the engine beyond its factory specifications, so adhering to regular maintenance schedules and using high-quality fluids is even more crucial.

Q3: How long does a Stage 2 remap take?

A3: The time taken can vary. The hardware installation (filters, exhaust, intercooler) can take several hours, and the software calibration process also requires dedicated time on a rolling road to ensure optimal results. Expect the entire process to potentially take a full day or more, depending on the complexity.

Q4: Can I do a Stage 2 remap myself?

A4: While the concept of remapping might seem straightforward, carrying out a Stage 2 remap effectively and safely requires specialised knowledge, tools, and equipment, including access to a dynamometer (rolling road) for accurate tuning. It is highly recommended to have this work performed by experienced professionals.

Q5: What happens if I don't upgrade the hardware for a Stage 2 remap?

A5: Attempting to run a Stage 2 remap without the necessary hardware upgrades can lead to several issues. The engine may run inefficiently, experience increased heat, and in severe cases, could suffer damage due to components being unable to cope with the increased performance demands. The software simply won't be able to achieve its optimal parameters without the supporting hardware.

Conclusion

A Stage 2 engine remap is a potent way to unlock a significant portion of your car's latent performance. By combining software optimisation with essential hardware upgrades such as high-flow air filters, improved intercoolers, and more efficient exhaust systems, you can transform your driving experience. It's a journey that requires careful planning and professional execution, but the rewards in terms of power, responsiveness, and driving pleasure are undeniable. Always consult with a trusted remapping specialist to ensure the process is tailored to your specific vehicle and to guarantee the best possible outcome.
