Ford EcoBoost: Unpacking Its Challenges & Charm

Since its debut in 2012, Ford's 1.0L EcoBoost engine has taken the automotive world by storm. This compact three-cylinder turbocharged marvel quickly garnered widespread popularity, even earning the prestigious International Engine of the Year (IEPOTY) award for three consecutive years. Despite its diminutive size, the 1.0L EcoBoost promised exceptional economy and next-generation performance, proving that big power could indeed come in a small package. However, this innovative engine, like any complex piece of engineering, has faced its share of challenges and criticisms. While celebrated for its efficiency and power, certain reported issues have cast a shadow, leading to recalls and a closer look at its long-term reliability. This article delves into what makes the EcoBoost engine tick, explores the most common problems reported with the 1.0L variant, and provides crucial insights into solutions, broader EcoBoost family performance, and Ford's response.

Understanding the Ford EcoBoost Philosophy

At its core, the Ford EcoBoost philosophy revolves around delivering the power and performance typically associated with larger displacement engines, but with significantly improved fuel efficiency and lower emissions. This is achieved through a clever combination of three key technologies: turbocharging, direct fuel injection, and variable valve timing. By using a turbocharger, smaller engines can force more air into the combustion chamber, leading to greater power output. Direct injection precisely delivers fuel directly into the cylinders, enhancing combustion efficiency. Variable valve timing optimises valve operation for different engine speeds, further improving performance and economy. Ford found immense success in this downsizing strategy, creating engines that were not only powerful but also remarkably economical. The 1.0L EcoBoost is a prime example of this engineering prowess, designed to be ultra-low friction, highly efficient, and durable.

The Rise and Reach of the 1.0L EcoBoost

The 1.0L EcoBoost, the smallest in the EcoBoost series, was initially introduced in the Ford Focus and C-Max in 2012. Its immediate success led Ford to offer this engine across a wide range of vehicles, cementing its place as a versatile and popular choice for many drivers. Its ability to rival the performance of traditional 1.6-litre petrol engines while offering superior fuel economy made it a compelling option. Over the years, this small but mighty engine found its way into various Ford models, including:

• B-MAX
• C-MAX
• Kuga
• Fiesta
• Focus
• Mondeo
• Connect (Transit)
• Courier (Transit)
• Custom (Transit)

This widespread adoption, however, also meant that any underlying issues would affect a large number of vehicles, impacting Ford's reputation and leading to significant scrutiny.

Common Problems with the 1.0L EcoBoost Engine

Despite its numerous accolades, the 1.0L EcoBoost engine has been subject to several reported issues, some of which are quite serious. These problems have necessitated recalls and extensive discussions among owners and mechanics. Understanding these common faults is crucial for current and prospective owners.

Cooling System Failures: The Overheating Predicament

Perhaps the most widely reported and concerning issue with the 1.0L EcoBoost engine has been related to its cooling system. Ford acknowledged that approximately 44,682 Ford cars, equipped with the 1.0-litre engine and manufactured between October 2011 and October 2013, contained a specific vulnerability: a nylon coolant pipe between the engine and the coolant tank that was prone to failure at high temperatures. This design flaw could lead to a sudden and complete loss of coolant, causing the engine to rapidly overheat. In severe cases, this overheating could result in engine damage, including cracking of the cylinder head, and even engine fires. The inherent compact design of the 1.0L engine meant there was little room for a larger, more robust pipe with higher temperature resistance in that specific location, making the component particularly vulnerable under strenuous conditions such as prolonged high-speed driving or heavy loads.

Ford issued a Field Service Action in March 2015 to address this, aiming to replace the problematic nylon hoses. While 96% of the affected vehicles were reportedly fixed, the issue was not initially treated as a safety recall by the Driver and Vehicle Standards Agency (DVSA) because a dash warning light should illuminate if the car begins to overheat, providing an early warning. However, the severity of potential engine damage and fire risk meant that for many owners, this warning came too late. If you experience a sudden hissing noise, followed by steam or smoke from under the bonnet, it is imperative to stop the vehicle immediately to prevent catastrophic engine failure.

Carbon Buildup: The Direct Injection Downside

Another prevalent issue affecting the 1.0L EcoBoost, and indeed many direct injection (DI) engines, is carbon buildup on the intake valves. Unlike traditional port-injected engines where fuel washes over the intake valves, in DI systems, fuel is injected directly into the combustion chamber. This means that the intake valves are not regularly cleaned by the fuel, allowing carbon deposits from crankcase ventilation and exhaust gas recirculation (EGR) to accumulate. Over time, these carbon deposits can restrict airflow, disrupt valve sealing, and severely impact engine performance.

Common symptoms of significant carbon buildup include:

• Frequent misfires, especially at idle.
• Difficulty starting the engine.
• Reduced engine performance, leading to sluggish acceleration.
• Decreased fuel economy (MPG).

While not immediately catastrophic, this issue can progressively worsen and reduce the overall efficiency of the engine. Unfortunately, there's no simple long-term preventative measure for DI engines. The most effective temporary solution is a process known as "Walnut Blasting." This involves blasting crushed walnut shells at high pressure onto the intake valves to remove carbon deposits. This procedure typically costs around £500 and can keep the valves clean for approximately 75,000 miles.

Low Fuel Pressure Issues: Stuttering Performance

The 1.0L EcoBoost is celebrated for its impressive MPG figures, which it achieves by operating at extremely high temperatures. This places considerable strain on various components, including the low-pressure fuel pump (LPFP). Owners have reported issues with the LPFP, leading to a reduction in its performance and overall longevity. When the LPFP starts to fail, it struggles to deliver adequate fuel pressure to the high-pressure fuel pump, which can severely impact combustion.

Symptoms of low fuel pressure issues include:

• Knocking sounds from under the bonnet.
• Engine stuttering or shutting down automatically while driving.
• A high number of misfires during the ignition process.

The solution for this problem is relatively straightforward: replacing the cam bucket. This component plays a crucial role in the operation of the LPFP. If your vehicle is still under its manufacturer's warranty (typically up to 3 years old), this repair may be completed for free by your local Ford garage or dealership. Replacing the cam bucket restores the LPFP's efficiency, allowing the engine to operate at its full capabilities.

Ford's Response and Owner Compensation

Following a BBC investigation that highlighted the plight of numerous 1.0L EcoBoost owners who faced substantial repair costs due to the cooling system defect, Ford significantly revised its compensation policy. Initially, Ford's contribution to repair costs was based on the vehicle's mileage and the completeness of its service history. However, acknowledging the severity of the issue and the potential for engines to be up to eight years old without a full main dealer service history, Ford made a crucial decision.

Ford has now committed to covering 100% of the repair costs for issues determined to be linked to potential 1.0-litre engine overheating. This includes issuing refunds to those owners who had already paid for such repairs. In a statement, Ford affirmed its commitment: "in the event of any future cases that are determined to be linked to potential 1.0-litre engine overheating, we will contribute 100% of the cost of repair at a Ford dealership." They also pledged to re-examine previous cases to ensure this policy is consistently applied.

What to Do if Your Engine is Affected

If you suspect your Ford 1.0L EcoBoost engine has been affected by overheating, the first step is to contact your local Ford dealership. They will arrange for an inspection to determine the extent of any damage and the necessary repairs. If you have already paid for repairs related to this issue, you will need to provide proof of payment and confirmation that the repairs were carried out by a Ford dealer to be eligible for a refund. It is advisable to keep all service records and receipts meticulously.

Is the 1.0L EcoBoost a Good Engine?

Despite the widely publicised issues, the 1.0L EcoBoost engine has its merits and, for many owners, proves to be a reliable and efficient powerplant. Its compact size belies its impressive power output, making it a peppy and engaging engine for its class. With 123 horsepower and 125 lb-ft of torque from a mere three cylinders, it offers excellent fuel economy without sacrificing performance. Its recognition as one of Ward's 10 Best Engines multiple times underscores its engineering achievements.

Many owners report covering hundreds of thousands of miles without major issues, particularly when the engine has been well-maintained and the cooling system recall work was performed. With proper care and regular servicing, including ensuring coolant levels are topped up with a high-quality additive and avoiding prolonged high RPM driving, this engine can provide many years of loyal service. Its affordability also makes it an attractive choice for budget-conscious buyers seeking a balance of power and economy.

How Does the 1.0L EcoBoost Engine Work?

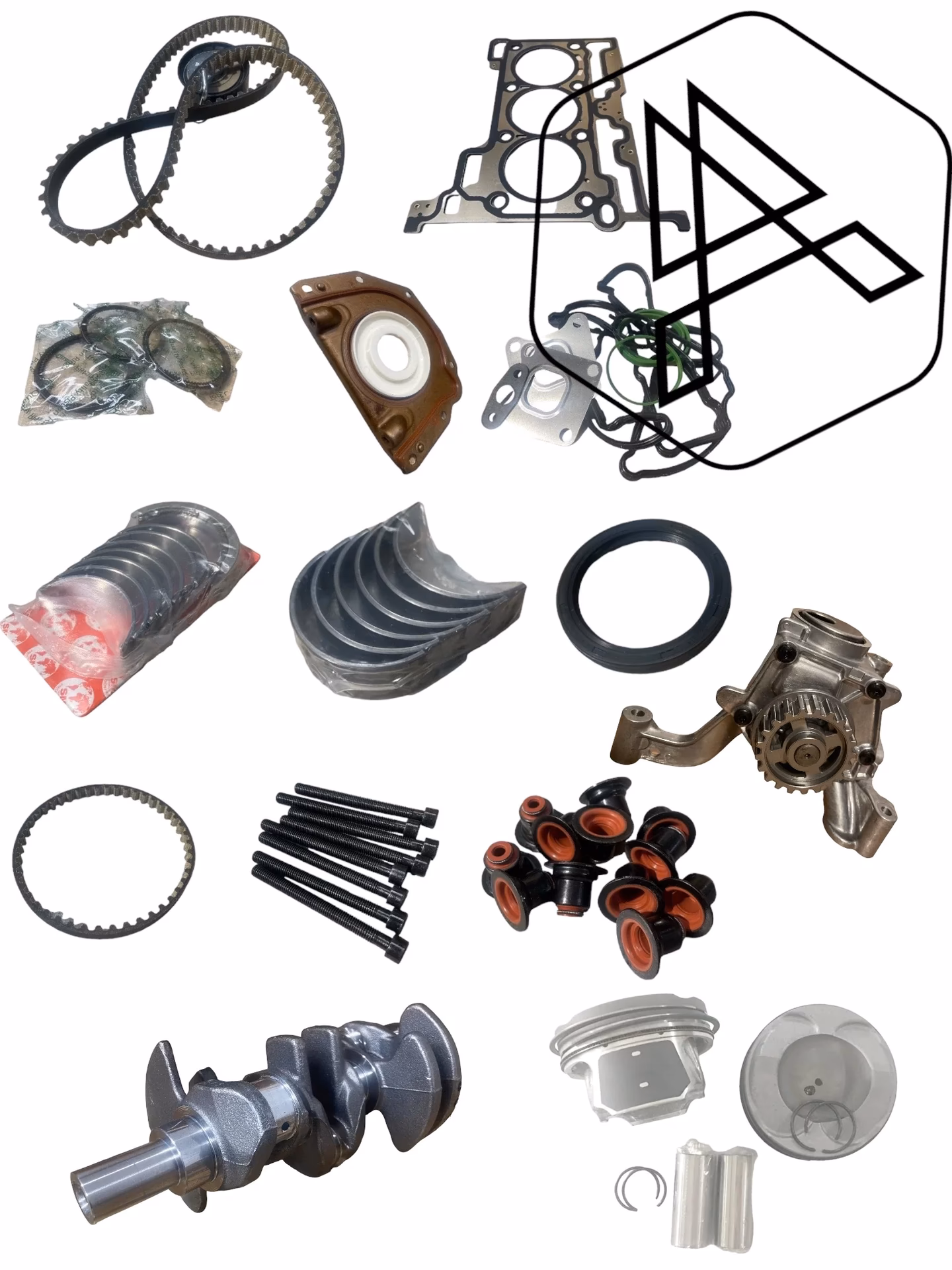

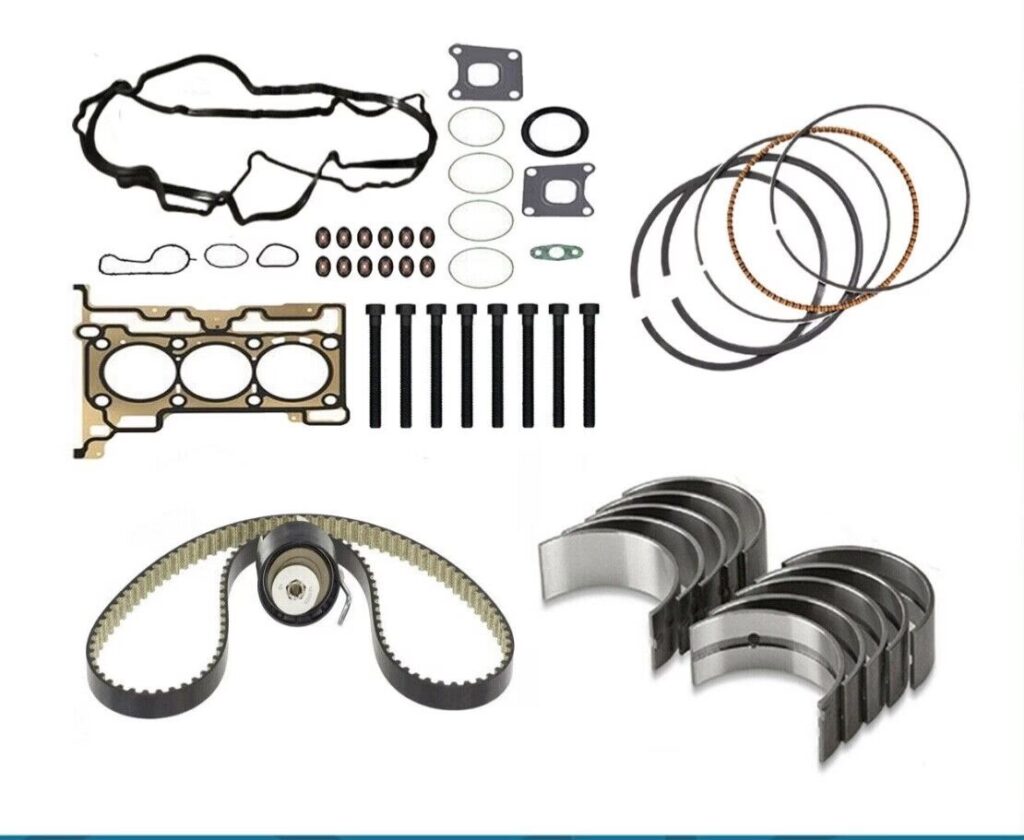

The 1.0L EcoBoost engine is a marvel of modern engineering, packing advanced technology into a tiny footprint. Here's a closer look at its key components and how they contribute to its performance:

• Cylinder Block: It features an open-deck design cylinder block made from grey cast iron. While heavier than aluminium, cast iron reduces warm-up energy consumption by up to 50%, positively impacting emissions.
• Crankshaft and Balance: The cast iron crankshaft has six counterweights and four main bearings. Uniquely, the engine uses an unbalanced flywheel and front pulley to counteract vibrations, eliminating the need for a traditional balance shaft. This ingenious design reduces energy expenditure and contributes to smoother operation.
• Pistons and Connecting Rods: Inside the block, you'll find cast aluminium, low-friction coated pistons and forged connecting rods, designed for durability and efficiency.
• Lubrication System: The 1.0L EcoBoost is equipped with an electronically controlled variable displacement oil pump, which optimises oil flow based on engine demands, further enhancing efficiency.
• Cylinder Head: An aluminium alloy 12-valve cylinder head sits atop the block. A notable feature is the exhaust manifold integrated into the cylinder head. This design lowers exhaust gas temperatures and accelerates engine warm-up during cold starts, improving efficiency and emissions.
• Valvetrain: It uses Direct Acting Mechanical Bucket (DAMB) valvetrain with polished solid buckets. It's a DOHC (Dual Overhead Camshaft) engine, with belt-driven intake and exhaust camshafts.
• Timing Belt: A key innovation is the low-friction belt-in-oil drive with a dynamic tensioner. This provides quieter and more efficient running (around 20% more efficient than a chain), with the reliability typically associated with a chain. Ford's warranty for this timing belt is a generous 10 years or 120,000 miles (200,000 km).
• Variable Camshaft Timing: The engine incorporates Ti-VCT (Twin Independent Variable Camshaft Timing), which independently adjusts the timing of both intake and exhaust valves for optimal performance across the RPM range.
• Fuel Injection: A Bosch high-pressure direct fuel injection system is employed, with each cylinder featuring a 6-hole solenoid injector. Fuel is injected directly into the combustion chamber at pressures up to 150 bar.
• Turbocharger: Power comes from a water-cooled, small, low-inertia, high-speed Continental turbocharger, designed for quick spool-up and minimal turbo lag. Charged air passes through an air-to-air intercooler with an additional electric fan.
• Cooling System: The engine uses a split cooling system with two thermostats and two circuits – one for the top end and turbocharger, and another for the engine block. This system also includes an electric water pump to cool the turbocharger even after the engine is turned off, preventing heat soak.
• Engine Management: A Bosch MED17 control unit manages engine operation, featuring CAN-Bus and individual cylinder knock control.
• Emissions: For emission reduction, a close-coupled three-way catalyst system with heated oxygen sensors is used, ensuring compliance with Euro-5 and Euro-6 European emission levels.

Beyond the 1.0L: The Broader EcoBoost Family

While the 1.0L often grabs headlines, the EcoBoost family encompasses a range of engines, including larger displacement variants like the 3.5L V6, which has also made a significant impact, particularly in the North American market where V8 engines traditionally reigned supreme.

EcoBoost: A V8 Replacement?

For many years, Ford's heritage was synonymous with powerful American muscle V8s. However, the EcoBoost line, especially the 3.5L V6, has emerged as a compelling, more efficient replacement for these larger displacement engines. The 3.5L EcoBoost engine offers impressive figures, boasting 365 HP and 420 lb-ft of torque, often rivalling or exceeding the output of naturally aspirated V8s, all while delivering superior fuel economy (e.g., 17 mpg city and 23 mpg highway in some applications). Its ability to maintain 90% peak torque from 1,700 to 5,000 revolutions per minute makes it incredibly versatile for both daily driving and heavy-duty tasks. For those seeking V8-like power without the associated fuel consumption and higher initial purchase price, the 3.5L EcoBoost presents an attractive alternative.

Reliability and Features of the 3.5L EcoBoost

The 3.5L EcoBoost is generally regarded as a robust and reliable engine. Its identification is straightforward, primarily due to the twin-scroll turbochargers fitted to the engine. A key feature contributing to its efficiency and performance is Twin Independent Variable Cam Timing (Ti-VCT). This technology allows the intake and exhaust valves to open for fractions of seconds, creating an overlap that facilitates the mixing of new fuel with escaping exhaust gases. The result is improved torque and significantly lowered emissions, with reports indicating up to 15% fewer carbon emissions. This makes the 3.5L EcoBoost an excellent choice for those keen on environmental conservation without compromising on power.

Towing capacity is another area where the 3.5L EcoBoost excels. With a maximum payload rating of 3,230 pounds and a towing capacity of 13,200 pounds (depending on vehicle application), this engine is built for demanding tasks, ensuring you can confidently move heavy materials or assist a friend without straining your vehicle's structure.

Upgrade Potential for the 3.5L EcoBoost

The 3.5L EcoBoost engine offers considerable potential for performance upgrades, allowing owners to further enhance its power and throttle response. Common modifications include:

• Cold Air Intake & Custom Tune: Upgrading the cold air intake allows the engine to breathe more freely, feeding more air to the turbocharger. Coupled with a custom engine tune, this can result in added horsepower, improved throttle responses, and even better fuel savings.
• Throttle Body Swap: Replacing the stock throttle body with a larger aftermarket unit can further increase airflow into the engine, leading to more power and sharper throttle response.
• Downpipe Replacement: The factory downpipe can be quite restrictive, limiting the turbocharger's efficiency. Swapping it for an aftermarket version can yield noticeable gains in horsepower and torque. However, it's crucial to be aware that some aftermarket options may not pass emissions testing.
• Larger Turbocharger: While the stock turbocharger is competent, a larger aftermarket unit can unlock significant power gains. Be mindful that larger turbos can sometimes introduce more turbo lag, so moderation is key to finding the right balance.
• Rear Gear Changes: For those prioritising acceleration, opting for steeper rear gears can provide more power off the line, though this typically comes at the expense of top-end speed.

Common Problems with the 3.5L EcoBoost

Despite its robust design, the 3.5L EcoBoost also shares a common direct injection issue: carbon buildup on the intake valves. As with the 1.0L, the direct injection system means fuel does not wash over the intake valves, leading to carbon deposits. This can eventually lead to decreased performance. A potential solution, beyond walnut blasting, is to consider upgrading the fuel injection system to a high-pressure setup, which can help mitigate carbon accumulation.

Longevity of the 3.5L EcoBoost

The 3.5L EcoBoost is designed for longevity, with many owners reporting covering as many as 200,000 miles or more without major complications, provided regular maintenance is adhered to. The lifespan of the engine can vary depending on usage, driving style, and maintenance practices. While it boasts a high towing capacity, frequent heavy towing will inevitably place more strain on the engine, potentially reducing the miles covered before a rebuild is necessary. Similarly, aggressive driving at high speeds can accelerate wear and tear.

Signs that your 3.5L EcoBoost might require a rebuild include a loud knocking sound from the engine (indicating worn components), blue smoke from the exhaust (suggesting worn piston rings), reduced performance, and declining fuel economy. Regular servicing and prompt attention to any warning signs are key to maximising the engine's lifespan.

Revised EcoBoost Engine Blocks

Ford has indeed made revisions to certain EcoBoost engine blocks. For instance, the 1.5L 4-cylinder EcoBoost motor has seen updates, specifically to its engine block, which now features revised coolant passages. This indicates Ford's continuous efforts to address and improve the design of its EcoBoost engines based on real-world performance and reported issues, aiming to enhance durability and cooling efficiency.

EcoBoost Engine Comparison

To provide a clearer picture, here's a brief comparison between the 1.0L and 3.5L EcoBoost engines:

1.0L EcoBoost FAQs

Is there a method to keep the Ford 1.0L EcoBoost engine from experiencing coolant issues?

To minimise the risk of coolant issues, avoid prolonged driving at the top of the engine's RPM range. Regularly check and ensure your coolant levels are topped up with a high-quality additive suitable for your vehicle. If you suspect a coolant fault, such as unexplained coolant loss or unusual engine temperatures, have a qualified mechanic inspect the vehicle immediately.

Is it possible to swap out the cam bucket on a Ford 1.0L EcoBoost engine?

The replacement of the cam bucket is a complex procedure that requires specialised tools and knowledge. It should only be performed by a qualified and experienced mechanic to ensure proper installation and function.

What can I do to improve the performance of my Ford 1.0L’s engine?

Maintaining a strict and regular service schedule, using recommended lubricants and fluids, and replacing components when necessary are the best ways to prolong the life and optimise the performance of your engine. While aftermarket modifications exist, for a daily driver, reliability often outweighs minor performance gains.

Is it possible to employ the Ford 1.0L EcoBoost engine in hatchbacks and larger automobiles?

Yes, the Ford 1.0L EcoBoost engine is ideally suited for compact hatchbacks like the Fiesta. However, it is also a fantastic and surprisingly capable option for mid-size automobiles, including models such as the Focus, C-Max, Kuga, and even certain Transit van variants, showcasing its versatility.

Is Ford Providing Compensation to Owners of Impacted Vehicles?

Yes, following investigations and increased awareness, Ford has committed to covering 100% of the repair costs for issues directly linked to potential 1.0-litre engine overheating when repairs are carried out at a Ford dealership. They are also issuing refunds to eligible owners who have already paid for such repairs. This policy applies to future cases and includes a re-examination of past claims.

What Should you do if you Believe Your Engine Has Been Affected?

If you believe your 1.0L EcoBoost engine has suffered damage due to potential overheating, the first step is to contact your local Ford dealership. They will conduct an inspection to diagnose any damage and advise on the necessary repairs. If you have already paid for repairs, ensure you have proof of payment and evidence that the repairs were performed by a Ford dealer to facilitate a refund.

Conclusion

The Ford EcoBoost engine family, particularly the acclaimed 1.0L variant, represents a significant leap in automotive engineering, offering impressive power and efficiency from remarkably compact packages. While the 1.0L EcoBoost has faced its share of widely reported challenges, most notably concerning its cooling system, carbon buildup, and low fuel pressure, Ford has acknowledged these issues and implemented solutions, including a comprehensive compensation policy for affected owners. Parts remain readily available, and with diligent maintenance and prompt attention to any warning signs, these engines can provide reliable service for many years and miles.

The broader EcoBoost range, exemplified by the potent 3.5L V6, continues to demonstrate Ford's commitment to delivering powerful yet efficient alternatives to larger, thirstier engines. Understanding the characteristics, potential pitfalls, and maintenance requirements of any EcoBoost engine is key to ensuring its longevity and performance. For those seeking to stay ahead of potential issues, an On-board Diagnostic (OBD) scanner, readily available for as little as £25, can be an invaluable tool for early diagnosis.

We trust this comprehensive article has provided helpful insights into the Ford EcoBoost engine, its common problems, and the available solutions. If you have personal experiences or further questions, please feel free to share them.
