Identifying the type of brakes your car is equipped with is a fundamental aspect of automotive maintenance and understanding your vehicle's safety systems. While modern vehicles predominantly feature disc brakes, particularly on the front wheels, older or more budget-friendly models might still utilise drum brakes, often on the rear axle. Knowing which system you have is crucial for everything from purchasing replacement parts to understanding potential maintenance issues and even diagnosing performance anomalies. This article will delve into the two primary types of braking systems found in cars: disc brakes and drum brakes, explaining their mechanisms, how to visually identify them, and the pros and cons of each.
Disc Brakes Explained
Disc brakes are the dominant braking technology in today's automotive world, and for good reason. They offer superior stopping power, better heat dissipation, and more consistent performance, especially under demanding conditions. A disc brake system consists of a few key components:
- Rotor (or Disc): This is a large, flat metal disc that is attached to the wheel hub and rotates with the wheel. Rotors are typically made of cast iron or sometimes steel alloys, and can be solid or ventilated (with internal vanes to help with cooling).
- Caliper: The caliper is a clamp-like device that houses the brake pads and pistons. It is mounted over the rotor.
- Brake Pads: These are friction material pads that are pressed against the rotor surface by the caliper's pistons when you apply the brakes. They are designed to wear down over time.
- Pistons: Located within the caliper, these hydraulic pistons are pushed outward by brake fluid pressure, forcing the brake pads to clamp onto the rotor.
How Disc Brakes Work
When you press the brake pedal, hydraulic pressure is transmitted through the brake lines to the caliper. This pressure forces the pistons within the caliper to extend, pushing the brake pads inward. The brake pads then make forceful contact with the rotating rotor. The friction generated between the pads and the rotor converts the kinetic energy of the moving vehicle into heat energy, slowing down and eventually stopping the car. The ventilated design of some rotors allows air to flow through them, helping to dissipate this heat more effectively, which prevents brake fade (a loss of braking performance due to overheating).
Drum Brakes Explained
Drum brakes, while less common on the front wheels of modern cars, are still found on many vehicles, often on the rear axle. They operate on a different principle but achieve the same goal: to create friction and slow the vehicle. The main components of a drum brake system are:
- Brake Drum: This is a hollow, cylindrical metal component that is attached to the wheel hub and rotates with the wheel. It's shaped like a drum, hence the name.
- Brake Shoes: These are curved, semi-circular metal components that have a friction material lining on their outer surface. They are mounted inside the brake drum.
- Wheel Cylinder: Similar to the caliper's pistons, the wheel cylinder contains pistons that are pushed outward by hydraulic pressure.
- Return Springs: These springs pull the brake shoes back to their resting position when the brake pedal is released.
How Drum Brakes Work
When the brake pedal is pressed, hydraulic pressure acts on the pistons in the wheel cylinder. These pistons push the brake shoes outwards, pressing their friction material lining against the inner surface of the rotating brake drum. The resulting friction slows the drum, and consequently, the wheel. As the brake shoes are pushed outwards, they also tend to 'wedge' themselves against the drum, which can provide a self-energising effect, meaning a small amount of pedal pressure can result in a significant braking force. However, this also means that drum brakes can be more prone to brake fade under heavy use due to their tendency to trap heat.
Identifying Your Car's Brakes
The easiest way to determine whether your car has disc or drum brakes is through a visual inspection. This is often most straightforward when the wheels are off the ground, such as during a tyre change or service, but can sometimes be identified with the wheels on.
Visual Clues for Disc Brakes:

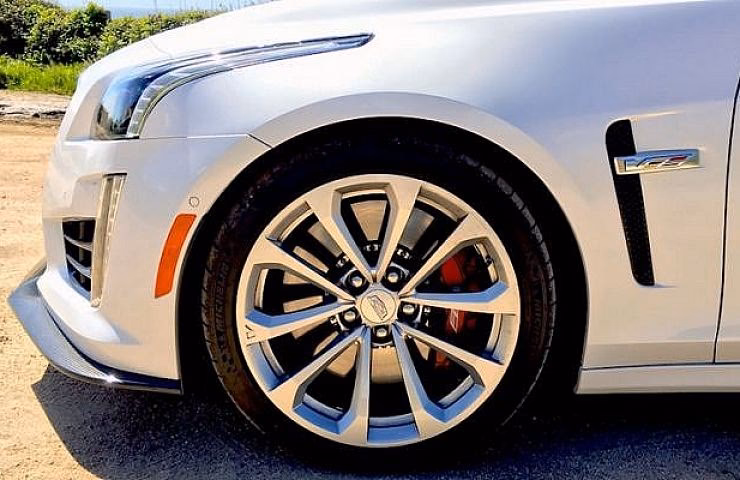

- Open Structure: Disc brake calipers are typically visible from the outside of the wheel. You'll see a shiny metal disc (the rotor) rotating behind the spokes of the wheel. The caliper will be clamped around a portion of the rotor.
- Exposed Rotor: The rotor is generally exposed and easily identifiable.
Visual Clues for Drum Brakes:
- Enclosed Drum: Drum brakes are more enclosed. You'll often see a solid, round metal component that looks like a can or drum covering the centre of the wheel. There's no easily visible caliper clamped around the outside of this component.
- Solid Appearance: The braking mechanism is hidden within the drum, giving a more solid appearance to the wheel hub area.
If you have alloy wheels, it can sometimes be harder to see the details. In such cases, looking at the rear wheels might be more revealing if they are equipped with drum brakes, as these are less commonly hidden behind large alloy designs compared to front disc brakes.
Comparison: Disc vs. Drum Brakes
Here's a quick comparison of the advantages and disadvantages of each braking system:
| Feature | Disc Brakes | Drum Brakes |
|---|---|---|
| Stopping Power | Generally superior, especially under heavy braking. | Can be effective, but less consistent in demanding situations. |
| Heat Dissipation | Excellent, particularly with ventilated rotors, reducing brake fade. | Poorer, can lead to brake fade more easily. |
| Performance in Wet Conditions | Better, as water is more easily shed from the rotor surface. | Can be compromised by water buildup within the drum. |
| Maintenance Complexity | Generally simpler to service and replace pads/rotors. | More complex, often involving adjusting brake shoes and replacing multiple components. |
| Cost | Historically more expensive, but now standard. | Cheaper to manufacture, often used on rear axles of less expensive vehicles. |
| Self-Energising Effect | Minimal. | Significant, can provide stronger initial bite but also less modulation. |
Why Does It Matter?
Knowing your brake type is important for several reasons:
- Purchasing Parts: Brake pads and rotors (for disc brakes) or brake shoes and drums (for drum brakes) are specific to the system they are designed for. Using the wrong parts can be dangerous and damage your braking system.
- Maintenance: Each system requires different maintenance procedures. For example, adjusting drum brakes is a common maintenance task that isn't necessary for disc brakes.
- Troubleshooting: Understanding the components can help you recognise common issues. Squealing brakes might indicate worn pads (disc) or debris in the drum. A spongy brake pedal could be air in the system or issues with either type of brake.
- Performance Expectations: You can better understand your car's braking characteristics. Disc brakes are generally more reliable and offer better feel, while drum brakes can sometimes feel more abrupt due to their self-energising nature.
Common Brake Issues and What to Look For
Regardless of whether you have disc or drum brakes, regular inspection is vital. Here are some common signs that your brakes may need attention:
- Squealing or Grinding Noises: Often indicates worn brake pads or shoes, or debris trapped in the braking mechanism.
- Spongy or Soft Brake Pedal: Suggests air in the brake lines, a leak in the hydraulic system, or issues with the master cylinder.
- Vibrations or Pulsations: Typically caused by warped brake rotors.
- Car Pulling to One Side: Could be due to uneven wear on brake pads/shoes or a problem with a brake caliper or wheel cylinder.
- Reduced Responsiveness: The brake pedal feels less firm or takes longer to stop the car.
Frequently Asked Questions (FAQs)
Q1: Can my car have different types of brakes on the front and rear?
A: Yes, it is very common. Most modern cars have disc brakes on the front wheels for superior stopping power and heat dissipation, and either disc or drum brakes on the rear wheels. Rear disc brakes are increasingly common, even on smaller vehicles.
Q2: How often should I have my brakes inspected?
A: It's recommended to have your brakes inspected at least once a year, or every 10,000-12,000 miles, as part of your regular vehicle maintenance schedule. However, if you notice any unusual noises or changes in performance, you should have them checked immediately.
Q3: What is brake fade?
A: Brake fade is a temporary loss of braking effectiveness that occurs when brake components, particularly rotors and pads/shoes, overheat. This overheating reduces the friction between the braking surfaces, leading to a longer stopping distance. Disc brakes, especially with ventilated rotors, are less prone to fade than drum brakes.
Q4: Which type of brake is better?
A: For overall performance, heat management, and stopping power, disc brakes are generally considered superior. However, drum brakes can be cost-effective and still provide adequate braking for many applications, especially when used on the rear axle where they contribute less to overall braking force than the front brakes.
Q5: How do I know if my brake pads or shoes need replacing?
A: Most brake pads have a wear indicator – a small metal tab that makes a high-pitched squealing noise when the pad material is worn down to a certain point. Some brake shoes also have similar indicators. Your mechanic will also check the thickness of the friction material during regular inspections.
In conclusion, understanding the type of brakes your car uses is a key piece of knowledge for any car owner. Whether you have the sophisticated stopping power of disc brakes or the tried-and-tested reliability of drum brakes, ensuring they are in good working order is paramount for your safety on the road. Regular checks, understanding the signs of wear, and using the correct parts for maintenance will keep your braking system performing optimally.
