The Volkswagen EA888 engine is a powerhouse found in many of the brand's popular models, from the Golf GTI to the Tiguan and even performance variants like the Golf R and the T-Roc R. Known for its turbocharged, direct-injection design, it delivers impressive performance and efficiency. However, like any complex piece of machinery, it can encounter issues. If you're finding yourself in a situation where your EA888 is showing signs of distress, perhaps a loss of power, warning lights, or unusual noises, you might be contemplating a rebuild. This guide will delve into the feasibility of rebuilding a VW EA888, common problems, and what a DIY enthusiast should consider.
Understanding the EA888: A Common Powerplant
The EA888 is a family of inline-four, turbocharged, direct-injection petrol engines developed by Volkswagen Group. It has seen several generations, with the third generation (often referred to as Gen 3) being particularly prevalent in recent years. These engines are renowned for their responsive power delivery and ability to be tuned for even greater performance. The T-Roc R, for instance, utilises a 2-litre EA888 engine producing close to 300bhp, paired with a DSG gearbox and 4Motion all-wheel drive.
Common EA888 Issues and Symptoms
While a robust engine, the EA888 isn't immune to problems. Some common issues reported by owners include:
- Oil Consumption: This is perhaps one of the most talked-about issues. Some EA888 engines, particularly earlier generations, could suffer from excessive oil consumption due to factors like piston ring design or PCV valve failures. Low oil levels, as described in the user query, can lead to catastrophic engine damage.
- Timing Chain Issues: Although generally reliable, timing chain tensioners and guides can wear over time, leading to rattling noises and potential timing deviations.
- Water Pump Failures: The electric water pumps used in many EA888 variants can fail, leading to overheating.
- PCV Valve Malfunction: A faulty Positive Crankcase Ventilation (PCV) valve can cause rough idling, oil leaks, and increased oil consumption.
- Turbocharger Problems: While the turbochargers are generally robust, they can develop issues with wastegates, seals, or bearings, leading to a loss of boost or oil leaks into the intake or exhaust.
- Direct Injection (DI) System Issues: Clogged fuel injectors or high-pressure fuel pump problems can affect fuel delivery and engine performance.
The symptoms described by the user – loss of power, EPC light, flashing CEL, and misfiring – are indicative of significant internal engine damage, potentially relating to the cylinders, pistons, or valves, especially with oil found in the cylinders. This points towards a serious internal failure.

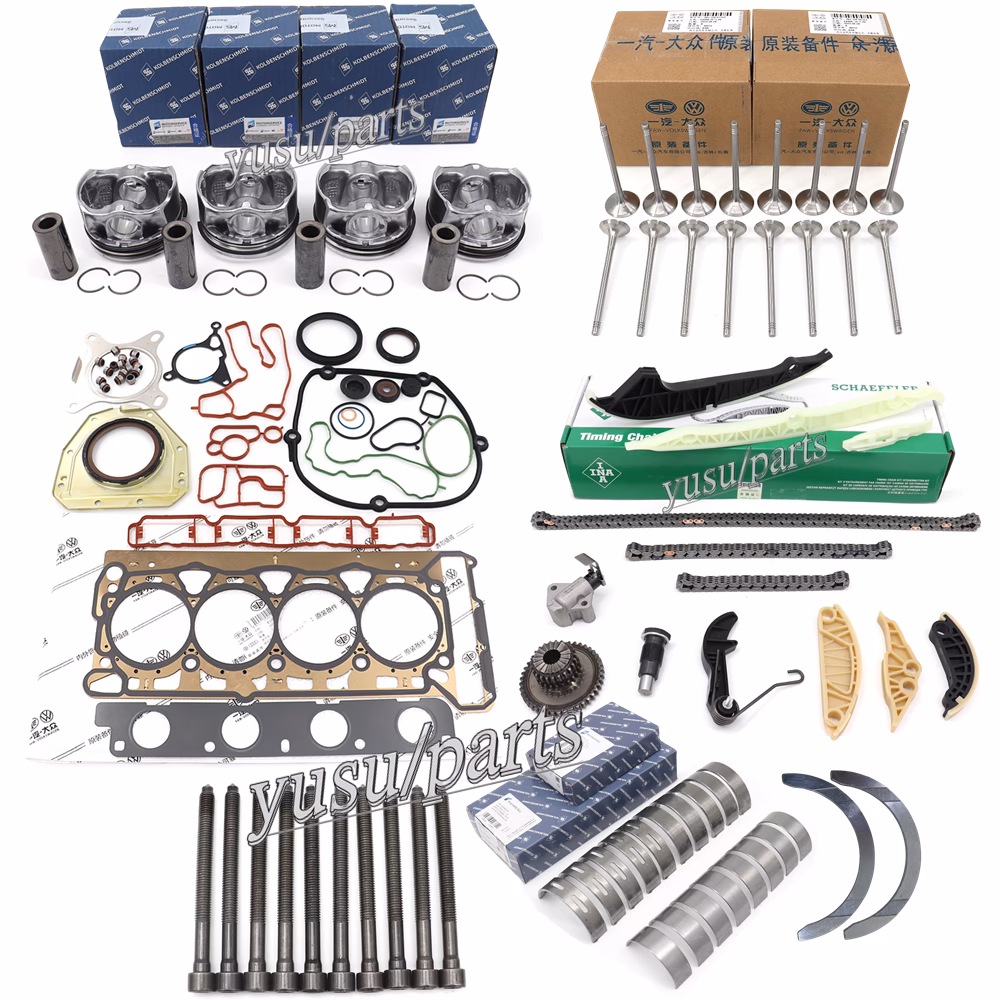

Can You Rebuild a VW EA888? The Feasibility Factor
Yes, you absolutely can rebuild a VW EA888 engine. However, the complexity and cost involved will depend heavily on the extent of the damage. For a handy individual with experience in car mechanics outside the engine itself, tackling certain aspects of a rebuild, such as cylinder head removal and inspection, is achievable. However, a full engine rebuild, encompassing bottom-end components like pistons and crankshafts, requires specialized tools, a clean environment, and a high degree of precision.
DIY vs. Professional Rebuild: What's Right for You?
The decision to undertake a rebuild yourself or entrust it to a professional depends on several factors:
- Your Skill Level: While you're comfortable with many car repairs, internal engine work is a different beast. Precision is paramount.
- Available Tools: You'll need a comprehensive set of metric tools, torque wrenches, engine lifting equipment, and potentially specialized tools for valve springs, piston ring installation, and bearing clearances.
- Time Commitment: Engine rebuilds are time-consuming. Do you have the weeks or even months required to complete the job properly?
- Budget: While DIY can save on labour, parts can still be expensive. Professional rebuilds include labour costs, which can significantly increase the overall price.
- Diagnostic Certainty: Before diving into a rebuild, a thorough diagnosis is crucial. A VW professional can accurately determine the extent of the damage. If it's a head gasket issue, it might be manageable. If it's damaged pistons or cylinder walls, the scope increases dramatically.

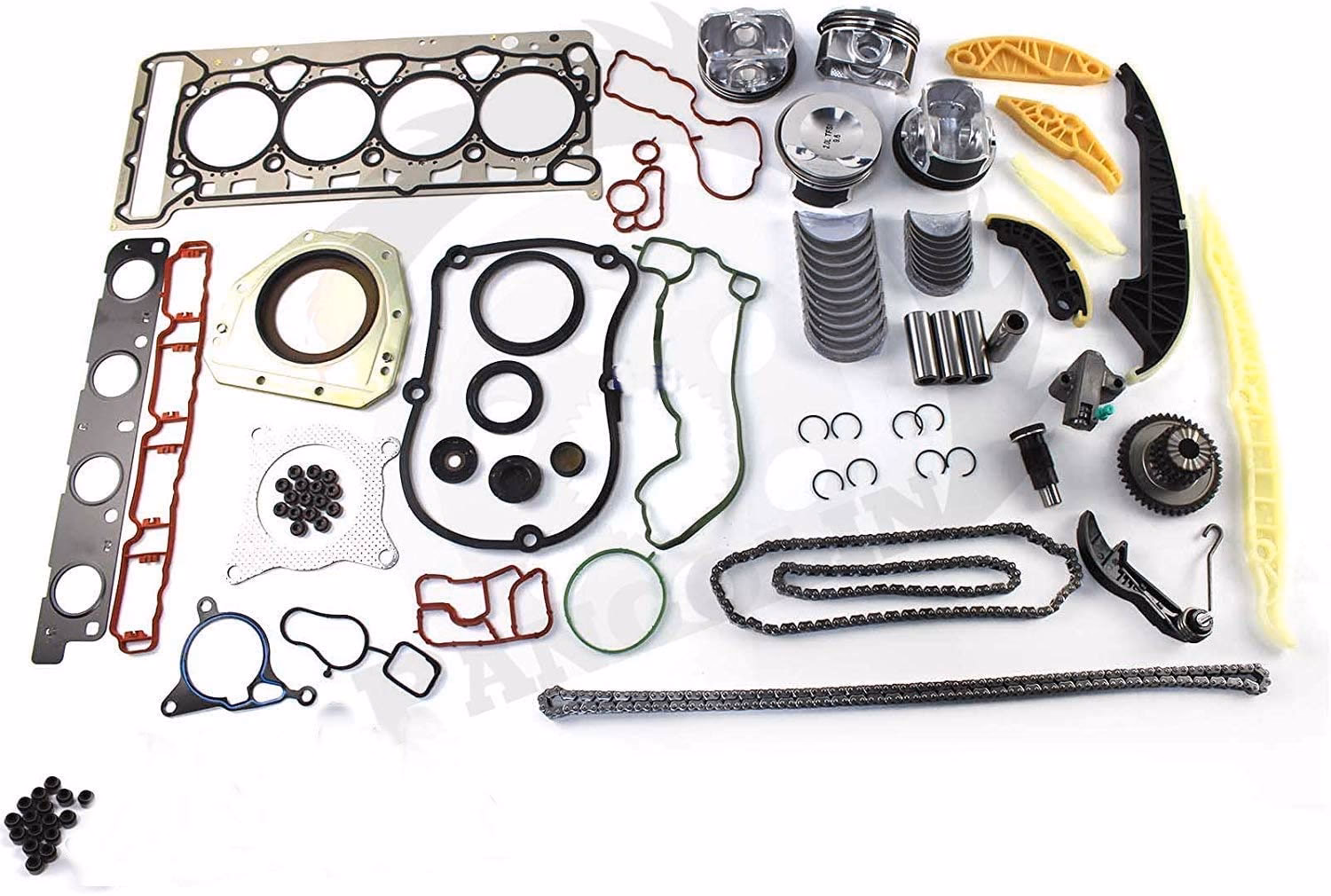

What Kind of Engine Does a 3rd Generation EA888 Have?
The 3rd generation EA888 is a 2.0-litre, turbocharged, direct-injection, inline-four-cylinder petrol engine. It features an aluminum block and cylinder head, variable valve timing, and often comes mated to a DSG (Direct-Shift Gearbox) automatic transmission or a manual gearbox, with many variants featuring Volkswagen's 4Motion all-wheel-drive system.
What Kind of Engine Does a Ford EA888 Have?
It's important to clarify that the EA888 engine is a Volkswagen Group product. Ford vehicles do not use the VW EA888 engine. The information provided about the Ford T-Roc R is slightly confused; the T-Roc R is a Volkswagen model, not a Ford. The T-Roc R is indeed powered by a version of the EA888 engine, specifically the 2.0 TSI, producing around 296bhp.
DIY Cylinder Head Removal: Key Considerations
If your diagnosis points to a cylinder head issue and you're confident in tackling the removal, here's a basic rundown of what to expect and key things to note. Remember, this is a general guide, and a specific repair manual for your exact model year is highly recommended.
Preparation and Safety First
- Disconnect Battery: Always disconnect the negative battery terminal before starting any work.
- Engine Cooling: Ensure the engine is completely cool.
- Drain Fluids: Drain the engine oil and coolant.
- Secure Vehicle: Use jack stands to safely support the vehicle.
Step-by-Step Overview (General)
- Access: Remove any engine covers, air intake components, and heat shields blocking access to the cylinder head.
- Ancillaries: Disconnect and remove components attached to the cylinder head, such as the ignition coils, fuel injectors, coolant hoses, vacuum lines, and electrical connectors. Label everything clearly!
- Timing Belt/Chain: This is a critical step. You'll need to set the engine to TDC (Top Dead Centre) on cylinder 1 and secure the camshafts and crankshaft using the appropriate locking tools. Failure to do this correctly will result in incorrect timing and potentially severe engine damage upon reassembly. For EA888 engines, this often involves specific locking pins for the crankshaft and camshafts.
- Camshaft Removal: Remove the valve cover and then the camshaft bearing caps. Follow the specified torque sequence for removal to prevent warping.
- Cylinder Head Bolts: Loosen the cylinder head bolts in the reverse order specified in the workshop manual. These bolts are often torque-to-yield and should ideally be replaced with new ones upon reassembly.
- Lifting the Head: Carefully lift the cylinder head off the engine block. It might require some gentle persuasion. Be mindful of the head gasket; it might stick to the block or the head.
What to Inspect During Teardown
Once the cylinder head is off, a thorough inspection is vital:
- Cylinder Walls: Check for scoring, damage, or signs of overheating. The presence of oil in the cylinders suggests potential issues with piston rings, valve seals, or even a cracked piston or head.
- Pistons: Inspect pistons for damage, carbon buildup, or signs of detonation.
- Valves: Examine the valves and valve seats for damage, carbon deposits, or signs of burning. Check valve stem seals for degradation.
- Cylinder Head Gasket: Look for signs of failure, such as blown sections between cylinders or coolant/oil passages.
- Block Deck: Ensure the surface of the engine block where the head gasket seals is clean, flat, and free from damage.
Reassembly Considerations
Reassembly is the reverse of disassembly, but with even greater attention to detail:
- New Gaskets and Seals: Always use new head gasket, intake manifold gasket, exhaust manifold gasket, and valve cover gasket. Replace any seals or O-rings that were disturbed.
- Torque Specifications: Follow the workshop manual's torque specifications and tightening sequences for all fasteners, especially the cylinder head bolts.
- Timing: Double-check the engine timing before final assembly.
- Lubrication: Lubricate all moving parts with clean engine oil during reassembly.
When to Call in the Professionals
If the inspection reveals significant damage to the cylinder bores, pistons, connecting rods, or crankshaft, a full engine rebuild by a specialist is likely the most practical and reliable solution. Attempting to repair severely damaged bottom-end components as a DIY project can be extremely challenging and may lead to further complications.
Table: DIY vs. Professional Rebuild Comparison
| Aspect | DIY Rebuild | Professional Rebuild |
|---|---|---|
| Cost (Labour) | £0 (your time) | Significant |
| Cost (Parts) | Moderate to High | Moderate to High (often includes specialised parts) |
| Time Commitment | High (weeks/months) | Moderate (days/weeks) |
| Skill Requirement | Very High (specialised engine knowledge) | High (professional expertise) |
| Tools Required | Extensive (specialised tools needed) | Professional workshop equipment |
| Risk of Error | Higher | Lower |
| Warranty | None (unless parts are faulty) | Often includes a warranty on labour and parts |
Frequently Asked Questions
Q1: How much does it typically cost to rebuild a VW EA888?
A1: A professional rebuild can range from £2,000 to £5,000 or more, depending on the extent of the damage and the parts needed. A DIY rebuild will save on labour but parts can still be costly.
Q2: What are the most common failure points in an EA888 that lead to rebuilds?
A2: Severe oil starvation leading to bearing failure, piston ring/cylinder wall damage, and sometimes catastrophic timing chain failures are common reasons for a full rebuild.
Q3: Can I just replace the pistons and rings on an EA888?
A3: If the cylinder walls are not damaged (scored or out of round), it's possible to replace piston rings. However, if the cylinder walls are damaged, they will need to be bored out and fitted with oversized pistons, which is a machine shop task.
Q4: What specific tools are essential for an EA888 head removal?
A4: Key tools include a comprehensive socket and wrench set, torque wrenches (for low and high ranges), a breaker bar, engine stand (if removing the engine), engine hoist, various pry bars, and crucially, the specific timing locking tools for the EA888 engine.
Q5: Is it worth rebuilding an EA888 engine compared to buying a used engine?
A5: This depends on the cost of a replacement engine versus the rebuild cost, and the condition of the replacement engine. A properly rebuilt engine with new components can often be more reliable than a used engine with unknown history.
In conclusion, while the EA888 is a capable engine, issues like oil starvation can lead to significant damage requiring a rebuild. For the mechanically inclined, understanding the process of cylinder head removal is a good starting point for diagnosis. However, for anything beyond minor repairs, professional expertise and equipment are often necessary to ensure a successful and lasting engine rebuild.
