BMW 3 Series Handbrake Adjustment Guide

A properly functioning handbrake, also known as a parking brake, is absolutely crucial for the safety and security of your BMW 3 Series. It ensures your vehicle remains stationary when parked, especially on inclines, and acts as an emergency brake if your main braking system fails. Over time, the handbrake cable can stretch, or the shoes within the drum can wear, leading to a less effective parking brake. Recognising when and how to adjust it yourself can save you time and money, giving you peace of mind on the road.

This detailed guide will walk you through the process of adjusting your BMW 3 Series handbrake, covering both the rear wheel adjustment and the central lever adjustment. While the procedure might seem daunting at first, with the right tools and a careful approach, it's a manageable task for most DIY enthusiasts. Always prioritise safety when working on your vehicle.

Understanding Your BMW 3 Series Handbrake System

Before diving into the adjustment process, it's helpful to understand how your BMW 3 Series handbrake operates. Unlike the main braking system which uses calipers and discs at the front and often at the rear, the handbrake on many BMW 3 Series models utilises a separate, small drum brake system located within the rear brake disc 'hat'. This is often referred to as a 'drum-in-hat' design. Inside this small drum, there are two handbrake shoes that expand outwards when the handbrake lever is pulled, pressing against the inner surface of the drum to hold the car in place.

The handbrake lever inside the cabin is connected via cables to these rear brake shoes. When you pull the lever, it tensions these cables, which in turn move the shoes. Over time, friction material wear on the shoes and stretching of the cables can lead to excessive travel in the handbrake lever, meaning you have to pull it much higher than usual to achieve effective braking. This is a clear indicator that an adjustment is due.

When to Adjust Your Handbrake

Knowing when your handbrake needs attention is key. Here are some common symptoms:

• Excessive Lever Travel: If you have to pull the handbrake lever up very high, almost vertically, for it to engage. Typically, a correctly adjusted handbrake should engage firmly within 3 to 5 clicks.
• Vehicle Rolling: Your car rolls slightly even when the handbrake is fully engaged on a gentle incline.
• Difficulty Disengaging: Conversely, if the handbrake feels too tight or doesn't release fully, causing drag.
• Routine Maintenance: It's a good idea to check and adjust the handbrake as part of your regular vehicle service, especially after replacing rear brake discs or pads, as the drum-in-hat mechanism might have been disturbed.

Tools You'll Need

Before you begin, gather the following tools:

• Vehicle jack and jack stands
• Wheel chocks
• Wheel brace/lug wrench
• Torque wrench
• Flat-head screwdriver (small) or brake adjusting tool
• 10mm or 13mm spanner (depending on model) for the lever adjustment bolt
• Pliers (optional, for console clips)
• Protective gloves and eye-wear

Step-by-Step Guide: Adjusting at the Rear Wheels

This is the primary method for adjusting the handbrake and addresses the internal drum mechanism directly. It's crucial to perform this adjustment on both rear wheels.

1. Prepare the Vehicle

Ensure your BMW 3 Series is parked on a flat, level surface. Engage the main parking brake (P) if it's an automatic, or leave it in gear if it's a manual. Place wheel chocks on the front wheels to prevent any movement. Loosen the wheel nuts on the rear wheel you intend to work on first, but do not remove them yet.

2. Lift and Secure the Vehicle

Using your jack, lift the rear of the car until the left rear wheel is completely off the ground. Once lifted, immediately place jack stands securely under appropriate jacking points. Never work under a vehicle supported only by a jack. Remove the wheel completely and place it safely aside.

3. Locate the Handbrake Adjuster (Star Wheel)

With the wheel removed, you'll see the brake disc. The handbrake drum mechanism is housed within the centre 'hat' of this disc. You need to rotate the disc until you find a small access hole on the disc face. This hole typically aligns with the handbrake adjuster, often referred to as a star wheel adjuster. You might need a torch to see it clearly.

4. Adjust the Star Wheel

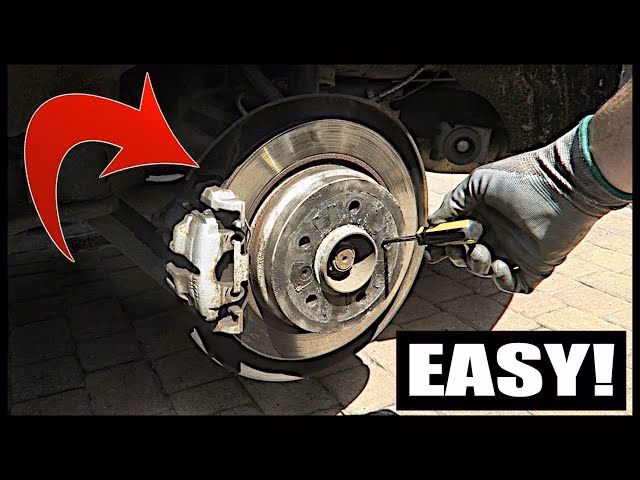

Insert a flat-head screwdriver or a dedicated brake adjusting tool into the access hole. You will feel it engage with the teeth of the star wheel. The goal is to turn this star wheel to expand or contract the handbrake shoes. Turning it upwards (towards the top of the wheel arch) typically tightens the shoes, while turning it downwards loosens them.

Turn the star wheel until the brake disc becomes difficult to rotate by hand due to the shoes making contact. Then, back off the adjustment by a few clicks (usually 5 to 8 clicks) until the wheel spins freely with only a slight, consistent drag. The aim is for the shoes to be just clear of the drum when the handbrake is off, preventing unnecessary wear and drag.

5. Repeat for the Other Side

Lower the car, move the jack and stands to the other rear wheel, and repeat steps 1-4 for the right rear wheel. It's vital to adjust both sides equally to ensure balanced handbrake engagement.

6. Reinstall Wheels and Lower Vehicle

Once both sides are adjusted, reinstall the rear wheels. Hand-tighten the wheel nuts, then lower the vehicle completely. With the car on the ground, use your torque wrench to tighten the wheel nuts to the manufacturer's specified torque settings. This is usually found in your owner's manual but is often around 120 Nm (88.5 lb-ft) for BMWs, though it's crucial to verify for your specific model.

Step-by-Step Guide: Adjusting at the Handbrake Lever (Centre Console)

While the primary adjustment should be done at the rear wheels, a secondary, finer adjustment can sometimes be made at the handbrake lever itself. This method adjusts the cable tension and is often done after the drum adjustments have been completed, or if only minor slack needs to be taken up. Be aware that relying solely on this adjustment to compensate for severely worn shoes or stretched cables is not recommended.

1. Access the Adjustment Bolt

The adjustment bolt for the handbrake cable is located under the leather gaiter or trim surrounding the handbrake lever in the centre console. Carefully unclip or remove the leather cover by gently pulling it upwards from the base. You may need to use a trim removal tool to avoid scratching the plastic console.

2. Locate the Bolt

Once the gaiter is removed, you will see the handbrake mechanism and one or two threaded rods with nuts. On many BMW 3 Series models, there will be a single bolt (often 10mm or 13mm) that tensions the handbrake cables. Some models may have two bolts, one for each cable, allowing for individual side adjustment, though this is less common for general slack adjustment.

3. Adjust the Bolt

Using the appropriate spanner, turn the bolt clockwise to tighten the handbrake cable, which will make the handbrake lever feel tighter and engage at a lower position. Turn it anti-clockwise to loosen it. Make small adjustments, turning the nut only a quarter or half turn at a time.

4. Test and Re-adjust

After each adjustment, pull the handbrake lever and count the clicks. You're aiming for that 3 to 5 clicks range for firm engagement. Once satisfied, release the handbrake and ensure the rear wheels spin freely without drag (you might need to lift the car again if you're being meticulous, but a quick check on a flat surface often suffices). If the wheels are dragging, you've over-tightened. Loosen the bolt slightly until the drag disappears. Do not overtighten, as this can cause premature wear of the handbrake shoes and potential overheating.

5. Reinstall Trim

Once you are satisfied with the adjustment, carefully re-clip or replace the leather gaiter and any other trim pieces you removed.

Testing Your Handbrake After Adjustment

After performing any handbrake adjustment, thorough testing is essential to ensure it's working correctly and safely.

• On a Flat Surface: With the car stationary on a flat surface, engage the handbrake and try to gently pull away in first gear (manual) or Drive (automatic). The car should resist movement and stall or struggle significantly.
• On a Gentle Incline: Find a safe, quiet, gentle incline. Park the car, engage the handbrake, and release the foot brake. The car should remain stationary without rolling. If it rolls, the handbrake is still too loose.
• Check for Drag: After releasing the handbrake, drive a short distance and then pull over. Carefully touch the rear wheel hubs (not the brake disc directly, as it will be hot). They should not be excessively hot. If they are, it indicates the handbrake shoes are dragging, meaning the adjustment is too tight.

Troubleshooting Common Issues

Even with careful adjustment, you might encounter some issues:

• Still Too Loose: If adjusting at both the wheels and the lever doesn't achieve satisfactory results, your handbrake shoes might be severely worn out and require replacement. The handbrake cables themselves could also be stretched beyond their adjustment limit or even partially seized.
• Still Too Tight/Dragging: You may have over-adjusted. Re-check the star wheel adjustment at the wheels first, ensuring they spin freely with minimal drag. Then, check the lever adjustment. Seized cables are also a possibility here, preventing full release.
• Uneven Engagement: If one side feels tighter than the other, it could indicate uneven wear on the shoes, a partially seized cable on one side, or simply uneven adjustment. Re-adjust both sides carefully, ensuring the same number of clicks on the star wheel if possible.

Professional Assistance vs. DIY

While handbrake adjustment is a relatively straightforward DIY task, there are times when professional assistance is warranted. If you're uncomfortable working with jacks and under your car, or if your handbrake issues persist after attempting the adjustments, it's best to consult a qualified mechanic. They can diagnose underlying problems such as severely worn shoes, seized cables, or issues with the handbrake return springs, which are beyond a simple adjustment.

Maintaining your handbrake is not just about convenience; it's a critical aspect of your BMW 3 Series's overall safety. By following these steps, you can ensure your parking brake is in optimal working order, providing reliable security for your vehicle.
