The 2005 BMW E90 320d, a hallmark of German engineering, is renowned for its blend of performance, efficiency, and driving dynamics. While the engine and chassis often grab the headlines, the unsung heroes ensuring your safety and control are the brakes. Understanding the braking system on your E90 320d is paramount for maintaining its renowned driving experience and, more importantly, ensuring your safety and that of others on the road. This comprehensive guide will delve into the specifics of the 2005 BMW E90 320d's braking system, covering everything from its fundamental components to essential maintenance and common issues you might encounter.
The E90 platform, including the popular 320d variant, was engineered with safety and performance in mind, and its braking system is no exception. BMW opted for a robust and reliable setup to handle the car's power and weight effectively. So, what kind of brakes does a 2005 BMW E90 320d actually have?
The Foundation: Disc Brakes All Around
The 2005 BMW E90 320d, like virtually all modern BMWs, is equipped with disc brakes on all four wheels. This is a significant upgrade from older drum brake systems, offering superior stopping power, better heat dissipation, and more consistent performance, especially under demanding conditions or repeated braking. Disc brakes operate by clamping a rotating disc (rotor) between two brake pads, creating friction to slow the wheel.

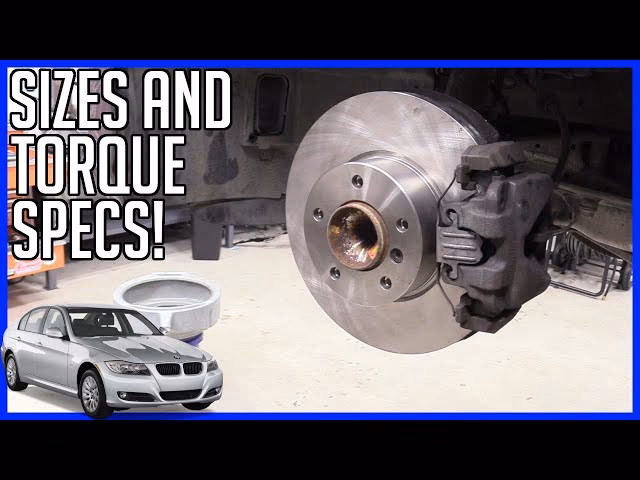

Front and Rear Disc Configuration
- Front Brakes: Typically, the front brakes on the 320d feature ventilated discs. These discs have a series of internal vanes or channels that allow air to circulate through the disc, significantly improving heat dissipation. This is crucial for the front wheels, as they bear the majority of the braking force and consequently generate the most heat. Better cooling helps prevent brake fade, where braking effectiveness diminishes due to excessive heat.
- Rear Brakes: The rear brakes usually utilise solid discs. While they don't have the internal ventilation of the front discs, they are perfectly adequate for the lesser braking load experienced by the rear wheels. Their design is simpler and lighter, contributing to overall efficiency.
Both front and rear systems are hydraulic, meaning they use brake fluid to transmit force from the brake pedal to the calipers, which then press the pads against the discs.
Anatomy of Your E90's Braking System
To truly understand your E90's stopping power, it's helpful to know the key components that work in harmony:
Brake Discs (Rotors)
These are the circular metal plates that rotate with the wheels. Made typically from cast iron, they provide the surface for the brake pads to press against. Over time, discs wear down and can develop grooves or warping due to heat and friction. A 'lip' on the edge of the disc indicates wear, and if warped, you might feel a pulsation through the brake pedal when stopping.
Brake Pads
These friction materials are pressed against the brake discs by the caliper. They are designed to wear out over time, protecting the more expensive brake discs. Modern pads often have wear indicators that trigger a warning light on your dashboard when they are nearing their minimum thickness. Various compounds are available, including organic, semi-metallic, and ceramic, each with different characteristics regarding noise, dust, and performance.
Brake Calipers
The caliper is the component that houses the brake pads and pistons. When you press the brake pedal, hydraulic pressure from the brake fluid forces the piston(s) within the caliper to push the brake pads against the disc. The E90 320d typically uses a single-piston floating caliper design, where the caliper slides on pins to apply even pressure to both sides of the disc.
Brake Fluid
This non-compressible hydraulic fluid is the medium through which braking force is transmitted. It operates under immense pressure and heat. Brake fluid is hygroscopic, meaning it absorbs moisture from the air over time. This moisture lowers its boiling point, which can lead to a 'spongy' pedal or even complete brake failure under heavy braking, as the fluid boils and creates compressible vapour bubbles. BMW specifies DOT 4 brake fluid for the E90, and regular replacement is critical.
Master Cylinder and Brake Lines
When you press the brake pedal, the master cylinder converts that mechanical force into hydraulic pressure. This pressure is then transmitted through a network of robust metal and flexible rubber brake lines to each caliper, ensuring even braking force at all four wheels.
Anti-lock Braking System (ABS) and Dynamic Stability Control (DSC)
These are crucial electronic safety systems integrated into the E90's braking. The ABS system prevents the wheels from locking up during hard braking, allowing the driver to maintain steering control. It does this by rapidly modulating brake pressure to individual wheels. DSC, an evolution of traction control, uses the braking system (along with engine power reduction) to help maintain vehicle stability during skids or loss of control, intervening when sensors detect the car deviating from its intended path.
Essential Maintenance for Your E90 320d Brakes
Regular maintenance is key to the longevity and performance of your E90's braking system. Ignoring signs of wear can lead to significantly higher repair costs and, more importantly, compromise safety.
- Regular Inspections: It is recommended to have your brakes inspected at least once a year, or during your routine service intervals. A technician will check pad thickness, disc condition, brake fluid level, and inspect for any leaks or damage to brake lines and calipers.
- Brake Pad Replacement: Your E90 has electronic wear sensors for the brake pads. When the sensor is triggered, a warning light will appear on your dashboard. It's crucial to replace both pads and sensors when this light illuminates. It's generally advised to replace pads on an axle (both front or both rear) simultaneously to ensure even braking.
- Brake Disc Replacement: Discs do not last as long as the car itself. They wear down over time and can become warped. BMW specifies a minimum thickness for discs, and once they fall below this, they must be replaced. It’s often recommended to replace discs along with new pads to ensure optimal bedding-in and performance, as worn discs can quickly damage new pads.
- Brake Fluid Flush: Due to its hygroscopic nature, brake fluid should be replaced every two years, regardless of mileage. This prevents moisture build-up, maintains the fluid's high boiling point, and preserves the integrity of internal brake components. This is one of the most overlooked, yet critical, maintenance items.
- Caliper Maintenance: Ensure your calipers are moving freely on their guide pins (if applicable) and that the pistons aren't sticking. Sticking calipers can lead to uneven pad wear, reduced braking efficiency, and excessive heat.
Common Signs Your E90 Brakes Need Attention
Your E90 will often give you clues when its brakes require attention. Pay heed to these signs:
- Squealing or Chirping: Often an early sign of worn pads, especially if it occurs when lightly braking. It can also be caused by contaminated pads or discs, or even just dust build-up.
- Grinding Noise: A metallic grinding sound indicates severely worn pads, where the metal backing plate is now rubbing directly against the brake disc. This requires immediate attention to prevent damage to the discs.
- Pulsation or Vibration: If you feel a pulsing or vibration through the brake pedal or steering wheel when braking, it's a strong indicator of warped brake discs.
- Soft or Spongy Pedal: A pedal that feels soft, goes to the floor, or requires excessive force to stop the car can indicate air in the brake lines, a fluid leak, or failing master cylinder.
- Car Pulling to One Side: If your car veers to one side when braking, it could be a sign of uneven braking force, possibly due to a sticking caliper, worn pads on one side, or an issue with the brake line.
- Warning Lights: The most obvious sign is the brake warning light (often yellow or red) on your dashboard, indicating a wear sensor has been triggered or there's a fault with the ABS/DSC system.
Choosing the Right Replacement Components
When it comes to replacing brake components for your E90 320d, you have several options:
- Genuine BMW Parts: These are designed specifically for your vehicle and guarantee fitment and performance. They are often the most expensive option.
- OEM (Original Equipment Manufacturer) Parts: These are parts made by the same companies that supply BMW, but sold under their own brand name (e.g., ATE, Brembo, Textar). They offer similar quality to genuine parts but often at a lower cost.
- Aftermarket Parts: A vast range of options from various manufacturers. Quality can vary significantly. It's advisable to stick to reputable brands known for their quality and reliability to avoid compromising safety.
For brake pads, consider your driving style. Standard pads offer a good balance of performance, low noise, and minimal dust for everyday driving. Performance pads might offer better initial bite and fade resistance but can be noisier and produce more dust.
Comparative Overview of Brake Components
| Component Type | Typical Characteristics | Key Benefit | Considerations |
|---|---|---|---|
| Front Ventilated Discs | Cast iron, internal cooling vanes | Excellent heat dissipation, reduces fade under heavy use | Heavier than solid, more complex to manufacture |
| Rear Solid Discs | Cast iron, no internal ventilation | Lighter, simpler, sufficient for rear braking demands | Less heat dissipation than ventilated, not suitable for front |
| Semi-Metallic Pads | Metallic fibres, good all-rounder | Strong initial bite, good fade resistance, affordable | Can be noisier, produce more dust, harder on discs |
| Ceramic Pads | Ceramic fibres, softer material | Low noise, very low dust, good longevity | Less initial bite when cold, higher cost, may require more pedal pressure |
| OEM Calipers | Original equipment design and quality | Guaranteed fit, reliable performance | Higher cost than some aftermarket options |
Frequently Asked Questions (FAQs)
How often should I change my E90 320d brake fluid?
BMW recommends changing your brake fluid every two years, regardless of mileage. This is crucial because brake fluid absorbs moisture over time, which lowers its boiling point and can compromise braking performance and safety.
What causes brake squeal in an E90?
Brake squeal can be caused by various factors, including worn brake pads (often indicated by a wear sensor), improper bedding-in of new pads, contaminated pads or discs (oil, grease), or a lack of anti-squeal shims or paste during installation. Sometimes, it can just be surface rust or dust build-up.
Can I replace just the brake pads, or do I need new discs too?
While it's possible to replace just the pads if the discs are still within their minimum thickness specification and are not warped, it's generally recommended to replace both the pads and discs together. New pads require a flat, smooth surface to bed in correctly, and a worn or grooved disc can quickly damage new pads and lead to reduced braking performance or noise.
What's the difference between ABS and DSC?
ABS (Anti-lock Braking System) specifically prevents your wheels from locking up during hard braking, allowing you to maintain steering control. DSC (Dynamic Stability Control) is a broader system that uses the ABS components, along with other sensors, to detect and correct skids or loss of control by selectively applying brakes to individual wheels and/or reducing engine power, helping to keep the car on its intended path.
Are performance brakes necessary for my E90 320d?
For most daily driving and spirited road use, the standard braking system on the E90 320d is perfectly adequate and well-engineered for the car's performance. Performance brakes (e.g., larger discs, multi-piston calipers, aggressive pad compounds) are generally only necessary for track driving or highly aggressive road use where sustained, high-temperature braking is common. For the average owner, focusing on high-quality OEM or reputable aftermarket replacement parts is the best approach.
In conclusion, the 2005 BMW E90 320d features a reliable and effective all-around disc brake system, with ventilated discs at the front and solid discs at the rear. Supported by advanced electronic systems like ABS and DSC, it provides excellent stopping power and stability. Understanding its components and adhering to a strict maintenance schedule, particularly regarding pad and disc wear, and biennial brake fluid changes, is crucial. By doing so, you'll ensure your E90 continues to offer the safe, confident, and exhilarating driving experience you expect from a BMW for many years to come.
