BMW 320d Transmission: ZF 6HP & Service Guide

Your BMW 320d, a marvel of German engineering, relies heavily on its automatic transmission for that smooth, responsive driving experience. But when it comes to maintenance, particularly the question of gearbox oil changes, many owners find themselves navigating a confusing landscape of conflicting advice and technical jargon. One common query that often arises is whether the BMW 320d, specifically the E90 generation, is equipped with the highly regarded ZF 6HP26 automatic transmission. Let's delve into the specifics of BMW's automatic gearboxes and demystify the essential maintenance required to ensure your vehicle's longevity and performance.

Does Your BMW 320d Feature a ZF 6HP26 Automatic Transmission?

It's a common misconception that all BMW E90 models, regardless of engine size, utilise the same ZF 6HP automatic gearbox variant. While the ZF 6HP series is indeed a staple across many BMW models from that era, the specific model fitted depends on the engine's torque output and intended application. For many BMW 320d (E90) models, particularly those produced between 2005 and 2011, the automatic transmission you're likely to find is a ZF 6HP19 or a ZF 6HP21. These transmissions are perfectly suited to the 320d's power and torque characteristics, offering excellent efficiency and smooth shifts.

The ZF 6HP26, on the other hand, is a more robust unit designed to handle significantly higher torque loads. You would typically find the ZF 6HP26 (or its even stronger sibling, the 6HP28) in higher-performance BMW models such as the 330d, 335d, 535d, or even V8-powered models like the 545i or 745i. So, while your 320d benefits from the same family of advanced ZF transmissions, it's highly probable it features the 6HP19 or 6HP21, not the 6HP26. Regardless of the specific variant, understanding the importance of maintaining this complex component is paramount.

The ZF 6HP Series: A Brief Overview

The ZF 6HP automatic transmission family is renowned for its compact design, efficiency, and rapid shift times. These units are electronically controlled and integrate seamlessly with BMW's advanced engine management systems. Key features include:

• Six Forward Gears: Providing a wide ratio spread for both performance and fuel economy.
• Torque Converter Lock-Up: Minimises slip and improves efficiency, especially at cruising speeds.
• Adaptive Shift Programs: The transmission learns your driving style and adjusts shift points accordingly.

The Critical Role of Automatic Transmission Fluid (ATF)

Often overlooked, Automatic Transmission Fluid (ATF) is the lifeblood of your gearbox. It's not just a lubricant; it performs multiple vital functions:

• Lubrication: Reduces friction and wear on moving parts like gears, bearings, and clutches.
• Cooling: Dissipates heat generated by friction and the operation of the torque converter.
• Power Transfer: Acts as a hydraulic medium for the operation of the torque converter and clutch packs, enabling power transfer from the engine to the wheels.
• Cleaning: Suspends contaminants and carries them to the filter.
• Corrosion Protection: Prevents rust and corrosion on internal components.

Over time, ATF degrades. It loses its lubricating properties, its ability to dissipate heat diminishes, and it becomes contaminated with metallic particles and clutch material wear. This degradation can lead to rough shifts, delayed engagement, overheating, and ultimately, costly transmission failure.

Why a Gearbox Oil Service is Non-Negotiable: Debunking the "Sealed for Life" Myth

You may have heard the term "sealed for life" regarding BMW automatic transmissions. This phrase, often interpreted by owners as meaning the fluid never needs changing, is misleading. What it truly means is that the transmission is sealed from external contamination and that the fluid is designed to last the "expected lifetime" of the vehicle, which, from a manufacturer's perspective, might only be around 100,000 miles or so. For owners looking to keep their BMWs running smoothly far beyond that mileage, regular ATF changes are absolutely essential.

Neglecting this crucial maintenance can lead to:

• Premature wear of internal components.
• Overheating of the transmission.
• Harsh or erratic gear changes.
• Reduced fuel efficiency.
• Complete transmission failure, leading to expensive repairs or replacement.

The Professional Process of a BMW E90 Gearbox Oil Change

Changing the automatic gearbox oil on a BMW 3 Series E90 is not a DIY job for the faint-hearted. It requires advanced competence, specialist professional machinery, and, crucially, the appropriate Personal Protective Equipment (PPE) to protect hands and eyes. Here's a detailed breakdown of the meticulous process a reputable specialist will follow:

Preparation and Initial Drain

1. Vehicle Suspension: The car is safely lifted on a hydraulic ramp to provide ample working space underneath.
2. Underbody Panel Removal: The lower panel that covers and protects the gearbox oil sump is carefully removed.
3. Partial Oil Drain for Additive: The drain cap on the gearbox sump is unscrewed, and a specific quantity of old oil is drained. This amount is precisely equal to the volume of the specialised washing additive that will be introduced.
4. Equipment Connection: Specialist flushing equipment, designed for automatic transmissions, is connected to the gearbox's fluid lines. This ensures a closed system for the washing and refilling process.
5. Additive Introduction: The dedicated washing additive is introduced into the transmission system via the connected equipment. This additive is formulated to break down sludge, varnish, and other contaminants within the gearbox, torque converter, and the gearbox oil cooling circuit.

The Washing Phase

Once the additive has been inserted, the car must then be driven for approximately 20 kilometres (around 12-13 miles). This driving phase is critical; it allows the washing additive to circulate thoroughly throughout the entire transmission system, including the intricate internal passages, valve body, and the torque converter, effectively cleaning out accumulated deposits and old, degraded fluid that would otherwise remain.

Full Drain and Component Replacement

6. Second Lift and Full Drain: After the 20km washing drive, the car is lifted again. The drain cap is reopened, and the now-contaminated used oil, along with the washing additive, is allowed to drain completely. This ensures maximum removal of old fluid and contaminants.
7. Sump Pan Removal: The entire gearbox oil pan is carefully unscrewed and removed. This step requires precision as there will likely be residual oil in the pan.

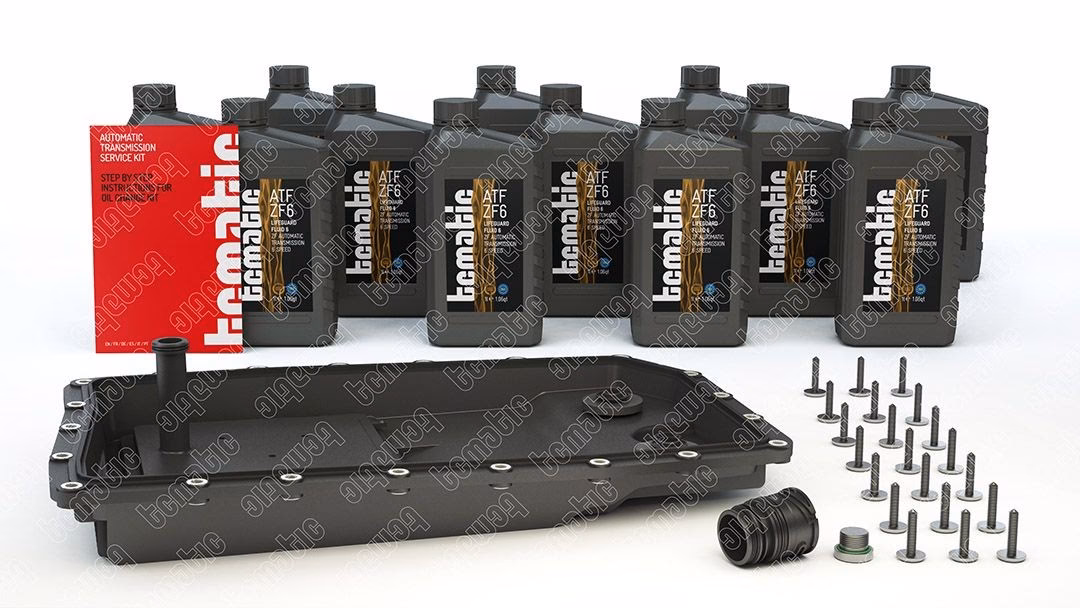

8. Gasket and Filter Replacement: The old gasket, which seals the sump pan to the gearbox, is removed. The mating surface on the gearbox is meticulously cleaned to ensure a perfect seal with the new gasket. The old oil filter, which is often integrated into the sump pan or located nearby, is also removed and replaced with a new, high-quality filter. This is a critical step as the filter captures contaminants, and a clogged filter can restrict fluid flow.

Refilling and Final Additive

9. New Fluid Introduction: The correct quantity and, crucially, the precise type of new automatic transmission fluid (ATF) specified by BMW (or ZF, the transmission manufacturer) is introduced into the gearbox. This is typically done using specialist pumping equipment to ensure accurate measurement and a clean fill. The fill level is often checked at a specific fluid temperature, requiring a diagnostic scan tool.
10. Nano-Particle Additive: Finally, an additional additive, often containing nano-particles, is introduced. This specialised additive is designed to further reduce friction on the various internal components of the gearbox, potentially enhancing performance, improving efficiency, and extending the lifespan of the transmission.

Throughout this entire process, extreme cleanliness is paramount to prevent any contamination of the new fluid. The use of genuine ZF or BMW-approved parts and fluids is also highly recommended.

How Often Should You Service Your BMW's Automatic Gearbox?

Despite the "sealed for life" claims, most independent BMW specialists and transmission experts recommend servicing your automatic gearbox every 60,000 to 80,000 miles, or approximately every 5-7 years, whichever comes first. For vehicles subjected to more strenuous conditions, such as frequent towing, heavy city driving (stop-start traffic), or performance driving, this interval might need to be reduced to every 40,000-50,000 miles.

It's important to note that a gearbox oil change is a preventative measure. If your transmission is already exhibiting significant issues like hard shifts, slipping, or unusual noises, an oil change might not resolve the underlying mechanical problem and, in some cases, could even exacerbate it if the old fluid was the only thing keeping worn components 'lubricated'. Always seek professional diagnosis if you suspect a serious transmission issue.

Costs and Choosing a Reputable Specialist

The cost of a comprehensive automatic gearbox oil service for a BMW E90 can vary significantly based on your location, the specific garage, and the type of fluid and filter used. You should generally expect to pay anywhere from £350 to £700, potentially more if additional issues are discovered or if a full flush and fill (as described above) is performed using specialist equipment and premium fluids. This price typically includes the new sump pan (which often has an integrated filter), the gasket, the correct ATF, and labour.

When choosing a garage, prioritise specialists with:

• BMW or ZF Expertise: Look for independent garages that specifically advertise expertise in BMWs or ZF transmissions.
• Specialist Equipment: Ensure they use dedicated flushing machines and diagnostic tools.
• Positive Reviews: Check online reviews and ask for recommendations.
• Transparency: A reputable garage will clearly explain the process, costs, and the specific fluids/parts they intend to use.

While the original query mentioned specific garages in Bedfordshire, it's crucial to perform your own due diligence and get multiple quotes to find a service provider that offers both quality and value.

Software Updates and Remaps: What You Need to Know

The concern about losing a remap during a software update is valid. When a BMW dealership or an independent specialist performs a comprehensive software update on your vehicle's modules (including the gearbox control unit), it often involves flashing the latest factory firmware. This process can, indeed, overwrite any existing aftermarket remaps, returning the vehicle's engine and gearbox parameters to their original factory settings.

If your car has had a DPF delete and a corresponding remap, a factory software update will likely revert these changes, potentially leading to issues if the DPF is physically removed but the software thinks it's present. Before proceeding with any software updates, you should:

• Consult Your Remapper: Contact the company or individual who performed the remap. They may be able to advise on whether their remap can be easily re-applied after a factory update, or if they offer an update-safe solution.
• Discuss with the Garage: Clearly communicate to the garage performing the update that your vehicle has an aftermarket remap. Ask if they can verify if the update will affect it and what their policy is regarding such situations. Some specialists may have ways to back up or avoid certain modules if possible, but this is not guaranteed for all updates.

Gearbox software updates, as noted, can take several hours as they are complex processes that require continuous power supply and careful monitoring. These updates often improve shift quality, efficiency, and address known issues, so they can be beneficial for the transmission's performance.

Comparative Table: ZF 6HP Series Common Applications (BMW E90)

Comparative Table: Signs Your Automatic Transmission Fluid Needs Changing

Frequently Asked Questions (FAQs)

Q: Is my BMW gearbox truly "sealed for life"?

A: As discussed, no. While BMW states it's sealed for life, this refers to the operational life expectancy from a manufacturer's viewpoint. For long-term reliability and performance, an ATF change is highly recommended every 60,000 to 80,000 miles.

Q: Can I perform a gearbox oil change myself?

A: It's strongly advised against. Automatic transmission fluid changes, especially for ZF units, require specific tools, precise temperature monitoring, specialist flushing equipment, and detailed knowledge of the correct fill procedures. Incorrect fluid type, quantity, or contaminants can cause serious damage.

Q: What type of oil should I use for my ZF 6HP transmission?

A: You must use ATF that meets ZF's specific specifications, such as ZF LifeguardFluid 6 or an equivalent approved fluid. Using the wrong fluid can lead to severe transmission damage. Always check your vehicle's manual or consult a specialist.

Q: What is the "washing additive" for, and is it necessary?

A: The washing additive (also known as a flushing agent) is used to help break down and suspend sludge, varnish, and other contaminants within the transmission, torque converter, and cooling lines. It's highly recommended as part of a comprehensive flush and fill to ensure as much old, contaminated fluid and debris as possible is removed before new fluid is introduced.

Q: Will a gearbox oil change fix my existing transmission problems?

A: It depends on the problem. If issues like rough shifting are caused by degraded fluid or a clogged filter, an oil change can significantly improve performance. However, if there's mechanical wear, internal damage, or electronic faults, an oil change alone will not fix these and might even highlight existing issues if the old fluid was masking them. Always get a professional diagnosis first.

Conclusion

Understanding your BMW 320d's automatic transmission, whether it's a ZF 6HP19 or 6HP21, and committing to its proper maintenance is key to enjoying your vehicle for years to come. The "sealed for life" myth should be ignored; regular, professional gearbox oil changes are a vital investment in your car's health. By entrusting this complex procedure to qualified specialists who use the correct equipment and fluids, you can ensure your BMW continues to deliver that signature smooth and reliable driving experience. Don't wait for problems to arise; proactive maintenance is always the best approach for automotive longevity.
