The BMW E46 3 Series Convertible, particularly the 320Cd model, is renowned for its engaging driving dynamics and, crucially, its effective braking system. When you're navigating winding country lanes or cruising along the motorway with the roof down, reliable stopping power is paramount. Understanding the intricacies of your 320Cd's braking system is key to both safety and maintaining the vehicle's performance. This article delves into the specifics of what braking system your E46 320Cd Cabrio is equipped with, its essential components, and how to keep it in peak condition.
The Core of the System: Hydraulic Disc Brakes
At the heart of the E46 320Cd Cabrio's braking prowess lies a sophisticated hydraulic disc brake system. This is the industry standard for modern vehicles due to its superior performance compared to older drum brake systems. Hydraulic power, transmitted through brake fluid, ensures that the force applied to the brake pedal is amplified and evenly distributed to each wheel. This system is designed for consistent performance under various driving conditions.
Components of the E46 320Cd Braking System
A comprehensive understanding of the braking system requires familiarity with its individual parts. Each component plays a vital role in ensuring your vehicle stops safely and efficiently:
1. Brake Discs (Rotors)
The E46 320Cd typically features ventilated brake discs on the front axle and solid discs on the rear. Ventilated discs have internal vanes that help dissipate heat more effectively, which is crucial for preventing brake fade during prolonged or heavy braking. Solid rear discs are sufficient for the braking load distribution. The discs are what the brake pads clamp onto to create friction. Over time, discs can wear down, develop grooves, or warp, all of which can negatively impact braking performance and necessitate replacement.

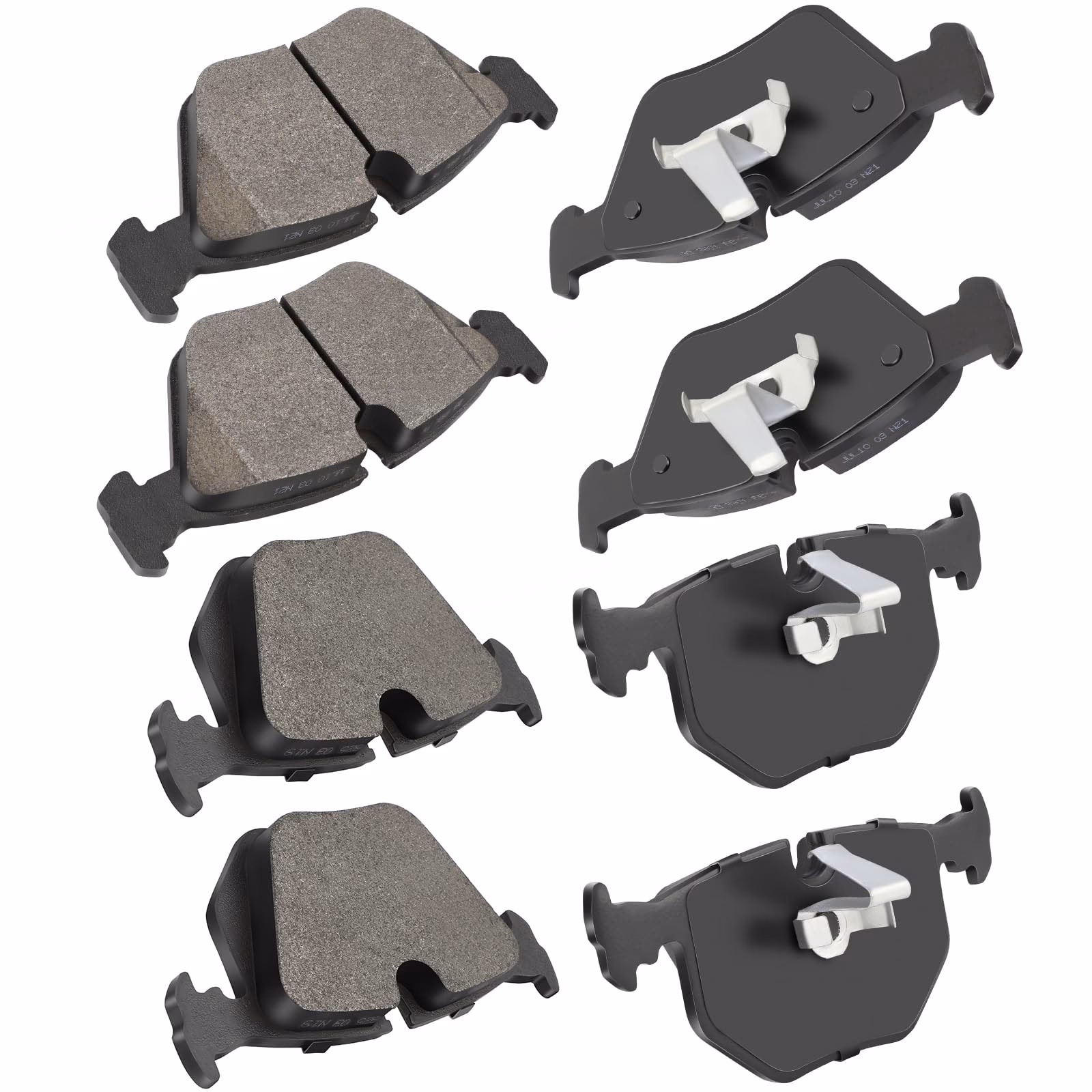

2. Brake Pads
Brake pads are the friction material that presses against the brake discs. They are designed to wear down over time as they perform their function. When you press the brake pedal, hydraulic pressure forces the brake caliper pistons to push the pads against the spinning disc. The friction generated slows the wheel down. Modern E46 models often use semi-metallic or organic brake pads, each offering different characteristics in terms of stopping power, noise, and wear rate. Regular inspection of pad thickness is essential.
3. Brake Calipers
The caliper houses the brake pads and pistons. When the brake pedal is applied, brake fluid pressure pushes the piston(s) within the caliper, forcing the brake pads into contact with the rotor. The E46 320Cd typically employs a floating caliper design, where one or more pistons push the pad on one side of the disc, and the caliper body itself slides to bring the other pad into contact. A seized or sticking caliper can lead to uneven braking, pulling to one side, or premature wear of the pads and discs.
4. Brake Lines (Hoses)
These flexible rubber or braided steel hoses carry the brake fluid from the master cylinder to the calipers. While seemingly simple, they are critical. Deterioration of rubber hoses can lead to swelling or even bursting under pressure, resulting in a complete loss of braking. Braided steel lines offer improved durability and a firmer pedal feel, often considered an upgrade.
5. Master Cylinder
The master cylinder is the heart of the hydraulic system. When you press the brake pedal, it pushes a piston within the master cylinder, which in turn pressurizes the brake fluid. This pressurized fluid is then sent through the brake lines to the calipers. A faulty master cylinder can lead to a spongy brake pedal or leaks.
6. Brake Fluid
Brake fluid is the medium through which hydraulic pressure is transmitted. It's a non-compressible fluid that must be able to withstand high temperatures. Over time, brake fluid absorbs moisture from the atmosphere, which lowers its boiling point. This can lead to brake fade, especially under heavy use. Therefore, regular brake fluid changes are crucial for maintaining optimal braking performance and preventing corrosion within the system.
Anti-lock Braking System (ABS)
The E46 320Cd is equipped with an Anti-lock Braking System (ABS). ABS is a vital safety feature that prevents the wheels from locking up during hard braking, allowing the driver to maintain steering control. It works by using sensors on each wheel to detect if a wheel is about to lock. If it does, the system rapidly pulses the brake pressure to that wheel, allowing it to continue rotating. This significantly reduces stopping distances on most surfaces and prevents skidding, making it a cornerstone of modern vehicle safety.
Dynamic Stability Control (DSC) / Traction Control
Many E46 models, including the 320Cd, also feature Dynamic Stability Control (DSC) or a similar traction control system. DSC uses the ABS sensors and wheel speed to detect and prevent loss of traction during cornering or acceleration. While primarily a stability system, it interacts with the braking system by applying individual wheel braking to help correct oversteer or understeer. This further enhances the car's ability to remain controllable in challenging conditions.
Maintenance and Care for Your E46 320Cd Brakes
Proper maintenance is key to ensuring your braking system remains reliable and performs as intended. Here are some essential points:
Brake Pad and Disc Wear
The most common wear items are the brake pads and discs. Depending on your driving style and conditions, pads can last anywhere from 20,000 to 50,000 miles, while discs may need replacing every 60,000 to 100,000 miles, often at the same time as the second set of pads. Signs of wear include:
- Grinding or squealing noises when braking.
- A softer or spongier brake pedal.
- The car pulling to one side when braking.
- Visible scoring or grooving on the discs.
- Reduced stopping power.
It's good practice to have your brakes inspected at regular service intervals. Often, you can visually inspect the pads through the wheel spokes.
Brake Fluid Service
As mentioned, brake fluid absorbs moisture. BMW recommends changing the brake fluid every two years, regardless of mileage. This process involves flushing out the old fluid and replacing it with fresh, high-quality brake fluid (typically DOT 4 for the E46). This is a relatively inexpensive service that significantly contributes to the longevity and performance of your entire braking system.
Checking for Leaks and Damage
Regularly inspect the brake lines for any signs of damage, corrosion, or leaks. Look for any wet spots around the calipers or hubs. Any fluid leaks are a serious safety concern and should be addressed immediately.
ABS and DSC System Checks
The ABS and DSC warning lights on your dashboard are crucial indicators. If one of these lights illuminates, it signifies a fault within the respective system. This could be due to a faulty wheel speed sensor, a problem with the ABS module, or other related components. It's important to have these issues diagnosed and repaired promptly, as they are critical safety systems.
Common Braking Issues and Solutions
While generally robust, the E46 braking system can encounter a few common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Spongy Brake Pedal | Air in the brake lines, worn master cylinder, or leaking brake fluid. | Bleed the brake system, replace master cylinder, or repair leaks. |
| Brake Fade (Loss of stopping power under heavy use) | Overheated brake fluid or worn brake components. | Replace brake fluid, upgrade to performance pads/discs, ensure proper ventilation. |
| Squealing or Grinding Noises | Worn brake pads, glazed pads/discs, or debris trapped between pad and disc. | Replace brake pads, clean or replace discs. |
| Car Pulls to One Side When Braking | Sticking caliper, uneven pad wear, or uneven tyre pressure. | Inspect and service/replace calipers, replace pads and discs, check tyre pressures. |
| ABS/DSC Warning Light On | Faulty wheel speed sensor, ABS pump failure, or wiring issues. | Diagnostic scan to identify the specific fault, then repair or replace faulty component. |
Frequently Asked Questions (FAQs)
Q1: What type of brake fluid does the E46 320Cd require?
A1: The BMW E46 320Cd typically requires DOT 4 brake fluid. Always consult your owner's manual or a reliable parts supplier to confirm the exact specification for your vehicle.
Q2: How often should I change my brake fluid?
A2: It is recommended to change the brake fluid every two years to maintain its performance and prevent corrosion within the braking system.
Q3: Can I upgrade my E46 320Cd's brakes?
A3: Yes, you can upgrade your brakes. Common upgrades include performance brake pads, cross-drilled or slotted rotors, and braided stainless steel brake lines for improved stopping power and feel. Larger brake kits are also available for more significant performance enhancements.
Q4: What does it mean if my ABS warning light comes on?
A4: An illuminated ABS warning light indicates a fault within the Anti-lock Braking System. This could be a faulty wheel speed sensor, a problem with the ABS control module, or other related issues. It's advisable to have the system checked by a qualified mechanic.
Q5: How do I know when my brake pads need replacing?
A5: Signs include grinding or squealing noises, a spongy brake pedal, reduced stopping power, or visual inspection of the pads showing minimal friction material remaining.
In conclusion, the braking system of the BMW E46 320Cd Cabrio is a sophisticated assembly of components designed to provide safe and responsive stopping power. By understanding its parts, adhering to a regular maintenance schedule, and being aware of common issues, you can ensure that your convertible continues to offer an exhilarating and safe driving experience for years to come. Remember, your brakes are your most important safety feature; never compromise on their upkeep.
