Fuel Injector Removal Guide

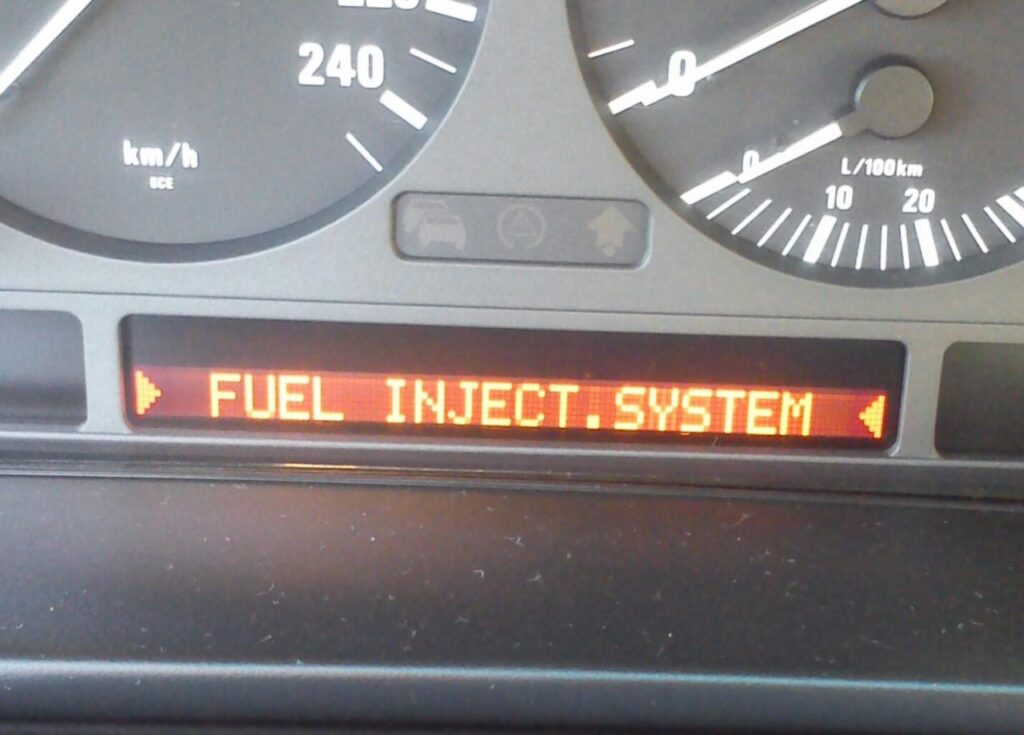

Understanding Fuel Injector Issues and Their Symptoms

Fuel injectors are critical components of your car's engine management system, responsible for delivering a precise amount of fuel to the combustion chamber. Over time, like many rubber components, the O-rings that seal the injectors can degrade. This degradation can lead to various problems, from a subtle decrease in fuel economy to more serious fuel leaks.

One common symptom of worn O-rings is a reduction in miles per gallon (MPG). This can occur because the worn O-rings can allow unmetered air to be sucked into the engine, creating a lean condition, similar to a vacuum leak. You might notice this more on a cold start. A simple diagnostic test involves spraying carb cleaner around the fuel rail on a cold engine; if the engine RPMs surge, you've likely found a leak.

Another, more concerning issue, particularly noted in certain BMW M54B30 engines (found in models like the E39 530i, E46 330i, X5 3.0i, and Z3/Z4 3.0i manufactured up to approximately 2006), involves the Siemens VDO injectors themselves. A batch of these injectors has been known to deform slightly over time. This deformation can cause fuel to mist under the bonnet, especially in very cold weather (below -20°C). Drivers might notice a strong smell of raw fuel in the cabin after starting the car in these conditions. While replacing the O-rings can improve MPG, it may not resolve the fuel misting issue caused by the deformed injectors. BMW has issued internal bulletins regarding these specific injectors, with an updated batch available to address the problem. This issue is more prevalent in colder climates and in models like the 330i and X5 with the inline-six engine.

When to Consider Injector Replacement or O-Ring Change

• Lean Condition/Decreased MPG: If you notice a gradual but steady decline in your car's MPG, worn O-rings are a likely culprit.
• Cold Weather Fuel Smell: If you live in a region with very cold winters and experience a raw fuel smell on cold starts after replacing O-rings, the injectors themselves may be deformed and require replacement with the improved Siemens VDO units.

Step-by-Step Guide to Removing Fuel Injectors

Before you begin, ensure you have the necessary tools and a fire extinguisher readily available, as you will be working with gasoline. Always work in a well-ventilated area.

1. Preparation and Access

Begin by removing the engine's beauty cover. You'll then need to disconnect the oxygen sensor wires; they are usually clipped to the wiring harness. Gently pull these wires free and set them aside. Locate and remove the retaining clip for the wiring harness.

2. Disconnecting Electrical Connectors

There are typically two main electrical connectors to detach from the fuel rail area. One is located towards the front of the engine (VANOS side), and another is situated in the middle. Carefully disconnect these by pressing the release tabs.

3. Removing the Electrical Connector Box

This can be a tricky step. The electrical connector box often has retaining clips that are difficult to access. The clips are typically oriented upside down. The key is to slide one end or hook of the clip downwards. You do not need to remove the entire clip; just manipulating it sufficiently will allow the box to be removed. For connectors closer to the firewall, you'll need to slide the rear side of the clip, as the front is obstructed by the fuel rail mounting bracket. Once the clips are managed, the electrical box should come free with a gentle tug.

4. Relieving Fuel Pressure

This is a crucial safety step. You must relieve the pressure in the fuel system before proceeding. There are two common methods:

• Compressed Air: If you have an air compressor, you can use a short burst of compressed air (around 30 PSI maximum) into the Schrader valve on the fuel rail (it looks like a tyre valve). Remove the cap first.
• Manual Depressurisation: Use a small screwdriver to carefully press the Schrader valve. Be prepared for a small amount of fuel to escape. Have rags ready to catch any drips and contain the fuel.

5. Removing Fuel Rail Screws

It's advisable to use a magnetic tool when removing the screws that secure the fuel rail. This prevents them from accidentally falling into the engine bay, making retrieval much easier.

6. Removing the Fuel Rail

With the screws removed, carefully pull upwards on the fuel rail. It should lift off the injectors.

7. Removing the Injectors

Once the fuel rail is off, you can access the injectors. Each injector is usually held in place by a retaining clip. Pry off this clip. You should have enough clearance to pull each injector out of the fuel rail without needing to detach the fuel rail from the main fuel line. If you are only replacing the O-rings, you can leave the fuel rail attached.

8. Replacing O-Rings and Servicing Injectors

When you remove the old injectors, you'll see the O-rings. Replace these with new ones. It's also a good opportunity to clean the injector receptacles, as they can accumulate dirt and debris. A Q-tip can be useful for this, but be careful not to leave any cotton fibres behind in the fuel chamber. For optimal performance, consider having your injectors professionally cleaned and calibrated. This service typically includes new O-rings, a new filter, and a detailed report on their performance. While the injectors are out, check the part numbers stamped on them (often on the opposite side) to ensure you have the correct replacements if needed.

9. Reinstallation

Align the new (or serviced) injectors with the fuel rail and the engine's intake manifold. It's often easiest to start with the injectors at the cowl (firewall) end and work your way towards the front of the engine. You may need to apply firm, sharp pressure (like a quick fist bump on top of the injector) to seat them properly. Once the injectors are in place, refit the fuel rail. Reinstall the securing screws. Reconnect all electrical connectors and the electrical box, ensuring the retaining clips engage correctly. Reattach the oxygen sensor wires and the beauty cover.

10. Final Checks and Tightening Torque

Ensure all connections are secure. The recommended tightening torque for the fuel rail bolts is 10 Nm (or 89 inch-pounds). Double-check that no tools or rags have been left in the engine bay.

Important Considerations and Tips

• Safety First: Always have a fire extinguisher handy when working with fuel systems.
• Ventilation: Work in a well-ventilated area to avoid inhaling fuel vapours.
• Professional Calibration: For best results, consider professional cleaning and calibration of your injectors.
• Part Numbers: Verify the part numbers on your injectors to ensure you are purchasing the correct replacements.
• Responsibility: Remember that you are responsible for your own work and any consequences thereof.

Frequently Asked Questions (FAQ)

Q1: How often should I replace fuel injector O-rings?
There's no set interval. It's best to replace them when you notice symptoms like decreased MPG or if they show signs of wear during other maintenance. They are often replaced when diagnosing fuel system issues.

Q2: Can I just replace the O-rings, or do I need to replace the whole injector?
If your primary issue is a minor vacuum leak causing reduced MPG, replacing just the O-rings is often sufficient. However, if you experience fuel misting in cold weather or other performance issues, the injectors themselves might need replacement, especially if they are from the affected Siemens VDO batch.

Q3: Is it safe to relieve fuel pressure by pressing the valve with a screwdriver?
Yes, it is a common method. Just be prepared for a small fuel discharge and have rags ready to manage it safely. Ensure you are in a well-ventilated area away from any ignition sources.

Q4: What happens if I don't relieve fuel pressure before removing the rail?
If you don't relieve the pressure, fuel will spray out forcefully when you disconnect the fuel rail or injectors, creating a significant fire hazard and a mess.

Q5: How do I know if my injectors need professional cleaning and calibration?
Symptoms can include rough idling, misfires, poor acceleration, and inconsistent fuel economy. Professional testing can identify clogged or malfunctioning injectors and restore their optimal spray pattern and flow rate.
