BMW E36 Auto Gearbox Fluid Change Guide

For many BMW E36 owners, the idea of a 'lifetime fluid' in their automatic transmission is a comforting thought. Yet, experience tells a different story. While BMW dealers might suggest never touching the transmission fluid, proactive maintenance is paramount for the longevity and smooth shifting of your beloved E36. Neglecting this crucial service can lead to costly repairs and a less than stellar driving experience. This comprehensive guide will walk you through the process of changing your E36's automatic transmission fluid, debunking myths and providing all the necessary steps for a successful DIY job.

Why Your BMW E36 Needs a Transmission Fluid Change

Automatic transmission fluid (ATF) serves multiple vital roles: it lubricates moving parts, acts as a hydraulic fluid for gear changes, and dissipates heat. Over time, ATF degrades, losing its viscosity and protective properties due to heat and mechanical shear. This degradation can lead to a host of problems, even in transmissions supposedly designed with 'lifetime' fluid.

A common symptom of low or degraded transmission fluid in an E36 is a noticeable slip, followed by a harsh slam into gear, especially when stopping suddenly and then immediately accelerating. This happens because the fluid sloshes forward during braking, leaving the pickup momentarily starved. Once the car stops and the fluid settles, the transmission suddenly engages, causing a jolt. This was precisely the issue experienced by one owner whose 1992 325is suffered from a leaking transmission line. The car was running approximately two quarts low (out of a total capacity of about five quarts), a significant deficit that could have led to irreparable damage and a hefty £2,500 replacement bill. Regular fluid changes prevent such scenarios, ensuring your gearbox operates as intended.

When to Change Your E36 Automatic Transmission Fluid

Despite manufacturer claims, the consensus among experienced BMW enthusiasts and independent mechanics is that automatic transmission fluid should be changed periodically. While the official BMW stance for E36 transmissions often leaned towards a 'lifetime fluid' concept, this has largely been disproven by real-world longevity issues. Many reputable sources, including ZF (a major transmission manufacturer for BMW), suggest a fluid change at some point.

For the E36, a pragmatic approach is to change the automatic transmission fluid every 3 years or 30,000 miles. Some E39 owners (which share similar transmission philosophies) adhere to a schedule of 100,000 miles for the first change, followed by subsequent changes every 20,000-30,000 miles. It's crucial to understand that 'lifetime' often refers to the expected life of the warranty period, not the life of the vehicle itself. Fresh fluid ensures optimal lubrication, cooling, and hydraulic performance, extending the life of your transmission far beyond what a 'lifetime' fluid might offer.

Essential Tools and Parts for the Job

Before you begin, gather all the necessary tools and parts. This will streamline the process and prevent interruptions.

Tools Required:

• Floor jack
• Four jack stands
• Safety glasses (non-negotiable for eye protection)
• Large drain pan (at least 4 litres capacity)
• Metric wrench set
• Metric socket set and driver
• Torque wrench
• Another drain pump for small transmission sump (or a wide, shallow container like a cat litter box)
• Lint-free cloth
• Optional: Electronic carbon monoxide monitor (if working indoors)
• Optional: Long, flexible aluminium tube for exhaust venting (if working indoors)
• Optional: Standard body-temperature thermometer (for checking fluid temperature)

Parts Required:

• New sealing ring for transmission drain plug
• Transmission filter and gasket kit (includes filter and gaskets for both sumps)
• Dexron III automatic transmission fluid (confirm specific type for your transmission via side plate/sticker)
• Optional: Red Loctite 271 (for sump bolts)

Project Time: Approximately 2 hours (for the actual work)
Estimated Cost (Parts & Consumables): £50 - £80

Preparing for the Transmission Fluid Service

Preparation is key to a safe and successful fluid change. The car must be elevated safely and perfectly level to ensure an accurate fluid level check.

1. Elevate the Car: Use your floor jack to lift the car and secure it firmly on four jack stands. Refer to proper jacking procedures for your E36. It is absolutely critical that the car is level in the air, just as it would be on the ground. An uneven car will lead to inaccurate fluid level readings.
2. Safety First: Always wear safety glasses when working under the car to protect your eyes from debris or fluid splashes.
3. Cold is Best: Unlike engine oil, which is best drained hot, transmission fluid should be drained when the car is cold. When the transmission is cold, most of the fluid will have settled into the lower sumps, allowing for a more complete drain. Working on a cold car also minimises the risk of burns from hot exhaust or transmission components.

Draining the Old Fluid

With the car safely elevated and cold, you can begin draining the fluid.

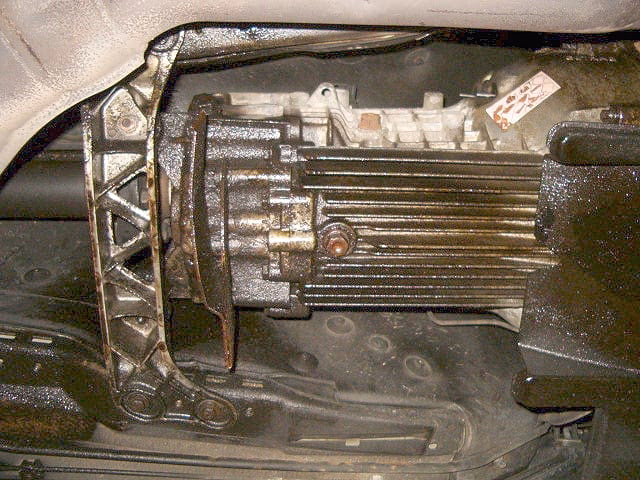

1. Locate the Sumps: You'll see two lower sump chambers on the automatic transmission: a larger, roughly one-foot square main chamber and a smaller, roughly one-foot by three-inch chamber in front of it.
2. Drain the Main Sump: Position your large drain pan beneath the main sump. Locate the drain plug on the rear left corner of the sump. Carefully remove this plug. Allow all the fluid to flow out into your container. Ensure your container can hold at least 4 litres.
3. Replace Drain Plug: Once the fluid has completely drained, clean the drain plug and install a new sealing ring. Reinstall the plug and torque it to the correct specification based on your transmission type:

Transmission Drain Plug Torque Specifications:

Removing and Cleaning the Sumps

After draining, the sumps need to be removed for filter replacement and thorough cleaning.

1. Remove Main Sump: Remove all the small bolts attaching the main sump to the bottom of the transmission. Once all bolts are out, carefully pull the sump cover off. Be aware that some residual fluid will still be present, so have your drain pan ready.
2. Empty Small Sump: The smaller front sump does not have a drain plug. To empty it, remove all but one of the small bolts attaching it to the transmission. Leave one bolt on one of the short sides. With a wide, shallow container (like a cat litter box) positioned beneath, slowly loosen the last bolt. The sump should 'stick' due to the gasket. Pull down slightly on the sump, allowing one end to drop and drain fluid into your container. Once most fluid is out, remove the remaining bolt and carefully lower the sump, keeping it level to prevent spills.
3. Clean the Sumps: Using a lint-free cloth, meticulously wipe down the inside of both sumps. Pay special attention to the magnet located at the bottom of the large sump. This magnet collects metallic wear particles, and it should be removed, cleaned thoroughly, and reinstalled. The goal is to make the sumps spotless, removing all old fluid and any leftover gasket material from the edges.

Replacing the Transmission Filter

A new filter is crucial for the longevity of your transmission.

1. Remove Old Filter: On the bottom of the transmission (with sumps removed), you'll see a large black canister – this is the transmission fluid filter. Remove the three bolts attaching it and carefully pull it off. Discard the old filter.
2. Clean Mounting Surfaces: Check the mounting surfaces where the sumps attach to the transmission and remove any excess gasket material. The surface should be clean and smooth.
3. Install New Filter: Take the new filter from your kit and install it, using the same bolts you just removed. Torque these bolts to the correct specifications:

Transmission Filter Bolt Torque Specifications:

Refilling the Transmission

This is where the new fluid goes in. Ensure you use the correct type of fluid.

1. Choose the Right Fluid: Most BMW E36 automatic transmissions were designed for standard Dexron III fluid. Many of these transmissions were manufactured by General Motors (you might even find a 'GM' stamp on the side of your transmission). Always check for a side plate or sticker on your transmission that indicates the required fluid type. Mixing different types of transmission fluid can cause severe transmission failure.
2. Reinstall Small Sump: This is the trickiest part. Fill the clean, smaller front sump about three-quarters full with new, clean transmission fluid. Place the new gasket (from your kit) onto the top edge of the sump. No gasket sealant is necessary; any sealant entering the sump can clog transmission passages. Apply red Loctite 271 to the sump mounting bolts to prevent them from loosening. Carefully raise the sump, keeping it as level as possible, and align it with the bolt holes. It's recommended to use a floor jack to support and lift the sump into place for easier alignment and to minimise spills. Expect a small amount of spillage.
3. Torque Small Sump Bolts: Reuse the old bolts and torque them to the following specifications:

Small Sump Bolt Torque Specifications:

4. Reinstall Large Sump: The larger sump can now be reinstalled. While not strictly necessary, some mechanics pre-fill this sump as well to save time pumping fluid later. Place the new gasket and apply red Loctite 271 to the bolts. Torque the bolts to the same specifications as the smaller sump.
5. Initial Fill of Large Sump: Locate the transmission fill hole on the side of the main sump. Remove the plug. Use a transmission fluid pump (available at most auto parts stores) to pump new fluid into the filler hole. Continue pumping until fluid begins to run out of the filler hole. Clean up any small spills and temporarily replace the fill plug.

Checking and Topping Up Fluid Levels

This is the most critical step to ensure correct fluid levels for optimal performance.

1. Warm Up the Transmission: The transmission fluid level can only be accurately checked when the fluid temperature is within a specific range: 86°F–131°F (30°C–55°C). Start the car (ensuring it's securely on jack stands and exhaust gases are vented if indoors – use a long flexible tube and a CO monitor for safety). Let the car idle to warm up. For some models, this can take around 45 minutes of idling. The bottom of the sump should feel warm to the touch, not hot. A standard body-temperature thermometer can help verify the temperature.
2. Cycle Through Gears: Once the transmission fluid is at the correct temperature, sit in the car, apply the brake pedal, and slowly shift the transmission through all its gears (P-R-N-D-3-2-1 and back) about 10 times. This helps circulate the new fluid throughout the transmission's passages.
3. Final Level Check and Top-Up: Turn the engine off. Go back underneath the car and carefully remove the fill plug from the side of the transmission. Restart the car with the transmission in neutral. With the engine running, continue refilling the transmission using your pump until fluid just begins to run out of the fill hole. The fluid will not be pressurised, but be cautious as it may be warm.
4. Replace Fill Plug: Once the fluid level is correct, replace the fill plug using a new sealing washer. Torque this plug to the following specifications:

Final Fill Plug Torque Specifications:

Final Steps and Test Drive

Once all plugs are torqued and the fluid is at the correct level, carefully lower your BMW E36 off the jack stands. Take it for a short test drive. You should immediately notice a difference in the transmission's behaviour, with far more smooth shifting and no more slipping or harsh engagements. If you were experiencing issues like the "slamming into gear" problem, these should now be resolved.

Common Mistakes to Avoid

• Not Levelling the Car: This is crucial for an accurate fluid level check. An unlevel car will give a false reading, leading to under or overfilling.
• Ignoring Torque Specifications: Overtightening can strip threads, while undertightening can lead to leaks. Always use a torque wrench.
• Using the Wrong Fluid: Always confirm the specific fluid type required for your transmission. Mixing or using incorrect fluids can cause serious damage.
• Forgetting New Gaskets/Sealing Rings: These are vital for preventing leaks. Always replace them.
• Flushing the Transmission: Never perform a transmission flush on an older BMW. Flushing can dislodge internal deposits and debris, sending them into vital passages and causing catastrophic damage. A simple drain and refill (or two successive drain and refills) is always recommended over a flush.
• Working on a Hot Transmission (for draining): While engine oil is best drained hot, transmission fluid should be drained when cold for maximum drainage.

Frequently Asked Questions (FAQs)

What does BMW mean by "lifetime fluid" for the E36?

When BMW stated "lifetime fluid" for E36 automatic transmissions, it generally referred to the expected service life of the transmission during the original warranty period, not the full lifespan of the vehicle. In reality, transmission fluid degrades over time and requires periodic replacement to ensure optimal performance and longevity.

How much fluid does an E36 automatic transmission hold?

A BMW E36 automatic transmission typically holds around 5 US quarts (approximately 4.7 litres) of fluid, though this can vary slightly by specific transmission model. The amount you drain and refill will be less than the total capacity because some fluid remains in the torque converter and other internal components.

Can a transmission fluid change fix shifting problems?

Yes, a transmission fluid change can often resolve shifting problems, especially those related to low fluid levels or degraded fluid. Symptoms like slipping, harsh shifts, or delayed engagement can frequently be alleviated by fresh fluid and correct levels. However, if there's mechanical damage, a fluid change alone may not be sufficient.

What's the difference between transmission fluid and engine oil?

Engine oil lubricates the engine's moving parts, cleans, cools, and protects against wear. It's designed to handle combustion by-products and high temperatures. Transmission fluid, on the other hand, lubricates gearbox components, acts as a hydraulic medium for gear changes, and transfers heat away from the transmission. They have different viscosities and chemical compositions suited for their specific roles.

As a complementary modification, replacing your engine oil and oil filter is also easy and recommended every 3,000-5,000 miles for your E36.

Why is it important for the car to be level when checking transmission fluid?

The transmission fluid level is determined by the fill hole's height. If the car is not perfectly level, the fluid will sit unevenly within the transmission, leading to an inaccurate reading. This could result in either overfilling or underfilling, both of which can cause transmission problems.

Conclusion

Performing an automatic transmission fluid change on your BMW E36 is a rewarding DIY project that can significantly extend the life and improve the performance of your vehicle. By understanding the process, using the correct tools and parts, and adhering to proper safety and torque procedures, you can ensure your E36 continues to provide that signature smooth shifting experience for many years to come. Don't let the 'lifetime fluid' myth deter you from this essential maintenance!
