Dyson Clutch Failure: DIY Fix for DC04, DC07, DC14

Few things are as frustrating as a vacuum cleaner that simply won't perform its primary function – picking up dirt. If you own a Dyson DC04, DC07, or DC14 and find that your brush bar has stopped spinning, a failing clutch is a highly probable suspect. While the thought of tackling an internal repair might seem daunting, rest assured that replacing a Dyson clutch on these models is a perfectly manageable DIY task, even for those with limited mechanical experience. With the right guidance and a few common tools, you can restore your Dyson to its former glory, saving yourself the cost and inconvenience of professional repair or, worse, replacing the entire machine. This comprehensive guide will walk you through everything you need to know, from identifying if your Dyson has a clutch to performing a successful replacement.

Understanding Your Dyson's Clutch: What It Is and Why It Matters

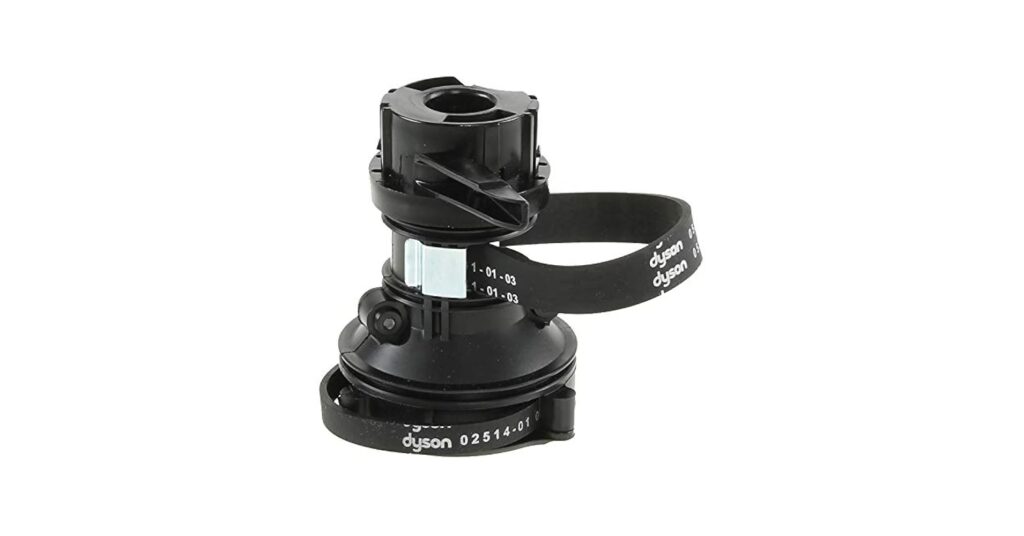

The clutch in your Dyson DC04, DC07, or DC14 is a critical component designed to manage the power transfer to the brush bar. Its primary purpose is twofold: firstly, to protect the drive belts from breaking under strain, and secondly, to allow the user to disengage the brush bar. This disengagement feature is particularly useful when cleaning delicate hard floors, preventing the rotating brush from scratching surfaces or scattering debris. On models equipped with a clutch, you'll typically find an adjustable knob on the vacuum's bottom body, usually on the left-hand side when viewed from the front. This knob allows you to switch between different modes, including turning the brush bar off for bare floors or setting it to an 'auto' position for carpets.

Without a functioning clutch, your vacuum's ability to effectively clean various floor types is severely hampered. A failing clutch can lead to the brush bar not spinning at all, or spinning intermittently, significantly reducing your Dyson's cleaning efficiency. It's a clever piece of engineering that adds versatility and longevity to your machine, ensuring that the powerful suction is always accompanied by appropriate brush bar action for the surface you're cleaning.

Identifying if Your Dyson Has a Clutch

Before you embark on any repair, it's crucial to confirm whether your specific Dyson model is equipped with a clutch. This is a common point of confusion, as not all DC04, DC07, or DC14 variants feature this mechanism. Fortunately, there are clear indicators:

• Adjustable Knob: The most definitive sign of a clutch-equipped Dyson is the presence of an adjustable knob located on the bottom body of the machine, typically on the left side when you're looking at the front of the vacuum. This knob allows you to switch between carpet and bare floor modes.
• Model Designations: Dyson models with a clutch are often designated with specific terms in their name. Look out for labels such as "all floors," "multi floor," "allergy," "animal," or "absolute." These designations usually indicate a machine designed for versatile cleaning across different surfaces, necessitating a clutch.

If your Dyson lacks this adjustable knob and doesn't carry one of these specific designations, it's highly likely to be a non-clutch model. For non-clutch machines, if the brush bar isn't spinning, the problem is almost certainly a snapped drive belt, which will need to be replaced.

Symptoms of a Failing Dyson Clutch

The most prominent symptom of a failing clutch is a brush bar that refuses to spin, or spins weakly and inconsistently. However, it's essential to properly diagnose the issue, as the behaviour of clutch-equipped Dysons can sometimes be misleading to the uninitiated.

Here's what to look out for:

• Brush Bar Not Spinning While Upright: Many Dyson owners incorrectly assume something is wrong if their brush bar isn't spinning when the vacuum is in the upright, parked position. For clutched models, this is entirely normal! The brush bar is designed not to engage until the machine is reclined into its cleaning position. This is a safety and efficiency feature, preventing the brush from needlessly spinning while stationary.
• Brush Bar Not Spinning When Reclined: If, after reclining the machine into its cleaning position (by bending the wand handle back while holding your foot in the front corner recess of the body), the brush bar still doesn't spin, then you have a genuine issue.
• Clutch Knob Position: First, ensure your clutch knob is in the correct position. Try turning it one click clockwise to the "auto" position. If it was off, this simple adjustment might solve your problem immediately.
• Grinding Noises or Burning Smell: In some cases, a failing clutch might produce unusual grinding noises, or you might detect a burning smell if the clutch is slipping excessively or seizing.

If your Dyson is a non-clutch model and the brush bar isn't spinning at all, the cause is almost certainly a broken drive belt. These models rely solely on the belt for brush bar rotation, and there's no mechanism to disengage it.

Dyson DC04, DC07, DC14 Clutch and Belt Replacement Guide

Once you've confirmed your Dyson has a clutch and suspect it's faulty, you can proceed with the replacement. This process typically involves replacing the clutch unit itself and, often, the associated drive belts, as they work in tandem. Always ensure your vacuum is unplugged from the mains power before beginning any work.

Tools You'll Need:

• T15 Torx screwdriver (with a minimum 100mm shaft for reaching recessed screws)
• Dyson Belt Lifter Changing Tool (highly recommended for ease of belt replacement)
• New Dyson clutch assembly (specific to your model)
• New replacement belts (typically a package of two: motor to clutch belt and clutch to brush belt)

Step-by-Step Replacement Process:

1. Preparation and Disassembly:
   • Lay your Dyson vacuum down on a clean, flat surface, preferably with the underside facing up.
   • Locate the screws that secure the bottom plate of the machine. These are usually Torx screws. Use your T15 Torx screwdriver to carefully remove them. Keep track of all screws, as they can differ in length or type.
   • Once the screws are removed, gently lift off the bottom plate to expose the internal mechanics, including the clutch assembly and belts.
2. Accessing the Clutch and Belts:
   • You will see the brush bar, the clutch mechanism, and two distinct belts. One belt typically connects the motor to the clutch, and the other connects the clutch to the brush bar.
   • Carefully observe how the existing belts are routed. Taking a photo with your phone can be helpful for reassembly.
3. Removing the Old Clutch and Belts:
   • First, remove the brush bar. This usually involves releasing clips or rotating end caps.
   • Using your Dyson Belt Lifter Changing Tool (or carefully with a flat-head screwdriver), unhook and remove both the motor-to-clutch belt and the clutch-to-brush belt. These might be tight.
   • Next, locate the screws or clips that hold the clutch assembly in place. Remove these fasteners.
   • Carefully lift out the old clutch unit.
4. Installing the New Clutch:
   • Position the new clutch assembly into the vacuum, ensuring it seats correctly in its designated slot.
   • Secure the new clutch with the screws or clips you removed earlier. Do not overtighten.
5. Installing the New Belts:
   • This is often the trickiest part. Start by looping the new motor-to-clutch belt onto the motor pulley and then around the clutch pulley.
   • Next, loop the clutch-to-brush belt around the clutch pulley and the brush bar pulley.
   • Reinsert the brush bar into its housing, ensuring both ends are properly seated and the belts are correctly tensioned around their respective pulleys. The belt lifter tool is invaluable here for stretching the belts into place.
   • Ensure the belts are straight and not twisted.
6. Reassembly and Testing:
   • Once the new clutch and belts are in place and the brush bar is reinstalled, replace the bottom plate of the vacuum.
   • Secure the bottom plate with all the screws you removed earlier, ensuring they are tightened firmly but not excessively.
   • Plug your Dyson back into the mains power.
   • Turn on the vacuum and recline it into the cleaning position. The brush bar should now spin freely and powerfully. Test the clutch knob by switching between "auto" and "off" positions to ensure the brush bar engages and disengages as expected.

Troubleshooting Common Clutch-Related Issues

Even after replacement, you might encounter minor issues or have lingering questions. Here's some troubleshooting advice:

• Brush Bar Still Not Spinning After Replacement: Double-check that both belts are correctly installed and properly tensioned. Ensure the clutch knob is set to the 'auto' position and that the machine is reclined. Sometimes, a new belt needs a moment to settle. If the issue persists, carefully inspect the brush bar for any obstructions (hair, string) that might be preventing it from rotating freely.
• Belts Breaking Frequently: If your belts are snapping often, even after clutch replacement, it could indicate an underlying issue such as excessive strain on the brush bar (e.g., trying to vacuum very thick carpets not suited for the machine, or persistent obstructions). Ensure you're using genuine Dyson replacement belts, as aftermarket ones can sometimes be of lower quality.
• Loud Noises from Clutch Area: If you hear grinding or rattling, it could mean the new clutch isn't seated correctly, or there's some debris trapped within the mechanism. Disassemble and re-inspect carefully.

Comparative Table: Clutch vs. Non-Clutch Dyson Brush Bar Behaviour

To further clarify the differences, here's a quick comparison:

Frequently Asked Questions (FAQs)

Does my Dyson DC07 have a clutch?

Some Dyson DC07 models do indeed have a clutch, while others do not. To determine if your specific DC07 has a clutch, look for an adjustable knob on the bottom body, typically on the left-hand side when viewed from the front. If it has this knob, it's a clutch-equipped model, often designated as "all floors," "multi floor," "allergy," "animal," or "absolute." These models will also use two specific belts: one from the motor to the clutch and another from the clutch to the brush bar.

How often should I replace Dyson belts?

To ensure optimum performance and prevent unexpected failures, it's generally recommended to replace your Dyson's drive belts every 3 to 6 months. Even if they don't appear visibly damaged, belts can stretch and lose their elasticity over time, reducing the efficiency of the brush bar. Regular replacement helps maintain the full cleaning power of your vacuum.

What tools do I need for a Dyson clutch replacement?

For a Dyson clutch replacement on DC04, DC07, or DC14 models, you will primarily need a T15 Torx screwdriver. It's crucial that this screwdriver has a shaft of at least 100mm to reach some of the recessed screws. Additionally, a Dyson Belt Lifter Changing Tool is highly recommended. While it's possible to manage without it, this tool makes the process of stretching and installing new belts significantly easier and safer, preventing accidental damage to the belts or your hands.

Can a belt change help if my Dyson DC04 is struggling to pick up dirt?

Absolutely. A belt change can often resolve issues with a Dyson DC04 struggling to pick up dirt from carpets. Over time, the drive belt (or belts, if it's a clutch model) can stretch or become worn, leading to the brush bar spinning less effectively or not at all. Replacing the belt(s) restores the proper rotation of the brush bar, which is essential for agitating carpet fibres and lifting embedded dirt, thereby improving suction and cleaning performance.

What is a Dyson "Zorbster"?

The Dyson DC04 "Zorbster" was a unique variant of the DC04, distinguishable by its grey and lavender colour scheme. Its distinguishing feature was an aperture on the front of the body designed to accommodate a hopper. This hopper would dispense "Zorb crystals" onto your carpet for dry cleaning. The idea was that these crystals would absorb dirt, which could then be vacuumed up along with the crystals. While an interesting concept, Zorbster models were not widely popular for their carpet dry-cleaning function, with most owners using them primarily as standard vacuum cleaners.

Conclusion

A non-spinning brush bar on your Dyson DC04, DC07, or DC14 doesn't have to spell the end for your trusty vacuum. Understanding the role of the clutch, correctly diagnosing the problem, and following a straightforward replacement process can bring your machine back to life. While it requires a bit of patience and the right tools, performing a DIY clutch and belt replacement is a rewarding task that extends the lifespan of your Dyson, ensuring it continues to provide powerful cleaning performance for years to come. Embrace the repair, and enjoy the satisfaction of a job well done!
