Precision Alignment for Your Dyna & Beyond

Ensuring your motorcycle's alignment is spot-on isn't just about smooth handling; it's fundamental to your safety, the longevity of your tyres, and the overall performance of your ride. Whether you're a seasoned mechanic or a keen DIY enthusiast, understanding the nuances of front fork and rear axle alignment is crucial. A perfectly aligned bike tracks true, feels stable through corners, and brakes predictably, providing a confidence-inspiring experience on every journey. Neglecting proper alignment can lead to uneven tyre wear, compromised handling, and even dangerous instability at speed. This comprehensive guide will walk you through the essential steps for achieving precise alignment on your motorcycle, with a particular focus on the front end of a Dyna and general principles for the rear axle.

Mastering Front Fork Alignment, Especially for Your Dyna

The front end of your motorcycle, particularly on a Harley-Davidson Dyna, is a complex assembly that dictates steering precision and ride quality. Any work involving the front forks – whether it's replacing just the fork tubes and sliders, or undertaking a more extensive overhaul that includes the triple tree – necessitates a meticulous alignment procedure. The good news is that if you've only replaced the two sides of the front fork, the process is largely about careful reassembly and adherence to established guidelines.

When you're dealing with just the fork tubes and sliders, the core of the alignment procedure revolves around ensuring everything is square and free of binding before torquing down components. Begin by loosely assembling the front wheel and axle into the fork lowers. Do not tighten anything yet. The aim here is to allow the forks to find their natural, unstressed position. With the bike on a stand that allows the front wheel to be off the ground, gently pump the front suspension a few times. This helps the fork tubes settle evenly in the triple trees and the fork lowers. As you do this, pay close attention to the top of both fork tubes. It is absolutely critical that the top of both tubes are at the same height out of the top clamp of the triple tree. This ensures even compression and rebound characteristics for both forks, preventing uneven load distribution and unpredictable handling.

Once the forks have settled and are at an even height, you can proceed with mounting and aligning the front wheel. The specific instructions in your Dyna's service manual are paramount here. Generally, this involves tightening the axle nut to a preliminary torque, then tightening the axle pinch bolts on one side (often the right, but check your manual), followed by the axle nut to its final torque. Finally, the remaining axle pinch bolts are tightened. This sequence is designed to pull the fork legs into parallel alignment with each other and square with the axle. Always use a torque wrench to ensure all fasteners are tightened to their specified values. Overtightening can cause binding, while undertightening can lead to dangerous looseness.

If your project involved replacing the entire front end, including the triple tree, the alignment procedure becomes even more critical and might require additional steps to ensure the steering stem is properly aligned and bearings are correctly preloaded. While the fundamental principle of squaring the forks remains, the initial setup of the triple tree itself, ensuring it's perpendicular to the frame's steering head, is vital. This often involves checking for binding in the steering head bearings and ensuring the forks slide freely without resistance once installed. For such extensive work, consulting a detailed workshop manual or even seeking professional guidance is highly recommended to avoid complex issues down the line.

Precision in the Rear: Adjusting Your Rear Axle

Just as important as the front, a properly aligned rear wheel ensures your bike tracks straight, minimises chain or belt wear, and contributes significantly to overall stability. The rear axle adjustment procedure aims to ensure the rear wheel is perfectly perpendicular to the swing arm pivot, and consequently, parallel to the front wheel. This prevents the bike from "crabbing" down the road, where the rear wheel isn't directly following the front.

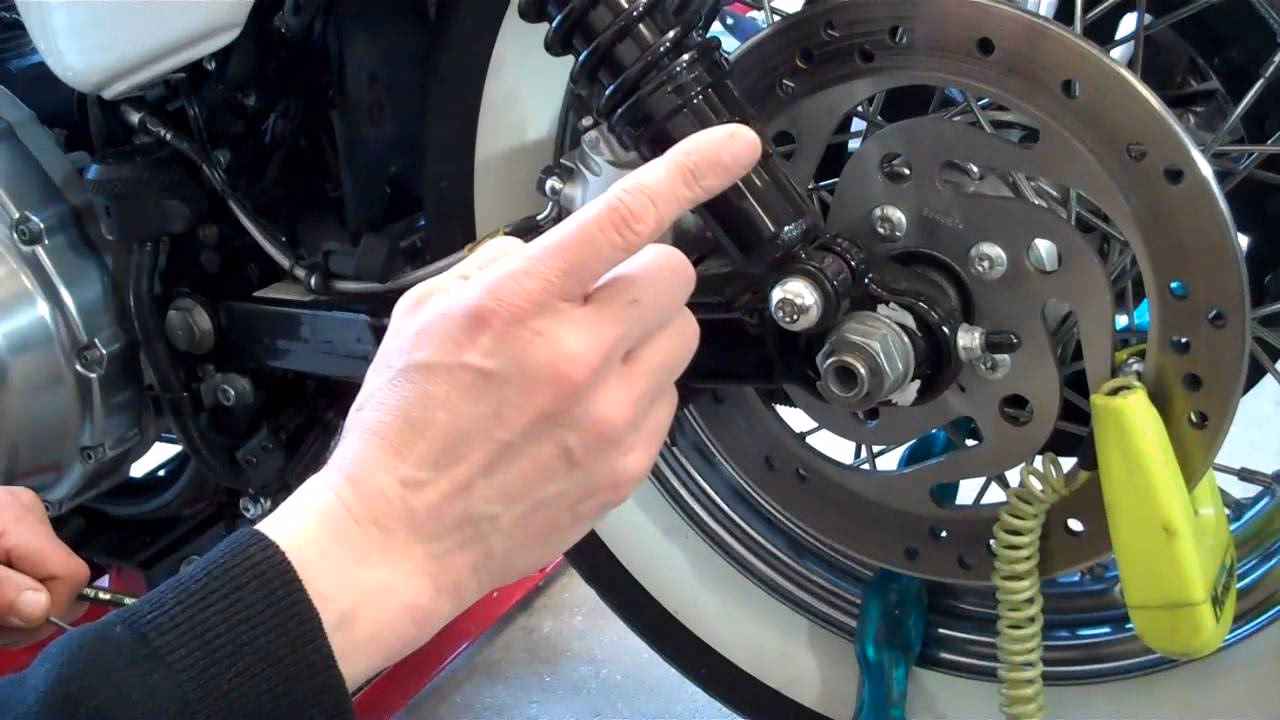

The method described, utilising tools "C" and "B", is a common and highly effective way to achieve this precision. Tool "C", which fits into the centre of the swing arm pivot shaft bolt, acts as a fixed reference point. Tool "B", a thumb screw pointer, is then placed in the centre of the rear axle. The core principle is to measure the distance from the swing arm pivot (Tool C) to the rear axle (Tool B) on both sides of the bike. With the rear axle loosened – but not completely free – you then use the rear axle adjusters (the bolts or cams at the end of the swing arm) to manipulate the axle's position. The goal is to ensure that the distance between "C" and "B" is precisely the same on both sides of the bike.

Many motorcycles, particularly chain-driven ones, have markings on the swing arm that correspond to the rear axle adjusters. While these markings can provide a rough guide, they are often not precise enough for true alignment. Relying solely on them can lead to slight misalignment, which, over time, can cause accelerated chain/belt and sprocket/pulley wear, and even affect handling. Using a dedicated measuring tool or even a precise ruler/caliper from the centre of the swingarm pivot bolt to the centre of the axle, or from a consistent point on the swingarm to the axle, is always preferable for optimal accuracy.

Once you've achieved equal measurements on both sides, the rear axle nut should be tightened to the manufacturer's specified torque. It's crucial to ensure that as you tighten the axle nut, the alignment does not shift. Some mechanics recommend a final check of the measurement after tightening to confirm that the wheel remains perfectly aligned. Furthermore, on chain-driven bikes, this is the opportune moment to adjust your chain tension to the recommended slack, as axle adjustment directly impacts it. A properly tensioned chain prevents excessive wear on the chain, sprockets, and gearbox output shaft bearing, while also ensuring efficient power transfer.

The Crucial Importance of Correct Alignment

Why do we labour over these precise measurements and specific procedures? Because the alignment of your motorcycle's wheels has a profound impact on almost every aspect of its operation. It's not just about getting the bike to roll; it's about ensuring it rolls safely, efficiently, and predictably.

• Safety: Misaligned wheels can lead to unstable handling, especially at higher speeds or during braking. The bike might pull to one side, feel twitchy, or exhibit a disconcerting wobble. This compromises your ability to react effectively in an emergency situation.
• Tyre Longevity: Uneven tyre wear is a classic symptom of misalignment. If one tyre is scrubbing more than the other, or if a tyre is running at an angle, it will wear out much faster and unevenly, costing you money and potentially leading to premature tyre failure.
• Handling and Performance: A perfectly aligned bike feels balanced and responsive. It steers predictably into corners and holds its line without constant correction. Misalignment can make the bike feel sluggish, heavy, or just "off," detracting significantly from the riding experience.
• Component Wear: Beyond tyres, misalignment puts undue stress on other components. Misaligned front forks can lead to premature wear of fork seals and bushings. A misaligned rear wheel can accelerate wear on wheel bearings, swing arm pivot bearings, and as mentioned, the drive chain or belt and sprockets/pulleys.

Recognising the Signs of Misalignment

Your bike will often tell you if something is amiss. Pay attention to these common indicators:

• The bike pulls noticeably to one side, requiring constant steering input to keep it straight.
• Uneven or accelerated tyre wear, particularly on one side of a tyre or one tyre wearing faster than the other.
• A "crab-walking" sensation, where it feels like the rear wheel isn't following the front directly.
• Instability or wobble, especially at certain speeds or during braking.
• Excessive vibration through the handlebars or footpegs.
• Difficulty holding a straight line or cornering smoothly.

Essential Tools and Pre-Alignment Checks

Before you even begin the alignment process, ensure you have the right tools and that your bike is in a suitable condition for accurate measurements.

• Torque Wrench: Absolutely indispensable for tightening fasteners to their precise specifications, preventing both overtightening and undertightening.
• Measuring Tools: A high-quality tape measure, steel rule, or digital caliper for accurate distance measurements. For rear axle alignment, specialised laser alignment tools or string alignment kits offer the highest precision.
• Bike Stands: Front and rear stands are crucial for safely lifting the bike and allowing the wheels to spin freely.
• Workshop Manual: Your bike's specific service manual contains critical torque specifications and detailed procedures for your model.

Always perform these pre-checks:

• Tyre Pressure: Ensure tyres are inflated to the recommended pressure. Incorrect pressure can affect handling and measurements.
• Suspension Condition: Check for worn fork seals, leaky shocks, or excessive play in suspension components. Address these issues before attempting alignment.
• Bearing Play: Inspect wheel bearings and steering head bearings for any play. Worn bearings will compromise alignment accuracy.

Road Testing: The Final Verification

As with every major change or maintenance task we undertake on our bikes, but especially with suspension and brakes, the final step is a thorough road test. This isn't just a casual ride; it's a methodical verification of your work. Start somewhere off the beaten path, away from heavy traffic, where you can safely perform controlled manoeuvres. Begin by running slowly, focusing on how the bike tracks straight, how it feels through gentle turns, and the effectiveness and feel of the braking. Pay attention to any pulling, wobbling, or unusual vibrations.

Gradually increase your speed and put the bike through its paces. Test braking at various intensities, lean into corners more assertively, and observe its behaviour under acceleration. Listen for any strange noises and feel for anything that doesn't seem right. If anything feels off, stop immediately and re-check your work. This iterative process of adjustment, check, and road test is key to ensuring your bike is not only safe but performs optimally.

Troubleshooting Common Alignment Issues

Even with careful execution, sometimes issues persist. Here are a few common scenarios and what to check:

1. Bike Still Pulls to One Side: Re-check your front fork alignment, ensuring both tubes are precisely at the same height. For the rear, double-check your measurements from the swingarm pivot to the axle on both sides. Also, inspect for bent forks or a twisted frame (though less common).
2. Uneven Tyre Wear Persists: This can indicate a persistent alignment issue, but also check tyre pressures, suspension sag, and even wheel balance.
3. Wobbly Feeling: Could be misalignment, but also worn wheel bearings, steering head bearings, or unbalanced wheels.

Frequently Asked Questions (FAQs)

Q: How often should I check my bike's alignment?
A: It's good practice to check alignment periodically, perhaps once a year during routine maintenance, or whenever you notice any handling anomalies. Crucially, always check alignment after any significant impact, a tyre change, or any major work involving the wheels, suspension, or frame.

Q: Can I align my bike myself, or do I need a professional?
A: Many alignment procedures, especially rear wheel alignment and basic front fork squaring, can be performed by a competent home mechanic with the right tools and a good service manual. However, for complex issues, extensive frame damage, or if you lack confidence, a professional workshop with specialised alignment jigs is always the safest option.

Q: What are the primary signs of a misaligned front wheel?
A: The most common signs include the bike pulling to one side, uneven wear on the front tyre (such as cupping or feathering), a feeling of instability or vague steering, and sometimes excessive vibration through the handlebars. Braking might also feel uneven or less effective.

Q: Does chain tension affect rear axle alignment?
A: Yes, absolutely. While chain tension doesn't *cause* misalignment, the process of adjusting the rear axle for alignment directly impacts chain tension. It's vital to set the chain tension to the manufacturer's specification *after* the rear wheel has been correctly aligned and the axle nut torqued. Incorrect chain tension can lead to premature wear of the chain, sprockets, and even the transmission output bearing.

Q: What if I don't have special alignment tools like "C" and "B" for the rear axle?
A: While dedicated tools offer the highest precision, you can achieve a good level of accuracy using a long, straight edge (like a fluorescent light tube or a precise metal rule) held against the rear tyre and extending to the front tyre on both sides. Alternatively, you can use a precise measuring tape to measure from the centre of the swingarm pivot bolt to the centre of the rear axle on both sides. Just ensure your measuring points are consistent and accurate.

In conclusion, precise alignment is not a luxury; it's a necessity for any motorcycle owner. By understanding and meticulously following these procedures for both your Dyna's front forks and your bike's rear axle, you'll not only enhance your riding experience but also significantly improve the safety and longevity of your beloved machine. Always remember to double-check your work and perform a cautious road test to ensure everything is perfect before hitting the open road with confidence.
