Refilling Primary Oil on Your 2003 Harley Dyna

Maintaining your 2003 Harley-Davidson Dyna is key to its longevity and performance, and one of the most crucial aspects of this is ensuring the primary chaincase oil is at the correct level and in good condition. This fluid is vital for lubricating the primary chain, the compensating sprocket, and the clutch assembly, all of which are fundamental to transmitting power smoothly from your engine to the gearbox. Neglecting this simple yet critical maintenance task can lead to premature wear, noisy operation, and even costly repairs down the line. For any owner of a classic Dyna, understanding how to properly manage this fluid is not just good practice, it's essential for a reliable and enjoyable ride.

Understanding Your Dyna's Primary System

Before diving into the refilling process, it's helpful to understand what the primary oil does. In your 2003 Harley Dyna, the primary drive system is enclosed within the primary chaincase. Inside this case, you'll find the primary chain connecting the engine's crankshaft sprocket to the transmission's clutch hub sprocket. The primary oil serves several critical functions:

• Lubrication: It lubricates the primary chain, ensuring smooth operation and reducing friction and wear between the chain and sprockets.
• Cooling: It helps to dissipate heat generated by the moving components, particularly the clutch.
• Clutch Operation: The oil is integral to the smooth engagement and disengagement of the wet clutch assembly. Proper oil level and type are crucial for preventing clutch slip or drag.
• Compensator Lubrication: The compensating sprocket, which helps to smooth out power pulses from the engine, also relies on this oil for lubrication and damping.

Using the correct type and amount of oil is paramount. An underfilled primary can lead to excessive wear and noise, while an overfilled primary can cause clutch drag, hard shifting, and potentially force oil past seals.

The Right Oil for Your 2003 Dyna

For your 2003 Harley Dyna, the manufacturer specifies a particular type of primary chaincase lubricant. While engine oil can sometimes be used in a pinch for primary applications on older Harleys, for optimal performance and longevity, a dedicated primary chaincase lubricant or a specific transmission fluid is generally recommended. The information provided specifically mentions Motul primary oil, and it's always wise to consult your owner's manual for the most accurate and up-to-date recommendations. However, here are some general guidelines for suitable alternatives if Motul isn't readily available:

• Harley-Davidson Primary Chaincase Lubricant
• Specific transmission fluids designed for wet clutch applications (e.g., some 80W90 gear oils, but always check compatibility with your clutch materials).
• Certain types of synthetic motor oil (e.g., 20W50 V-Twin specific oils) that are formulated for use in all three holes (engine, primary, transmission) on some models. However, for the primary, a dedicated lubricant is often preferred for its clutch-specific additives.

Always ensure the oil you choose is suitable for wet clutch applications to prevent clutch slippage. Look for oils that explicitly state compatibility with Harley-Davidson primary drives.

Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process much smoother and more efficient:

• Drain Pan: Large enough to collect approximately 26 ounces (0.77 litres) of used oil.
• Torx Wrench Set: Specifically a T27 Torx bit for the derby cover screws.
• Wrench or Socket: For the primary drain plug (often a 5/8-inch or 1/2-inch socket, or an Allen head).
• Torque Wrench: Essential for tightening the drain plug and derby cover screws to specification, preventing leaks and damage.
• New Primary Gasket/O-ring: For the derby cover (it's good practice to replace this every time). Some drain plugs also use an O-ring that should be inspected and replaced if worn.
• Clean Rags or Shop Towels.
• Gloves: To keep your hands clean.
• Measuring Cup/Container: Capable of accurately measuring 26 ounces (770 ml).
• Funnel: A Fast Funnel or similar flexible funnel is highly recommended for easy and mess-free pouring, especially given the tight space.
• New Primary Oil: Approximately 26 ounces (0.77 litres) of your chosen primary oil.
• Motorcycle Lift or Stand: To keep the bike upright and stable during the process.

Step-by-Step Guide to Draining the Primary Oil

While the focus is on refilling, you cannot refill without first draining the old oil. This process is relatively straightforward:

1. Warm Up the Engine: Run the engine for a few minutes to warm the primary oil. Warm oil drains more thoroughly, carrying more contaminants with it.
2. Position the Motorcycle: Place your Dyna on a motorcycle lift or a stable stand, ensuring it is level and secure. This is crucial for proper draining and refilling.
3. Locate the Primary Drain Plug: The drain plug for the primary chaincase is typically located on the bottom front or bottom side of the primary cover. Refer to your owner's manual for its exact location.
4. Prepare the Drain Pan: Position your drain pan directly underneath the primary drain plug.
5. Remove the Drain Plug: Using the appropriate wrench or socket, carefully remove the primary drain plug. Be prepared for the oil to start flowing immediately. Allow all the old oil to drain completely. This can take several minutes.
6. Inspect the Old Oil and Plug: While the oil is draining, inspect the old oil for any metallic flakes or unusual discolouration, which could indicate internal wear. Also, inspect the drain plug and its O-ring (if applicable). Clean any debris from the magnetic tip of the drain plug.
7. Replace the Drain Plug: Once the oil has fully drained, clean the drain plug and install a new O-ring if necessary. Reinstall the drain plug and tighten it to the manufacturer's specified torque. Over-tightening can strip threads, while under-tightening can lead to leaks. Consult your manual for the exact torque wrench setting.

Step-by-Step Guide to Refilling the Primary Oil

Now that the old oil is out, it's time for the crucial refilling process:

1. Ensure Motorcycle is Upright: This is paramount. The 2003 Harley Dyna needs to be straight up and down (vertical) for an accurate primary oil level measurement. If it's on the side stand, the reading will be incorrect.

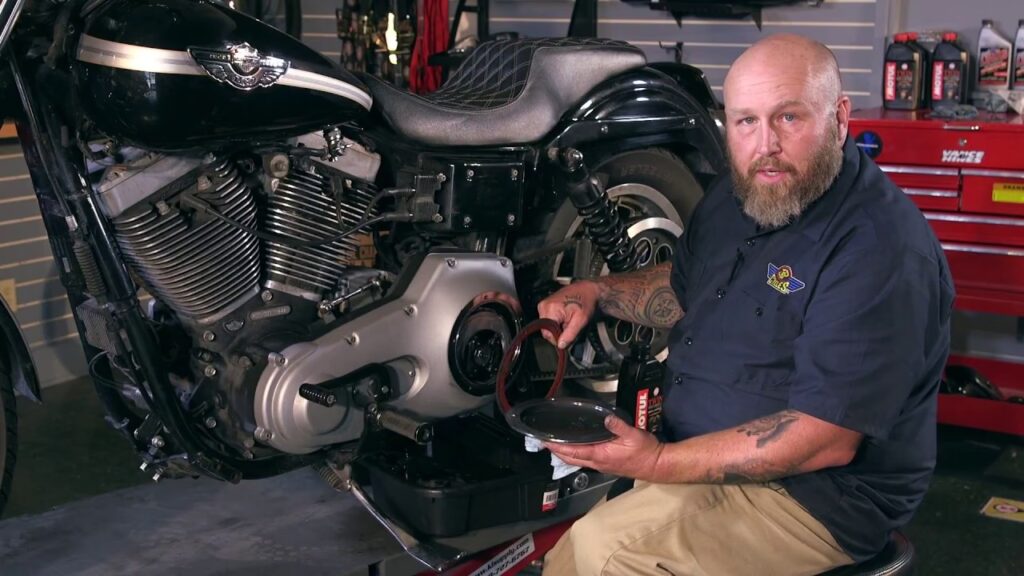

2. Remove the Derby Cover: The derby cover is the round cover on the outside of the primary chaincase, typically held on by five Torx screws (T27). Carefully remove these screws and then the cover. Be gentle, as there will be a gasket underneath.
3. Remove the Old Gasket: Carefully peel off the old derby cover gasket. Ensure all old gasket material is removed from both the cover and the primary case mating surfaces. Clean both surfaces thoroughly to ensure a good seal with the new gasket.
4. Measure the Oil: According to the information provided and your manual, refill with 26 ounces (approximately 770 ml) of your chosen Motul primary oil or equivalent. Use a precise measuring cup for accuracy.
5. Pour the New Oil: Insert your Fast Funnel or similar funnel into the primary opening. Slowly and steadily pour the measured 26 ounces of primary oil into the chaincase. Take your time to avoid spills.
6. Check the Level (Alternative Method): If you don’t have a precise way to measure, the alternative method is to fill it up to the bottom of the derby cover opening while the motorcycle is straight up and down. This means the oil level should just touch the bottom edge of the opening where the derby cover seats. This method is effective for ensuring adequate lubrication without overfilling.
7. Install New Derby Cover Gasket: Place a new derby cover gasket onto the primary case or directly onto the derby cover, ensuring it is properly seated.
8. Reinstall the Derby Cover: Carefully align the derby cover and reinstall it, ensuring the gasket remains in place. Start all five Torx screws by hand to avoid cross-threading.
9. Torque the Derby Cover Screws: Using your torque wrench with the T27 Torx bit, tighten the derby cover screws in a criss-cross pattern to the manufacturer's specified torque setting. This ensures even pressure and a proper seal. Refer to your 2003 Dyna service manual for the exact specifications.
10. Clean Up: Wipe away any spilled oil from the primary cover and surrounding areas.
11. Test Ride: After completing the refill, take your Dyna for a short test ride to ensure everything feels normal. Check for any leaks around the drain plug or derby cover.

Common Mistakes to Avoid

Even a seemingly simple task like an oil change can go wrong if not performed carefully. Here are some common mistakes to avoid:

• Using the Wrong Oil: As discussed, using engine oil or an incompatible fluid can damage the clutch or primary components. Always use a dedicated primary lubricant or one specifically approved for wet clutches.
• Incorrect Oil Level: Both underfilling and overfilling are detrimental. Underfilling leads to inadequate lubrication and wear, while overfilling can cause foaming, clutch drag, and excessive pressure on seals.
• Not Replacing Gaskets/O-rings: Reusing old gaskets or O-rings is a primary cause of leaks. They compress and lose their sealing ability over time.
• Incorrect Torque Settings: Over-tightening can strip threads or crack covers, leading to expensive repairs. Under-tightening causes leaks. A torque wrench is your best friend here.
• Not Cleaning Mating Surfaces: Any old gasket material or dirt on the sealing surfaces will compromise the seal, leading to leaks.
• Not Having the Bike Upright: As emphasised, the bike *must* be straight up and down for an accurate level check using the 'bottom of the derby cover' method.

When to Change Your Primary Oil

Harley-Davidson generally recommends changing the primary chaincase oil at specific mileage intervals, typically every 10,000 miles (16,000 km) or annually, whichever comes first. However, if you ride in extreme conditions (very hot weather, heavy stop-and-go traffic, or aggressive riding), more frequent changes might be beneficial. Regular inspection of the oil condition is also a good habit. If the oil looks excessively dark, smells burnt, or contains visible metallic particles, it's time for a change regardless of mileage.

Comparative Table: Primary Oil Check Methods

Here's a quick comparison of the two primary oil level check methods:

Frequently Asked Questions (FAQs)

Q: Can I use regular engine oil in my 2003 Dyna primary?

A: While some older Harley manuals might have permitted this, it's generally not recommended for optimal performance and clutch longevity. Dedicated primary chaincase lubricants or fluids specifically designed for wet clutches offer superior protection and performance. Always refer to your owner's manual, but for a 2003 Dyna, a dedicated primary oil like Motul primary oil is preferred.

Q: How often should I check my primary oil level?

A: It's a good practice to check your primary oil level every few thousand miles or at least annually, especially if you notice any changes in clutch feel or primary noise. A full oil change is typically recommended every 10,000 miles or annually.

Q: What happens if I overfill the primary?

A: Overfilling can cause several issues, including increased internal pressure, which can lead to leaks past seals, especially the main shaft seal. It can also cause the clutch to drag or slip, hard shifting, and foaming of the oil, reducing its lubricating properties.

Q: Do I need a new derby cover gasket every time I remove it?

A: Yes, it is highly recommended to use a new derby cover gasket every time you remove the cover. Gaskets compress and lose their sealing ability once disturbed, making them prone to leaks if reused.

Q: What are the signs of low primary oil?

A: Signs of low primary oil can include increased noise from the primary chaincase (e.g., a whining or rattling sound), a clunkier gear shift, or a clutch that feels grabby or inconsistent.

Q: Is it okay to mix different brands of primary oil?

A: It's generally best to stick to one brand and type of primary oil. While mixing might not cause immediate catastrophic failure, different formulations and additive packages can sometimes be incompatible, potentially leading to reduced performance or accelerated wear. If you must top up and don't have the exact same oil, use a product that meets the same specifications as your current oil.

Proper primary oil maintenance is a cornerstone of keeping your 2003 Harley Dyna running reliably and smoothly for years to come. By following these detailed steps, using the correct products, and paying attention to torque specifications, you'll ensure your primary drive system is well-lubricated and performing at its best, allowing you to enjoy the open road with confidence.
