Motorcycle Sprag Clutch Failure: Diagnosis & Repair

Few things are as frustrating for a motorcyclist as pressing the starter button only to hear a lifeless whirring sound, with the engine stubbornly refusing to crank. This common and often perplexing issue typically points to a fault within the starter system, specifically the sprag clutch. While the problem might seem daunting, understanding its function and the steps involved in its repair can save you significant hassle and cost. This article aims to demystify the sprag clutch, detailing its purpose, common failure modes, and providing a comprehensive guide to diagnosing and rectifying issues, particularly focusing on the crucial task of accessing and replacing this vital component.

What is a Sprag Clutch and How Does it Work?

At the heart of your motorcycle's starting mechanism lies the sprag clutch, a clever device designed to engage the starter motor with the engine's crankshaft in one direction only. Think of it as a one-way bearing. When you press the starter button, the starter motor spins, and the sprag clutch, via a series of precisely engineered sprags (small, wedge-shaped components), grips the inner race (usually part of the flywheel or generator rotor) and transmits the rotational force to the crankshaft, thereby turning the engine over. Once the engine starts and its rotational speed surpasses that of the starter motor, the sprags disengage, allowing the starter motor to freewheel without being driven by the engine. This disengagement is crucial for preventing damage to the starter motor from the engine's higher RPMs. The integrity of this system relies heavily on a small detent spring that holds the sprags in their engaged position until the engine fires up.

Common Symptoms of a Failing Sprag Clutch

The most unmistakable symptom of a failing sprag clutch is the one mentioned earlier: you press the starter button, you hear the starter motor spinning freely, often with a distinct whirring or grinding noise, but the engine does not turn over at all. It's as if the starter motor is completely disconnected from the crankshaft. This sound is the starter motor spinning, but the sprags within the clutch are failing to engage the flywheel effectively. In some cases, especially when the spring is merely weakened rather than broken, you might experience intermittent engagement, where the bike starts sometimes but fails on other occasions. Early signs might also include a delayed engagement or a metallic clunk as the sprags struggle to grip. Ignoring these symptoms can lead to more severe damage, not only to the sprag clutch itself but potentially to the flywheel or starter motor if the components are repeatedly grinding without proper engagement.

Why Do Sprag Clutches Fail?

The primary culprit behind sprag clutch failure, particularly in many large capacity V-twins like the Ducati Desmoquattro and other models sharing similar sprag units (such as some BMW GS650, KTMs, and Aprilias), is the weakening or breakage of the small detent spring. This spring is responsible for pushing the individual sprags outwards, ensuring they maintain contact with the outer race and are ready to engage. Unfortunately, many original equipment manufacturer (OEM) springs are notoriously weak or made from materials prone to fatigue over time. Constant engagement and disengagement cycles, combined with engine vibrations and heat, can cause the spring to lose its tension or, in worst-case scenarios, snap entirely. When the spring weakens, the sprags fail to engage properly, leading to the free-spinning starter motor symptom. Other contributing factors can include insufficient lubrication, contamination from debris, or excessive wear on the sprag surfaces themselves, but a faulty spring is overwhelmingly the most common cause.

Diagnosing a Sprag Clutch Issue

While the symptom of a whirring starter motor is a strong indicator, it's always wise to confirm the diagnosis before tearing down your engine. First, ensure your battery is fully charged and capable of delivering sufficient cranking amps. A weak battery can sometimes mimic sprag clutch symptoms, as the starter motor might spin slowly without enough torque to engage the sprags effectively. Listen carefully to the sound; a distinct high-pitched whirring without any accompanying engine rotation is highly indicative of a sprag problem. If you can, try to push-start the bike (if applicable to your model). If it starts readily by push-starting, it further confirms the issue lies within the electric starter system, and specifically points towards the sprag clutch or starter motor itself. Given the commonality, the sprag clutch is the primary suspect.

Symptoms vs. Potential Causes

Tools and Preparation for Sprag Clutch Replacement/Repair

Before you begin, gather all necessary tools and prepare your workspace. This job requires patience and methodical organisation. You'll need: a drain pan, socket set (including a 30mm socket for the flywheel nut), breaker bar, torque wrench, various screwdrivers, Allen keys, circlip pliers, a clutch holding tool (essential!), and potentially a flywheel puller (though often not strictly necessary). For fluids, ensure you have new engine oil and coolant ready for refill, along with fresh gaskets for the clutch cover and generator cover. Cleanliness is paramount; prepare a clean area to lay out components in order of removal. Safety first: disconnect the battery's negative terminal before starting any work.

Step-by-Step Guide to Sprag Clutch Access and Removal

This process requires careful attention to detail. While specific fasteners and routing may vary by motorcycle model, the general sequence remains consistent for bikes utilising a wet clutch and a sprag clutch located behind the generator rotor.

Fluid Drainage & Initial Disassembly

The first crucial step is to drain all fluids that will impede your access or create a mess. This includes both the engine oil and, critically, the coolant, as the generator cover often incorporates water pump components and coolant passages. Place a suitable drain pan beneath the engine and remove the oil drain plug. Once the oil has drained, replace the plug (with a new crush washer if applicable) and proceed to drain the coolant. Locate the coolant drain point, usually on the water pump housing or a lower hose, and allow the system to empty completely.

With the fluids drained, you can begin removing the clutch cover. Carefully unbolt the clutch cover fasteners, paying attention to their locations and lengths if they vary. Some covers may require gentle persuasion to break the seal; avoid prying excessively to prevent damage. Once the cover is off, you'll expose the clutch assembly. Next, locate and remove the clutch springs (typically 4 or 6, depending on your model). With the springs out, the pressure plate can be slid off. Then, carefully remove the individual clutch plates, both the friction plates and the steel plates. It's highly recommended to lay these out in the exact order they came off, perhaps from left to right, face down, to ensure correct reassembly and maintain proper clutch stack height. Making a couple of simple picks from stiff wire can greatly aid in hooking out the plates.

Generator Cover Removal and Ancillary Attachments

Now, shift your attention to the left side of the engine, where the generator (alternator) cover resides. Before removing the cover itself, you must disconnect all ancillary attachments. This typically involves three coolant hoses connected to the water pump housing integrated into the cover. Carefully loosen their clamps and slide the hoses off, being prepared for any residual coolant. Next, disconnect the clutch slave cylinder, which is usually bolted to the cover. Unbolt it and carefully move it aside without disconnecting the hydraulic line, to avoid bleeding the system later. Similarly, the gear shift lever mechanism will need to be disconnected or removed from its shaft. Finally, locate and undo the two crank angle sensor connectors. It's good practice to mark these connectors (e.g., with tape) to ensure they are reconnected correctly during reassembly.

With all attachments freed, you can proceed to unbolt the generator cover. These bolts often vary in length, so note their positions carefully. Once all bolts are removed, the cover should separate from the engine case. Some mechanics recommend a puller, but often a few gentle taps with a rubber mallet (or a regular hammer with a block of wood) around the perimeter, especially behind the water pump cover/spigot area, will loosen it sufficiently for it to be pulled off by hand. Be prepared for the stator (generator coils) to come away with the cover, and for any remaining oil or coolant to drip out.

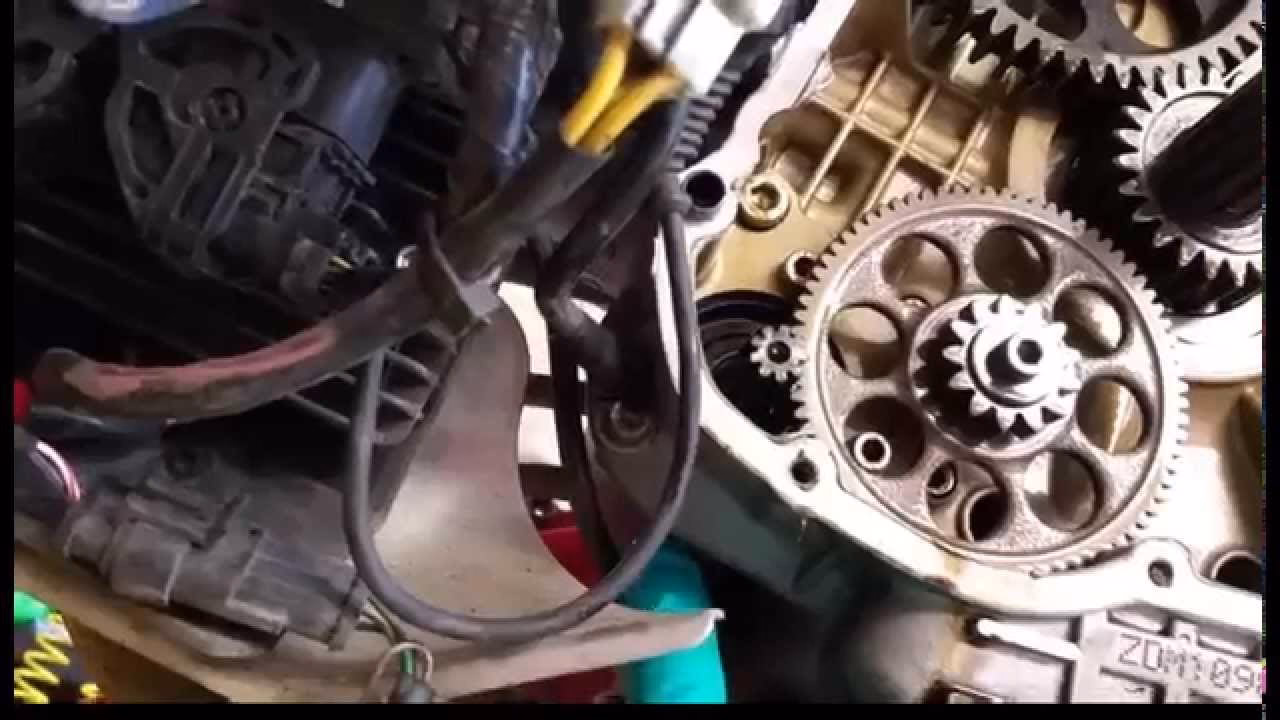

Flywheel and Sprag Clutch Removal

With the generator cover off, you'll now have access to the flywheel (or generator rotor) which houses the sprag clutch. This large, heavy component is secured by a substantial central nut, typically a 30mm size. This nut is usually torqued incredibly tight and often has thread locker applied. This is where your clutch holding tool becomes indispensable. If you've fabricated one from old clutch plates, ensure it's robust, using high tensile bolts and a securely drilled handle, not welded, to prevent shearing under immense torque. Position the holding tool to prevent the flywheel from rotating. Some people controversially use a penny or soft metal between the gears to lock the engine, but this method carries a high risk of damaging gear teeth and is strongly discouraged. With the holding tool in place, use a long breaker bar and the 30mm socket to loosen the flywheel nut. This will require significant effort, and having a second person to hold the clutch tool steady is highly beneficial.

Once the central nut is undone, the flywheel and generator rotor assembly should slide off the crankshaft. You typically won't need a specialised puller for this; gentle wiggling and pulling should suffice. As you remove it, note its orientation; on many Ducati models, for example, the "Ducati" logo on the magnet faces towards the motor, and there might be a convex washer that needs to be reinstalled in the correct direction. Lay the assembly down carefully.

Around the back of the flywheel, you will find a large circlip. This circlip retains the sprag clutch within its housing. Using appropriate circlip pliers, carefully remove this circlip. Once the circlip is out, the sprag clutch unit should be able to slide out. In some cases, if the spring has completely broken and jammed, or if the sprags are severely worn, the sprag clutch might be stubborn to remove. If it's stuck, avoid excessive force. Sometimes, the spring itself has "lunched itself," preventing smooth removal. If you have a replacement spring or unit, you might resort to carefully manipulating or even sacrificing the old spring to free the sprag unit. Be mindful not to damage the housing or the flywheel itself during removal.

Sprag Clutch Inspection and Repair Options

Once the sprag clutch is out, inspect it thoroughly. The most critical component to check is the detent spring. Look for any signs of breakage, stretching, or loss of tension. If the spring is visibly damaged, it's the most likely cause of your problem. Also, inspect the sprags themselves for excessive wear or damage. If the sprags are chipped, pitted, or show signs of severe wear, the entire sprag clutch unit will need replacement.

You have a few options for repair:

1. Replace the entire sprag clutch unit: This is the most straightforward and often recommended solution, especially if there's significant wear to the sprags themselves or if you prefer a 'fix it and forget it' approach.
2. Replace the spring: If the sprags themselves appear healthy, and only the spring is at fault, you can replace just the spring. Some specific models, like the Ducati Desmoquattro, have known compatible springs from other industrial applications. For instance, a CR19778 seal from SKF bearings surprisingly contains a perfectly sized spring for many Ducati sprag clutches. This SKF spring often has a significantly heavier wire gauge than the OEM spring, making it far more robust and less prone to future stretching or breakage.
3. Shorten the existing spring (temporary/last resort): If you're in a pinch and cannot source a replacement spring, you can attempt to shorten the existing spring by carefully cutting a small section off one end and reforming the hook. This increases the spring's tension. However, this is generally considered a temporary fix, as the material fatigue that caused the initial weakening will still be present, and it may fail again. If using a heavier gauge spring like the SKF one, shortening it is usually unnecessary, as its inherent strength provides ample tension.

If replacing the spring, carefully remove the old spring from the sprag clutch. To prevent the individual sprags from falling out (which can be a nightmare to reassemble), you can wrap the sprag clutch in masking tape, leaving a small slot where the spring groove is. Then, carefully insert the new spring, ensuring it sits correctly in the grooves of all the sprags and that each sprag is properly seated and held under tension. Test the action by attempting to turn the inner race in both directions; it should lock in one and freewheel in the other.

Reassembly Tips

Reassembly is essentially the reverse of removal, but with critical attention to detail.

1. Ensure all mating surfaces (engine cases, covers) are meticulously clean and free of old gasket material.
2. Install new gaskets for the generator cover and clutch cover. Gasket sealant can be used sparingly, if recommended by your motorcycle's manual, but generally, new gaskets suffice.
3. Reinstall the sprag clutch into the flywheel, ensuring its correct orientation, and secure it with the circlip.
4. Carefully slide the flywheel/generator rotor onto the crankshaft. Apply a small amount of thread locker to the flywheel nut before tightening it to the manufacturer's specified torque. This torque value is crucial and often very high, so use a calibrated torque wrench.
5. Reconnect all ancillary attachments to the generator cover: the crank angle sensor connectors (ensuring correct pairing if marked), the gear shift lever, and the clutch slave cylinder. Reattach the coolant hoses securely with their clamps.
6. On the clutch side, reinstall the clutch plates in the exact order they were removed, followed by the pressure plate and clutch springs. Tighten the clutch spring bolts evenly and to their specified torque.
7. Install the clutch cover with a new gasket, tightening the bolts evenly in a criss-cross pattern to prevent warpage.
8. Refill the engine with the correct grade and quantity of engine oil. Refill the cooling system with the appropriate coolant, ensuring all air is bled from the system (often by running the engine with the radiator cap off until the thermostat opens).
9. Reconnect the battery's negative terminal.

Troubleshooting Common Issues During Removal

One common challenge, as highlighted by some owners, is getting the flywheel flange to turn or the sprag clutch itself to release. If you've tried using a "drift tool" (essentially tapping with a punch or similar) to turn the flange and it's not budging, here are some suggestions:

• Penetrating Oil: Apply a generous amount of high-quality penetrating oil around the circumference of the flange where it meets the housing. Allow it to soak for several hours, or even overnight.
• Gentle Heat: In stubborn cases, carefully apply gentle heat to the outer housing of the flange using a heat gun (NOT an open flame). Heat expands metal, which might help break the bond. Be extremely cautious not to overheat or damage surrounding components, especially seals or electrical windings.
• Controlled Tapping: Instead of just banging, try a series of firm, controlled taps with a brass punch and a hammer. Work your way around the flange evenly. The goal is to create vibration to break the corrosion or seize, not to deform the metal.
• Proper Puller: While many sprag clutches slide out once the circlip is removed, if yours is truly stuck, it might be due to a severely damaged or jammed spring, or corrosion. If the drift tool method isn't working, you might need to investigate if a specific puller tool exists for your model's sprag clutch or flange. Forcing it excessively with a drift tool can damage the delicate sprag components or the housing.
• Re-evaluate: Double-check that you've removed the circlip completely and that nothing else is physically holding the sprag in place. Sometimes a broken piece of spring can be wedged.

Frequently Asked Questions (FAQs)

Q: What are the definitive signs of a failing sprag clutch?
A: The most common sign is the starter motor spinning freely with a whirring sound, but the engine not turning over. You might also hear a grinding noise or experience intermittent starting issues.

Q: Can I repair a sprag clutch or do I need to replace the entire unit?
A: If only the detent spring is broken or weakened, you can often replace just the spring. However, if the sprags themselves are worn, chipped, or damaged, it's highly recommended to replace the entire sprag clutch unit for long-term reliability.

Q: Is this a DIY job or should I take it to a professional mechanic?
A: This job is moderately complex. It requires a good understanding of engine mechanics, specific tools (like a clutch holding tool and torque wrench), and careful attention to detail. If you're comfortable with engine disassembly and reassembly, it's a feasible DIY project. If you're unsure or lack the proper tools, a professional mechanic is a safer choice.

Q: How difficult is it to remove a stuck sprag clutch or its flange?
A: It can be challenging. Corrosion or a jammed broken spring can make removal difficult. Using penetrating oil, gentle heat, controlled tapping, and ensuring all retaining clips are removed are key. Avoid excessive force, as it can damage the engine casing or the flywheel.

Q: What tools are absolutely essential for this repair?
A: A good socket set, a breaker bar, a torque wrench, circlip pliers, and a dedicated clutch holding tool are absolutely essential. Drain pans for fluids and new gaskets are also critical.

By understanding the function of the sprag clutch and following these detailed steps, you can confidently diagnose and repair this common motorcycle starting issue, getting your beloved machine back on the road where it belongs.
