Ducati Diavel 1260S Stage 1 Tuning

The Ducati Diavel 1260S is a machine renowned for its potent blend of muscle cruiser aesthetics and superbike performance. However, like many high-performance motorcycles, there's often untapped potential lurking within its electronic brain. For owners looking to extract more thrill from their Diavel, a Stage 1 tune represents a significant and accessible upgrade. This article delves into what a Stage 1 tune entails for the Diavel 1260S, focusing on the expected performance gains in horsepower (hp) and Newton-metres (Nm) of torque, the underlying principles of this popular modification, and the benefits of a carefully calibrated approach.

Understanding Stage 1 Tuning

Stage 1 tuning, often referred to as a "chiptune" or ECU remapping, is typically the first step in modifying a motorcycle's performance. It involves optimising the engine's Electronic Control Unit (ECU) software to work more efficiently with minor hardware changes, or sometimes even without any physical modifications at all. The primary goal is to improve the air-fuel ratio, ignition timing, and other engine parameters to achieve a better balance between power, torque, and responsiveness.

For a bike like the Ducati Diavel 1260S, which already boasts impressive factory specifications, a Stage 1 tune aims to:

• Increase Peak Horsepower: More power at higher RPMs for faster acceleration and higher top speeds.
• Boost Torque: Enhance low-end and mid-range pulling power, making the bike feel more responsive and muscular.
• Improve Throttle Response: A more direct and immediate reaction to throttle inputs.
• Smooth Out Power Delivery: Eliminate any flat spots or hesitations in the powerband.
• Optimise for Aftermarket Air Filters and Exhausts: While not strictly necessary for a basic Stage 1, it's often performed in conjunction with these common upgrades to maximise their benefit.

Expected Performance Gains: HP and Nm for the Diavel 1260S

While exact figures can vary slightly depending on the specific tuning software, the dyno equipment used, and the ambient conditions, a well-executed Stage 1 tune on a Ducati Diavel 1260S can typically yield the following improvements:

Horsepower (HP) Gains:

The stock Ducati Diavel 1260S typically produces around 157-159 horsepower at the crank. A Stage 1 tune, when performed correctly, can realistically add an estimated 5-10 horsepower to this figure. This might sound modest, but at the wheels, where the power is actually delivered, this translates to a noticeable increase in performance, especially in the upper rev range. The peak horsepower will generally be achieved at higher RPMs.

Torque (Nm) Gains:

Torque is the twisting force that gets the motorcycle moving. The Diavel 1260S is known for its strong torque delivery. A Stage 1 tune can often provide a more significant improvement in torque, particularly in the mid-range. Expect an increase of approximately 5-15 Nm in the mid-RPM band. This enhanced torque makes the bike feel more potent when exiting corners and during overtakes, providing a more engaging riding experience.

It's important to note that these are estimates. The true measure of success for a Stage 1 tune is not just the peak numbers, but the overall improvement in the engine's flexibility and responsiveness across the entire rev range. A good tune will feel significantly better to ride, even if the peak numbers only show a marginal increase.

The Philosophy Behind Our Tuning

Our approach to motorcycle tuning is built on a foundation of extensive knowledge, practical experience, and rigorous calibration studies. We believe that unlocking a motorcycle's performance should not come at the expense of its reliability or longevity. This is why our tuning process prioritises a balanced optimisation, ensuring that the engine operates within safe parameters even when pushed.

The development of our maps starts with a deep understanding of how the engine operates. This involves:

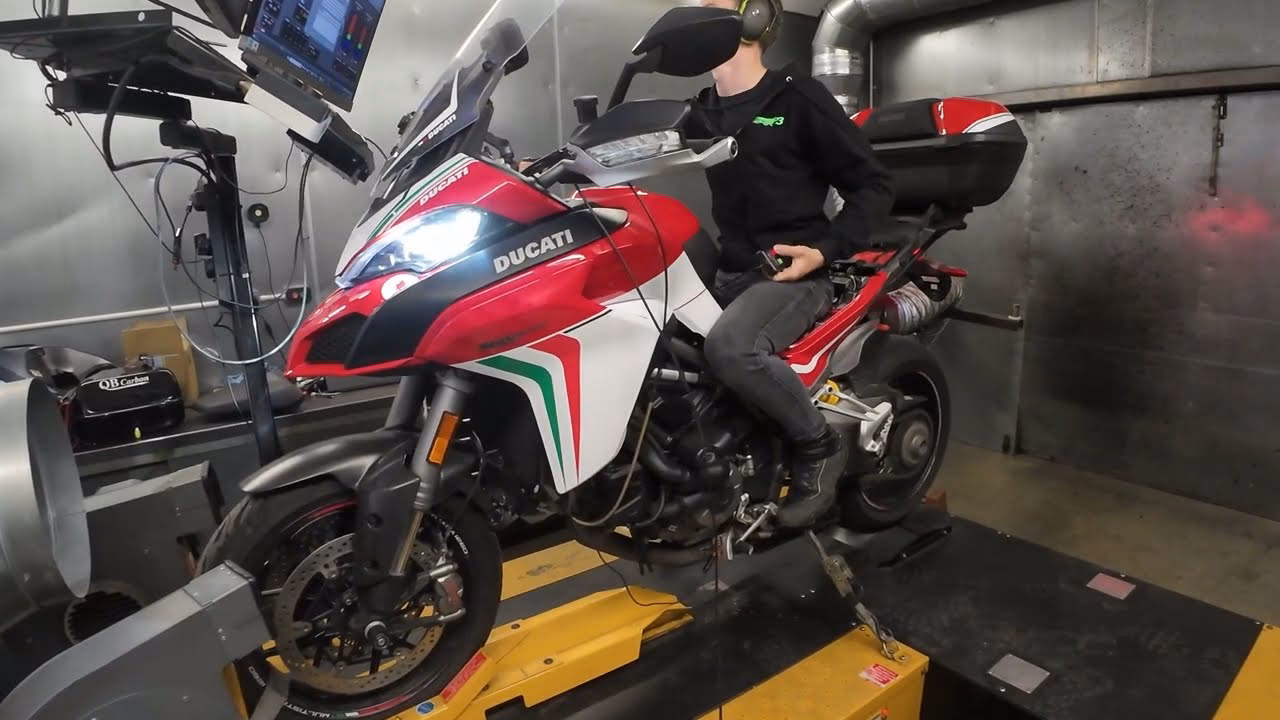

• Bench Tests: Utilising dynamometers (dynos) to simulate real-world riding conditions and measure performance accurately.
• Calibration Studies: Analysing vast amounts of data to fine-tune ignition maps, fuel curves, and other engine management strategies.
• Real-World Testing: Validating the tunes on the road to ensure they perform as expected in diverse riding scenarios.

TunerPro and ECU Remapping

At the heart of our tuning process is the use of sophisticated software, such as TunerPro. TunerPro is a powerful binary file editor that allows us to delve into the engine's control unit software. Through the use of definition files, TunerPro can precisely identify and modify the engine working parameters that govern performance. This includes adjustments to:

• Fuel Maps: Optimising the amount of fuel injected at different throttle openings and engine speeds for improved combustion and power delivery.
• Ignition Timing Maps: Advancing or retarding the spark plug firing point to maximise power and torque while preventing detonation (knocking).
• Rev Limiter: Potentially adjusting the engine's maximum RPM, though this is usually a secondary consideration for a Stage 1 tune.
• Secondary Throttle Valves: Optimising the control of these for smoother throttle response.

The key advantage of using software like TunerPro is the ability to achieve the maximum power and torque without compromising the engine's inherent reliability. Our calibration ensures that the engine's operating temperatures, pressures, and stress levels remain within acceptable limits.

The Tuning Process: What You Need

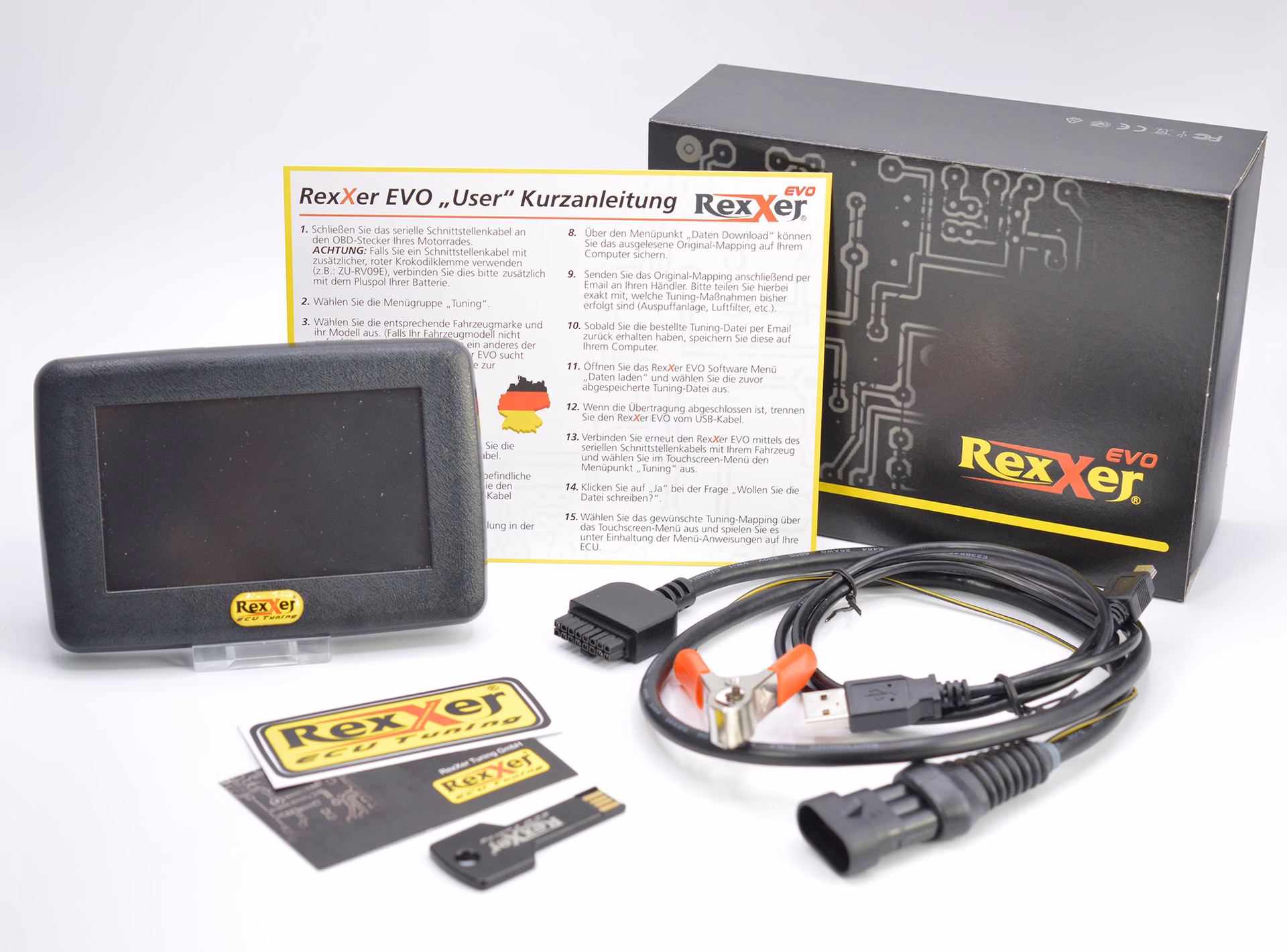

It's crucial to understand that TunerPro itself is a software tool for editing the ECU's calibration data. It is not capable of directly reading from or writing to the motorcycle's Engine Control Unit (ECU). To perform the actual flashing (uploading the new tune to the ECU), an external hardware tool is required. These tools interface with the ECU via the diagnostic port or by direct connection to the ECU itself. We do not provide information about these specific hardware tools, as their availability and compatibility can vary.

The typical process involves:

1. Obtaining the Stock ECU File: Using the external tool to read the original, factory-set software from your Diavel 1260S's ECU.
2. Editing the File: Our team then modifies this stock file using TunerPro based on our Stage 1 calibration.
3. Flashing the Modified File: The updated, optimised software is then written back to the ECU using the external tool.

Cost-Effectiveness of Stage 1 Tuning

One of the most attractive aspects of our tuning philosophy is its competitive pricing. For a mere 85 Euros, you gain access to a professionally developed Stage 1 map. This represents exceptional value for money when you consider the performance gains and the enhanced riding experience you will achieve. Compared to more extensive modifications, a Stage 1 tune is a relatively inexpensive way to significantly improve your motorcycle's performance.

Frequently Asked Questions

Q1: Will Stage 1 tuning void my Ducati warranty?

This is a common concern. While flashing a new ECU map can be detected by a dealer, the impact on your warranty often depends on the dealer's policy and the specific circumstances. It's always advisable to check with your local Ducati dealer regarding their stance on ECU remapping. However, a well-executed tune that maintains reliability is less likely to cause issues than a poorly done one.

Q2: Do I need to make other modifications for Stage 1 tuning?

A true Stage 1 tune is designed to optimise the existing engine parameters. While it can be performed on a completely stock bike, it often complements minor upgrades like a high-flow air filter or a less restrictive exhaust system. If you plan to install these, it's ideal to perform the Stage 1 tune afterwards to maximise their benefits.

Q3: How long does the ECU flashing process take?

The actual flashing process, once you have the necessary hardware, is usually quite quick, often taking less than 15-30 minutes. The time taken to obtain the stock file and write the new file can vary depending on the tool used and the ECU.

Q4: Can Stage 1 tuning affect fuel economy?

Generally, a Stage 1 tune can lead to slightly improved fuel economy if the motorcycle is ridden conservatively. This is because the engine operates more efficiently. However, if the increased power and torque are frequently utilised, fuel consumption will naturally increase.

Q5: What is the difference between a Stage 1 and a Stage 2 tune?

A Stage 1 tune typically focuses on ECU optimisation for stock or minor aftermarket parts. A Stage 2 tune usually involves more significant hardware modifications, such as a full performance exhaust system, upgraded camshafts, or larger injectors, and requires more aggressive ECU tuning to match these changes.

Conclusion

The Ducati Diavel 1260S is a magnificent machine, and a Stage 1 tune offers a compelling way to elevate its already impressive performance. By optimising the engine's electronic parameters, you can unlock an additional 5-10 horsepower and a significant boost in mid-range torque, resulting in a more exhilarating and responsive ride. Our philosophy, centred on knowledge, experience, and calibration studies, ensures that this performance enhancement is achieved without compromising the bike's renowned reliability. For an accessible price of 85 Euros, our Stage 1 tune provides a fantastic return on investment, making your Diavel 1260S even more thrilling to command.
