The Ducati 996R: A Homologation Legend Unveiled

In the illustrious history of Italian motorcycling, few machines command as much respect and awe as the Ducati Superbike series. From the groundbreaking 851 to the iconic 916, these bikes consistently pushed the boundaries of performance and design, dominating the World Superbike (WSB) championships. Among them, a particular model stands out as the zenith of its era, a true road-legal racer born directly from the factory's competition efforts: the Ducati 996R. This isn't merely an evolution; it's a dedicated homologation special, a machine crafted with a singular purpose – to win races.

What Exactly is the Ducati 996R?

The Ducati 996R, launched at the beginning of 2001, was far more than just an upgraded version of the standard 996. It was a meticulously engineered, limited-production motorcycle designed to meet the stringent homologation requirements for the 2001 Superbike World Championship. This meant that for every 996R sold to the public, Ducati could field a near-identical machine on the racetrack, ensuring their factory riders like Troy Bayliss and Ben Bostrom had the cutting edge of technology at their disposal. With only 500 units produced worldwide, the 996R immediately became a collector's item, a testament to Ducati's uncompromising pursuit of racing glory.

Unlike many so-called 'replicas', the 996R was a factory racer with lights, indicators, and a registration plate. Its aggressive, high-performance nature was directly inherited from the bikes battling it out on the WSB circuits. It was aimed squarely at purists, riders who craved the ultimate in compact design, slim silhouette, and superior handling at speeds well over 170 mph. The instant sell-out of the 350 customer versions within six hours of launch, despite a common worldwide price of 26,000 Euros, clearly demonstrated its immense desirability and the aura surrounding this special machine.

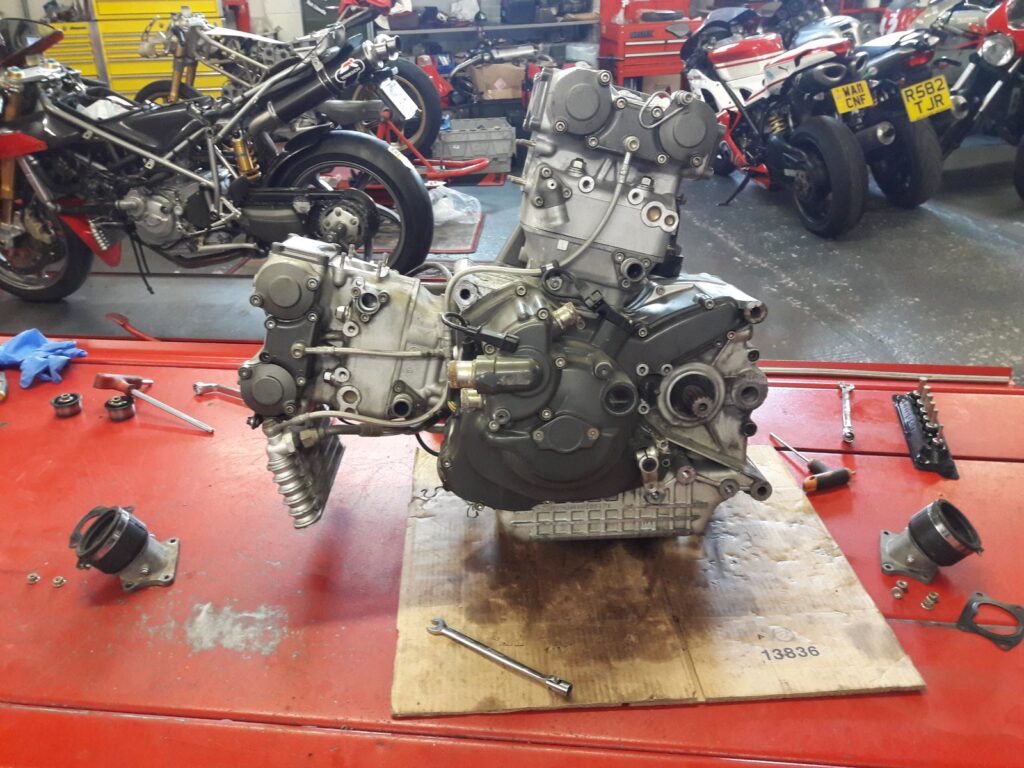

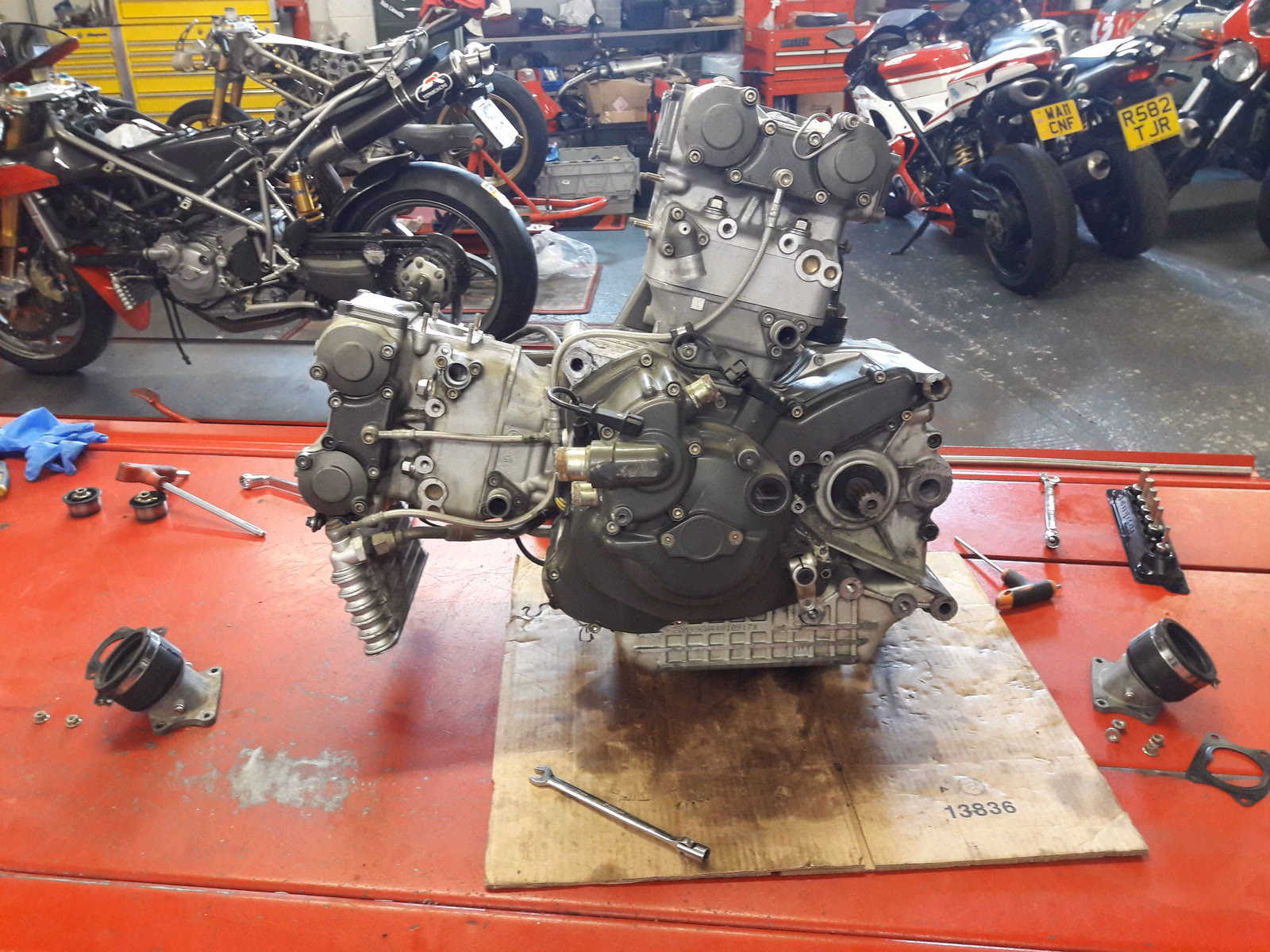

The Heart of the Beast: The Testastretta Engine

At the core of the 996R's exceptional performance lay its revolutionary new short-stroke Testastretta powerplant. Massimo Bordi, Ducati's former chief engineer, famously described the Testastretta as a case of "EVOlution over rEVOlution." While almost every component was new, its design remained firmly rooted in Ducati's established desmoquattro heritage. This commitment to the L-twin, desmodromic format, despite exploring other configurations, underscored Ducati's core philosophy.

The Testastretta engine featured a significant redesign of its cylinder heads, a task entrusted to the late Ferrari design engineer Angiolino Marchetti. His expertise led to a freer-breathing design with a narrower 25-degree valve angle, a substantial reduction from the previous 40 degrees. This, coupled with larger 100mm bores (up from 98mm on the 996SPS) and flatter combustion chambers, allowed for the use of oversized valves – 40mm inlets (up from 36mm) and 33mm exhausts (up from 30mm). These changes, combined with a re-engineered valve operating system featuring smaller, lighter rockers and plain metal camshaft bearings (replacing heavier roller bearings), resulted in a more compact and efficient engine with immense horsepower potential.

The liquid-cooled, four-stroke, 90° “L” twin cylinder, DOHC, desmodromic 4-valve per cylinder engine boasted a capacity of 998 cc. It delivered a maximum power of 100 kW (136 hp) at 10200 rpm and a peak torque of 105 Nm (77.4 lb-ft) at 8000 rpm. This was a significant boost over the 996SPS, offering 13 hp more at 200 rpm less. The Testastretta engine truly marked a new chapter in Ducati's engineering prowess, providing not just raw power but also a remarkably usable powerband.

Key Engine Specifications:

• Engine Type: Four-stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valve per cylinder
• Capacity: 998 cc / 60.9 cu in
• Bore x Stroke: 100 x 63.5 mm
• Compression Ratio: 11.4:1 (street guise)
• Max Power: 100 kW / 136 hp @ 10200 rpm
• Max Torque: 105 Nm / 77.4 lb-ft @ 8000 rpm
• Induction: Weber Marelli CPU 5.9 M, 54 mm throttle bodies
• Clutch: Hydraulically activated dry clutch
• Transmission: 6 Speed

Chassis and Components: Built for the Track

To complement its formidable engine, the Ducati 996R was equipped with top-tier components designed for maximum performance on the circuit. The bike retained the robust tubular trestle frame, with an upper section crafted from high-strength steel, derived directly from Foggy's championship-winning racebikes. However, a subtle yet significant chassis change was the adoption of 2mm-thicker 12mm engine mounts, creating an even stiffer engine/chassis package for enhanced rigidity and feedback.

Suspension duties were handled by fully-adjustable 43mm Öhlins race forks at the front, identical to those used on Ducati's Superbike racers. These forks featured gold titanium-nitride coated stanchions to reduce stiction, ensuring incredibly smooth and precise damping. At the rear, an Öhlins mono shock with a rising rate provided multi-adjustable compression and rebound damping, allowing riders to fine-tune the setup for various track conditions or riding styles. The front wheel travel was 120 mm, and the rear wheel travel was 130 mm.

Braking performance was equally exceptional, thanks to the new Brembo system. The front featured two massive 320mm discs, gripped by 4-piston calipers that now employed four separate pads per caliper for improved compensation as the pads wore and less roll-back upon release. These brakes were incredibly powerful, bordering on "vicious" in urban settings, but unbelievably effective and confidence-inspiring on the track. A single 220mm disc with a 2-piston caliper handled the rear braking. Lightweight Marchesini five-spoke alloy wheels (3.50 x 17in front, 5.50 x 17in rear), shod with Pirelli Dragon EVO Corsa tyres (120/70 ZR17 front, 190/50 ZR17 rear), further reduced unsprung weight, contributing to the bike's agile handling.

Weight reduction was a key focus, and the 996R featured carbon fibre fairings instead of the standard injection-moulded plastic, contributing to a notable overall weight saving. The dry weight stood at a lean 185 kg (408 lbs). Carbon fibre Termignoni exhausts not only reduced weight but also provided the distinctive, booming exhaust note that set the R apart. An Öhlins adjustable steering damper came as standard, further enhancing stability at high speeds. The complete package, including a satin bike cover, rear stand, and a race-kit with carbon-fibre Termignoni mufflers and ECU for trackday use, truly solidified its status as a race-ready machine.

The Unforgettable Ride: An Experience Beyond Compare

For those fortunate enough to throw a leg over the Ducati 996R, the experience was nothing short of mesmerising. While navigating peak-hour traffic on a hot 35-degree day proved challenging – the race clutch was an 'on/off' affair, the engine heat was intense (often exceeding 100 degrees Celsius in the urban crawl), and the brakes were almost too powerful for town use – it quickly became apparent that the 996R was never intended for the urban jungle. Its low clip-ons and aggressive seating position screamed racetrack, not café latte runs.

Out on the open road, or better yet, a circuit like Phillip Island, the 996R truly came alive. The distinctive boom from the carbon Termignoni cans, unlike any other Ducati on the track, was a symphony to the ears. The Testastretta engine, with its short-stroke design, delivered an exhilarating charge from 7500rpm upwards, pulling relentlessly towards its 10,800 rpm limiter. The close-ratio six-speed gearbox ensured the rider could keep the engine spinning in its optimal powerband, providing explosive acceleration out of corners.

Despite some Japanese 1000cc fours boasting higher peak horsepower figures, the 996R excelled in usable power. As experienced riders would attest, ultimate power isn't everything; it's how that power is delivered and how effectively it can be put to the ground. The Ducati's linear and tractable power delivery, combined with its superb chassis, allowed it to lap faster than many ostensibly more powerful machines. The chassis, while similar to the SPS, felt even better, with precise steering and an uncanny ability to hold a line. The brakes, which felt savage in town, transformed into unbelievably effective stoppers on the track, providing immense stopping power and feedback.

The 996R created a blurred line between a road bike and a full-on factory racer. It felt like a machine that belonged on the starting grid, not parked outside a coffee shop. Its ability to inspire such dedication and even illicit behaviour (like extended detours after work) speaks volumes about its intoxicating appeal. It was a bike that demanded to be ridden hard, on the edge, where its true capabilities could be unleashed.

Performance Figures & Fuel Economy

Exclusivity and Value

The Ducati 996R was a truly exclusive machine. Limited to just 500 units globally, its primary purpose was homologation for the 2001 Superbike World Championship. Of these, 350 were made available to the public, selling out in a mere six hours online at a global price of 26,000 Euros. The remaining 150 units were reserved for factory teams, development, and special market allocations. Even in a relatively small market like Australia, 40 of these highly coveted machines found homes.

At the time of its release, its price point was substantial. While the common worldwide price was 26,000 Euros, the article mentions it retailed for around $A52,000 in Australia (approximately £20,000 at 2001 exchange rates), making it one of the most expensive bikes available in that market. This price tag certainly raised eyebrows, leading many to question if any motorcycle could truly be worth that much. However, when placed in context with other homologation specials of the era – such as Yamaha's YZF-R7, which was priced even higher and rumoured to have unsold units languishing in warehouses – the 996R's value proposition became clearer.

The 996R was not simply a collection of expensive parts; it was a cohesive, race-bred package. It offered a level of performance and exclusivity that few other road-legal machines could match. For collectors and enthusiasts, the investment was justified by its direct lineage to championship-winning bikes and its status as a genuine piece of racing history. It was, and remains, a dream machine for those who understand and appreciate the art of Italian motorcycling and the relentless pursuit of speed on the track.

Frequently Asked Questions About the Ducati 996R

What is the Ducati 996R primarily known for?

The Ducati 996R is primarily known as a limited-edition homologation special, built to allow Ducati to compete in the 2001 Superbike World Championship with its new Testastretta engine. It's revered as a road-legal factory racer, offering unparalleled performance and exclusivity directly derived from its championship-winning brethren.

How many Ducati 996R units were produced?

Only 500 units of the Ducati 996R were produced worldwide. Of these, 350 were sold to the public, with the remaining 150 allocated for factory racing, development, and special markets.

What distinguished the Testastretta engine?

The Testastretta engine was a significant evolution for Ducati, featuring redesigned cylinder heads with a narrower 25-degree valve angle, larger bores (100mm), and oversized valves. It also incorporated lighter pistons and new plain metal camshaft bearings, resulting in a more compact, powerful, and efficient L-twin engine designed for high-performance racing.

Is the Ducati 996R suitable for daily commuting?

Based on rider experiences, the Ducati 996R is generally not suitable for daily commuting or extensive city riding. Its race-bred dry clutch can be abrupt, the engine generates significant heat in slow traffic, and the aggressive riding position with low clip-ons is designed for the track or open roads, not urban congestion.

How fast is a Ducati 996R?

The Ducati 996R has a claimed top speed of 281.5 km/h (174.9 mph). It can complete a standing quarter mile in approximately 10.1 seconds, showcasing its formidable acceleration and high-speed capabilities.

What was the original price of the Ducati 996R?

The Ducati 996R had a common worldwide price of 26,000 Euros when it was launched. In markets like Australia, it retailed for around $A52,000 (which was approximately £20,000 at 2001 exchange rates).

A Lasting Legacy

The Ducati 996R stands as a powerful testament to Ducati's unwavering commitment to racing. It's more than just a motorcycle; it's a piece of living history, a direct descendant of the machines that forged Ducati's legendary status in World Superbike racing. Its limited production numbers, combined with its cutting-edge technology and breathtaking performance, ensured its place as an instant classic and a highly sought-after collector's item. For those who understand the passion, the engineering, and the sheer thrill of a purebred racing machine, the 996R represents the pinnacle of its era, a bike that continues to captivate and inspire motorcycle enthusiasts worldwide. It truly is one of those rare machines that is far more than just the sum of its parts.
