Caravan & Trailer Wheel Alignment

Ensuring your caravan or trailer is correctly aligned is paramount for both performance and safety on the road. Just like with your car, the wheels and axles on recreational vehicles and trailers need to be precisely aligned to function optimally. When axles are out of alignment, it's not just a minor inconvenience; it can lead to a cascade of problems that affect your driving experience, your wallet, and potentially your safety. This guide will delve into what happens when a caravan or trailer is out of alignment, the importance of correct alignment, especially for tandem axle setups, and how you can go about checking and correcting it.

The Ramifications of Misaligned Axles

When a caravan or trailer's axles are not correctly aligned, the vehicle essentially tries to steer itself constantly. This constant, subtle correction by the driver puts undue stress on various components and directly impacts how the vehicle behaves. The most immediate and noticeable consequence is often increased tyre wear. Tyres that are not rolling straight will scrub against the road surface, leading to uneven and rapid degradation. This means you'll be replacing tyres far more frequently than you should, which is a significant and recurring expense. Beyond tyre wear, misaligned axles can also result in poor towing. You might experience the caravan or trailer pulling to one side, fishtailing, or generally feeling unstable and unpredictable behind your towing vehicle. This instability can be incredibly unnerving, especially at higher speeds or in adverse weather conditions, and can even compromise your ability to control the vehicle.

Why Proper Alignment is Crucial

The fundamental reason for correct axle alignment is to ensure that all wheels roll in the same direction and are parallel to each other and to the vehicle's chassis. This allows for:

• Reduced Tyre Wear: As mentioned, this is a major benefit. Properly aligned wheels ensure the tyre treads make even contact with the road, maximising their lifespan.
• Improved Fuel Efficiency: When a vehicle rolls freely without resistance from misaligned wheels, it requires less energy to maintain speed, leading to better fuel economy for your towing vehicle.
• Enhanced Towing Stability: A well-aligned caravan or trailer will track straight behind your vehicle, providing a stable and predictable towing experience. This makes driving much more comfortable and significantly safer.
• Reduced Strain on Components: Misalignment puts extra pressure on suspension components, bearings, and even the chassis itself, potentially leading to premature wear and damage.

Checking Caravan and Trailer Alignment

Checking the alignment of your caravan or trailer can be done with a few basic tools. The procedure typically involves ensuring the axles are running parallel to each other and perpendicular to the vehicle's longitudinal axis.

The Straight-Edge and Tape Measure Method

For caravans and trailers, especially those with a tandem axle setup, a common and effective method involves using a straight-edge and a steel tape measure. Here’s a breakdown of how to approach it:

1. Preparation: Ensure the caravan or trailer is on a flat, level surface. Engage the handbrake securely.

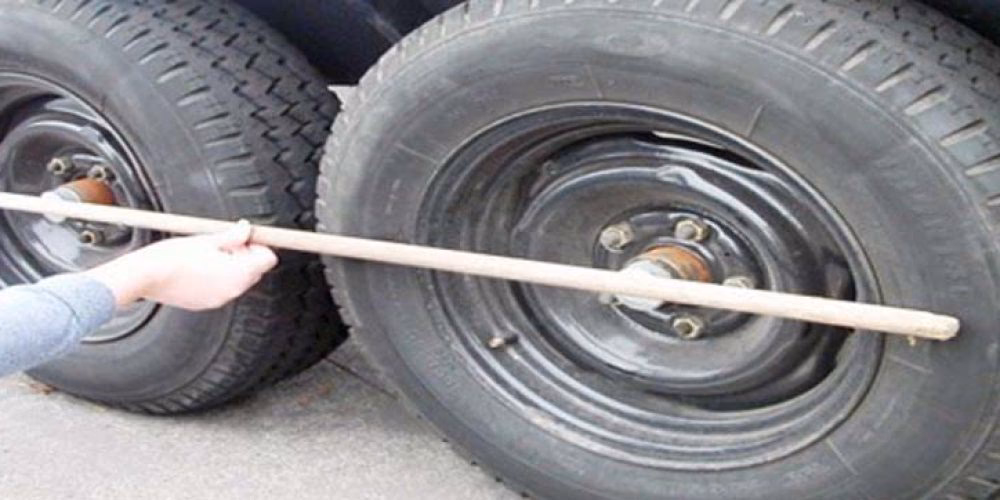

2. Positioning the Straight-Edge: Place a long, straight piece of metal or wood along the outer sidewalls of the tyres on one side of the vehicle. You want this straight-edge to touch the sidewalls of both tyres.
3. Measuring Tyre-to-Tyre: Measure the distance between the front of the straight-edge where it touches the front tyre and the rear of the straight-edge where it touches the rear tyre.
4. Checking Parallelism: Now, measure the distance from the front tyre to the rear tyre at the back of the straight-edge. The ideal scenario is for these two measurements to be identical. If the rear measurement is less than the front measurement, it indicates that the rear axle is 'toed-in' (pointing inwards). If the rear measurement is greater, the rear axle is 'toed-out' (pointing outwards).

Tandem Axle Specifics

For tandem-axle caravans and trailers, the principle remains the same, but you're checking the alignment of each axle relative to the vehicle's centreline and ensuring the axles are parallel to each other. A key aspect for tandem axles is that both axles are centrally aligned and parallel with each other. This can be verified by ensuring that the distance from the centre of the coupling to the centre of each axle is the same. You can do this by:

1. Locate Axle Centres: Identify the centre point of each axle. This might be the hub or a specific marking on the axle.
2. Measure to Coupling Centre: Measure the distance from the centre of the front axle to the centre of the coupling. Then, measure the distance from the centre of the rear axle to the centre of the coupling.
3. Compare Measurements: These two measurements should be equal. If they are not, it indicates that the axles are not positioned centrally relative to the coupling, which can also lead to towing issues.

It's also vital that all wheels/tyres must be accurately aligned and parallel. This means checking the toe-in/toe-out for each axle and ensuring that the axles themselves are square to the caravan's chassis.

Correcting Misalignment

Correcting axle alignment is not always a simple DIY job and often requires specialised equipment and expertise. The process typically involves adjusting the angle at which the axle is attached to the caravan or trailer chassis. This might involve:

• Adjusting Mounting Brackets: The brackets that attach the axle to the chassis may have some adjustment built into them, or shims may be used to alter the angle.
• Axle Straightening: In cases where the axle itself has been bent due to impact, it may need to be professionally straightened or replaced.
• Professional Alignment Services: For precise alignment, it is highly recommended to take your caravan or trailer to a specialist workshop that has the necessary equipment (like laser alignment systems) to accurately measure and adjust the wheel alignment. They can ensure that the toe, camber, and caster angles (if applicable and adjustable on your specific vehicle) are set to the manufacturer's specifications.

When to Seek Professional Help

If you notice any of the following, it's time to consult a professional:

• Significant and rapid tyre wear.
• The caravan or trailer pulls to one side when towing.
• The steering wheel feels loose or unresponsive.
• You've hit a significant pothole or curb, which could have knocked the alignment out.
• After carrying out the basic checks, you suspect an alignment issue.

Frequently Asked Questions

Q1: How often should I check my caravan's wheel alignment?

A1: It's a good practice to check your caravan or trailer's alignment at least annually, or whenever you suspect an issue, such as noticeable tyre wear or changes in towing behaviour. It's also wise to check it after any significant impact.

Q2: Can I adjust my caravan's wheel alignment myself?

A2: Basic checks can be done with simple tools. However, making adjustments often requires specialised equipment and knowledge to ensure accuracy. For precise alignment, professional help is recommended.

Q3: What is 'toe' in wheel alignment?

A3: 'Toe' refers to the angle of the wheels relative to the vehicle's longitudinal axis. 'Toe-in' means the front of the wheels are closer together than the back, and 'toe-out' means the back of the wheels are closer together than the front. For most caravans and trailers, a neutral 'zero toe' is ideal, meaning the wheels are perfectly parallel.

Q4: What are the dangers of towing a misaligned caravan?

A4: The main dangers include loss of control due to instability, increased risk of tyre blowouts from excessive wear, and potential damage to the towing vehicle and the caravan itself.

Conclusion

Maintaining correct wheel alignment for your caravan or trailer is a critical aspect of responsible vehicle ownership. It directly impacts tyre life, fuel efficiency, towing stability, and overall safety. While basic checks can be performed with common tools, professional assessment and adjustment are often necessary to ensure your vehicle tracks true. Don't underestimate the importance of this often-overlooked maintenance task; it can save you money, prevent accidents, and make your towing experience much more enjoyable and secure. Regularly inspecting and, if necessary, correcting your caravan or trailer's alignment is an investment in your safety and peace of mind.
