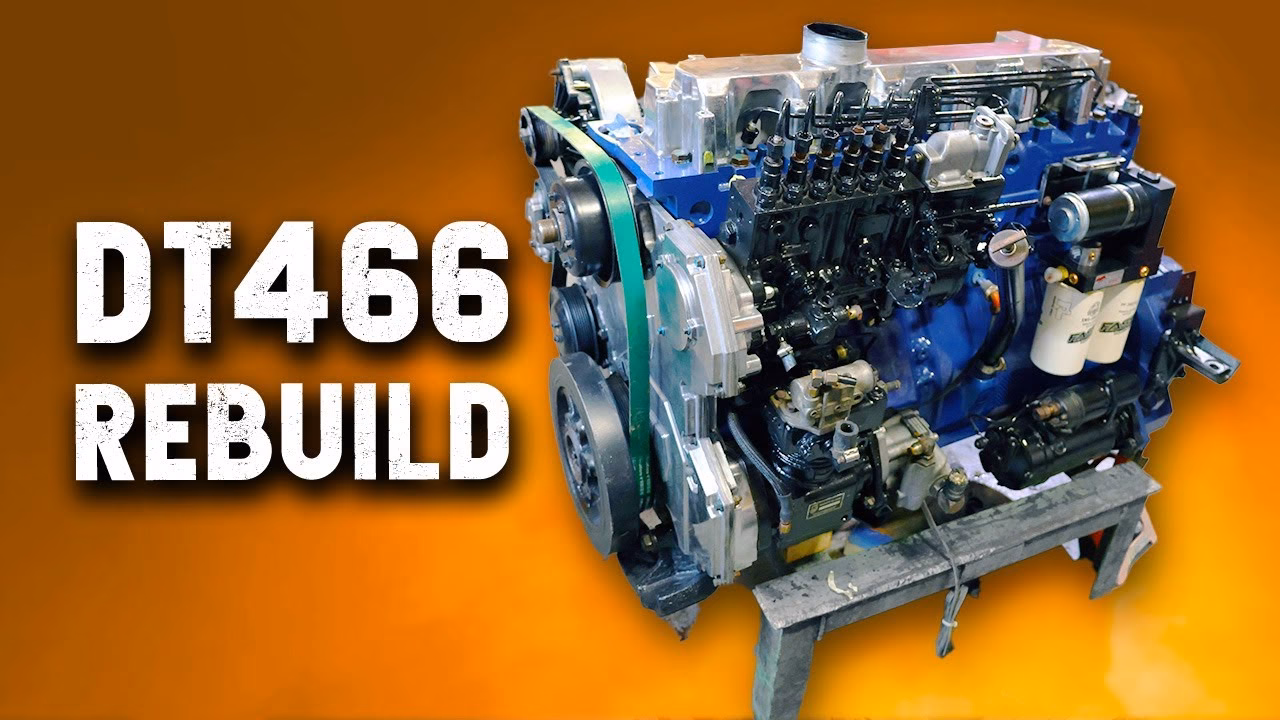

The Navistar DT466 engine is a powerhouse, renowned for its durability and performance in a wide range of applications, from heavy-duty trucks to agricultural machinery. When this robust engine begins to show its age, or if you're undertaking a significant restoration, a comprehensive engine rebuild kit is often the most effective solution. This guide delves into the world of DT466 replacement kits, helping you understand what's available, how to identify the correct kit for your specific engine, and what to expect during the rebuild process.
Navistar has produced the DT466 engine over several decades, introducing various updates and technological advancements. This means that not all DT466 engines are created equal. To ensure you source the correct rebuild kit, it's crucial to be aware of the different models and their distinguishing features. The primary categorisation often falls into mechanical and electronic fuel injection systems.
Mechanical Fuel Injection Models: DT466A, DT466B, & DT466C
These earlier iterations of the DT466 engine typically feature mechanical fuel injection. Engines produced before 1994, with serial numbers commencing with '466', '467', or '468', generally fall into this category. Rebuild kits for these engines will contain components designed for the mechanical fuel pump and injection system. Common wear items in these engines include piston rings, bearings, cylinder liners, and valve components.
New Generation Mechanical: DT466P
The DT466P represents an evolution of the mechanical injection system, often produced between 1994 and 1999. Engines in this range will typically have serial numbers starting with '469G'. While still mechanically injected, these models may incorporate some design refinements over the earlier C-series engines. It's vital to match rebuild kits specifically to the 'P' designation to ensure compatibility.
Electronic Fuel Injection Models: DT466E
The introduction of the DT466E marked a significant shift towards electronic fuel management. These engines, produced from approximately 1995 to 2006, utilise an electronically controlled, hydraulic unit injection (HEUI) system. Serial numbers for DT466E engines often begin with '469H', '470H', or '466H'. Rebuild kits for the DT466E will include components compatible with its electronic controls, such as seals for injectors and potentially updated electrical connectors if available in the kit. The complexity of the HEUI system means that precision in component selection is paramount.
Locating and understanding your engine's serial number is the cornerstone of ordering the correct rebuild kit. Navistar engines have a specific format for their serial numbers, which provides valuable clues about the engine's build and specifications.
Where to Find the Serial Number:
- Pre-2000 Engines: The serial number pad is typically found on the left side of the engine block, just below the cylinder head.
- Post-2000 Engines: The pad is usually located on the right side of the engine block, positioned between the oil cooler and the top of the block.
Decoding the Serial Number:
Navistar DT Series serial numbers follow a structured format:
| Part of Serial Number | Meaning | Examples |
|---|---|---|
| First Three Digits | Engine Model Indicator | '466', '470H' |
| Following Letter(s) | Engine Configuration (e.g., aspiration, injection type) | 'B' = Turbo JWAC, 'D' = Naturally Aspirated, 'G' = Turbo Air-to-Air, 'H' = HEUI (Electronic), 'T' = Turbo |
| Following Letter/Number | Application | 'A2' = Service Vehicle, 'M2' = Truck |
| Following Letter | Country of Manufacture | 'U' = United States |
| Last Seven Numbers | Unit Number/Serial Number | (e.g., 1234567) |
Beyond the Serial Number: Crucial Details
For engines manufactured after 1993, relying solely on the serial number might not be sufficient due to serial number breaks and evolving specifications. To guarantee you're ordering the correct parts, you'll likely need to provide the following information:
- Engine Model: (e.g., DT466E)
- Year of Manufacture:
- Horsepower Rating:
- Torque Rating:
This additional data can usually be found on the emissions label, which is commonly located on the rocker cover or intake manifold of the engine.
What Does a DT466 Engine Rebuild Kit Typically Include?

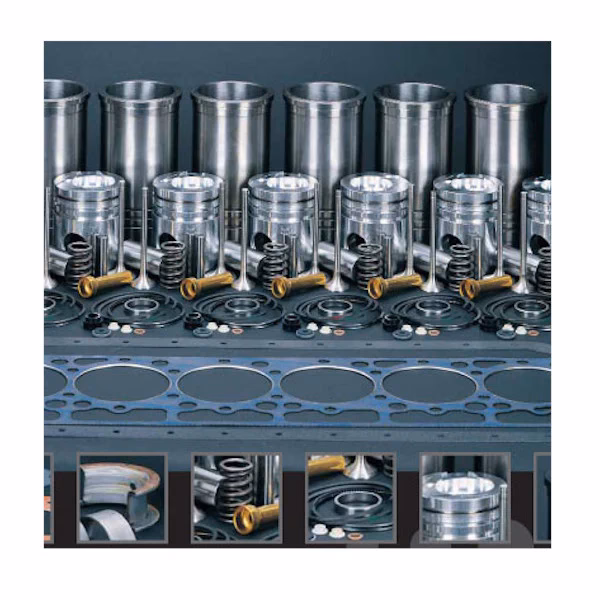

A comprehensive engine rebuild kit, often referred to as an overhaul kit, is designed to replace the most common wear components in an engine. While the exact contents can vary between manufacturers and specific engine models, a typical DT466 rebuild kit will include:
- Pistons and Piston Rings: Essential for maintaining compression and sealing the combustion chamber.
- Main Bearings: Support the crankshaft in the engine block.
- Connecting Rod Bearings: Support the crankshaft at the connecting rod journals.
- Cylinder Liners: Provide a wear surface for the pistons and help with cooling. (May be included in more extensive kits).
- Gasket Set: A complete set of gaskets and seals for reassembling the engine, including head gaskets, oil pan gaskets, intake and exhaust manifold gaskets, and various O-rings.
- Freeze Plugs (Core Plugs): Replaceable plugs in the engine block that protect against frost damage and are often replaced during a rebuild.
- Valve Seals and Guides: For the cylinder head assembly.
- Connecting Rod Bolts: Often recommended to be replaced when the connecting rods are removed.
Optional components that might be available separately or in premium kits include:
- Water Pump
- Oil Pump
- Timing Gears/Chains
- Pistons with Pins
- Valves and Valve Springs
Can a DT466 Engine Be Repaired? The Case for Rebuilding
Yes, a Navistar DT466 engine can absolutely be repaired. These engines are built for longevity and often respond very well to a thorough overhaul. Common issues that necessitate a rebuild include:
- Excessive Oil Consumption: Often due to worn piston rings, cylinder liners, or valve stem seals.
- Low Power or Poor Performance: Can be caused by worn piston rings, valve issues, or fuel system problems.
- Overheating: May indicate internal coolant leaks, a faulty water pump, or a clogged radiator.
- Excessive Smoke: Black smoke can point to fuel delivery issues or turbocharger problems, while blue smoke indicates oil burning, and white smoke suggests unburnt fuel or coolant entering the combustion chamber.
- Knocking or Unusual Noises: Often a sign of bearing wear or internal component damage.
While individual component failures can be repaired, when multiple symptoms point to widespread wear, a full engine rebuild using a quality kit is often the most cost-effective and reliable long-term solution. Attempting to patch up several issues individually can quickly become more expensive and time-consuming than a comprehensive overhaul.
Horsepower and Performance Considerations
The DT466 engine has been offered in a variety of horsepower ratings over its production run, typically ranging from around 170 HP to over 300 HP, depending on the specific model and application. For instance, a DT466 with a 250 HP rating would generally offer significantly better pulling power under heavy load compared to a 190 HP variant. Fuel economy can also be influenced by horsepower and gearing; a stated 10 MPG might be reasonable for a truck geared for highway cruising with a higher horsepower engine, but could indicate inefficient operation if the engine is underpowered or poorly maintained.
When considering a used truck with a DT466, it's crucial to ascertain its original horsepower rating. This information, along with the engine's service history, will help you understand its capabilities and potential needs. If an engine has accumulated substantial mileage and shows signs of wear, a complete overhaul is highly recommended to ensure reliability and prevent catastrophic failure. A qualified mechanic can help diagnose the specific issues and provide an estimate for the cost of an overhaul versus the potential cost of a replacement engine.
The Rebuild Process: What to Expect
Rebuilding a DT466 engine is a significant undertaking that requires mechanical expertise, specialised tools, and a clean working environment. The process typically involves:
- Engine Removal: The engine is carefully removed from the vehicle.
- Disassembly: The engine is completely stripped down to its core components.
- Cleaning and Inspection: Each part is meticulously cleaned and inspected for wear, cracks, or damage. Machining services (like cylinder boring, crankshaft grinding, and head resurfacing) may be required.
- Component Replacement: New components from the rebuild kit are installed, along with any other necessary replacement parts.
- Reassembly: The engine is carefully reassembled according to manufacturer specifications, ensuring all torque settings and clearances are correct.
- Installation and Testing: The rebuilt engine is reinstalled in the vehicle and thoroughly tested to ensure proper operation.
The cost of an overhaul can vary considerably depending on labour rates, the extent of any necessary machining, and the quality of the rebuild kit chosen. It's often wise to get detailed quotes from reputable diesel engine specialists.
Frequently Asked Questions
Q1: Do I need more than just the engine serial number to order a DT466 rebuild kit?
A: Yes, especially for engines manufactured after 1993. You'll also need the engine model, year, horsepower, and torque ratings, often found on the emissions label.
Q2: What is the difference between a DT466E and a mechanical DT466?
A: The primary difference lies in the fuel injection system. The DT466E uses an electronically controlled HEUI system, while earlier DT466 models rely on mechanical fuel injection.
Q3: How long should a rebuilt DT466 engine last?
A: With quality parts, proper machining, and correct assembly, a rebuilt DT466 can provide many years and hundreds of thousands of miles of reliable service, often rivaling the lifespan of a new engine.
Q4: Are there upgrade kits available for the DT466?
A: Yes, some suppliers offer upgrade kits that may include performance enhancements or components designed for increased durability, depending on the specific engine variant.
Conclusion: Investing in Your DT466's Future
The Navistar DT466 is a legendary engine, and with the right approach, it can continue to serve you reliably for years to come. By understanding the different engine variants, meticulously identifying your specific engine's details, and choosing a high-quality rebuild kit, you are investing in the longevity and performance of your vehicle. Whether you're a seasoned mechanic or entrusting the job to a professional, a well-executed engine overhaul is key to unlocking the full potential of your DT466.
