DRZ Motor Oil Change: The Definitive Guide

Maintaining your Suzuki DRZ motor is paramount for its longevity and performance, and perhaps no task is more crucial yet often misunderstood than the humble oil change. Unlike many other motorcycles, the DRZ series employs a unique dry sump lubrication system, which means simply draining the oil from one point won't get all of it out. This guide will walk you through the complete process, ensuring you drain every drop of old oil and refill your engine correctly, keeping your beloved DRZ running smoothly for years to come.

Ignoring regular oil changes or performing them incorrectly can lead to serious engine wear, reduced performance, and ultimately, costly repairs. Engine oil acts as a lubricant, coolant, and cleaner, reducing friction between moving parts, dissipating heat, and carrying away contaminants. Over time, oil breaks down, losing its viscosity and protective properties, becoming a slurry of metallic particles and combustion by-products. Replacing it regularly is the simplest and most effective way to safeguard your engine's health.

Why Your DRZ Needs a Meticulous Oil Change

The Suzuki DRZ series, including the DRZ400E, DRZ400S, and DRZ400SM, utilises a dry sump lubrication system. This design means the oil isn't stored in the crankcase; instead, it's pumped from a separate reservoir (often within the frame) to the engine, and then scavenged back to the reservoir. This system has advantages, like allowing for a lower engine mounting position and preventing oil starvation during extreme riding conditions. However, it also means there are two primary points from which to drain the oil, not just one. Missing either drain point leaves a significant amount of old, contaminated oil in the system, undermining the purpose of the oil change.

Essential Tools and Materials You'll Need

Before you begin, gather all the necessary items. Having everything at hand will make the process much smoother and prevent mid-task scrambles.

• New Engine Oil (Specific to DRZ – typically 10W-40 or 15W-50 motorcycle oil, JASO MA2 approved)
• New Oil Filter and O-rings (inner and outer)
• New Drain Plug Crush Washers (one for the frame, one for the crankcase)
• Oil Drain Pan (with sufficient capacity for approx. 2 litres)
• Socket Wrench Set (typically 12mm and 14mm for drain plugs, 8mm for oil filter cover)
• Torque Wrench (essential for correct bolt tightening)
• Funnel
• Disposable Gloves
• Clean Rags or Shop Towels
• Brake Cleaner or Degreaser (for cleanup)
• Pliers (for oil filter removal, if stuck)
• Container for Used Oil Disposal

Preparing Your DRZ for the Oil Drain

To ensure maximum drainage, it's best to warm the engine slightly. This makes the oil less viscous, allowing it to flow more freely. Ride the bike for 5-10 minutes, or let it idle until it reaches operating temperature. Be careful, as components will be hot.

Position the bike on a level surface, ideally on a stand that keeps it upright. This ensures the oil drains evenly. Place your oil drain pan directly beneath the engine, covering a wide area to catch any unexpected drips.

The Two-Stage Oil Drainage Process

This is where the DRZ's dry sump system comes into play. You must drain from both the frame and the crankcase.

1. Draining the Frame Oil

1. Locate the frame drain plug. On most DRZ models, this is a 12mm bolt on the underside of the left-hand frame rail, near the front of the engine. It's often the lowest point of the frame.
2. Carefully loosen the bolt with your socket wrench. Be prepared, as oil will start to flow out immediately.
3. Once the bolt is removed, allow the oil to drain completely into your pan. This can take several minutes. You might gently rock the bike from side to side to encourage more oil to flow out.
4. Inspect the old crush washer on the frame drain bolt. It should be replaced with a new one to ensure a leak-free seal upon reinstallation.

2. Draining the Crankcase Oil

1. Now, locate the crankcase drain plug. This is typically a 14mm bolt on the bottom of the engine's crankcase, usually towards the rear or right side.
2. Loosen this bolt carefully. Again, oil will start to flow.
3. Allow the oil to drain thoroughly. This usually takes longer than the frame drain.
4. While the oil is draining, inspect both drain plugs for any metallic particles or shavings. Small, fine particles might indicate normal wear, but larger flakes or chunks could signify a more serious internal issue. If you find significant debris, it's worth investigating further before refilling.
5. Like the frame drain bolt, the crankcase drain bolt also requires a new crush washer.

Once both drains have slowed to a drip, wipe down the drain plug areas with a clean rag to remove any residual oil. This will also help you spot any leaks later.

Replacing the Oil Filter

The oil filter is a critical component that traps contaminants before they can circulate through your engine. It's highly recommended to replace it with every oil change.

1. Locate the oil filter cover. On the DRZ, it's typically on the right side of the engine, secured by two or three 8mm bolts.
2. Place a small secondary drain pan or rag underneath the cover, as a small amount of oil will likely spill out when removed.
3. Carefully remove the bolts and then the oil filter cover. Be mindful of the springs and internal components behind the cover. Note their orientation.
4. Remove the old oil filter. It might be slightly stuck due to suction; gentle wiggling or the use of pliers might be needed.
5. Clean the oil filter housing thoroughly with a clean rag. Ensure there's no debris or old O-ring material left behind.
6. Replace the old O-rings on the oil filter cover with the new ones provided with your new filter. Lightly lubricate these O-rings with fresh engine oil.
7. Insert the new oil filter, ensuring it's oriented correctly (often a specific direction for flow).
8. Reinstall the oil filter cover, making sure the spring and any other internal components are correctly seated.
9. Tighten the oil filter cover bolts. These are small bolts, so they require a delicate touch and a torque wrench. Consult your DRZ service manual for the exact torque specifications, but typically they are around 10-12 Nm (7-9 lb-ft). Overtightening can strip threads or crack the cover.

Refilling with Fresh Oil

With the old oil drained and the new filter in place, it's time for the fresh stuff.

1. Reinstall the frame drain plug with its new crush washer. Torque it to the specified setting, usually around 14-18 Nm (10-13 lb-ft).
2. Reinstall the crankcase drain plug with its new crush washer. Torque it to the specified setting, usually around 18-22 Nm (13-16 lb-ft).
3. Locate the oil fill cap on the right side of the engine. Remove it.
4. Using a clean funnel, slowly pour in the recommended amount of new engine oil. For a full oil and filter change, the DRZ typically requires around 1.7 to 1.9 litres of oil. Always start with slightly less than the maximum recommended amount and then top up.
5. Once the oil is in, replace the oil fill cap securely.

Checking the Oil Level: The DRZ Specific Procedure

This is another crucial step unique to the DRZ's dry sump system. You cannot simply check the dipstick when the engine is cold.

1. Start the engine and let it idle for a few minutes (around 2-3 minutes). This allows the oil to circulate throughout the system.
2. Turn off the engine and wait for at least 3-5 minutes. This allows the oil to settle back into the frame reservoir.
3. With the bike held perfectly upright (not on the side stand), remove the oil fill cap/dipstick.
4. Wipe the dipstick clean, reinsert it fully (do not screw it in), and then pull it out to check the level.
5. The oil level should be between the 'L' (Low) and 'F' (Full) marks. If it's low, add small amounts (e.g., 50-100ml) at a time, repeat the warm-up/wait/check procedure until the level is correct. Do not overfill! Overfilling can cause excessive pressure, leading to blown seals or reduced performance.

After confirming the oil level, double-check all drain plugs and the oil filter cover for any signs of leaks. Clean up any spilled oil with brake cleaner or degreaser.

Disposing of Used Oil Responsibly

Never pour used engine oil down drains or onto the ground. It's a hazardous waste. Pour your collected used oil into a sealed container (the container your new oil came in is perfect) and take it to your local recycling centre or an auto parts store that accepts used oil for recycling.

Common Mistakes to Avoid

Even seasoned mechanics can make errors. Be mindful of these common pitfalls:

• Not Draining Both Plugs: The most common DRZ mistake. You must drain both the frame and the crankcase.
• Not Replacing Crush Washers: Reusing old crush washers significantly increases the risk of leaks. They are designed to deform and create a seal only once.
• Incorrect Torque: Overtightening can strip threads or crack components. Undertightening leads to leaks. Use a torque wrench!
• Forgetting the Oil Filter: A clean oil filter is as important as clean oil.
• Improper Oil Level Check: Always warm the engine and then wait before checking the DRZ's oil level.
• Using Incorrect Oil: Ensure the oil is specifically designed for motorcycles (JASO MA2 approved) and the correct viscosity for your climate.

Advanced Tips and Considerations

Consider upgrading to a magnetic drain plug. These plugs have a strong magnet that attracts and holds ferrous metal particles circulating in the oil, providing an early warning sign of internal engine wear. While not a substitute for regular oil changes, they offer an extra layer of diagnostic insight.

For optimal performance and protection, especially if you ride hard, consider using a high-quality synthetic motorcycle oil. While more expensive, synthetics often offer superior protection at extreme temperatures and longer drain intervals, though sticking to the manufacturer's recommended interval is still wise.

Frequently Asked Questions (FAQs)

Q: How often should I change the oil on my DRZ?
A: Suzuki generally recommends oil changes every 6,000 km (3,750 miles) or 12 months, whichever comes first, for road use. For off-road or hard use, many owners opt for much more frequent changes, sometimes every 1,500-3,000 km (1,000-2,000 miles) or even after a few very hard rides. Always consult your owner's manual.

Q: What type of oil is best for my DRZ?
A: A good quality 10W-40 or 15W-50 motorcycle-specific oil that meets or exceeds JASO MA2 standards is generally recommended. This standard ensures the oil is compatible with wet clutches, preventing slippage. The specific viscosity (e.g., 10W-40 vs. 15W-50) depends on your local climate and riding conditions.

Q: Do I need to change the oil filter every time?
A: Yes, it is highly recommended to change the oil filter with every oil change. The filter traps contaminants; leaving an old, clogged filter in will quickly re-contaminate your fresh oil.

Q: What are the torque specifications for the drain plugs and oil filter cover?
A: While specific values can vary slightly by model year, general guidelines are:
- Frame Drain Plug: 14-18 Nm (10-13 lb-ft)
- Crankcase Drain Plug: 18-22 Nm (13-16 lb-ft)
- Oil Filter Cover Bolts: 10-12 Nm (7-9 lb-ft)
Always refer to your specific DRZ model's service manual for precise figures.

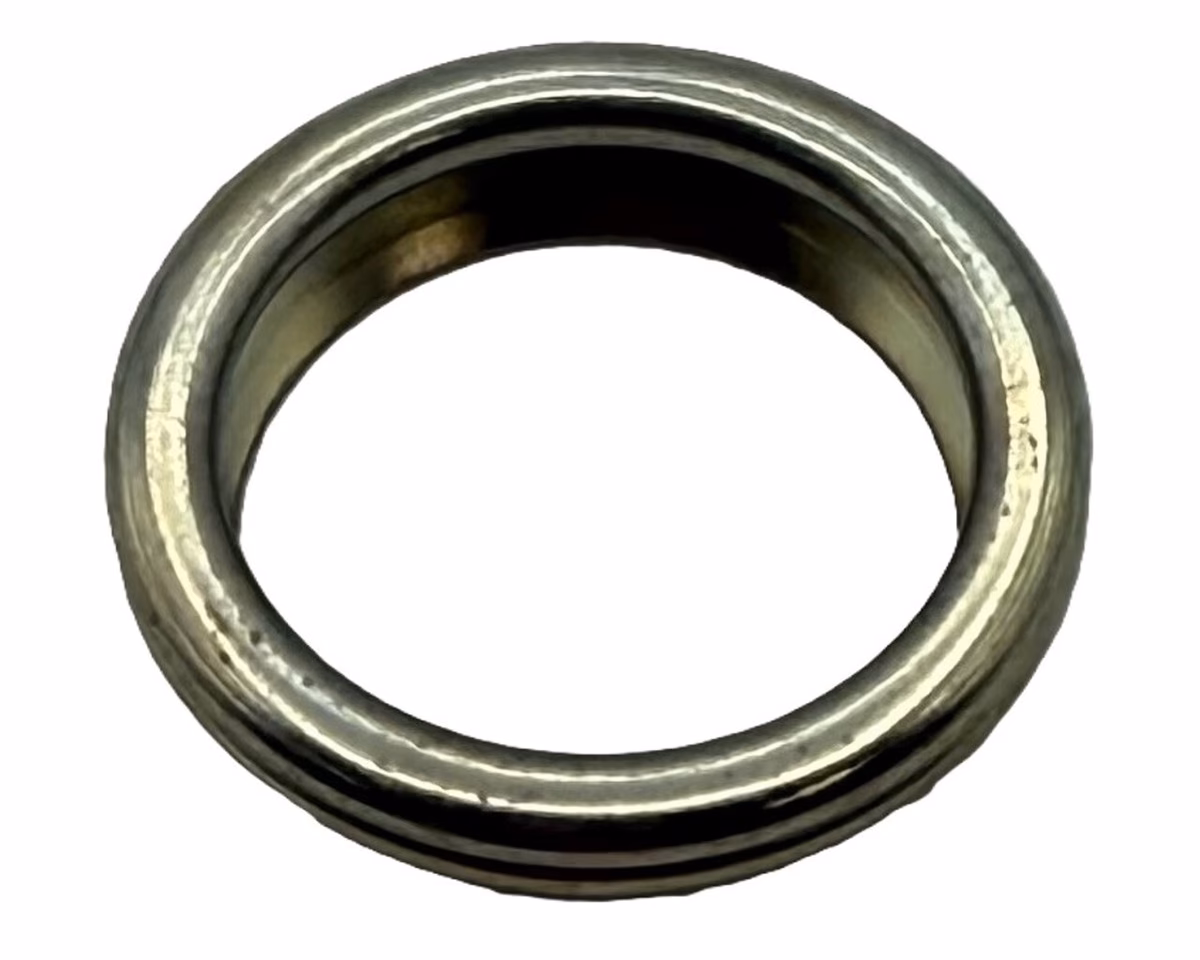

Q: What is a crush washer and why is it important?
A: A crush washer (or sealing washer) is a small, soft metal washer (often copper or aluminium) placed between the drain plug and the engine casing. It's designed to deform or 'crush' slightly when tightened, creating a perfect, leak-proof seal. They are single-use items; reusing them can lead to oil leaks, as they lose their sealing properties once compressed.

Q: What if I find metal shavings in my old oil?
A: Very fine, almost glitter-like particles are often normal wear. However, larger flakes, chunks, or an excessive amount of metallic sludge could indicate significant internal engine wear (e.g., bearings, gears). If you find this, it's advisable to consult a professional mechanic. A magnetic drain plug can help you monitor this more effectively.

Conclusion

Performing a complete and correct oil change on your Suzuki DRZ motor might seem a bit more involved due to its dry sump system, but it's a straightforward task once you understand the two-drain-plug procedure. By diligently following these steps, replacing your oil filter, using new crush washers, and adhering to the correct oil level check, you'll ensure your DRZ's engine is well-lubricated and protected. Regular, meticulous maintenance is the cornerstone of a reliable and high-performing motorcycle, allowing you to enjoy countless miles of trouble-free riding on your fantastic DRZ machine.
