Your Essential Guide to XVS1100A Maintenance
Embarking on the journey of motorcycle ownership, particularly with a robust machine like the Yamaha XVS1100A, comes with the inherent responsibility of proper care and upkeep. While the allure of the open road beckons, understanding the intricacies of your motorcycle's maintenance is paramount. This guide serves as your comprehensive companion, drawing from the official supplementary service manual, to ensure your XVS1100A remains in peak condition. Whether you're a seasoned mechanic or a new enthusiast, this information is designed to empower you with the knowledge to keep your ride performing at its best.
Understanding Your Service Manual Structure
The Yamaha XVS1100A Supplementary Service Manual is meticulously organised to provide clear and concise information. It's crucial to understand how it's structured to effectively navigate its contents. The manual is divided into chapters, each dedicated to a specific area of the motorcycle. Key sections include General Information, Specifications, Periodic Checks and Adjustments, Engine, Carburetor, Chassis, Electrical System, and Troubleshooting.
Within these chapters, you'll find detailed procedures, diagrams, and specifications. The manual employs a system of titles and sub-titles to guide you. The first title indicates the main chapter, often accompanied by a symbol in the upper right corner of each page. The second title denotes a specific section within that chapter, appearing on the first page of the section. Finally, third titles identify sub-sections with step-by-step instructions, often illustrated with exploded diagrams. These exploded diagrams are invaluable, breaking down complex assemblies into manageable parts and showing the order of disassembly and reassembly.
Key Symbols and Their Meanings
Yamaha service manuals utilise a range of symbols to convey specific information quickly. Familiarising yourself with these is essential for efficient and safe maintenance:
- General Information (GEN INFO): Covers foundational details about the motorcycle.
- Specifications (SPEC): Outlines all the critical measurements, tolerances, and performance data.
- Periodic Checks and Adjustments (CHK ADJ): Details routine maintenance tasks.
- Engine (ENG): Focuses on all aspects of the engine.
- Chassis (CHAS): Covers the frame, suspension, wheels, and brakes.
- Carburetor (CARB): Provides information specific to the carburetion system.
- Electrical System (ELEC): Details wiring, components, and electrical troubleshooting.
- Troubleshooting (TRBL SHTG): Offers guidance for diagnosing and fixing common problems.
Additionally, specific symbols indicate lubrication points (engine oil, gear oil, grease types) and the use of special tools, locking agents (like LOCTITE®), or the need to replace parts. Pay close attention to these symbols as they are critical for correct repair and assembly.
Essential Maintenance Schedules
Regular maintenance is the cornerstone of a long-lasting and reliable motorcycle. The XVS1100A service manual provides detailed schedules for both periodic checks and lubrication. These schedules are typically broken down by mileage or time intervals (e.g., every 600 miles/1 month, 4,000 miles/6 months, etc.).
Periodic Maintenance Chart for Emission Control System:
This chart focuses on components directly related to the emissions system. Key items include:
| Item | Initial Interval | Subsequent Intervals | Remarks |
|---|---|---|---|
| Valve Clearance | Check & Adjust (Cold Engine) | Check & Adjust (Cold Engine) | Crucial for engine performance. |
| Spark Plugs | Check Condition | Check, Adjust Gap, Clean; Replace | Replace every 8,000 miles. |
| Crankcase Ventilation System | Check Hose | Check Hose | Replace if damaged. |
| Fuel Line | Check Hoses | Check Hoses | Replace if damaged. |
| Fuel Filter | Replace | Replace every 20,000 miles | Essential for fuel system health. |
| Exhaust System | Check for Leakage | Check for Leakage | Tighten or replace gasket if needed. |
| Carburetor Synchronization | Adjust | Adjust | Ensures smooth engine operation. |
| Idle Speed | Check & Adjust | Check & Adjust | Includes cable free play adjustment. |
General Maintenance and Lubrication Chart:
This chart covers broader maintenance tasks and lubrication points:
| Item | Initial Interval | Subsequent Intervals | Lubricant/Remarks |
|---|---|---|---|
| Engine Oil | Replace | Replace | Warm engine before draining. |
| Engine Oil Filter Element | Replace | Replace | Critical for oil cleanliness. |
| Air Filter Element | Clean/Replace | Clean/Replace | Replace if necessary, avoid compressed air. |
| Brake System | Check Fluid Level & Leakage | Check Fluid Level & Leakage | Replace pads/fluid as needed. |
| Clutch | Check Operation | Check Operation | Adjust or replace cable. |

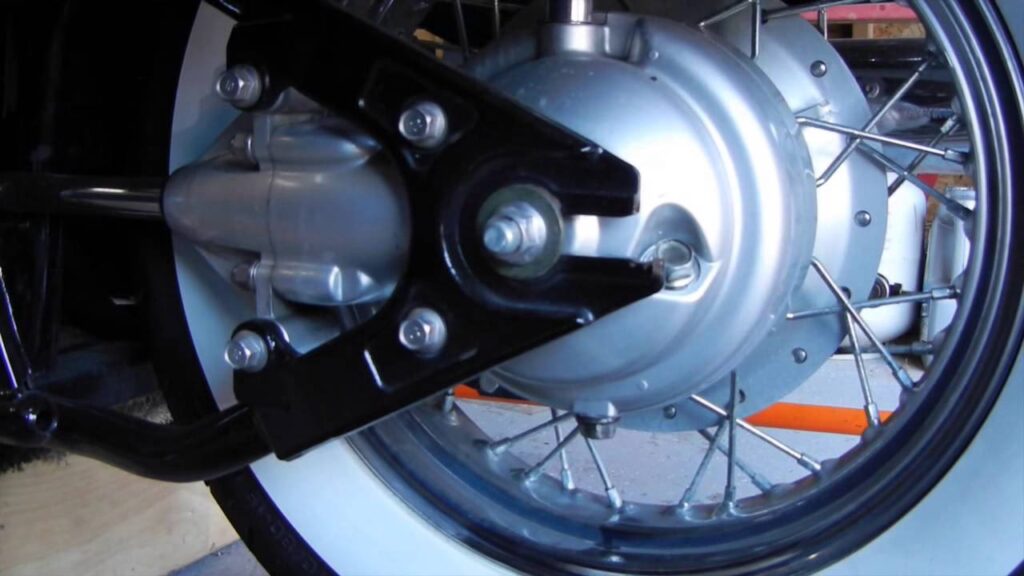

| Final Gear Oil | Check Level & Leakage, Replace | Check Level & Leakage, Replace every 18,000 miles | Hypoid gear oil SAE 80 (API GL4). |
| Control and Meter Cables | Apply Lube | Apply Lube | Yamaha Chain and Cable Lube or engine oil. |
| Swingarm Pivot Shaft | Check Play | Check Play | Repack with lithium-soap-based grease. |
| Steering Bearings | Check Play & Smoothness | Check Play & Smoothness | Repack with lithium-soap-based grease. |
| Wheel Bearings | Check for Looseness/Damage | Check for Looseness/Damage | Replace if necessary. |
| Tires | Check Tread Wear & Damage | Check Tread Wear & Damage | Replace if necessary. |
Important Notes:
- Items marked with an asterisk (*) may require special tools or expertise, and it's recommended to have them serviced by a Yamaha dealer.
- Hydraulic Brake Service: Always change brake fluid after disassembling brake components. Replace brake hoses every four years.
- Air Filter: The disposable paper element should not be cleaned with compressed air.
Chassis Maintenance: Wheels and Brakes
The chassis components, particularly the wheels and braking systems, are critical for safety and handling. The manual provides detailed procedures for their removal, installation, and inspection.
Front Wheel and Brake Discs:
When removing or installing the front wheel, ensure the motorcycle is securely supported. Key steps involve loosening the axle pinch bolt and axle, then carefully removing the wheel. Inspection includes checking the wheel axle for bends, the tire for damage, and the wheel bearings and oil seals for wear. Measuring wheel runout (radial and lateral) is also crucial, with specified limits to ensure proper alignment. Brake disc inspection involves checking for damage, galling, and measuring thickness and deflection. If deflection is out of limits, it can sometimes be corrected by rotating the disc, but if the thickness is below the minimum specification, replacement is necessary.
Rear Wheel and Brake Disc:
Similar to the front, the rear wheel removal requires secure support. Procedures involve removing the rear fender, brake caliper, axle nut, and axle holder. The rear wheel assembly is then carefully removed. Inspection of the rear wheel is comparable to the front, including checks for the axle, bearings, and seals. The drive hub and its dampers should also be inspected for wear or damage. Lubrication of the drive shaft splines with molybdenum disulfide grease and wheel bearings/oil seals with lithium soap base grease is essential during installation.
Electrical System Checks
The electrical system, though complex, can be systematically checked. The manual outlines the process for checking various switches, including the clutch switch, horn switch, and starter switch. This typically involves verifying continuity between terminals using a multimeter. Any switch showing signs of damage, wear, or incorrect continuity readings will require repair or replacement.
The wiring diagram is an indispensable tool for diagnosing electrical faults. It illustrates the connections between all electrical components, colour-coded for clarity. Understanding this diagram is key to tracing circuits and identifying faulty components.
Troubleshooting Common Issues
While this guide focuses on routine maintenance, the service manual also contains a dedicated troubleshooting section. This section lists common problems and their potential causes and solutions. For instance, if the engine fails to start, troubleshooting might involve checking the fuel supply, ignition system, and starter motor. Issues with performance, such as rough idling or poor acceleration, would lead you to check the carburettors, air filter, and spark plugs.
When to Seek Professional Help
While this supplementary manual provides a wealth of information, it's important to recognise when a task might be beyond your current skill level or requires specialised tools. Items marked with an asterisk (*) in the maintenance charts are often best left to qualified Yamaha technicians. Additionally, if you encounter any doubts or uncertainties during a maintenance procedure, consulting a Yamaha dealer is always the safest course of action. They have access to the latest technical service bulletins and can ensure your motorcycle is repaired correctly, maintaining its safety and performance standards.
By diligently following the guidelines and schedules outlined in the XVS1100A Supplementary Service Manual, you can ensure your motorcycle provides countless miles of reliable and enjoyable riding. Regular, thorough maintenance is not just a chore; it's an investment in the longevity and performance of your Yamaha.
