Drive Shaft Leaks and MOT Failures

It's that time of year again for many car owners – the dreaded MOT test. Ensuring your vehicle is in tip-top condition is crucial, not just for safety, but also to avoid the disappointment of a failed test. One area that can sometimes cause concern, and indeed lead to a failure, is the drive shaft. Specifically, a leaking drive shaft. Many drivers, like our correspondent Sei-Boy with their Fiat Seicento, might notice a small amount of oil seeping from the drive shaft area and wonder about its implications for the MOT.

Understanding the Drive Shaft and its Role

Before delving into the specifics of leaks, it's important to understand what a drive shaft is and why it's so vital. In rear-wheel drive and four-wheel drive vehicles, the drive shaft (also known as a prop shaft or propeller shaft) is a mechanical component that transmits torque from the transmission (or transfer case) to the differential. It's essentially a metal tube with universal joints (UJs) at either end, allowing it to flex and accommodate the movement between the gearbox and the wheels. In front-wheel drive vehicles, the shafts that connect the gearbox to the wheels are often referred to as 'driveshafts' or 'half-shafts', and these are what Sei-Boy is likely referring to.

These shafts are critical for delivering power to the wheels, enabling your car to move. They are designed to be robust and reliable, but like any mechanical component, they can experience wear and tear, and sometimes, issues can arise. One common issue that drivers may encounter is a leak.

Common Causes of Drive Shaft Leaks

Drive shaft leaks, particularly on front-wheel drive vehicles where they connect directly to the gearbox, are most commonly caused by a failure of the drive shaft seal. These seals are designed to prevent gearbox oil from escaping and dirt and water from entering the gearbox. Over time, the rubber or synthetic material of these seals can degrade due to heat, age, or exposure to contaminants.

Other potential causes for leaks around the drive shaft area can include:

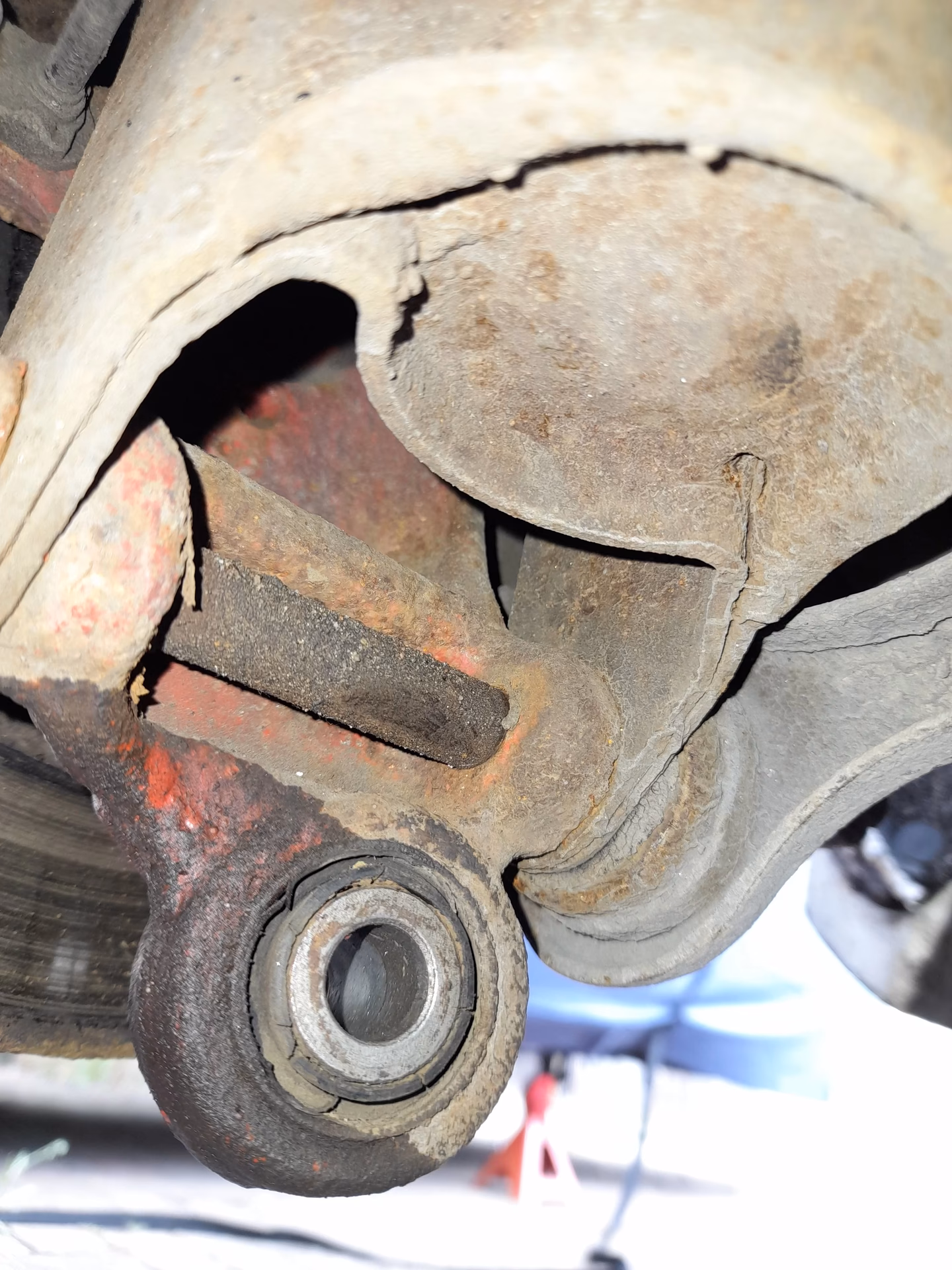

• Damaged Gaiters/Boots: The flexible rubber gaiters or boots that protect the constant velocity (CV) joints at the ends of the drive shafts are susceptible to splitting or tearing. When these are damaged, grease from the CV joints can escape, and dirt and water can ingress, leading to premature wear of the joint. While this isn't a gearbox oil leak, it's a related issue that can cause an MOT failure if the damage is severe or if the grease loss is significant.
• Cracked or Damaged Drive Shaft Housing: Although less common, the casing of the drive shaft itself could potentially become damaged, leading to leaks.
• Loose or Damaged Fixings: In some instances, the securing bolts or nuts for the drive shaft might become loose or damaged, potentially compromising the seal.

Will a Drive Shaft Leak Cause an MOT Failure?

This is the crucial question for Sei-Boy and many others. The MOT test has specific criteria for what constitutes a failure. For drive shaft leaks, the key is the severity and nature of the leak.

According to MOT guidelines, a drive shaft leak will typically result in a failure if:

• Significant Oil Leak: The leak is substantial enough to drip onto the road or to a critical component like the exhaust. A small amount of oil on the gaiter or shaft, as described by Sei-Boy, might not be an immediate fail, but it's a strong indicator of an underlying issue that needs attention.
• Oil Contamination of Other Components: If the oil leak is so severe that it contaminates or affects the performance of other safety-critical components, such as the braking system or suspension, it will likely lead to a fail.
• Low Gearbox Oil Level: If the leak has caused the gearbox oil level to drop significantly, this can lead to poor lubrication and potential gearbox damage, and the tester may fail the vehicle on this basis.

An MOT tester will inspect the drive shafts for any signs of leaks. They will be looking for:

• Oil residue: Obvious signs of oil or grease on the drive shafts, gaiters, or surrounding components.
• Condition of Gaiters: Any splits, tears, or perishing of the rubber gaiters.
• Loose or Damaged Components: Ensuring the drive shafts are securely attached and not showing signs of excessive play.

In Sei-Boy's case, a "small amount of oil" onto the gaiter and drive shaft from the gearbox seal is certainly something that warrants investigation. While it might not be a guaranteed fail if it's a very minor seepage, it's highly probable that the tester will identify it as an advisory item, or potentially a fail if it's deemed significant enough to be considered a "leaking unit". The fact that the seal has gone suggests it's an issue that is likely to worsen.

What to Do If You Suspect a Drive Shaft Leak

If you notice any signs of a drive shaft leak, it's always best to get it checked out by a qualified mechanic as soon as possible. Ignoring a leak can lead to more serious and expensive problems down the line.

Checking Your Drive Shafts

You can perform some basic checks yourself:

1. Visual Inspection: Look under your car for any oily patches or residue around the drive shafts, especially near the gearbox and the wheels.
2. Check Gaiters: Carefully examine the rubber gaiters for any splits, tears, or signs of grease escaping.
3. Check Oil Levels: If you are comfortable doing so, check your gearbox oil level. Consult your car's manual for the correct procedure.

Repairing Drive Shaft Leaks

The most common repair for a gearbox oil leak from the drive shaft is to replace the drive shaft seal. This involves removing the drive shaft from the gearbox, pressing out the old seal, and fitting a new one. It's a job that requires specific tools and knowledge, so it's usually best left to professionals.

If the gaiters are damaged, these will need to be replaced. This usually involves removing the drive shaft, pressing off the old gaiter, fitting the new one, and repacking the CV joint with fresh grease. Again, this is a task best suited for a mechanic.

Potential Consequences of Ignoring Leaks

Ignoring a drive shaft leak, even a small one, can have several detrimental consequences:

• Gearbox Damage: A significant loss of gearbox oil can lead to inadequate lubrication of the gears and bearings within the gearbox. This can cause increased wear, overheating, and ultimately, catastrophic gearbox failure, which is an extremely expensive repair.
• CV Joint Failure: If the gaiters are split, allowing grease to escape and contaminants to enter, the CV joints can wear out rapidly. This can result in clicking or knocking noises when turning and, in severe cases, the joint can fail completely, rendering the car undrivable.
• Compromised Safety: A severely damaged or failing drive shaft could potentially detach, leading to a loss of drive and a dangerous loss of control over the vehicle.

Comparison of Common Drive Shaft Issues

Frequently Asked Questions (FAQ)

Q1: My drive shaft boot has a small split, but there's no grease leaking out. Will it fail its MOT?
It might be given as an advisory. If there's no significant loss of grease or damage to the CV joint itself, it may not be a fail. However, it's recommended to get it repaired soon as the split will likely worsen.

Q2: I can see a small amount of oil on my drive shaft. Is this definitely an MOT failure?
Not necessarily, but it's a strong indicator of a leak. The tester will assess the severity. A very minor seepage might be an advisory, but a noticeable leak will likely be a fail.

Q3: How much gearbox oil is too much to lose for an MOT?
The MOT test focuses on whether the leak is significant enough to drip onto the road or contaminate other components. There isn't a specific millilitre amount; it's a judgement call by the tester based on visual evidence and potential safety implications.

Q4: What is the difference between a drive shaft leak and a CV joint leak?
A drive shaft seal leak means gearbox oil is escaping from where the shaft enters the gearbox. A CV joint leak means the grease packed inside the CV joint boot is escaping, usually due to a split in the boot. Both can be MOT failures.

Q5: Can I drive my car with a leaking drive shaft?
It's not advisable, especially if the leak is significant. Continued driving can lead to low gearbox oil levels, causing internal damage, or CV joint failure, which can be dangerous. It's best to get it repaired promptly.

Conclusion

While a minor, almost imperceptible seepage from a drive shaft seal might not automatically result in an MOT failure, it's a clear sign that a component is beginning to fail. The MOT test is designed to ensure your vehicle is safe and roadworthy, and leaks can compromise both. For Sei-Boy's Fiat Seicento, the "small amounts of oil" suggest that the drive shaft seal is indeed compromised. It's highly recommended to address this issue before the MOT test to avoid a potential fail and, more importantly, to prevent more significant and costly damage to the gearbox in the future. Proactive maintenance is always the best policy when it comes to keeping your vehicle on the road and passing its tests with flying colours.
