The humble drain plug, often overlooked, plays a critical role in the health of your vehicle's engine, gearbox, and differential. Its primary function is to allow for the controlled draining of vital fluids, such as engine oil or transmission fluid, during routine maintenance. However, over time, the threads on a drain plug or the corresponding sump, gearbox, or differential casing can become damaged, stripped, or worn. This is where a drain plug repair tool becomes an invaluable asset for any mechanic, professional or amateur. This article will delve into what these tools are, how they work, their benefits, and how to use them effectively to save you time and money.

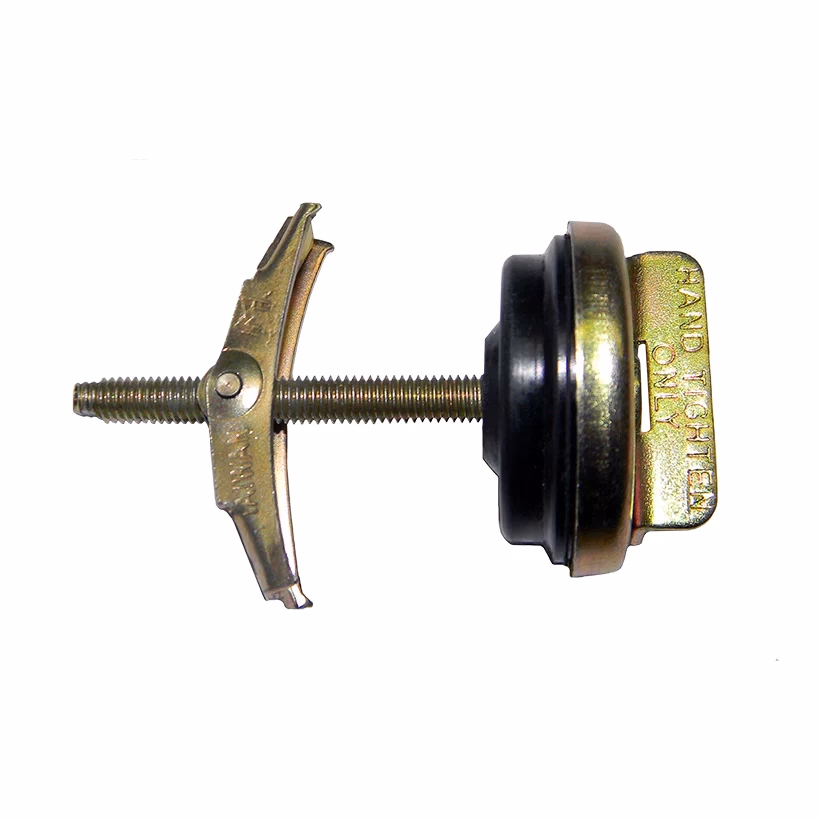

Understanding the Purpose of a Drain Plug Repair Tool
A drain plug repair tool, often referred to as a thread repair kit, is specifically designed to rectify damaged threads on oil sumps, gearboxes, and differentials. When a drain plug is overtightened, cross-threaded, or simply subjected to wear and tear, its threads can become compromised. This can lead to leaks, difficulty in tightening the plug securely, or even complete failure, potentially resulting in a significant loss of essential fluids. Instead of facing the expensive task of replacing the entire sump or gearbox casing, a drain plug repair tool offers a practical and cost-effective solution.
The core principle behind these kits is to re-tap the damaged thread slightly oversize, creating a new, clean thread that can accommodate a new, slightly larger drain plug and washer. This process effectively restores the integrity of the sealing surface, preventing leaks and ensuring the plug can be tightened correctly.
How Drain Plug Repair Kits Work: A Step-by-Step Approach
Drain plug repair kits typically contain a specialised tap and a set of replacement drain plugs and washers. The tap is designed to cut new threads into the existing hole, effectively enlarging it to a new, standard size. Here’s a typical breakdown of the process:
- Disassembly: Carefully remove the damaged oil drain plug. It's advisable to have a suitable container ready to catch any residual fluid.
- Tap Selection: Choose the appropriate tap from the kit. Kits are often designed for specific thread sizes. For instance, a common scenario is repairing an M12 thread to an M13 thread. The kit will include the correct tap for this conversion. Always consult the kit’s instructions to ensure you select the right tap for your specific application.
- Tapping the Hole: Apply a lubricant or cutting fluid to the damaged thread area and the tap. Using a suitable tool (often a tap wrench or a socket that fits the tap), carefully and steadily turn the tap into the damaged hole. The tap will cut new, clean threads as it progresses. It’s crucial to keep the tap straight and perpendicular to the surface to ensure proper thread alignment. Rotate the tap a full turn, then back it off a half turn to clear the cuttings, repeating this process until you have tapped through the desired depth.
- Cleaning: Thoroughly clean the tapped hole to remove any metal shavings or debris. Compressed air can be useful here.
- Installation: Select a new drain plug and washer from the kit. The new plug will be slightly larger than the original to match the newly cut threads. Place a new washer onto the new drain plug to ensure a proper seal.
- Tightening: Screw the new drain plug into the repaired thread by hand as far as it will go, then use a wrench to tighten it securely, but avoid overtightening, which could damage the new threads.
The entire process is designed to be straightforward, making it accessible even for those with limited mechanical experience. The result is a securely fitted drain plug that prevents leaks and restores the component's functionality.
Benefits of Using a Drain Plug Repair Tool
The advantages of using a drain plug repair tool are numerous:
- Cost Savings: The most significant benefit is avoiding the substantial cost associated with replacing an entire sump, gearbox, or differential housing. These repairs can run into hundreds or even thousands of pounds, depending on the vehicle and the component.
- Time Efficiency: Repairing the threads with a kit is considerably quicker than sourcing and fitting a replacement component, minimising vehicle downtime.
- Ease of Use: As outlined above, the process is relatively simple and can be performed with basic tools.
- Versatility: Many kits are designed to be used on a wide range of vehicles, including cars, vans, and motorbikes, making them a versatile addition to any toolkit.
- Preventative Maintenance: Having such a kit on hand allows for immediate repairs if a drain plug issue arises during routine servicing, preventing minor problems from escalating.
Types of Drain Plug Repair Kits
While the fundamental principle remains the same, drain plug repair kits can vary in their contents and suitability for different applications. Some common kit configurations include:
| Kit Type | Typical Contents | Primary Use |
|---|---|---|
| Sump Drain Plug Repair Kit | Tap (e.g., M12 to M13), M13 drain plugs, washers | Repairing engine oil sump threads |
| Gearbox/Differential Thread Repair Kit | Taps for various thread sizes, corresponding plugs and washers | Repairing gearbox and differential drain/fill plug threads |
| Universal Drain Plug Repair Kit | A range of taps, plugs, and washers for common metric and imperial sizes | General-purpose repairs across various automotive components |
It's important to identify the specific thread size of the damaged plug and casing to select the most appropriate kit. For example, a kit might be advertised as being able to re-thread an M12 sump to M13, indicating the specific conversion it facilitates. Some kits, like the one described, might include multiple drain plugs and washers for convenience.
While focusing on repair tools, it's worth noting other related components that ensure the integrity of your vehicle's fluid systems:
- Drain and Fill Plug Kits: These kits often include specialised plugs, sometimes with magnetic properties, designed to attract metallic debris, keeping your transmission and differential fluids cleaner for longer. They typically include plugs for the front differential, rear transmission, and engine oil pan, offering a comprehensive solution for fluid contamination prevention.
- Replacement Drain Plugs: For minor wear or if a specific size is needed, readily available replacement drain plugs are essential. When purchasing, ensure you get the correct thread size and pitch for your vehicle. Look for plugs made from durable materials like steel or brass.
- Drain Plug Keys: To access and remove drain plugs, you often need a specific key or tool. These can range from simple hex keys to specialised square or triangular drive tools, depending on the plug design. Having the correct drain plug key is crucial for performing fluid changes safely and efficiently.
- Auto Drain Kits: These are more specialised components, often found in industrial or heavy machinery contexts, that automatically manage fluid drainage based on operational cycles. They typically involve solenoids to control flow and are designed to empty sumps after specific operations, ensuring complete fluid evacuation.
Frequently Asked Questions
- Q1: Can I use a drain plug repair tool on any vehicle?
- A1: Yes, provided you select a kit with the correct thread sizes for your vehicle's sump, gearbox, or differential. Most kits cater to common metric thread sizes found in cars, vans, and motorbikes.
- Q2: What if the damage is severe?
- A2: For extremely damaged or corroded threads, a repair kit might not be sufficient. In such cases, professional welding and re-machining or component replacement may be necessary. Always assess the damage before attempting a repair.
- Q3: Do I need any special skills to use a drain plug repair kit?
- A3: The kits are designed for ease of use. Basic mechanical aptitude and the ability to follow instructions are generally sufficient. It's important to work carefully and ensure the tap remains straight.
- Q4: What is the typical size conversion for a sump drain plug repair kit?
- A4: A common conversion is from an M12 thread to an M13 thread, which is often the size of the replacement plug and the new thread cut by the tap. However, kits vary, so always check the specifications.
- Q5: How do I prevent future drain plug thread damage?
- A5: Always use the correct torque specification when tightening drain plugs. Avoid overtightening, and ensure the plug is not cross-threaded. Using a new washer with each oil change also helps create a better seal and prevents the plug from needing excessive force to tighten.
Conclusion
A drain plug repair tool is an indispensable item for any DIY enthusiast or professional mechanic. It provides a practical, cost-effective, and efficient solution for repairing damaged threads on critical automotive components. By understanding how these kits work and following the correct procedure, you can save significant money on repairs, minimise downtime, and ensure the continued smooth operation of your vehicle's vital fluid systems. Investing in a quality repair kit is a wise decision for any vehicle owner looking to maintain their car or motorbike effectively.
