Suzuki DR650 Valve Clearance: A Comprehensive Guide

The Suzuki DR650, often affectionately known as the DR650S or simply the DR650, is a legendary dual-sport machine. Renowned for its rugged simplicity and unwavering reliability, it's a bike that can take you from challenging desert trails to the far reaches of global adventure. Its iconic 644cc air/oil-cooled four-stroke single-cylinder engine, housed in a robust steel frame, is a testament to straightforward engineering. While it may no longer be readily available new in all markets due to emissions regulations, its enduring popularity ensures a healthy secondhand market and a strong community of owners dedicated to keeping these bikes in top condition.

One of the key aspects of maintaining any motorcycle, especially one as capable as the DR650, is understanding its service intervals. While oil changes and chain maintenance are frequent necessities, the valve clearance is a critical, though less frequent, task that ensures your engine performs optimally and avoids potential damage. This guide will delve into precisely when and how to address the valve clearance on your Suzuki DR650.

Understanding Valve Clearance

Valve clearance refers to the small gap between the valve stem and the rocker arm (or camshaft lobe, depending on the engine design). This gap is crucial for several reasons:

• Expansion: As the engine heats up during operation, metal components expand. The valve clearance allows for this expansion without the valves being held open, which would prevent proper sealing of the combustion chamber.
• Valve Seating: Adequate clearance ensures that the valves can fully seat against their respective valve seats, creating a perfect seal for compression and preventing the escape of combustion gases.
• Longevity: Incorrect valve clearances, whether too tight or too loose, can lead to premature wear of the valve train components, including the valves, seats, and camshafts. Too tight can cause burnt valves, while too loose can result in excessive noise and reduced performance.

The DR650 Valve Clearance Schedule

Suzuki has laid out a clear maintenance schedule for the DR650, and the valve clearance check is a significant item within it. According to the manufacturer's recommendations, the valve clearances for the Suzuki DR650 should be checked and adjusted:

Every 7500 miles (approximately 12,000 km)

This interval is a guideline, and it's always advisable to adhere to the earlier of the time-based or distance-based intervals if your riding habits vary significantly. For instance, if you ride fewer than 7500 miles in a year, it's still a good idea to check them annually. Conversely, if you cover more than 7500 miles in less than a year, perform the check upon reaching that mileage.

Why is this Interval Important?

The DR650's engine, while robust, still relies on precise valve timing and sealing for efficient operation. Over time, wear in the valve train can cause the clearances to change. If the clearances become too small, the valves might not close fully, leading to:

• Loss of compression
• Poor engine performance
• Difficulty starting
• Overheating of the valves and seats
• Potential for valve and seat damage

Conversely, if the clearances become too large, you'll likely notice:

• Increased engine noise (tapping or ticking sounds)
• Reduced performance and power
• Potential for camshaft and rocker arm wear

Regularly checking and adjusting the valve clearances at the recommended 7500-mile interval is a proactive measure that helps prevent these issues and ensures your DR650 continues to deliver its characteristic reliable performance.

What You'll Need for the Job

Performing a valve clearance check and adjustment on the DR650 is a manageable task for the home mechanic, even if you're not a seasoned professional. Suzuki's design, with its single cylinder and easily accessible components, simplifies the process. Here's a list of the essential tools and parts you'll likely need:

Tools:

• Metric Socket Set (including common sizes like 8mm, 10mm, 12mm, 14mm, 17mm, 19mm)
• Wrenches (combination wrenches)
• Torque Wrench (essential for correct reassembly)
• Feeler Gauges (metric set required for precise measurements)
• Screwdriver set (Phillips and flathead)
• Pliers
• A small container for holding removed bolts and parts
• Shop rags or clean cloths
• Possibly a small mirror for visual inspection
• A box wrench for turning the crankshaft (typically 17mm or 19mm)

Consumables/Parts:

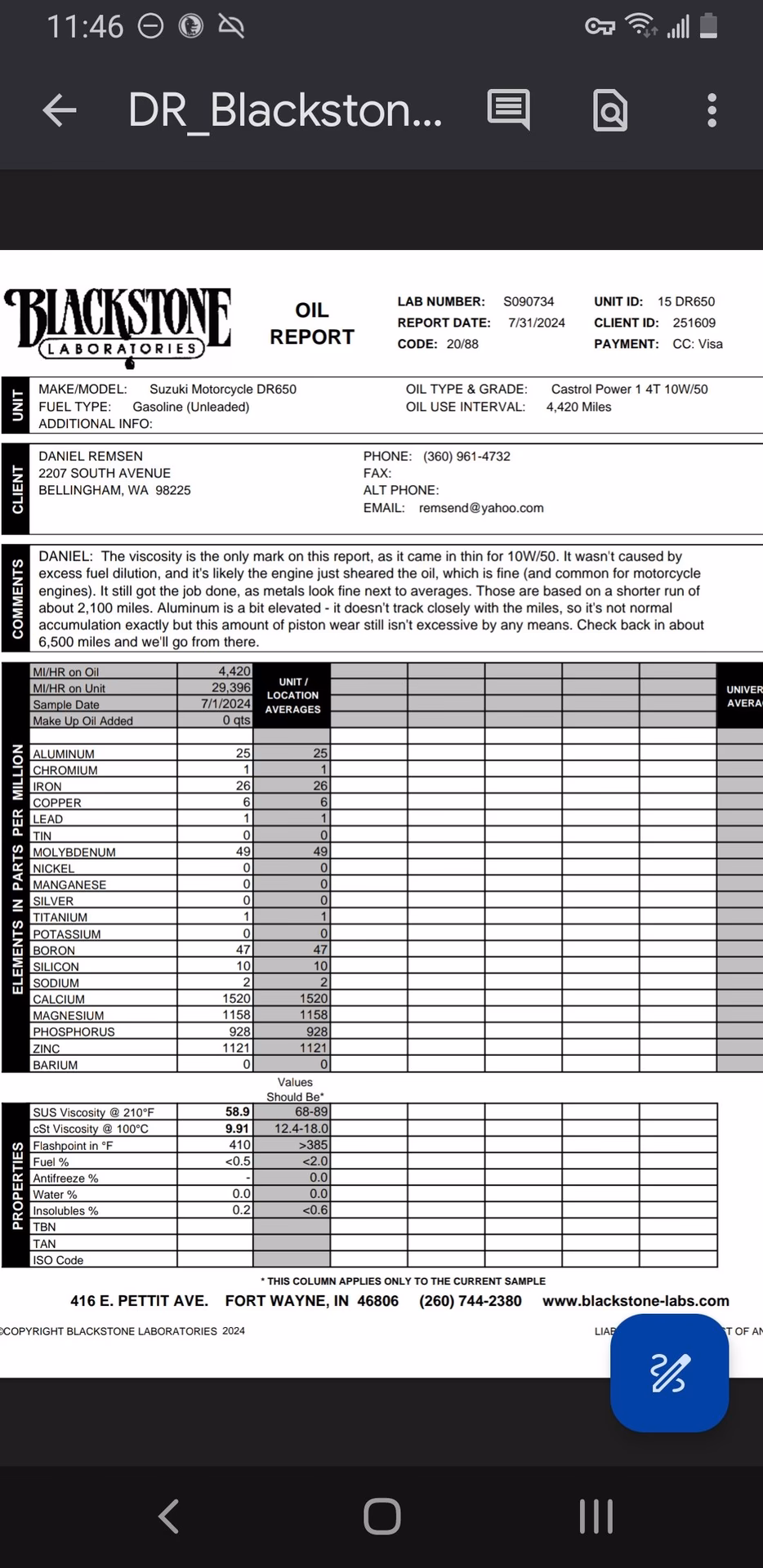

• Engine Oil: SAE 10W/40, API SE, SF, or SG classification (e.g., Motul 5100 10W-40).
• Oil Filter: Hiflofiltro HF137 is a common and reliable replacement.
• Spark Plugs: NGK CR10E (standard) or CR9E (hotter type). Ensure they are gapped correctly (0.7-0.8mm).
• Gasket Sealant (if required for valve covers, though often not needed).
• Lithium soap-based grease for lubrication of pivot points during reassembly.

The Valve Clearance Adjustment Procedure (Simplified)

While a full service manual provides exhaustive detail, here’s a simplified overview of the process:

1. Preparation: Remove the fuel tank, seat, and any side covers to gain access to the engine's top end.
2. Access Valve Components: Remove the spark plug. Locate and remove the valve inspection caps on the cylinder head. You'll also need to remove the valve timing inspection plug and the magneto cover cap to find the timing marks.
3. Set to TDC (Top Dead Centre) on Compression Stroke: Using a box wrench on the crankshaft nut (located behind the magneto cover), rotate the engine counter-clockwise. Watch for the T-mark on the magneto rotor to align with the centre of the inspection hole. Crucially, ensure you are on the compression stroke – you can verify this by feeling for resistance when pushing the piston up (indicating compression) or by observing that the piston is at the top of its stroke and the valves are both fully closed. If you over-rotate past the T-mark, go around again.
4. Measure Clearances: With the engine at TDC on the compression stroke, carefully insert a feeler gauge of the correct thickness between the valve stem tip and the adjusting screw on the rocker arm. Check both intake and exhaust valves.
5. Target Clearances (Cold Engine):
   • Intake: 0.08 - 0.13 mm (0.003 - 0.005 inches)
   • Exhaust: 0.17 - 0.22 mm (0.007 - 0.009 inches)
6. Adjust if Necessary: If a measurement is outside the specified range, you'll need to adjust it. Loosen the locknut on the adjusting screw, turn the screw with a screwdriver until the feeler gauge slides through with a slight drag, and then re-tighten the locknut while holding the screw in place. Crucially, re-check the clearance after tightening the locknut, as it can shift during this process.
7. Reassembly: Once all valve clearances are confirmed to be within spec, reinstall all removed components, including the inspection caps, timing plugs, magneto cover, spark plug, fuel tank, seat, and side covers. Ensure all bolts are tightened to their specified torque values.

Important Note: Always refer to your specific Suzuki DR650 service manual for the most accurate and detailed instructions, including torque specifications for all fasteners.

Suzuki DR650 Maintenance Schedule Overview

To put the valve clearance check into context, here's a snapshot of the DR650's general maintenance schedule. Notice how it integrates with other essential service items:

Frequently Asked Questions (FAQs)

How often should I check my DR650's valve clearance?

Suzuki recommends checking the valve clearances every 7500 miles or 12,000 km.

Can I adjust my DR650 valve clearance myself?

Yes, with the right tools and a bit of mechanical aptitude, adjusting the valve clearance on a DR650 is a manageable DIY task. Ensure you have feeler gauges and follow the service manual carefully.

What are the correct valve clearances for a DR650?

For a cold engine, the recommended clearances are: Intake 0.08-0.13mm (0.003-0.005 in) and Exhaust 0.17-0.22mm (0.007-0.009 in).

What happens if I don't check my valve clearance?

If the clearances are not checked and adjusted, they can become too tight or too loose over time. This can lead to reduced engine performance, increased noise, premature wear of engine components, and in severe cases, significant engine damage.

Is it difficult to find TDC on the compression stroke on a DR650?

It requires careful observation of the timing marks and feeling for engine compression. It's a critical step, so take your time and confirm you are on the correct stroke.

Conclusion

The Suzuki DR650 is a motorcycle built for the long haul, and with regular, diligent maintenance, it will reward you with countless miles of adventure. While many maintenance tasks are straightforward, the valve clearance check at the 7500-mile interval is a prime example of a service that, when performed correctly, preserves the engine's health and ensures its characteristic reliability. By understanding the schedule and the process, you can confidently keep your DR650 performing at its best, ready for whatever the road or trail throws your way.
