Understanding MOT Type 1 Sub-Base Aggregate

In the world of construction and landscaping, there are unsung heroes – materials that, while rarely seen, form the very backbone of our built environment. Among these, MOT Type 1 sub-base aggregate stands out as arguably the most critical. If you've ever walked on a solid patio, driven on a smooth driveway, or seen a new road being laid, chances are MOT Type 1 played a fundamental role in its creation. But what exactly is this material, why is it so important, and how is it used correctly?

This comprehensive guide will delve deep into the specifics of MOT Type 1, explaining its composition, its vital functions, common applications, and providing practical advice for its use. Whether you're a seasoned professional or a keen DIY enthusiast embarking on a new project, understanding this essential aggregate is key to achieving durable and long-lasting results.

What Exactly is MOT Type 1 Sub-Base Aggregate?

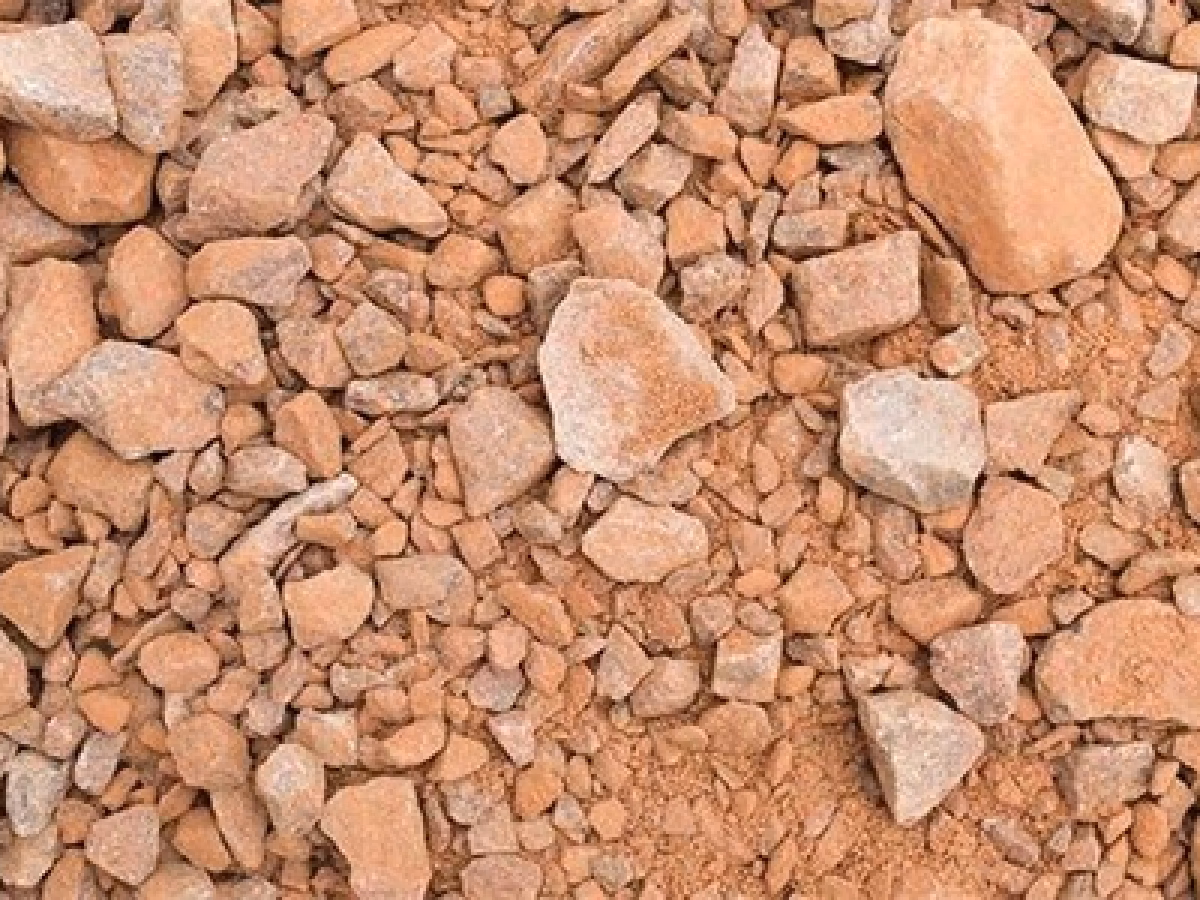

MOT Type 1 is a specific type of granular material used as a sub-base in construction. It's a crushed aggregate, typically derived from hard rock sources like limestone, granite, basalt, or even high-quality recycled concrete and brick. The key characteristic of Type 1 is its precise grading: it consists of a well-mixed blend of particle sizes ranging from 0mm (fine dust) up to 40mm. This particular grading is crucial for its performance.

The 'MOT' in its name refers to the Ministry of Transport, which originally set the specification for this material for use in road construction in the UK. While the Ministry of Transport no longer exists in its original form, the specification (now governed by the Department for Transport's Manual of Contract Documents for Highway Works, Series 800) remains a benchmark for quality and performance. It ensures that the material meets stringent requirements for compaction, stability, and load-bearing capabilities.

The mix of coarse and fine particles allows Type 1 to compact down incredibly tightly, creating a dense, stable, and interlocked layer. The larger stones provide strength and interlocking, while the fines fill the voids, contributing to the material's excellent load-spreading properties and preventing settlement.

Why is it Called "MOT Type 1"?

The name "MOT Type 1" is a legacy term that has stuck in the industry. It originates from the Ministry of Transport's specifications for road construction, which outlined the exact composition and performance characteristics required for aggregates used as sub-bases beneath roads and other paved areas. These specifications were developed to ensure consistency and quality in infrastructure projects across the UK.

Even though the Ministry of Transport has evolved into different government bodies, the term "MOT" remains universally recognised and signifies that the aggregate meets a specific, high-quality standard for sub-base material. This standardisation is vital, as it provides assurance that the material will perform as expected when properly installed, offering reliability and durability for demanding applications.

Composition and Characteristics

The primary materials used to produce MOT Type 1 include:

• Crushed Limestone: A widely available and cost-effective option, offering good compaction properties.
• Crushed Granite: A harder, more durable aggregate, often used where higher strength is required.
• Crushed Basalt: Similar to granite in its hardness and durability.
• Gritstone: Another hard-wearing rock suitable for Type 1.
• Recycled Aggregates: Increasingly common, these are made from crushed concrete, brick, or asphalt. When processed correctly, they can meet the MOT Type 1 specification, offering an environmentally friendly alternative.

Regardless of the source material, the critical characteristic is the particle size distribution. A well-graded Type 1 aggregate will have a good balance of:

• Larger Particles (up to 40mm): These provide the bulk and structural integrity, allowing for excellent interlocking when compacted.
• Mid-sized Particles: Fill the gaps between the larger stones.
• Fines (dust and small particles): These are essential for filling the remaining voids, binding the larger particles together, and creating a dense, stable layer that resists movement and water ingress (to a degree).

The angularity of the crushed particles also plays a significant role. Unlike rounded river gravels, the sharp, irregular shapes of crushed aggregate interlock more effectively, providing superior stability and load-bearing capacity.

The Crucial Role of a Sub-Base

The sub-base layer is arguably the most important part of any paved or hard-standing area, acting as the bridge between the unstable natural ground (sub-grade) and the surface course (e.g., block paving, asphalt, concrete). Its functions are multifaceted and critical for the long-term performance of the structure:

• Load Distribution: This is its primary function. The sub-base spreads the weight from the surface (e.g., vehicles, foot traffic) evenly over a larger area of the sub-grade. Without it, concentrated loads would cause the surface to deform, crack, or sink.
• Providing a Stable Platform: It creates a firm, level, and consistent working platform for the layers above, ensuring that the final surface is uniform and doesn't suffer from differential settlement.
• Minimising Frost Heave: In colder climates, water in the soil can freeze and expand, causing the ground to heave. A well-constructed sub-base can help to reduce the impact of frost heave by providing a stable, less susceptible layer.
• Limited Drainage: While not its primary purpose (unlike MOT Type 3), a Type 1 sub-base can offer some limited drainage by allowing water to move horizontally within the layer, away from the surface. However, due to its high fines content and tight compaction, its permeability is relatively low.
• Preventing Contamination: When used with a geotextile membrane, the sub-base prevents the sub-grade soil from migrating upwards and mixing with the aggregate, which would compromise its stability and load-bearing capacity.

Typical Applications of MOT Type 1

Given its superior strength and compaction properties, MOT Type 1 is the go-to material for a vast array of construction projects. Its versatility makes it indispensable for both large-scale commercial developments and smaller domestic improvements:

• Driveways: From residential driveways to heavy-duty commercial vehicle access, Type 1 provides the essential stable foundation.
• Patios and Paving: Ensures a solid, level, and durable base for all types of paving, preventing sinking or movement over time.
• Roads and Highways: Forms the critical sub-base layer for new road construction and repair, designed to withstand significant traffic loads.
• Building Foundations: Used as a compacted layer beneath concrete slabs for sheds, garages, conservatories, and even extensions, providing a stable footing.
• Car Parks: Essential for creating robust and long-lasting car parking areas.
• Pathways: Provides a firm foundation for pedestrian paths, ensuring they remain level and safe.
• Sports Pitches and Artificial Grass: Offers a stable, well-draining (when properly designed) base for artificial turf installations.
• Hardstandings: Any area requiring a strong, compacted surface for storage, machinery, or other heavy use.

Installation Best Practices

Achieving a high-quality, long-lasting sub-base with MOT Type 1 depends heavily on correct installation. Skipping steps or rushing the process will compromise the entire structure above it.

1. Site Preparation: Begin by clearing the area of any vegetation, topsoil, and debris. Excavate to the required depth, ensuring the underlying natural ground (sub-grade) is firm and level. If the sub-grade is soft or unstable, it may need to be improved or replaced.
2. Geotextile Membrane (Optional but Recommended): Lay a suitable non-woven geotextile membrane directly on the prepared sub-grade. This acts as a separation layer, preventing the MOT Type 1 from mixing with the soil beneath and helping to prevent weed growth. It also aids in distributing load and can improve overall stability.
3. Layering and Compaction: This is the most crucial step. MOT Type 1 should not be laid in one thick layer. Instead, spread the aggregate in lifts of no more than 100-150mm (4-6 inches) at a time. Each layer must be thoroughly compacted using appropriate machinery. For smaller areas, a vibrating plate compactor (wacker plate) is sufficient. For larger areas, a roller is necessary.
4. Moisture Content: For optimal compaction, the MOT Type 1 should have the correct moisture content – it should be damp, but not saturated. If it's too dry, it won't compact properly; if it's too wet, it can become boggy. Lightly spray with water if too dry.
5. Achieving Final Levels: Use pegs, string lines, or a laser level to ensure each layer is compacted to the correct depth and level. Once the final layer is compacted, it should be firm, even, and consistent across the entire area. You should be able to walk across it without leaving significant footprints.

MOT Type 1 vs. Other Aggregates

It's important to differentiate MOT Type 1 from other common aggregates, as using the wrong material can lead to project failure. Here's a comparative overview:

MOT Type 3 is often confused with Type 1. The key difference is the reduced fines content in Type 3, which makes it much more permeable. This is ideal for applications where water needs to drain quickly through the sub-base, such as permeable paving or SUDS compliant projects. However, its lower fines content means it doesn't compact as tightly or offer the same ultimate load-bearing capacity as Type 1 for non-permeable surfaces.

How Much Do I Need? Calculating Your Requirements

Calculating the amount of MOT Type 1 you need is crucial to avoid over-ordering or running short. Follow these steps:

1. Measure the Area: Determine the length and width of the area you need to cover in metres (e.g., 5m long x 3m wide). Multiply these together to get the area in square metres (5m x 3m = 15m²).
2. Determine the Depth: Decide on the required depth of your sub-base in metres. Common depths are 100mm (0.1m) for patios, 150-200mm (0.15-0.2m) for driveways, and more for heavy-duty applications. Let's assume 150mm for a driveway (0.15m).
3. Calculate Volume: Multiply the area by the depth to get the volume in cubic metres (m³). (15m² x 0.15m = 2.25m³).
4. Convert to Tonnes: MOT Type 1 is typically sold by the tonne. The density of compacted MOT Type 1 is approximately 2 tonnes per cubic metre (T/m³). So, multiply your volume by 2. (2.25m³ x 2 T/m³ = 4.5 tonnes).
5. Add Contingency: It's always wise to add a 5-10% contingency for wastage, settlement, and slight variations in depth. For 4.5 tonnes, a 10% contingency would be 0.45 tonnes, bringing the total to approximately 5 tonnes.

Always round up to the nearest full tonne or bag size when ordering.

Cost Considerations

The cost of MOT Type 1 can vary significantly based on several factors:

• Quantity: Buying in bulk (e.g., in full tipper loads) is always cheaper per tonne than buying in smaller bulk bags (e.g., 1 tonne or half-tonne bags).
• Location: Prices can differ regionally due to quarry proximity and transport costs.
• Delivery Costs: Factor in the cost of delivery, especially for smaller quantities or remote locations.
• Supplier: Different aggregate suppliers will have varying prices. It's worth getting a few quotes.
• Source Material: Recycled Type 1 can sometimes be slightly cheaper than virgin quarried material, but this isn't always the case.

While it might be tempting to opt for cheaper, lower-quality aggregates, compromising on the sub-base material will almost certainly lead to future problems and higher repair costs. Investing in quality MOT Type 1 is a wise decision for the longevity of your project.

Common Pitfalls to Avoid

Even with the right material, installation errors can undermine your efforts:

• Insufficient Compaction: This is the most common mistake. If the Type 1 isn't compacted in thin layers, it will continue to settle over time, leading to an uneven or sinking surface.
• Inadequate Depth: Skimping on the depth of the sub-base means it won't be able to adequately distribute the load, leading to premature failure.
• Poor Sub-Grade Preparation: Laying Type 1 over soft, uneven, or contaminated ground will result in an unstable foundation.
• Using the Wrong Material: As discussed, Type 1 is not interchangeable with scalpings or ballast. Ensure you order and receive the correct aggregate.
• Ignoring Drainage: While Type 1 isn't highly permeable, ensuring overall site drainage is good is still important to prevent water build-up around the sub-base, which can lead to saturation and instability.

Frequently Asked Questions (FAQs)

Q: Can I use MOT Type 1 for drainage?

A: Not primarily. While it allows for some limited horizontal water movement, its high fines content means it compacts very tightly and has low vertical permeability. For projects requiring significant drainage through the sub-base, such as permeable paving, you should use MOT Type 3 aggregate, which has a much lower fines content.

Q: How deep should my MOT Type 1 sub-base be?

A: The required depth depends on the intended use and anticipated load:

• Light pedestrian traffic (e.g., patios, paths): 100-150mm (4-6 inches)
• Residential driveways (cars, light vans): 150-200mm (6-8 inches)
• Heavy commercial traffic (lorries, heavy machinery): 250mm (10 inches) or more, often with multiple layers and specific engineering designs.

These are general guidelines; always consult project-specific requirements or a professional.

Q: Do I need a membrane under MOT Type 1?

A: It is highly recommended. A non-woven geotextile membrane acts as a separation layer, preventing the MOT Type 1 from sinking into and contaminating the underlying soil (sub-grade). This maintains the integrity of your sub-base, improves stability, and can also act as a weed barrier. It's a small additional cost for significant long-term benefits.

Q: How much does a tonne of MOT Type 1 cover?

A: A tonne of compacted MOT Type 1 typically covers approximately 0.5 cubic metres. So, if you're laying it to a depth of 100mm (0.1m), one tonne would cover about 5 square metres (0.5 m³ / 0.1m = 5m²). If laying to 150mm (0.15m) depth, it would cover approximately 3.3 square metres (0.5 m³ / 0.15m = 3.33m²).

Q: What's the difference between MOT Type 1 and scalpings?

A: MOT Type 1 is a precisely graded, quality-controlled product specifically designed for sub-bases, adhering to strict specifications for particle size and compaction. Scalpings (sometimes called road plainings or general hardcore) are a more generic, less refined crushed aggregate, often with a wider and less consistent range of particle sizes (e.g., 0-75mm or 0-100mm) and highly variable fines content. While cheaper, scalpings are generally not suitable as a primary sub-base for high-load applications due to their inconsistent compaction properties and potential for settlement. They are more suited for bulk fill or temporary access roads.

Q: Can I mix MOT Type 1 with cement to make concrete?

A: No, MOT Type 1 is not suitable for mixing with cement to make concrete. For concrete, you need 'ballast', which is a specific mix of sand and gravel (typically 20mm down or 10mm down) that has the correct aggregate-to-sand ratio for binding with cement and water to form concrete. The fines content and grading of MOT Type 1 are not appropriate for structural concrete mixes.

Conclusion

MOT Type 1 sub-base aggregate is far more than just a pile of crushed rock; it is the fundamental building block for almost any durable hard-standing surface in the UK. Its precise grading, excellent compaction properties, and superior load-bearing capabilities make it indispensable for ensuring the longevity and stability of driveways, patios, roads, and foundations.

By understanding what MOT Type 1 is, why it's specified, and how to install it correctly, you equip yourself with the knowledge to achieve professional-grade results in your construction projects. Never underestimate the importance of a solid foundation – it's the unseen hero that truly supports the weight of your investment and ensures years of reliable performance.
