Transfer Case Fluid: Your 4x4's Hidden Hero

For owners of four-wheel drive (4WD) or all-wheel drive (AWD) vehicles, understanding the intricacies of your drivetrain is paramount to ensuring its longevity and performance. While engine oil and transmission fluid often take centre stage in vehicle maintenance discussions, there's another crucial lubricant that quietly works behind the scenes: transfer case fluid. This often-overlooked fluid plays a vital role in distributing power to all four wheels, especially important given the diverse and often challenging driving conditions we experience across the UK. But what exactly is transfer case fluid, how often should it be changed, and do your usual oil change outlets even bother to check it?

What Exactly is a Transfer Case?

The rise in popularity of all-wheel and four-wheel drive vehicles has been remarkable, with a significant percentage of new cars now equipped with these sophisticated systems. At the heart of a 4WD or AWD system lies the transfer case. Its primary function is to direct drive power from the transmission to both the front and rear axles, ensuring optimal grip and performance, whether you're navigating a muddy track or simply dealing with a wet British road.

While the fundamental purpose remains the same, automakers employ various methods to achieve power to all four wheels. For smaller vehicles, manufacturers might integrate the transfer case function directly into the transmission, meaning it often shares the same fluid. In such cases, adhering to the recommended transmission fluid change intervals automatically takes care of the transfer case lubrication. However, larger SUVs, trucks, and many dedicated off-road vehicles frequently utilise a separate, standalone transfer case. This 'case' is typically bolted directly to the transmission and connects to two distinct driveshafts: one leading to the rear wheels and another to the front.

Inside this robust housing, you'll find a complex arrangement of shafts, gears, and various mechanisms designed to engage and disengage power to both axles on command. Unlike an engine or even a transmission, transfer cases generally don't feature an elaborate cooling system. Their design and function don't generate the same extreme levels of heat that would critically degrade their specialised lubricant, making the fluid's integrity even more critical for heat dissipation and wear prevention.

The Role of Transfer Case Fluid

Just like any other mechanical component with moving parts, the gears and shafts within a transfer case require constant lubrication to operate efficiently and prevent premature wear. This is where transfer case fluid comes in. It's a specialised lubricant, often available in traditional mineral or advanced synthetic blends, designed to withstand the unique demands of the transfer case environment.

This fluid acts as a hybrid, possessing properties similar to both axle gear oil and automatic transmission fluid. Its primary functions include:

• Lubrication: Reducing friction between rapidly moving gears and bearings.
• Cooling: Helping to dissipate the heat generated by friction within the case.
• Cleaning: Suspending and carrying away microscopic wear particles to prevent abrasive damage.
• Protection: Preventing corrosion and rust on internal components.

It is absolutely crucial to use the correct type of transfer case fluid specified by your vehicle's manufacturer. Most automakers require a specific formula, and using the wrong fluid can lead to accelerated wear, poor performance, and even catastrophic failure of the transfer case. While common fluids for high-volume cases can often be sourced from independent parts suppliers, dealerships are always a reliable source for the exact manufacturer-approved type. Prices can vary significantly, typically ranging from £15 to £80 or more per litre, though most transfer cases require less than two litres for a complete fluid change.

Do Oil Change Outlets Check Transfer Case Fluid?

This is a pertinent question for many vehicle owners, and the answer is generally, no, not as a standard procedure. While your local quick-lube garage or service centre will routinely check your engine oil, and perhaps even your transmission fluid, transfer case fluid often falls outside their typical inspection checklist. There are a few key reasons for this:

• No Dipstick: Unlike engine oil or many automatic transmissions, the vast majority of transfer cases do not have a dipstick for easy fluid level and condition checks.
• Access Required: To properly check the transfer case fluid, a technician usually needs to get under the vehicle and remove a specific check plug from the transfer case itself. This is more time-consuming than a simple dipstick check and requires specialist knowledge of the vehicle's underside.
• Specialised Fluid: As mentioned, transfer cases often require very specific fluid types. Many general oil change outlets might not stock the exact fluid required for your particular vehicle, making a top-up or change impractical for them.

Given these factors, if you want your transfer case fluid checked, it's essential to ask at the service counter specifically. Don't assume it's part of a routine oil change package. A visual inspection for leaks around the transfer case should ideally be part of any thorough undercarriage check during routine maintenance, but a fluid level and condition check requires more direct intervention.

Signs Your Transfer Case Fluid Needs Replacement

One of the most concerning aspects of failing transfer case fluid is that it often provides little to no warning before significant component damage occurs. Modern transfer cases rarely have dedicated temperature or fluid level warning systems that would alert you to an issue before internal parts begin to suffer. While leaks can occur, showing external signs of a problem, these are usually due to damaged seals or gaskets, not directly a fault of the fluid itself.

However, paying attention to certain symptoms can give you an early indication that your transfer case fluid is compromised:

• Difficulty Changing Gears / Unexpected Disengagement: If your vehicle's transmission feels rough when shifting, or if your 4WD system unexpectedly disengages from four-wheel drive mode, low or degraded transfer case fluid could be a contributing factor. The fluid assists in the smooth operation of internal mechanisms that facilitate gear changes and power distribution.
• Loud Noises While Driving: As transfer case fluid loses its lubricating properties due to age, contamination, or extreme heat, friction between the internal gears and bearings increases. This can lead to noticeable and often alarming noises such as grinding, whining, or howling sounds. These noises often become more pronounced when the four-wheel drive system is engaged or under load.
• Leaks: Any visible fluid leaking from the transfer case housing is a clear sign of a problem. While often indicative of a damaged seal or gasket, a leak means fluid levels are dropping, which will inevitably lead to insufficient lubrication and potential damage. In some rarer cases, highly contaminated or overheated fluid can also degrade seals, contributing to leaks.
• Decreased 4WD Performance: If you notice that your 4WD system isn't engaging as smoothly or effectively as it once did, or if your vehicle struggles for traction in conditions where it previously excelled, low fluid levels or contaminated fluid could be the culprit. Proper fluid levels and quality are essential for the transfer case to efficiently transfer power to all wheels.

A proactive approach is best: having a visual inspection for leaks and, if possible, a fluid level and condition check of the transfer case at every oil change is an easy and effective way to stay on top of things and potentially prevent costly repairs.

How Often Should Transfer Case Fluid Be Changed?

The service interval for transfer case fluid varies significantly between vehicle manufacturers and even between different models from the same manufacturer. Generally, intervals can range from 60,000 km (approximately 37,000 miles) to over 100,000 km (approximately 62,000 miles). The most accurate information for your specific vehicle will always be found in your owner's manual or by contacting a dealership service department.

However, these are often minimum recommendations for "normal" driving conditions. If you regularly subject your vehicle to demanding situations, such as:

• Towing heavy loads
• Frequent off-road driving
• Driving in extreme temperatures (very hot or very cold)
• Frequent short trips that don't allow the fluid to reach optimal operating temperature

Then it's highly advisable to inspect and potentially change your transfer case fluid more frequently than the manufacturer's recommended schedule. Some mechanics recommend an inspection every 50,000 km (approximately 30,000 miles) for vehicles under stress, ensuring there are no leaks and the fluid maintains its lubricating properties.

Transfer Case Fluid vs. Transmission Fluid: Are They the Same?

This is a common point of confusion for many vehicle owners. The simple answer is: no, they are not the same, though there are specific exceptions that add to the confusion.

In most larger 4WD/AWD vehicles, the transfer case is a completely separate unit from the transmission, and as such, it requires its own dedicated fluid. This fluid is formulated specifically to handle the unique stresses and lubrication requirements of the transfer case's internal gears and chain drives.

However, in some smaller or crossover AWD vehicles, the transfer case functionality might be integrated directly into the transmission housing. In these cases, the transfer case components share the same fluid as the transmission. If your vehicle falls into this category, then maintaining your transmission fluid according to the manufacturer's schedule will also cover the lubrication needs of the integrated transfer case.

It is absolutely critical to consult your vehicle's owner's manual to determine if your transfer case is a standalone unit or integrated with the transmission, and what type of fluid it requires. Using the wrong fluid can lead to severe damage to either component.

Comparison Table: Transfer Case Fluid vs. Transmission Fluid

Transfer Case Fluid Change Cost

The cost of changing transfer case fluid is generally quite reasonable, especially when compared to the potential repair costs of a damaged transfer case. The service typically involves:

• Labour: The labour portion usually averages around half an hour of shop time. At typical UK garage rates, this could range from £55 to £80.
• Fluid: As mentioned, fluid prices can range from £15 to £80+ per litre, and most transfer cases require less than two litres.

So, a total cost for a transfer case fluid change could realistically be anywhere from £85 to £240, depending on the fluid type required for your vehicle and the garage's labour rates. Given the critical role the fluid plays, this is a small investment to protect a significantly more expensive component.

How to Check Transfer Case Fluid (DIY)

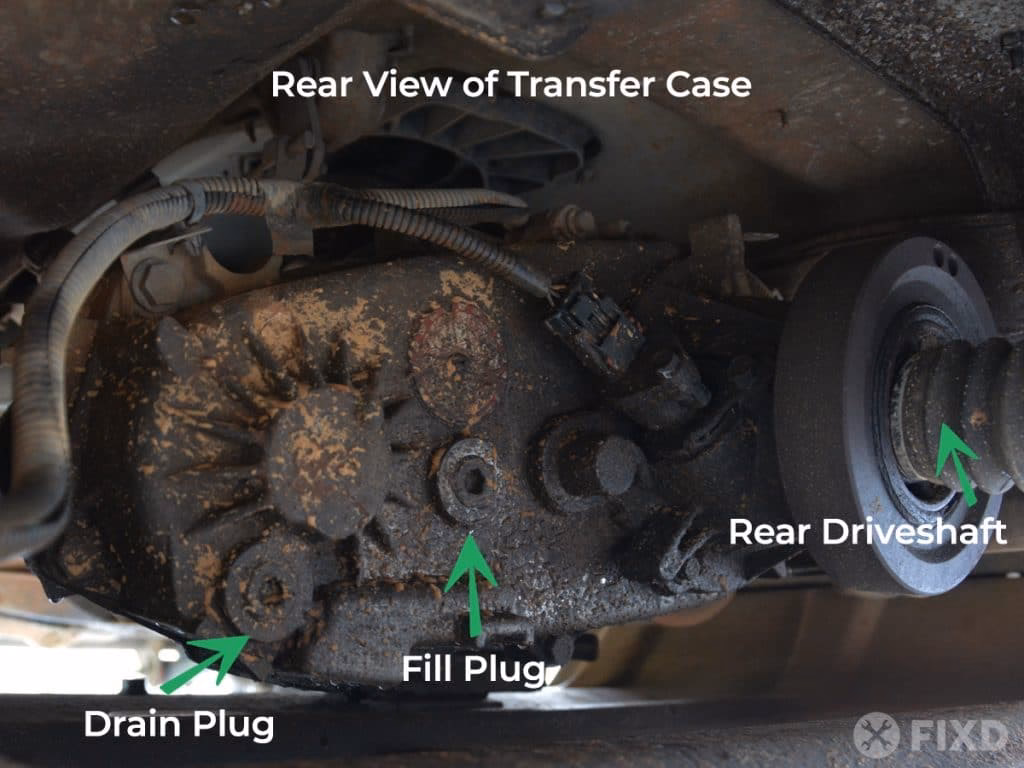

For the confident DIY mechanic, checking your transfer case fluid can be a straightforward task, provided you have the right tools and safety precautions in place. Most transfer cases have two plugs: a drain plug at the bottom and a fill/check plug typically located higher up on the side of the case.

Here's a general guide:

1. Safety First: Ensure your vehicle is on a level surface and securely supported by jack stands if you're lifting it. Never work under a vehicle supported only by a jack.
2. Locate the Transfer Case: It's usually found behind the transmission, connecting to both front and rear driveshafts.
3. Identify the Plugs: There will be two plugs, often hexagonal bolts. The fill/check plug is usually higher than the drain plug. It's crucial to open the fill plug first to ensure you can refill the fluid once drained.
4. Check Fluid Level: With the vehicle level, carefully remove the fill/check plug. The fluid level should ideally be at or just below the bottom edge of the fill hole. You can insert a short length of stiff, clean wire or even a finger (carefully!) into the hole to gauge the level. If fluid immediately starts to dribble out, it's full. If you can't feel any fluid, it's low.
5. Assess Fluid Condition: Observe the colour and smell of the fluid. Healthy transfer case fluid is typically clear or light amber. If the fluid is black, murky, or has a distinct burnt odour, it's a strong indicator that it needs to be changed immediately. Metallic particles or a milky appearance (indicating water contamination) are also signs of serious problems.
6. Refill (if low/changing): If you're topping up or performing a full fluid change, ensure you use the exact manufacturer-specified fluid. Use a fluid pump or a funnel with a long hose to carefully fill the case until fluid begins to seep out of the fill hole.
7. Replace Plugs: Once complete, securely replace both the fill and drain plugs (if you drained it), ensuring they are torqued to the manufacturer's specifications to prevent leaks.

Remember, if you're unsure or uncomfortable with any step, it's always best to consult a professional mechanic. They have the right tools, knowledge, and experience to perform the service safely and correctly.

Maintaining Your 4WD System's Health

Like most automotive components with moving parts, the transfer case benefits from regular use. Engaging your four-wheel drive system for a short run (even if just on a clear road, as long as it's not a dry, high-traction surface for part-time 4WD systems) monthly is an excellent way to ensure the system remains lubricated and will work when you truly need it. This helps circulate the fluid and keeps the internal mechanisms from seizing due to prolonged inactivity.

Additionally, always be attentive to any new or unusual noises coming from your vehicle. Grinding, howling, or a new vibration, especially when the 4WD system is engaged, should be taken seriously as potential signs of transfer case issues. In such cases, promptly have a professional inspect your vehicle to diagnose and rectify the problem before it escalates into a more significant and costly repair.

Frequently Asked Questions About Transfer Case Fluid

What happens if I don't change my transfer case fluid?

Neglecting transfer case fluid changes can lead to severe consequences. Over time, the fluid degrades, losing its lubricating properties and becoming contaminated with metal particles from normal wear. This leads to increased friction, excessive heat, and accelerated wear on gears, bearings, and chains within the transfer case. Eventually, this can result in loud noises, difficulty engaging 4WD, decreased performance, and ultimately, catastrophic failure of the transfer case, requiring an expensive repair or replacement.

How much fluid does a transfer case typically hold?

Most passenger vehicle transfer cases typically hold between 1 to 2 litres of fluid. However, this can vary depending on the vehicle's make, model, and the specific transfer case design. Always refer to your vehicle's owner's manual for the precise capacity and fluid type.

Can I use regular gear oil in my transfer case?

Not necessarily. While some transfer cases might specify a type of gear oil (e.g., GL-4 or GL-5), many modern transfer cases require very specific, often synthetic, fluids formulated for their unique internal components and friction characteristics. Using the wrong type of fluid can cause significant damage. Always use the exact fluid specified in your owner's manual or by your vehicle manufacturer.

How can I tell if my transfer case fluid is low without a dipstick?

Since most transfer cases lack a dipstick, you'll need to locate the fill/check plug on the side of the transfer case. With the vehicle level, remove this plug. If fluid doesn't immediately seep out, it's likely low. You can carefully insert a finger or a small, clean, bent wire into the hole to gauge the fluid level, which should be at or just below the bottom edge of the fill opening.

Is a transfer case fluid change a DIY job?

For those comfortable with basic vehicle maintenance and proper safety procedures, checking and changing transfer case fluid can be a DIY job. It primarily involves safely elevating the vehicle, locating the plugs, draining the old fluid, and refilling with the correct new fluid. However, if you're unsure about any step, lack the proper tools, or are uncomfortable working under a vehicle, it's always best to have a qualified mechanic perform the service.

By understanding the importance of transfer case fluid and ensuring its timely inspection and replacement, you can significantly contribute to the longevity and reliable performance of your 4WD or AWD vehicle, ensuring it's ready for whatever the road – or lack thereof – throws at it.
