N57 Engine: Swirl Flaps & Essential Upkeep Guide

The BMW N57 engine, a powerhouse of efficiency and performance found in many modern BMWs, has garnered a reputation for its robust design. However, like any sophisticated piece of engineering, it comes with its own set of considerations for long-term ownership and optimal performance. One common concern that often arises among owners, particularly those familiar with older BMW diesel engines, revolves around the dreaded swirl flaps. Let's delve into the realities of N57 engine maintenance, addressing these concerns and offering practical advice to keep your BMW running smoothly.

Swirl Flaps on the N57: Dispelling the Myth

For years, BMW diesel engines were notorious for issues with their swirl flaps. These small components, located within the inlet manifold, are designed to create a swirl effect in the air intake at lower RPMs, improving air-fuel mixture and combustion efficiency. Unfortunately, on older M47 and M57 engines, these flaps were prone to failure, often leading to them breaking off and potentially causing catastrophic engine damage. This historical context naturally leads N57 owners to question the reliability of their own swirl flaps.

However, it's crucial to understand that the N57 engine represents a significant evolution in BMW's diesel technology. BMW engineered the swirl flaps in the N57 with a much more robust design, largely mitigating the failure risks associated with earlier generations. Reputable sources and extensive owner experience confirm that the N57’s swirl flaps are generally not a problem area. Unlike their predecessors, which often required proactive removal for peace of mind, the N57's design is far more resilient. Therefore, you can typically rest assured that your N57's swirl flaps are unlikely to be a source of mechanical distress.

The Often-Overlooked Inlet Manifold and Coking

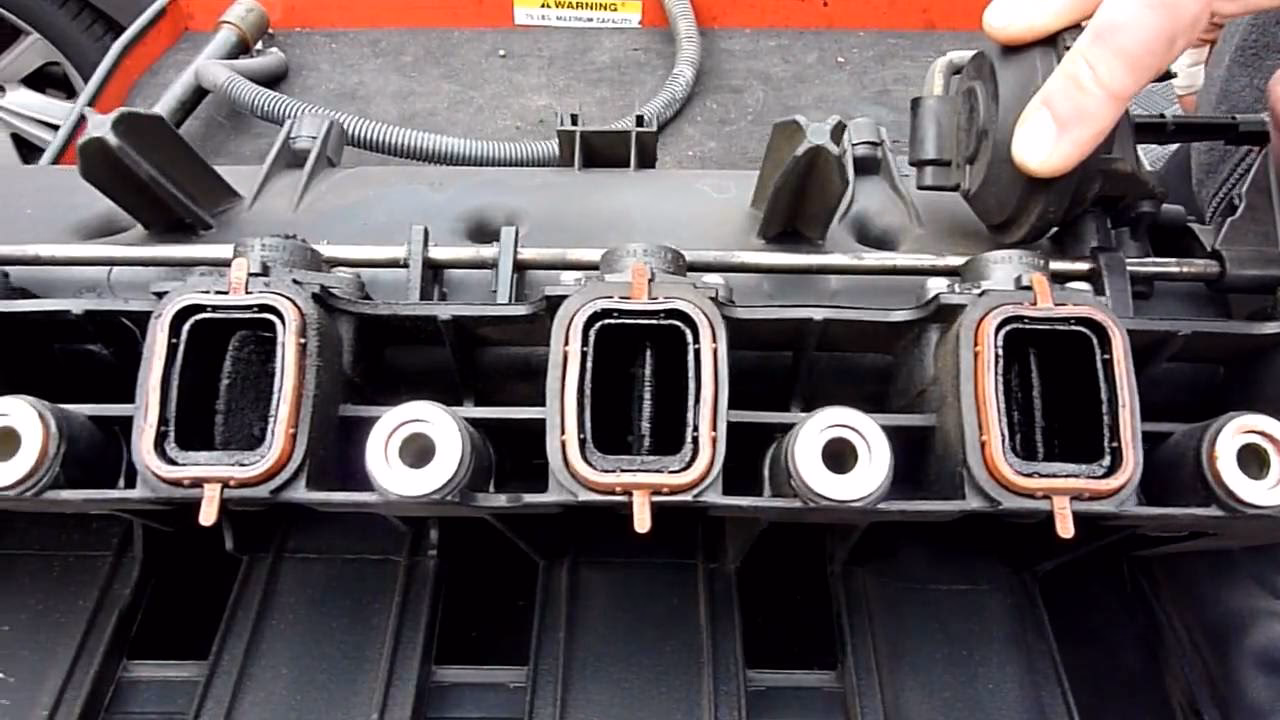

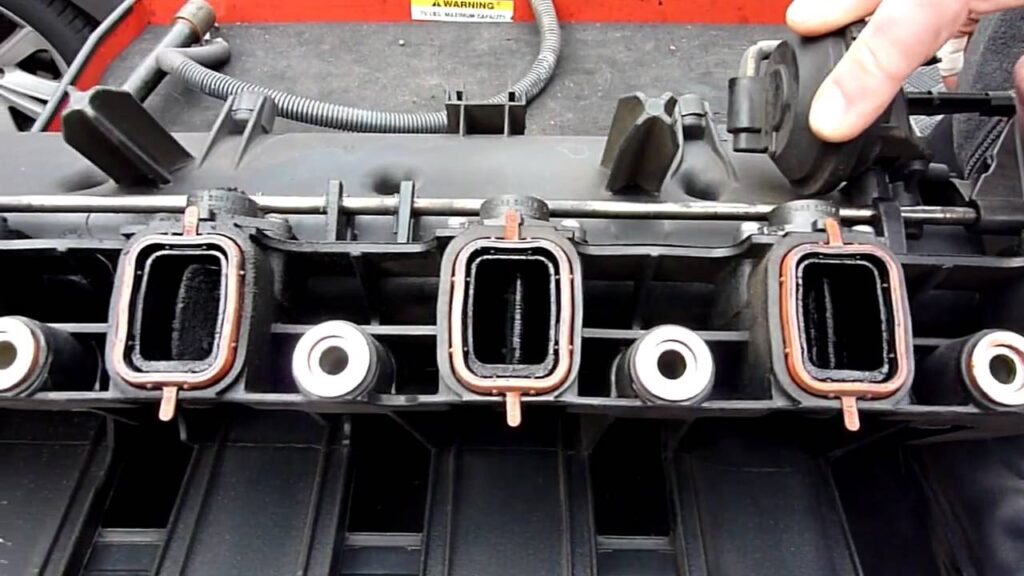

While the swirl flaps themselves may not be a concern, their housing – the inlet manifold – certainly can be. Diesel engines, especially those equipped with Exhaust Gas Recirculation (EGR) systems, are prone to carbon build-up, often referred to as "coking." This coking occurs when exhaust gases, containing soot and oil vapours, are recirculated back into the intake system. Over time, these deposits accumulate, forming thick layers within the inlet manifold and on the intake ports of the cylinder head.

Severe coking can significantly restrict airflow, leading to a host of performance issues. These can include reduced power, poor fuel economy, increased exhaust emissions, and even rough idling or hesitation. The swirl flaps, though robust, can become less effective or even somewhat impeded if the coking is severe around their mechanisms. Depending on your N57's mileage and driving style (frequent short journeys exacerbate the issue), a thorough cleaning of the inlet manifold may become necessary. This is a labour-intensive job, often requiring the removal of the manifold, but it can dramatically restore engine breathing and efficiency.

Diesel Particulate Filter (DPF) Considerations

The Diesel Particulate Filter (DPF) is a critical component of modern diesel engines, designed to capture harmful soot particles from the exhaust gases, preventing them from being released into the atmosphere. The DPF periodically undergoes a regeneration process, where the accumulated soot is burned off at high temperatures, turning it into harmless ash. While highly effective, DPFs can become clogged over time, especially if the vehicle doesn't get enough long, high-speed runs to allow for proper regeneration cycles.

Some owners consider DPF removal, often for perceived performance gains or to avoid replacement costs if it becomes blocked. However, it is absolutely vital to understand the legal implications in the UK. DPF removal is illegal and constitutes an automatic MOT (Ministry of Transport) failure if identified. MOT inspectors are trained to check for the presence of a DPF on vehicles that originally came with one, and also for any signs of tampering. If you choose to remove the DPF, which is highly discouraged due to its environmental impact and illegality, the vehicle’s Engine Control Unit (ECU) will require specific coding to reflect this modification. Without this coding, the ECU will detect the absence of the DPF and trigger error codes, often putting the car into 'limp mode'. Specialists like Darkside, known for their expertise in BMW tuning, can perform such coding, but they will also advise on the legal ramifications.

Exhaust Gas Recirculation (EGR) System Management

The Exhaust Gas Recirculation (EGR) system is another emission control device found on the N57 engine. Its purpose is to reduce nitrogen oxide (NOx) emissions by recirculating a portion of the exhaust gases back into the engine's combustion chambers. While environmentally beneficial, the EGR system is a primary contributor to the aforementioned inlet manifold coking, as it introduces soot-laden exhaust gases into the intake.

Similar to DPF removal, some owners opt for an EGR delete or to code out the EGR system. An EGR delete involves physically removing the EGR valve and associated piping, while coding it out involves reprogramming the ECU to prevent the valve from opening or to ignore its readings. As far as legality goes, while the physical removal of the EGR system is generally illegal and could lead to an MOT failure if detected as tampering with emissions equipment, simply coding the EGR valve to remain permanently closed is often a less detectable modification. This allows the engine to breathe only fresh, clean air, reducing carbon build-up in the inlet manifold and potentially improving engine longevity and throttle response. Again, ECU coding is necessary for this, and specialists can advise on the best approach for your specific needs, balancing performance with legal considerations.

Performance Remapping: Unlocking Your N57's Potential

Once you've ensured your N57 is in sound mechanical health, a performance remap can truly unlock its hidden potential. A remap involves optimising the engine's software, adjusting parameters such as fuel delivery, turbo boost pressure, and ignition timing (or injection timing for diesels) to produce more power and torque. The N57 engine, being a robust and well-engineered unit, responds exceptionally well to a professional remap.

Many owners find that even a straightforward 'Stage 1' remap, which doesn't require any hardware modifications, provides a significant and enjoyable increase in performance, making the car feel much more responsive and powerful. This can also lead to improved fuel efficiency under certain driving conditions, as the engine becomes more efficient. Reputable tuners, such as Darkside, have extensive experience with the N57 and can provide tailored remap solutions that maximise performance while maintaining reliability. They can also integrate any necessary coding for DPF or EGR modifications, though it's always wise to discuss the legal implications with them thoroughly.

Automatic Gearbox Servicing: A Crucial Neglect

Often overlooked, particularly on vehicles with 'sealed for life' gearboxes, is the importance of servicing your automatic transmission. While BMW may market these gearboxes as 'sealed for life,' this generally means sealed for the anticipated life of the first owner, not the entire lifespan of the vehicle. The automatic gearbox in your N57-powered BMW is a complex and highly stressed component, and its fluid degrades over time and mileage.

Old, contaminated gearbox fluid can lead to harsh shifts, delayed engagement, increased wear on internal components, and ultimately, premature failure. Servicing the gearbox typically involves draining the old fluid, replacing the filter (which is often integrated into the sump), and refilling with new, specified automatic transmission fluid. For most N57 models with ZF automatic transmissions, a service interval of approximately 60,000 to 80,000 miles is highly recommended. This proactive maintenance can significantly extend the life of your gearbox, ensure smooth shifts, and prevent costly repairs down the line.

General Maintenance Tips for Your N57

Beyond the specific points mentioned, general preventative maintenance is key to the longevity and performance of your N57 engine:

• Regular Oil Changes: Adhere to or even shorten the recommended oil change intervals, using high-quality, manufacturer-approved synthetic oil. Fresh oil is vital for engine health.
• Fuel Filter Replacement: A clean fuel filter is essential for protecting your high-pressure fuel system from contaminants. Replace it regularly according to service schedules.
• Air Filter Checks: Ensure your engine is breathing clean air by regularly checking and replacing the air filter. A clogged filter can restrict airflow and impact performance and economy.

Maintenance Task Importance Overview

Here's a quick overview of the importance and common considerations for key N57 maintenance tasks:

Frequently Asked Questions (FAQs)

Q: Are N57 swirl flaps really problem-free?

A: Generally, yes. Unlike older BMW diesel engines, the N57's swirl flaps were redesigned to be much more robust and are not a common failure point. Concerns usually stem from the reputation of previous generations.

Q: How often should I clean my inlet manifold?

A: This largely depends on mileage and driving style. There isn't a fixed interval, but if you notice reduced performance, poor fuel economy, or error codes, it's worth investigating. Some owners consider it every 80,000-100,000 miles as preventative maintenance, especially if the EGR system is active.

Q: Is DPF removal legal in the UK?

A: No, DPF removal is illegal in the UK and will result in an MOT failure if detected. It also has significant environmental consequences.

Q: What are the benefits of an ECU remap for my N57?

A: A professional remap can significantly increase horsepower and torque, improve throttle response, and potentially enhance fuel efficiency. It can transform the driving experience of your N57.

Q: When should I service my automatic gearbox?

A: Despite some manufacturers claiming 'sealed for life', it's highly recommended to service your N57's automatic gearbox (e.g., ZF 8HP) every 60,000 to 80,000 miles. This includes fluid and filter replacement to ensure longevity and smooth operation.

In conclusion, while the N57 engine is a formidable piece of engineering, proactive maintenance is key to its longevity and performance. Rest assured regarding the swirl flaps, but pay close attention to the inlet manifold for coking. Be acutely aware of the legal implications surrounding DPF and EGR modifications. A well-executed remap can elevate your driving experience, and critically, do not neglect your automatic gearbox servicing. Consulting with reputable specialists, such as Darkside, will ensure your N57 receives the expert care it deserves, keeping it on the road and performing at its best for years to come.
