Regenerative Braking Explained

Regenerative braking is a fascinating technology that's becoming increasingly common in modern vehicles, particularly electric vehicles (EVs) and hybrids. But what exactly is it, and how does it differ from the traditional braking systems we're all familiar with? In essence, regenerative braking is a clever way for your car to recapture energy that would otherwise be lost as heat during deceleration. This captured energy is then either used immediately or stored for later use, typically in the vehicle's battery. While the concept might sound straightforward, a deeper dive reveals a complex interplay of engineering that significantly impacts driving experience and efficiency. Let's explore the world of regenerative braking and answer some of the most pressing questions surrounding this innovative automotive feature.

What Exactly Is Regenerative Braking?

The concept of regenerative braking isn't entirely new; it has been around for decades, with early applications dating back to 1967. Initially developed for an early electric vehicle model, the primary goal was to channel the energy generated during braking back into the car's battery. However, it wasn't until the surge in popularity of hybrid and electric vehicles, epitomised by models like the Toyota Prius, that regenerative braking truly came into its own. Today, it's a cornerstone technology for most EVs and a significant feature in many hybrid vehicles, playing a crucial role in their overall efficiency and performance.

How Does Regenerative Braking Work?

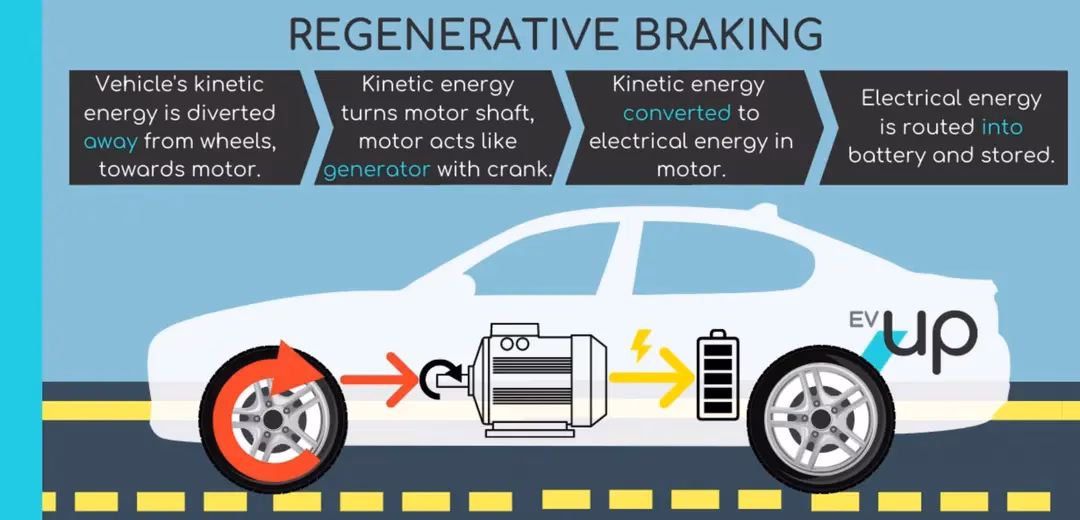

The underlying principle of regenerative braking is rooted in the fundamental physics of electric motors. When you lift your foot off the accelerator or apply the brakes, the electric motor within the vehicle essentially reverses its function. Instead of drawing power from the battery to drive the wheels, it acts as a generator. The kinetic energy of the moving vehicle, which would normally be dissipated as heat through friction in traditional brakes, is instead used to spin the motor. This spinning motor then generates electricity, which is directed back to the car's battery for storage. This process effectively slows the vehicle down, hence the term 'braking'.

It's important to distinguish regenerative braking from traditional friction braking. Traditional braking systems rely on the physical interaction between brake pads and rotors. When you press the brake pedal, hydraulic pressure forces the pads against the rotors, creating friction that converts kinetic energy into heat, slowing the car. Regenerative braking, on the other hand, primarily utilises the electric motor and, in many cases, works in conjunction with the conventional friction brakes. The vehicle's sophisticated control unit determines the optimal braking strategy based on driving conditions, blending regenerative and friction braking seamlessly to provide both efficient energy recovery and reliable stopping power.

Regenerative Braking vs. Traditional Braking

To better understand regenerative braking, let's compare it directly with traditional friction braking:

What Are The Disadvantages Of Regenerative Braking?

While regenerative braking offers numerous advantages, it's not a perfect substitute for traditional braking in all scenarios. Its effectiveness can be limited, particularly during hard or sudden braking. In situations requiring rapid deceleration, such as emergency stops or aggressive driving, the vehicle's control system will typically rely more heavily on the traditional friction brakes. This is because friction brakes offer a more immediate and forceful response. Regenerative braking is most effective during gradual slowing, such as approaching a red light, descending a hill, or simply lifting off the accelerator while coasting. The vehicle's sophisticated control systems are designed to seamlessly blend these two braking methods, prioritising safety and efficiency based on the driver's input and the current driving conditions.

Is Regenerative Braking Efficient?

The efficiency of regenerative braking systems has improved dramatically over the years. Modern systems are capable of recapturing a remarkable portion of the energy generated during braking, often recovering as much as 60% to 70% of the kinetic energy that would otherwise be wasted. While this is a substantial improvement, it's important to note that regenerative braking alone isn't sufficient to completely recharge an electric or hybrid vehicle for indefinite travel. However, it plays a significant role in extending the vehicle's range and can also contribute to a longer lifespan for the traditional brake components. By reducing the reliance on friction brakes, regenerative braking can lead to less wear and tear on brake pads and rotors, potentially saving owners money on maintenance and replacement costs over time.

How Often Should I Maintain a Regenerative Braking System?

Regenerative braking systems are marvels of modern engineering, and a key benefit is their minimal impact on traditional braking components. Because they don't rely on friction for their primary operation, the components directly involved in the regenerative process (like the electric motor and associated electronics) typically require very little direct maintenance. However, it's crucial to remember that vehicles equipped with regenerative braking systems still possess conventional friction brakes. These systems include essential components like brake pads, rotors, brake fluid, and calipers.

While regenerative braking reduces the frequency of use for these friction components, this infrequent use can paradoxically lead to issues. Irregular use can increase the risk of rust forming on the rotors, especially in climates with high humidity or during periods of infrequent driving. Furthermore, brake fluid can degrade over time, and seals can dry out. For these reasons, manufacturers generally recommend adhering to a regular inspection schedule for the entire braking system, including both the regenerative and friction components. This typically involves:

• Regular Inspections: Having the brake system checked at manufacturer-recommended intervals.
• Component Lubrication: Ensuring that the caliper slide pins and other moving parts of the friction braking system are properly lubricated to prevent seizing.
• Brake Fluid Checks: Verifying the condition and level of the brake fluid, and performing flushes as recommended.
• Visual Inspection: Checking brake pads and rotors for wear, even if they appear to be used less frequently.

By maintaining the entire braking system, you ensure the continued safety and reliability of your vehicle, regardless of whether it's using regenerative or friction braking at any given moment.

Electric Regenerative Braking in EVs

The advancements in electric regenerative braking for EVs are truly impressive. Modern systems incorporate sophisticated control algorithms, integrated sensors, and adaptive technologies to optimise energy recovery. These intelligent systems can dynamically adjust the braking force and energy capture based on numerous factors, including battery charge level, vehicle speed, and even road conditions. This continuous optimisation allows EVs to return a significant percentage of their braking energy directly to the battery, thereby extending the vehicle's range and improving overall energy efficiency. The integration of these smart features makes the driving experience smoother and more efficient, maximising the benefits of electric propulsion.

Frequently Asked Questions

Q1: Is regenerative braking the same as "Regen braking"?

Yes, "Regen braking" is simply a common abbreviation for regenerative braking. The terms are used interchangeably.

Q2: Can regenerative braking completely replace traditional brakes?

No, regenerative braking typically works in conjunction with traditional friction brakes. Friction brakes are still essential for hard stops and emergency situations where regenerative braking alone may not provide sufficient stopping power.

Q3: Does regenerative braking wear out the electric motor?

No, using the electric motor as a generator for regenerative braking does not cause wear and tear in the same way that using it for propulsion does. In fact, it generally leads to less wear on the traditional brake components.

Q4: Will I feel regenerative braking?

Yes, you will often feel regenerative braking as a deceleration force when you lift your foot off the accelerator pedal. Many EVs offer adjustable levels of regenerative braking, allowing drivers to tailor the feel to their preference.

Q5: Does regenerative braking help save fuel in a hybrid car?

Absolutely. By recapturing energy that would otherwise be lost, regenerative braking reduces the workload on the internal combustion engine and the need to draw power from the battery, thereby improving overall fuel efficiency in hybrid vehicles.

In conclusion, regenerative braking is a pivotal technology in the evolution of automotive engineering, significantly enhancing the efficiency and sustainability of electric and hybrid vehicles. Understanding how it works and its relationship with traditional braking systems empowers drivers to appreciate the innovations under the bonnet and how they contribute to a more efficient and enjoyable driving experience.
