Diesel Injector Pump Timing: The Crucial Factor

In the intricate world of diesel engines, countless components work in harmony to produce power. Yet, few elements hold as much sway over an engine's performance, efficiency, and environmental impact as diesel injector pump timing. It's a concept often misunderstood, even by seasoned enthusiasts, but its precise management is fundamental to the very operation and longevity of a diesel power unit.

At its core, diesel injector pump timing refers to the exact moment the fuel is injected into the combustion chamber relative to the piston's position. This isn't merely about squirting fuel; it's about delivering it with pinpoint accuracy, milliseconds before, or sometimes even after, the piston reaches its highest point, known as Top Dead Centre (TDC). The electronic control unit (ECU) of your vehicle plays a pivotal role here, constantly monitoring engine parameters to determine the optimal injection point. It reads data from the Crank Angle Sensor to know precisely where each piston is in its cycle and, based on pre-programmed tables and real-time compensation factors (such as air temperature, airflow, engine speed, boost pressure, and throttle position), it commands the injectors to fire.

Understanding Injection Timing and Pressure

The act of fuel injection in a diesel engine is a complex dance between timing and pressure. These two factors are intrinsically linked and collectively dictate the efficiency and output of the combustion process. While some might confuse 'injection open time' (how long the injector is open, which affects fuel quantity) with 'actual injector opening time' (when the injection event begins relative to crank angle), it's the latter that defines the timing we're discussing.

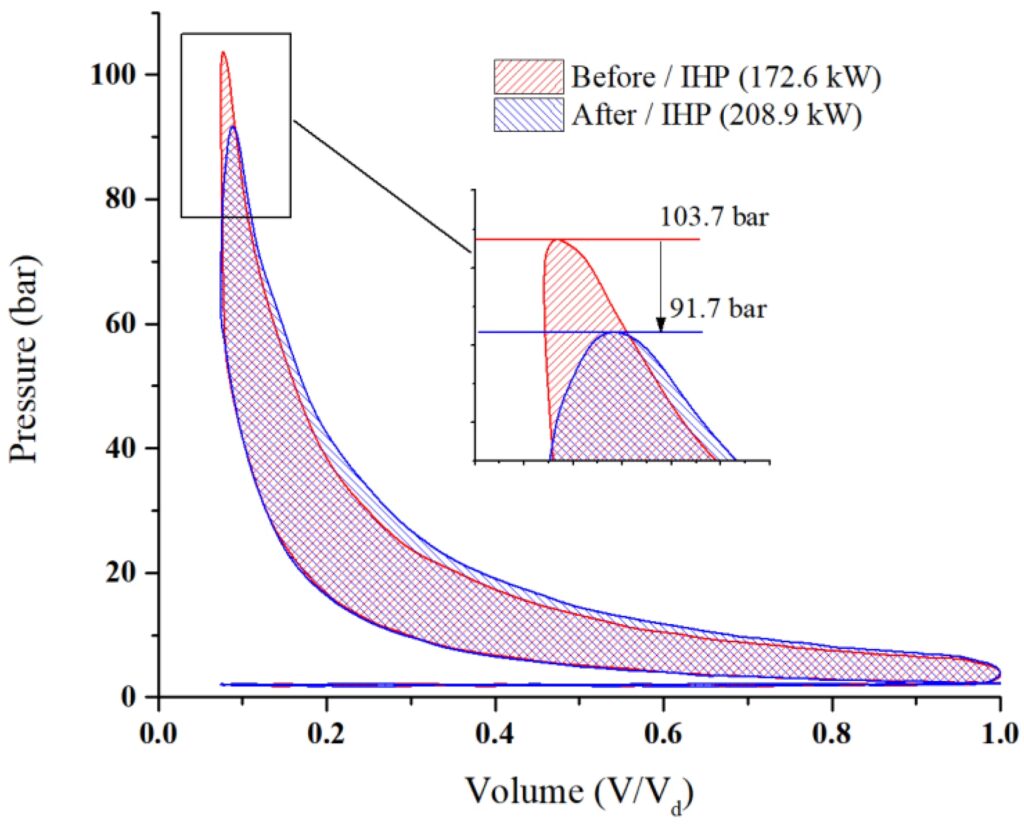

Once fuel is injected and ignited, it takes a finite amount of time for the flame front to propagate and for the expanding gases to exert useful work on the piston. The goal is to ensure that the peak cylinder pressure – the point of maximum force – occurs when the piston and connecting rod are in the most advantageous position to apply leverage to the crankshaft. This optimal point typically falls around 20-30 degrees After Top Dead Centre (ATDC). Injecting the fuel too late means that by the time combustion is complete and peak pressure is achieved, the piston will have already travelled too far down the cylinder, resulting in significantly reduced torque production.

Conversely, injecting the fuel too early also presents challenges. If fuel is introduced and ignites too far before TDC, the rapidly building pressure can actually work against the piston as it's still trying to rise towards TDC. This phenomenon is often referred to as 'negative power' or 'Delta N', where power is lost rather than gained. While some Delta N is inevitable, excessive early injection leads to vastly higher peak cylinder pressures, placing immense strain on engine components and potentially leading to premature wear or even catastrophic failure. The delicate balance lies in finding the sweet spot where the small amount of power lost to Delta N is overwhelmingly compensated by the greater positive power (Delta P) generated as the piston descends.

The speed at which the fuel-air mixture burns also plays a crucial role. This burn rate is influenced by factors like boost pressure and air temperature – the denser and hotter the air, the faster the combustion. Furthermore, the design of the combustion chamber itself, whether it's a pre-combustion chamber in an indirect injection engine or a direct injection chamber within the piston crown, significantly impacts how rapidly the flame front advances once ignition occurs.

The Impact on Engine Performance and Emissions

The provided research highlights that injection strategies, particularly timing and pressure, are paramount in determining engine performance, especially regarding pollutant emissions. It's a trade-off that manufacturers constantly grapple with. For instance:

• Early Injection: Generally leads to lower soot emissions but higher Nitrogen Oxides (NOx). This is because early injection allows for a more complete burn at lower temperatures before the piston reaches its peak compression, reducing particulate matter. However, the higher combustion temperatures overall can promote NOx formation.
• Late Injection: Tends to result in higher soot emissions but lower NOx. The delayed combustion means less time for complete burning, leading to more unburnt fuel and particulates. However, the slightly lower peak combustion temperatures can reduce NOx formation.

This demonstrates the intricate balance required. Manufacturers often tune engines for optimal emissions compliance, which, as we'll discuss, isn't always aligned with peak power or fuel efficiency.

Comparative Table: Injection Timing Effects

High-Pressure Injection: A Path to Efficiency

Beyond timing, the pressure at which fuel is injected is equally vital. Modern common rail diesel systems operate at incredibly high pressures, often exceeding 2,000 bar (29,000 psi). The benefit of high-pressure injection is primarily better fuel atomisation. When fuel is injected at high pressure, it forms a finer mist, allowing it to mix more thoroughly with the air in the combustion chamber. This improved mixing leads to a more complete and efficient combustion process.

Research indicates that combining high-pressure injection with suitable injection timing can significantly reduce both fuel consumption and emissions while simultaneously increasing engine power. Better atomisation means more of the fuel is burnt effectively, extracting maximum energy and leaving fewer unburnt hydrocarbons and particulates. This synergy is a cornerstone of modern diesel engine design, enabling them to meet stricter emissions standards while still delivering impressive performance and economy.

Why Precise Timing Matters: Beyond Factory Settings

It's a common misconception that factory injection timing is perfectly optimised for all aspects of engine performance. In reality, original equipment manufacturers (OEMs) prioritise one factor above all others: exhaust emissions. Factory timing is calibrated to meet stringent regulatory standards for pollutants, which often means sacrificing a degree of peak torque, engine efficiency, or even long-term engine longevity.

For example, a mere 2 degrees of crankshaft rotation earlier in injection timing can sometimes yield an 8-10 kW (approximately 11-13 bhp) gain at the wheels, with no additional fuel or boost. This seemingly insignificant change can unlock considerable power and efficiency. However, such a modification would typically lead to a significant increase in emissions, which is why OEMs do not implement it. This highlights the inherent compromise in factory tuning.

The need for precise timing also varies dramatically with engine speed. At low engine speeds, the piston moves relatively slowly, so the timing doesn't need to be extremely fast to ensure peak cylinder pressure is reached at the optimal 20-30 degrees ATDC. However, as engine speed increases, the piston's velocity rises sharply. To compensate for this faster movement and still achieve peak pressure at the ideal point, the fuel must be injected progressively earlier.

Factors Influencing Optimal Timing

Achieving optimal timing is a dynamic process influenced by numerous variables:

• Engine Speed: As discussed, higher RPMs require earlier injection.
• Engine Load: Under heavier loads, more fuel is required, and timing adjustments are made to manage combustion effectively.
• Air Temperature and Pressure: Denser, colder air burns differently than hot, thin air, necessitating timing adjustments.
• Fuel Quality: Variations in cetane number and density can affect ignition delay and burn rate.
• Combustion Chamber Design: Impacts flame propagation speed.
• Injector Condition: Worn or dirty injectors can alter spray patterns and atomisation, affecting effective timing.

Tuning specialists often adjust injection timing to maximise torque and power output, improve fuel economy, or even reduce specific types of emissions, provided the engine components can withstand the altered pressures and temperatures. This is a highly specialised field, and incorrect timing adjustments can lead to severe engine damage, reduced efficiency, or excessive emissions.

Frequently Asked Questions (FAQs)

Q1: Can I adjust my diesel injector pump timing myself?

A1: For modern, electronically controlled diesel engines, manual adjustment of injection timing is generally not possible or advisable without specialised diagnostic equipment and software. The ECU manages timing dynamically. Any adjustments should be performed by experienced technicians with the correct tools and knowledge of engine mapping to avoid damage.

Q2: How do I know if my injection timing is off?

A2: Symptoms of incorrect injection timing can include reduced engine power, increased fuel consumption, excessive smoke (black or white), rough idling, knocking sounds from the engine, difficulty starting, or unusual exhaust smells. A diagnostic scan tool can often reveal timing-related fault codes or allow a technician to monitor timing parameters.

Q3: Does injection pressure affect timing, or vice versa?

A3: While distinct, injection pressure and timing are interdependent in their effect on combustion. High pressure improves atomisation, which can make the combustion process faster and more complete, indirectly influencing the optimal timing point. Conversely, the ideal timing relies on the fuel being delivered at the correct pressure for effective atomisation and mixture formation.

Q4: Why is factory timing not ideal for performance?

A4: Factory timing is primarily optimised for meeting strict emissions regulations. Achieving the lowest possible pollutant output often requires compromises in other areas, such as peak power, maximum torque, and optimal fuel efficiency. OEMs must balance these factors, with emissions usually taking precedence due to legal requirements.

Q5: Is it safe to modify injection timing for more power?

A5: Modifying injection timing for performance gains (e.g., via 'chipping' or 'remapping') can be safe if done by a knowledgeable and reputable tuner who understands the specific engine and its limits. Incorrect timing can lead to dangerously high cylinder pressures, excessive engine temperatures, increased wear on components, and ultimately, engine failure. Always seek professional advice before considering such modifications.

In conclusion, diesel injector pump timing is far more than a simple mechanical setting; it's a dynamic, constantly adjusted parameter that is central to a diesel engine's entire operation. Understanding its complexities, the delicate balance between timing, pressure, and the resultant impact on performance, efficiency, and emissions, is key to appreciating the engineering marvel that powers so many of our vehicles. For optimal engine health and performance, precise timing is not just beneficial – it's absolutely essential.
