Fuel Injector Balancing: Myth, Reality & Rates

When your vehicle's engine isn't running as smoothly as it should, or perhaps you're noticing a dip in its usual fuel economy, the intricate workings of the fuel system often come under scrutiny. Among the components crucial to efficient engine operation are the fuel injectors, precise instruments designed to deliver a finely atomised spray of petrol into the combustion chambers. Yet, the terminology surrounding these components, particularly concepts like 'fuel injector balancing' and 'balance rates', can often lead to confusion. This article aims to demystify these terms, separating the practical realities from common misconceptions, and providing you with a clearer understanding of how your fuel injectors truly function and how their performance is assessed.

Understanding the nuances of fuel injector performance is not just for professional mechanics; it's vital for any vehicle owner looking to maintain optimal engine health and avoid costly repairs. We'll explore what 'balancing' truly implies for fuel injectors, why the concept of re-balancing individual, used injectors is largely a myth, and how the diagnostic 'balance rate' provides critical insights into your engine's internal health. Let's delve into the world of fuel injection to ensure your vehicle remains a paragon of efficiency on the UK's roads.

The Truth About Fuel Injector 'Balancing'

The term 'fuel injector balancing' often conjures an image of a technician meticulously adjusting individual injectors to achieve perfect uniformity in their operation. In an ideal world, every fuel injector would deliver precisely the same quantity of fuel and produce an identical spray pattern as its counterparts in a set. This uniformity is absolutely critical for an engine to run smoothly, efficiently, and cleanly. Uneven fuel delivery can lead to a multitude of problems, from rough idling and misfires to increased emissions and even long-term engine damage.

In reality, new fuel injectors, straight from the manufacturer, are indeed supplied as balanced sets. This means that manufacturers, whether for automotive, motorcycle, or marine engines, rigorously test their newly produced injectors. Those that exhibit highly consistent spray patterns and fuel delivery volumes are then grouped together to form these 'balanced' or more accurately, 'flow-matched' sets. They don't individually 'balance' each injector post-production; rather, they sort them based on their inherent performance characteristics.

Why Injectors Become 'Unbalanced' Over Time

Over the lifespan of a vehicle, even the most meticulously matched set of fuel injectors can lose their initial uniformity. The primary culprits behind this degradation are dirt and contamination. Modern petrol, despite filtration, can still contain microscopic particles and deposits that, over time, accumulate within the tiny orifices of the fuel injector nozzle. This build-up can alter the delicate spray pattern, causing it to become irregular, and restrict the flow of fuel, leading to a reduction in the quantity delivered. Furthermore, heat cycles and general wear can also impact the pintle's shape or the internal components, contributing to uneven performance.

When an injector's spray pattern or flow rate deviates significantly from the others in the set, the engine's combustion process becomes inconsistent across cylinders. This inconsistency manifests as various drivability issues or reduced engine performance, such as a noticeable rough idle, hesitation during acceleration, misfires, or even a decrease in fuel economy.

The Myth of Aftermarket Re-Balancing

You might encounter claims online from companies that advertise services to 'flow test and balance fuel injectors'. While the 'flow testing' aspect of this claim is entirely legitimate and crucial, the 'balancing' part, in the sense of precision re-engineering an individual, used injector to exact specifications, is largely a myth. To our knowledge, there isn't a widely available or practical technology that allows companies to precisely re-drill the microscopic outlet holes of a fuel injector or regrind the pintle shape to such exacting tolerances that would truly 'balance' a used injector in terms of both spray pattern and flow rate.

Yes, some highly specialised facilities might use laser technology to re-drill nozzle holes, but they generally cannot guarantee that the injector set you send them will return as a perfectly 'balanced' set in the same way a new, factory-sorted set would be. The precision required is simply too high for a cost-effective aftermarket service on individual, worn components.

How Aftermarket 'Balanced' Sets Are Created

So, if re-balancing isn't truly feasible, how do aftermarket suppliers provide 'balanced' sets? The process is quite different from what one might assume. In the aftermarket, suppliers typically source used injectors, often from scrap yards or dismantled vehicles. These injectors undergo a thorough ultrasonic cleaning process. Ultrasonic cleaning is incredibly effective at removing accumulated dirt, varnish, and carbon deposits from both the internal and external components of the injector, restoring its original flow characteristics and spray pattern as closely as possible.

After cleaning, each injector is then meticulously flow tested. Based on these flow tests, injectors with highly similar fuel delivery volumes are grouped together to create 'flow-matched sets'. This is the aftermarket equivalent of a 'balanced' set. The key takeaway here is that these injectors are matched by performance, not re-engineered to achieve a specific performance. The same principle applies when injectors are modified to deliver more fuel for performance applications; they are modified in bulk, then flow-matched into sets based on their new, higher flow rates, but typically without precise spray pattern matching for individual injectors.

There is nothing inherently wrong with this practice; it’s a valuable service that provides reliable, cost-effective replacement sets. The misunderstanding simply lies in the terminology. It's about 'flow-matching' existing injectors, not 'balancing' them through re-manufacturing.

Understanding Fuel Injector Balance Rate: A Diagnostic Tool

Distinct from the concept of 'balancing' fuel injectors, the 'fuel injector balance rate' is a crucial diagnostic parameter used by your vehicle's Engine Control Module (ECM) and accessed by a diagnostic scan tool. This test is performed when symptoms like a misfire, engine knock, excessive smoke, or a rough running condition are present, especially if no specific electrical fault codes (DTCs) related to the injectors are stored.

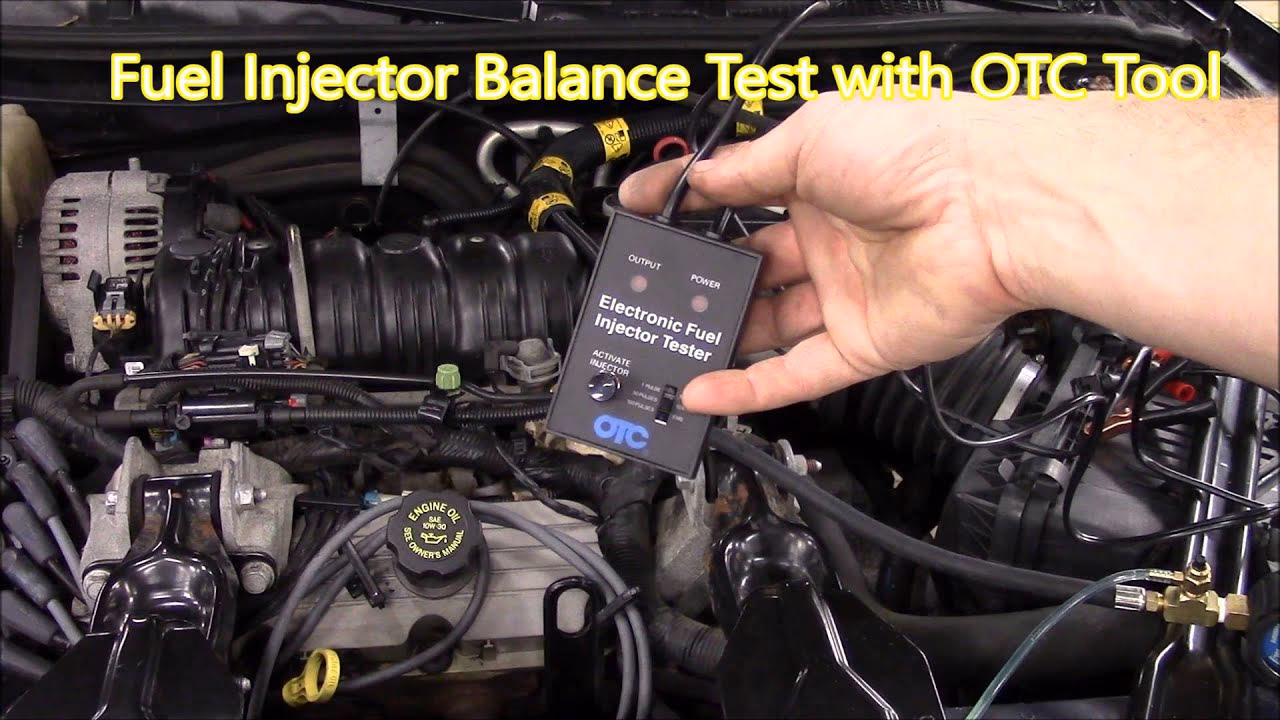

Circuit Description and How it Works

During a Cylinder Power Balance test, which is often part of a broader diagnostic procedure, the ECM can momentarily turn off individual fuel injectors while the engine is running. A professional scan tool then displays the engine RPM. While the ECM attempts to compensate for the momentary drop in engine speed when an injector is turned off, the technician can often 'feel' or observe the power contribution of each cylinder. If turning off a particular injector results in a different or less significant change in engine behaviour compared to other cylinders, it indicates a problem with that cylinder's power contribution, which could be related to the fuel injector or engine compression.

The balance rates themselves are the ECM's continuous, dynamic adjustments to the fuel delivery for each individual cylinder. These adjustments are based on minute variations in the engine crankshaft speed. The ECM constantly monitors the rotational speed of the crankshaft as each cylinder fires. If one cylinder is contributing less power than the others, the crankshaft will momentarily slow down more during its power stroke. Conversely, if a cylinder is contributing more power, the crankshaft might accelerate more. The ECM then adjusts the fuel pulse width for that specific injector to try and equalise the power contribution across all cylinders.

Interpreting Balance Rate Values

The balance rates are typically expressed as positive or negative values:

• Positive Value: A positive balance rate indicates that the ECM is ADDING fuel to that specific cylinder's event. This typically suggests that the cylinder is under-contributing power. Common reasons for a positive balance rate include a fuel injector that is not flowing enough fuel (e.g., partially clogged), or, critically, poor engine compression in that cylinder. The ECM is trying to compensate for a lean condition or lack of power by enriching the mixture.
• Negative Value: A negative balance rate indicates that the ECM is REMOVING fuel from that specific cylinder's event. This suggests the cylinder is over-contributing power or experiencing an overly rich condition. This is often indicative of a fuel injector that is flowing too much fuel (e.g., a leaking or stuck-open injector). The ECM is attempting to lean out the mixture to bring the cylinder's power contribution in line with the others.

It's important to note that balance rates are primarily utilised by the ECM at idle. They can also change depending on whether the transmission is in Neutral or Drive, as the engine's load conditions vary significantly between these states.

Diagnostic Implications and Considerations

When diagnosing with balance rates, several factors are considered:

• Fuel Pressure Stability: Before concluding an injector or compression issue, it's crucial to confirm that the ECM can maintain stable fuel pressure. A high balance rate might only point to an injector or compression issue if the fuel pressure is within specifications and stable. Unstable fuel pressure can throw off balance rate readings for all cylinders.
• Cylinder Power Balance Test: This test can be performed across various engine speeds and loads, from idle to wide-open throttle (WOT). It allows a technician to observe performance under different conditions, complementing the idle-specific balance rate readings. Many scan tools, like the Tech 2 mentioned, have specific procedures for these tests.
• Comprehensive Diagnosis: Balance rates are a powerful indicator but should always be part of a broader diagnostic strategy. For example, a high positive balance rate might suggest a clogged injector, but a compression test is essential to rule out low engine compression as the root cause. Similarly, a leaking injector (negative balance rate) might also cause other symptoms like black smoke or a strong fuel smell.

By understanding and correctly interpreting fuel injector balance rates, skilled technicians can quickly pinpoint problematic cylinders and narrow down the potential causes, saving diagnostic time and ensuring accurate repairs.

Common Symptoms of Unbalanced or Faulty Injectors

When fuel injectors aren't performing optimally, either due to contamination or a mechanical fault, your vehicle will often exhibit a range of noticeable symptoms. Recognising these signs early can prevent more significant problems down the line:

• Rough Idle: Perhaps the most common symptom. If your engine feels like it's shaking or vibrating excessively at a standstill, it could be due to one or more cylinders not firing consistently because of uneven fuel delivery.
• Misfires: A misfire occurs when a cylinder fails to combust the fuel-air mixture. This can feel like a sudden jerk or hesitation while driving. The Engine Management Light (EML) will often illuminate, and a diagnostic scan will usually reveal a misfire code for a specific cylinder.
• Poor Fuel Economy: If an injector is leaking or delivering too much fuel (running rich), your engine will consume more petrol than necessary, leading to a noticeable increase in your fuel bills. Conversely, if an injector is under-delivering, the ECM might compensate by over-fuelling other cylinders or running the engine inefficiently overall.
• Check Engine Light (CEL) / Engine Management Light (EML): The EML will illuminate for various reasons, including misfires or issues detected by oxygen sensors when the air-fuel mixture is incorrect due to faulty injectors.
• Reduced Power and Acceleration: An engine relies on all cylinders contributing equally for optimal power. If injectors are performing inconsistently, you'll likely experience a noticeable drop in acceleration and overall engine power.
• Increased Emissions: Incomplete combustion due to poorly atomised fuel or an incorrect air-fuel mixture will lead to higher levels of harmful pollutants being expelled from the exhaust. You might fail your MOT's emissions test.
• Difficult Starting: Especially noticeable when the engine is cold, faulty injectors can make it harder for the engine to fire up due to insufficient or excessive fuel delivery during cranking.
• Fuel Smell: A strong smell of petrol, particularly around the engine bay, could indicate a leaking fuel injector or fuel rail, which is a significant fire hazard and requires immediate attention.

Maintenance and Professional Advice

While true re-balancing of individual injectors is not a common practice, maintaining your fuel injectors and addressing issues promptly is crucial. Here are some key considerations:

• Quality Fuel: Always use high-quality petrol from reputable stations. Cheaper fuels may contain more impurities or fewer detergents, contributing to deposit build-up.
• Fuel Filter Replacement: Regularly replacing your fuel filter as per your vehicle's service schedule is paramount. A clogged fuel filter restricts flow and can lead to injectors starving for fuel or becoming clogged themselves.
• Fuel System Cleaners: Over-the-counter fuel system cleaners can be effective for minor deposit build-up, but they are not a substitute for professional cleaning. Use reputable brands and follow instructions carefully.
• Professional Ultrasonic Cleaning: If you suspect your injectors are clogged, professional ultrasonic cleaning is the most effective solution. This process, combined with flow testing, can restore most dirty injectors to near-new performance.

Comparative Table: Symptoms vs. Potential Fuel System Issues

Frequently Asked Questions

Q: Can I clean my fuel injectors myself?
A: DIY fuel injector cleaning kits are available, but they are generally less effective than professional ultrasonic cleaning. They can help with minor deposits but won't resolve significant clogging or internal mechanical issues. For best results, professional cleaning and flow testing are recommended.

Q: How often should fuel injectors be serviced or cleaned?
A: There's no fixed schedule, as it depends on fuel quality, driving conditions, and vehicle age. However, if you notice any of the symptoms mentioned above, or if your vehicle has high mileage (e.g., over 100,000 miles) and has never had its injectors professionally cleaned, it's worth considering.

Q: Are aftermarket 'flow-matched' sets as good as new factory sets?
A: High-quality aftermarket 'flow-matched' sets can perform very well, especially for standard road use. They offer a cost-effective alternative to brand-new factory injectors. Ensure you purchase from reputable suppliers who provide flow test reports.

Q: What's the difference between 'balancing' and 'flow-matching'?
A: 'Balancing' implies re-engineering an individual injector to achieve perfect uniformity. For used injectors, this is largely a myth. 'Flow-matching' means grouping existing injectors that already perform similarly in terms of fuel delivery and spray pattern into a set. New injectors are factory 'flow-matched' or sorted.

Q: Can a bad fuel injector damage my engine?
A: Yes, a severely faulty injector can cause significant engine damage over time. An injector that leaks excessively can wash away oil from cylinder walls, leading to premature wear. An injector that is severely restricted can cause a cylinder to run too lean, leading to high combustion temperatures, potentially melting spark plug electrodes, or even damaging pistons and valves. Addressing injector issues promptly is vital.

In conclusion, while the concept of 'fuel injector balancing' as a re-manufacturing process for used injectors is largely a misconception, the importance of uniform fuel delivery cannot be overstated. Manufacturers ensure new injectors are flow-matched, and aftermarket solutions provide cleaned and flow-matched sets. More importantly, the 'fuel injector balance rate' is an invaluable diagnostic tool, allowing your vehicle's ECM and skilled technicians to identify and address cylinder-specific performance issues. By understanding these distinctions and paying attention to your vehicle's symptoms, you can ensure your fuel system remains in top condition, contributing to a smooth, efficient, and reliable driving experience.
