Understanding OBD: Your Car's Digital Doctor

Modern vehicles are far more than just mechanical marvels; they are intricate networks of sophisticated electronics and computer systems. Gone are the days when a quick glance under the bonnet and a basic wrench set could solve most automotive woes. Today, when your car develops a 'niggle' or a warning light illuminates on the dashboard, it's often a complex electronic issue that requires a digital diagnosis. This is where On-Board Diagnostics (OBD) steps in, acting as your vehicle's digital doctor, capable of identifying and communicating almost every issue within its sophisticated systems.

From a simple low oil level to a misplaced spring or a faulty sensor, OBD provides near-universal codes that allow vehicle owners and mechanics alike to understand precisely what's going awry. By grasping the evolution of OBD, the nuances between OBD-I and OBD-II, and the various code readers and scanners available, you can empower yourself to address a vast array of issues that might arise in your cherished automobile.

What Exactly is On-Board Diagnostics (OBD)?

At its core, OBD, standing for On-Board Diagnostic, is a standardised system enabling external electronic devices to interface with a car's internal computer system. Its significance has grown exponentially as vehicles have become increasingly computerised, with software now playing a pivotal role in diagnosing problems, unlocking performance, and ensuring regulatory compliance.

The concept of OBD predates the modern 'infotainment' systems and 'connected car' functionalities we see today. Its emergence was primarily driven by two critical factors: the pressing need to regulate vehicle emissions and the widespread adoption of electronic fuel injection (EFI) by car manufacturers, which began in earnest during the 1980s. Unlike older carburettor or mechanical fuel-injection systems, EFI relies heavily on computer control to regulate fuel flow into the engine with electronic signals, marking the first major push for computers within vehicles.

The Evolution of OBD: From OBD-I to OBD-II

While several automakers introduced their own proprietary computer interfaces for their vehicles prior to the 1990s, a concerted push for standardisation didn't truly commence until 1991. It was then that the California Air Resources Board (CARB) mandated that all cars sold in California must possess some form of OBD capability. However, it wasn't until 1994 that CARB issued specific standards for these systems, leading to what we now know as OBD-II. This comprehensive standard was officially implemented for the 1996 model year and remains the prevalent system in use today. Earlier, non-standardised iterations of OBD were retroactively classified as OBD-I.

Virtually every new car sold in the UK and most other developed nations over the past two decades adheres to the OBD-II standard. OBD-II compliant vehicles feature a standardised 16-pin port, typically located under the dashboard on the driver's side, allowing diagnostic devices to connect directly to the car's computer. This universal port has opened up a world of possibilities for diagnostics, performance tuning, and even telematics applications.

OBD-I: The Predecessor

Early versions of OBD-I, such as GM's Assembly Line Diagnostic Link (ALDL) from 1981, represented manufacturers' proprietary diagnostic systems. These systems would often simply illuminate a 'Check Engine Light' (CEL) or 'Service Engine Soon' (SES) light if a problem was detected, but offered little specific information about the nature of the fault. Diagnostic trouble codes (DTCs) from OBD-I vehicles were often read through the blinking patterns of these lights, or by connecting specific pins on the diagnostic connector. The means of reporting diagnostic information were not standardised, leading to difficulties in implementing effective emissions testing programmes.

OBD 1.5: A Transitional Phase

The term 'OBD 1.5' refers to a partial implementation of OBD-II that General Motors utilised on some vehicles during the 1994, 1995, and 1996 model years. These vehicles might have featured some OBD-II characteristics, such as a post-catalyst oxygen sensor, but did not fully comply with the complete OBD-II standard. For instance, the 1994–1995 Corvettes, while having two catalytic converters, only had one post-catalyst oxygen sensor and a subset of OBD-II codes implemented. These hybrid systems required specific OBD 1.5 compatible scan tools to read their codes.

OBD-II: The Standard Bearer

OBD-II represents a significant leap forward in both capability and standardisation compared to OBD-I. It precisely defines the type of diagnostic connector and its pinout, the electrical signalling protocols available, and the messaging format. It also provides a comprehensive list of vehicle parameters to monitor and how their data should be encoded. A key feature is the power supply pin in the connector, which powers the scan tool directly from the vehicle battery, eliminating the need for a separate power source. This standardisation means that a single OBD-II compliant device can query the on-board computer(s) of virtually any modern vehicle.

While initially prompted by emissions requirements, most manufacturers have adopted the OBD-II Data Link Connector as the sole port for diagnosing and programming all vehicle systems. OBD-II Diagnostic Trouble Codes are four-digit codes, preceded by a letter indicating the system: P for powertrain (engine and transmission), B for body, C for chassis, and U for network.

Delving into Diagnostics: How OBD-II Works

As its name suggests, diagnostics remain the primary purpose of OBD-II. When a car's array of sensors detects an anomaly, they trigger a message known as a 'trouble code'. This often manifests as the dreaded 'check engine' light, or Malfunction Indicator Light (MIL), illuminating on your dashboard. OBD scanners can then plug into the port, read these trouble codes, and determine the exact nature of the fault. Once the problem is rectified, the scanner can also clear these codes from the computer's memory, switching off the MIL.

However, these trouble codes are precisely that: codes. Instead of a clear diagnosis like 'loose fuel cap', you'll typically see a string of letters and numbers, such as P0440, P0442, or P0445, which are incomprehensible without a reference. Trouble codes begin with a letter and include four or five numbers that collectively pinpoint the specific subsystem and the problem it's experiencing. While some advanced OBD scanners come preloaded with definitions for these codes, for others, you'll need to consult a reference guide or an online database. It's also important to note that in addition to generic codes applicable to all cars, individual manufacturers often have their own specific codes, which can be trickier to find.

OBD-II Scanners vs. Code Readers: Knowing the Difference

Many people often confuse a 'code reader' with a full 'OBD-II scanner', but there are crucial distinctions. Code readers are generally less expensive and perform simpler functions. They can read basic generic trouble codes (often referred to as P0 codes) and are usually capable of turning off the MIL light. However, their capabilities are limited.

OBD-II scanners, on the other hand, are far more sophisticated. They can read both generic (P0) and enhanced (P1) codes. Enhanced codes are manufacturer-specific and often provide more detailed diagnostic information. Crucially, scanners can also display the 'readiness status' of your car's OBD-II system monitors, which is vital for emissions compliance and MOT tests in the UK. This ability to read both types of codes and monitor readiness makes a scanner a far more valuable investment for comprehensive vehicle diagnostics.

The 'View Data' Menu and Professional Scanners

Authentic and quality OBD-II scanners often feature a 'view data' menu, which grants you access to the actual real-time numbers being read by the Powertrain Control Module (PCM). This can include data on oxygen-sensor functionality, engine RPM and load, air and water temperature, and other critical parameters. For those with a pro-grade scanner, a graphics function allows technicians to monitor several parameters simultaneously while the engine is running, providing a dynamic view of the vehicle's performance and helping to pinpoint intermittent issues.

This level of detail can empower you to gain a deeper understanding of your vehicle's condition and help you decide whether a problem is simple enough to tackle yourself or if professional intervention is required.

Beyond Diagnostics: Performance and Telematics

While diagnostics are the most critical function, OBD equipment isn't limited to just identifying faults. These versatile tools can also be harnessed for performance enhancements and even mainstream telematics applications.

OBD for Performance Tuning

Several aftermarket brands offer both OBD-II data loggers and performance tuners that access critical vehicle systems through the dashboard port. Data loggers can track mundane metrics like fuel economy, but more excitingly, they can record lap times and power output. Professional racers routinely rely on this data to analyse their track performance and fine-tune their cars, and there's no reason why enthusiasts shouldn't leverage similar capabilities.

Furthermore, some companies provide performance upgrades that remap or alter software through the OBD-II port to unlock additional horsepower. Given modern vehicles' reliance on computer controls, these software changes can be as effective as bolting on a new air intake or exhaust system. However, it's crucial to note that such upgrades may have negative side effects on reliability or fuel economy and could potentially void your factory warranty. Always check the implications before installing any performance-enhancing software.

OBD Dongles and Telematics

In recent years, companies have begun to exploit OBD-II for more mainstream applications through 'dongles' – small devices that plug directly into the OBD-II port and connect wirelessly to a network. These dongles are sometimes issued by insurance companies as a means to offer discounts. By pulling data from the car's OBD-II connection, they analyse driving habits (such as speed, braking severity, mileage, and time of day) to assess risk and award discounts for low-risk behaviour.

Other devices, like Verizon's Hum (an example from the US market, similar services exist in the UK), implement telematics features comparable to those offered by vehicle manufacturers through subscription services. These dongles can sync with your smartphone, providing statistics, running diagnostics, enabling roadside assistance, and even tracking a stolen car. Some even offer geofencing and speed alerts, providing peace of mind for parents of new drivers.

The Security Implications of Third-Party Devices

While convenient, it is absolutely essential to acknowledge that using third-party OBD-II devices, especially those that connect wirelessly to external networks, poses inherent security risks. By connecting your vehicle's computer to an outside network, you bypass a necessary safety barrier, potentially exposing your car to harmful cyber attacks. Plugging a device into the OBD-II port grants it access to your car's system, and if that device or the network it connects to is compromised, hackers could exploit these weaknesses in various ways. Even a wireless network connection itself can be a point of vulnerability. It is up to each individual to weigh these potential security risks against the perceived benefits of using such devices.

Using an OBD-II Scanner: A Step-by-Step Guide

Using an OBD-II scanner is a straightforward process that doesn't require any special gifts or wizardry. While specific models may have slightly varying instructions, the following general steps apply to most:

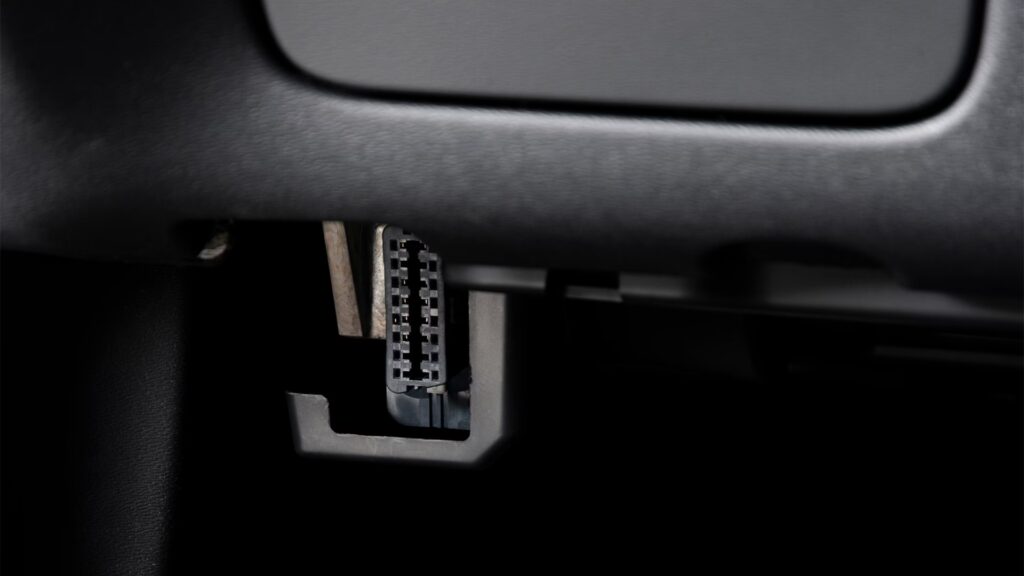

1. Preparation: Ensure your vehicle's ignition is off. Locate the standard OBD-II data link connector, usually found under the dashboard on the driver's side, to the left of the steering wheel. The scanner's cable will typically have a 16-pin plug designed to fit perfectly into this outlet.
2. Connection: Gently plug the OBD-II scanner into the data link connector. Be extremely careful, as the 16 pins are delicate and can bend or break if forced.
3. Initialisation: Turn the ignition key to the 'on' position (without starting the engine) or, as per your scanner's manual, start the car. Allow time for the scanner to initialise. Some models may require you to press a power button to begin this process. Always refer to your specific scanner's manual.
4. Data Entry: Once ready, the scanner may prompt you to input vehicle data, such as the make, model, engine type, and VIN.
5. Scanning: Initiate a 'read' or 'scan' of the vehicle's diagnostic system. Depending on the scanner model, this might involve pressing a specific button or navigating through a series of menus.
6. Code Retrieval: After the scan completes, the device will display one or more diagnostic trouble codes (DTCs). You can write these down, or if your scanner is compatible, transfer them to a laptop via USB or Bluetooth.
7. Code Interpretation: Consult your scanner's manual or an online database to understand what the DTCs signify. While manuals often cover basic codes, more enhanced or manufacturer-specific codes might require an online search.
8. Disconnection: Once you have recorded the error codes, turn off the vehicle's ignition and carefully unplug the OBD-II scanner.

Important Precautions When Using Your Scanner

• Gentle Handling: The 16-pin connector and its pins are delicate. Always connect and disconnect the scanner gently to avoid damage.
• Follow Instructions: Always turn the ignition on or have the car running as instructed in your scanner's manual. Failing to do so could corrupt the scanning software.
• Keep the Manual Handy: It is highly recommended to keep the manual for your specific scanner model accessible. A digital copy on your phone or tablet is ideal.

Understanding and Acting on Diagnostic Trouble Codes (DTCs)

It's crucial to understand that the trouble codes displayed by your OBD-II scanner are not the definitive diagnosis of your vehicle's problem. They are indicators pointing towards a specific system or component where an issue has been detected. For example, a P0131 code indicates a general sensor issue, but it doesn't tell you *why* the sensor is reporting a problem. Simply replacing the sensor might not resolve the underlying fault, and the MIL could reappear.

Unless you possess the necessary expertise, tools, and training to accurately decode the error and perform the repair, it is wise to have your vehicle inspected by a professional mechanic. Modern vehicle engines and onboard control systems are highly complex and often require specialised knowledge to diagnose and repair correctly. The good news is that if you've already identified the trouble code using your scanner, you can provide this information to the repair shop, which may save them diagnostic time and potentially lead to a discount on the service.

Resist the temptation to attempt complex repairs like replacing a timing belt if you lack the proper tools and know-how. Such actions can inadvertently cause more significant damage, leaving your vehicle grounded until a professional can rectify the situation. Know your limits and understand when to seek expert assistance.

Inspection and Maintenance (I/M) Readiness

Once a fault has been corrected and the MIL reset, your scanner will often provide an option for 'Inspection and Readiness' (I/M Readiness). This refers to a series of self-checks that your vehicle's PCM continuously runs to ensure that all emission-related systems are functioning correctly and that any previously detected faults have been rectified. The time required for the PCM to record 'readiness' varies by vehicle model and depends on specific driving cycles.

This readiness status is critically important, particularly in areas with mandatory emissions testing or for your annual MOT in the UK. If your car goes for an inspection and fails the I/M readiness test (meaning not all monitors have run and reported 'ready'), you will not receive your MOT certificate, even if no current fault codes are present. While a basic code reader can clear codes and turn off the 'Check Engine' light, it typically cannot display the readiness status, which can lead to failing an emissions test.

Knowing the readiness status allows you to ensure your vehicle is compliant before attending an inspection, preventing wasted time and re-test fees.

Global OBD Standards: Beyond OBD-II

While OBD-II is the dominant standard in North America, other regions have adopted their own equivalents, largely mirroring its technical implementation for global vehicle compatibility.

EOBD (European On-Board Diagnostics)

The European On-Board Diagnostics (EOBD) regulations are the European equivalent of OBD-II. These apply to all petrol-engined passenger cars (Category M1) first registered within EU member states since 1 January 2001, and for diesel-engined cars since 1 January 2004. For new models, these dates applied a year earlier. The technical implementation is essentially identical to OBD-II, utilising the same SAE J1962 diagnostic link connector and signal protocols. EOBD fault codes follow a similar five-character structure: a letter (e.g., P for powertrain), followed by four numbers, with the second character indicating compliance with the EOBD standard (e.g., P0xxx).

JOBD (Japanese On-Board Diagnostics)

JOBD is a specific version of OBD-II tailored for vehicles sold in Japan, adhering to their particular regulatory requirements.

ADR 79/01 & 79/02 (Australian OBD Standard)

The Australian Design Rule 79/01 is Australia's equivalent of OBD-II, applicable to petrol vehicles from 1 January 2006 and diesel vehicles from 1 January 2007. This standard was later supplemented by ADR 79/02, imposing tighter emissions restrictions. Like EOBD, its technical implementation is largely consistent with OBD-II.

Choosing the Right OBD-II Scanner for You

Investing in a quality OBD-II scanner is a decision that can save you significant money and empower you as a car owner. With a plethora of models on the market, it's important to choose one that aligns with your needs and your vehicle's compatibility.

Key Considerations When Purchasing:

• Compatibility: Ensure the scanner is compatible with your vehicle's specific on-board diagnostics system, especially if you own an older model or a specialised vehicle.
• Advanced Features: Opt for a scanner with advanced capabilities beyond basic code reading. Look for features that provide information on service light systems, air conditioning control, airbag control, and transmission control. These advanced insights can help you keep your car in top condition and avoid unnecessary trips to the garage.
• User-Friendliness: A scanner with an intuitive and easy-to-understand interface will significantly enhance your experience. Complexity isn't always better; clarity and comprehensive information are key.
• Cost vs. Value: While basic scanners can be found for as little as £20, professional-grade models can cost upwards of £400. Consider the long-term value. A quality scanner, combined with a good understanding of mechanics and proper tools, can potentially save you 70% or more on vehicle checks and minor repairs.

While a quality OBD-II scanner won't eliminate the need for a professional mechanic entirely, it will significantly reduce your reliance on them for basic diagnostics and enable you to approach repair shops with a clear understanding of your vehicle's issues, potentially leading to better service and even discounts.

Frequently Asked Questions About OBD

What does OBD stand for?

OBD stands for On-Board Diagnostics. It's a computerised system in vehicles that monitors the performance of the engine and other major components.

Is my car OBD-II compliant?

In the UK, all petrol cars sold after January 1, 2001, and all diesel cars sold after January 1, 2004, are required to be EOBD (European On-Board Diagnostics) compliant, which is functionally equivalent to OBD-II. Most cars sold globally since 1996 will be OBD-II compliant.

Can I clear a 'Check Engine' light with an OBD scanner?

Yes, most OBD-II scanners allow you to clear the 'Check Engine' light (MIL) by erasing the stored diagnostic trouble codes. However, if the underlying problem is not fixed, the light will likely reappear.

Are OBD dongles safe to use?

While convenient, third-party OBD dongles that connect wirelessly to external networks can pose security risks. They grant access to your car's internal systems, and if compromised, could potentially expose your vehicle to cyber attacks. It's crucial to be aware of these vulnerabilities.

What's the difference between an OBD-II code reader and a scanner?

A code reader is a basic tool that can read generic trouble codes and clear the 'Check Engine' light. An OBD-II scanner is more advanced, capable of reading both generic and manufacturer-specific (enhanced) codes, displaying live sensor data, and checking I/M readiness status, which is vital for emissions tests.
