Diesel FICM: Your Engine's Fuel Commander

In the intricate world of diesel engines, many components work in harmony to deliver power and efficiency. One such vital, yet often overlooked, part is the Fuel Injector Control Module, commonly known as the FICM. This electronic powerhouse plays a critical role in precisely managing the fuel injection process, directly impacting your engine's performance, fuel economy, and overall longevity. If you've been experiencing rough idling, a loss of power, or unexplained smoke from your exhaust, a malfunctioning FICM could be the culprit. This comprehensive guide will delve into what a FICM is, the tell-tale signs of its failure, and crucially, how to test it to ensure your diesel engine is performing at its best.

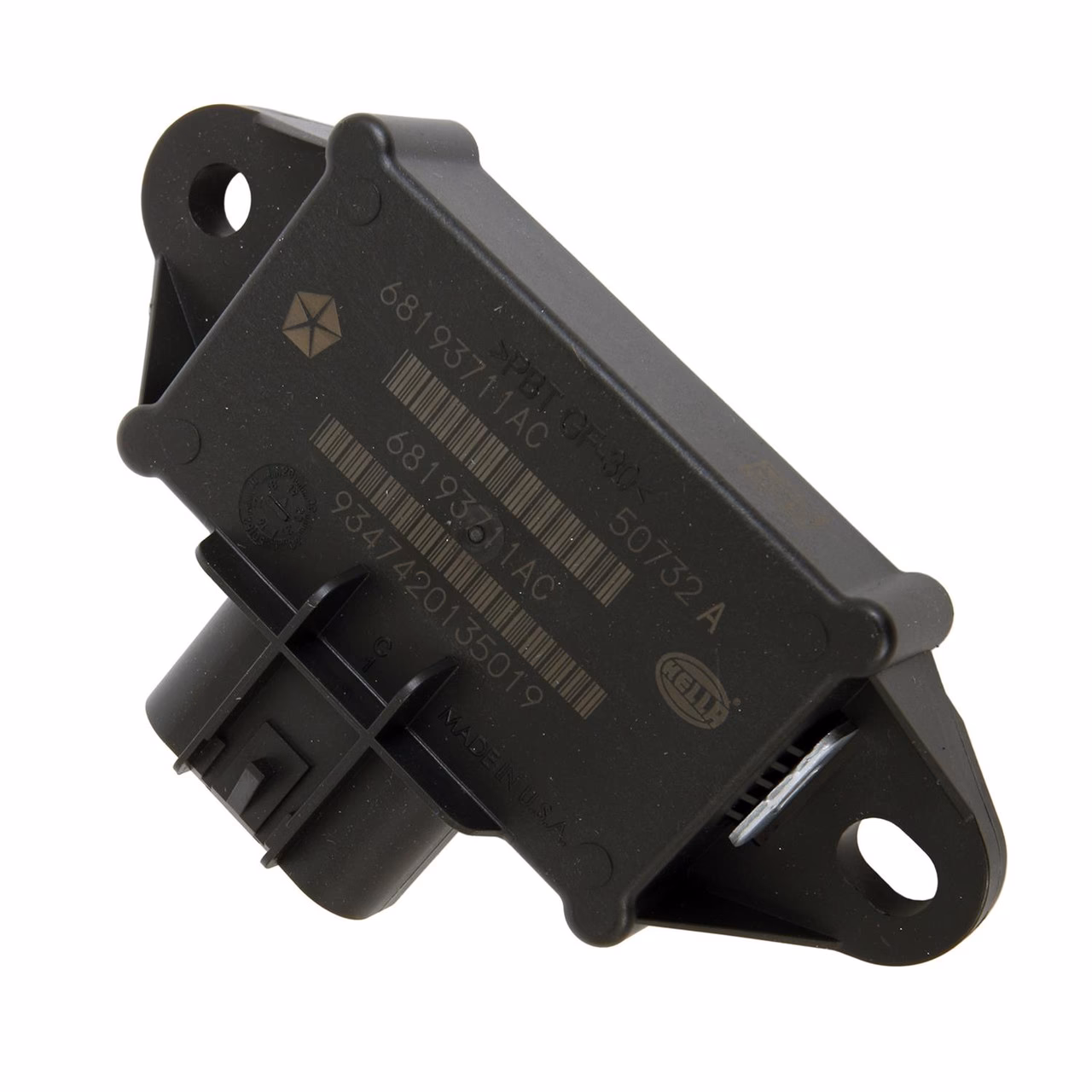

Understanding the FICM: The Brains Behind Your Fuel

At its core, the FICM is an electronic control unit specifically designed for diesel engines. Its primary function is to receive complex signals from the Engine Control Unit (ECU), the main computer of your vehicle. The FICM then processes these signals and translates them into precise electrical pulses. These pulses are sent to the individual fuel injectors, dictating both the timing and the duration of fuel delivery into each cylinder. Think of it as the conductor of an orchestra, ensuring each instrument (fuel injector) plays its part at the perfect moment and for the correct length of time. This precise control is essential for efficient combustion, optimal power output, and clean emissions. Without a properly functioning FICM, the fuel injectors would operate erratically, leading to a cascade of engine problems.

Why FICM Failure is a Big Deal

A faulty FICM is not a minor inconvenience; it can have significant repercussions for your diesel engine. When the FICM begins to fail, it can no longer accurately control the fuel injection events. This leads to improper fuel delivery, causing:

• Engine Misfires and Rough Idling: Inconsistent fuel delivery to cylinders results in uneven combustion, making the engine run rough, especially at idle.
• Reduced Engine Power and Acceleration: If the FICM isn't commanding the injectors to deliver the correct amount of fuel at the right time, the engine will lack its usual grunt and responsiveness.
• Black Smoke from the Exhaust: This often indicates unburnt fuel entering the exhaust system, a common symptom of incorrect fuel timing or over-fuelling caused by FICM issues.
• Poor Fuel Economy: When the engine isn't running efficiently due to improper fuel management, you'll notice a significant drop in your miles per gallon.
• Difficulty Starting the Engine: In severe cases, a failing FICM can make it very difficult, or even impossible, to start the engine.

It's important to note that specific vehicles, like the Dodge Ram 2500 and 3500, can experience fuel pump issues often linked to the failure of the EDC (Electronic Diesel Control unit), which is essentially the FICM for that particular system, specifically the VP44 injection pump's control module.

Safety First: Essential Precautions Before Testing

Before you even think about touching your FICM or its associated wiring, safety must be your absolute priority. Working on automotive electrical systems can be dangerous if proper precautions are not taken. Always adhere to the following:

1. Disconnect the Negative Battery Terminal: This is the most critical step to prevent short circuits and potential damage to the vehicle's electrical system or yourself.
2. Allow the Engine to Cool Down: Diesel engines get very hot. Ensure the engine has cooled completely before beginning any diagnostic work to avoid burns.
3. Wear Appropriate Safety Gear: Always wear safety glasses to protect your eyes from debris or potential electrical sparks, and consider wearing gloves for better grip and protection.

Testing Your FICM: A Step-by-Step Approach

Diagnosing a faulty FICM involves a series of tests to pinpoint the exact issue. While some tests can be performed with the FICM installed, others might require its removal. Here’s a breakdown of common testing procedures:

1. Visual Inspection: The First Clue

Start with the basics. Carefully examine the FICM itself and its connectors. Look for any obvious signs of damage, such as:

• Corrosion: Green or white powdery residue on the terminals or connectors often indicates moisture ingress.
• Burn Marks or Discolouration: These suggest overheating or electrical shorts within the module.
• Loose Connections: Ensure all wiring harnesses are securely plugged into the FICM. A simple loose connection can mimic a faulty module.
• Physical Damage: Cracks or breaks in the FICM casing or connectors are clear indicators of a problem.

Any visible damage is a strong indication that the FICM may need replacement.

2. Voltage Test: Is it Getting Power?

The FICM requires a stable voltage supply to function correctly. This test checks if the module is receiving the necessary power.

Materials:

• Digital Multimeter (DMM)
• Jumper wire (if needed for access)

Steps:

1. Locate the FICM and its main power supply connector.
2. With the negative battery terminal still disconnected, carefully connect the multimeter's positive (red) lead to the FICM's designated power supply terminal (refer to your vehicle's service manual for the exact pinout).
3. Connect the multimeter's negative (black) lead to a known good engine ground.
4. Reconnect the negative battery terminal.
5. Turn the ignition key to the "ON" position, but do not start the engine.
6. Observe the voltage reading on your multimeter. A healthy FICM should typically receive a voltage between 10.5 and 13.5 volts. Significant deviations from this range could indicate a problem with the power supply or the FICM itself.

3. Continuity Test: Checking the Internal Circuits

This test verifies the integrity of the internal wiring and connections within the FICM. It checks if there's an unbroken path for the electrical signals.

Materials:

• Digital Multimeter (DMM)
• Jumper wire (if needed)

Steps:

1. Ensure the battery is disconnected.
2. Set your multimeter to the continuity setting (usually indicated by a speaker or diode symbol).
3. Identify the FICM output terminals that connect to each fuel injector.
4. Place one multimeter probe on an FICM output terminal and the other probe on the corresponding terminal at the fuel injector connector (or directly on the injector if more accessible).
5. Repeat this for each injector circuit.
6. If your multimeter beeps or shows a very low resistance reading, it indicates continuity. If there is no beep or a high resistance reading, it suggests a break in the circuit, potentially within the FICM or the wiring harness.

4. Pulse Width Test: Measuring Signal Duration

This is a more advanced test that measures how long the FICM keeps the fuel injectors open. This is critical for proper fuel atomisation and combustion.

Materials:

• Fuel Injector Pulse Tester (a specialized tool)
• Jumper wire (if needed)

Steps:

1. Connect the fuel injector pulse tester to the electrical connector of a specific fuel injector.
2. Connect a jumper wire between the corresponding FICM output terminal for that injector and the appropriate input on the pulse tester.
3. Start the engine.
4. Observe the pulse width reading on the fuel injector pulse tester. This reading indicates how long the injector is being held open by the FICM's signal.
5. Compare this reading to the manufacturer's specified pulse width for your vehicle. A significant deviation, either too short or too long, strongly suggests a faulty FICM.

5. Signal Test (Oscilloscope): Visualising the Electrical Waveform

An oscilloscope provides a visual representation of the electrical signals being sent from the FICM to the injectors. This is the most detailed way to assess the FICM's output.

Materials:

• Oscilloscope
• Jumper wire (if needed)

Steps:

1. Connect the oscilloscope's probes. Typically, one probe connects to the FICM output terminal for a specific injector, and the other connects to engine ground.
2. Start the engine.
3. Observe the waveform displayed on the oscilloscope screen. A healthy signal will be a clean, consistent pulse.
4. Look for irregularities such as:
• Spikes: Sudden, sharp increases in voltage.
• Dropouts: Gaps or interruptions in the pulse.
• Excessive Noise: A jagged or fuzzy waveform, indicating electrical interference.
5. Any of these anomalies can point towards a failing FICM or a related wiring issue.

Replacing the FICM: Getting Your Engine Back on Track

If your testing confirms a faulty FICM, replacement is necessary. While this can be a DIY job for the mechanically inclined, it's often best left to a professional mechanic due to the precise nature of the work.

General Replacement Steps:

1. Disconnect the negative battery terminal. (Always the first step!)
2. Locate the FICM. Its position varies by vehicle model.
3. Disconnect all electrical connectors leading to the FICM.
4. Remove the mounting bolts securing the FICM to its housing or bracket.
5. Carefully lift the old FICM out. Be mindful of any seals or gaskets.
6. Install the new FICM in its place, ensuring it's seated correctly.
7. Tighten the mounting bolts to the manufacturer's specified torque.
8. Reconnect all electrical connectors securely.
9. Reconnect the negative battery terminal.
10. Clear any engine fault codes using a diagnostic scanner. Some vehicles may require a specific FICM relearn procedure.

Final Verdict: Keeping Your Diesel Healthy

The Fuel Injector Control Module is a sophisticated yet essential component for the optimal performance of any diesel engine. Understanding its function and knowing how to identify the signs of its failure is crucial for any diesel owner. By performing these diagnostic tests, you can accurately pinpoint whether your FICM is the source of your engine's woes. Always prioritise safety, and if you're ever in doubt, consulting a qualified diesel mechanic is the wisest course of action. A healthy FICM means a healthy, powerful, and efficient diesel engine.

Frequently Asked Questions

Q: What are the most common causes of FICM failure?

A: Common causes include excessive heat buildup, electrical voltage surges (often from alternator issues), water damage due to leaks, and general wear and tear over time.

Q: Can I test the FICM without removing it from the engine?

A: Yes, many crucial tests, such as the visual inspection, voltage test, and continuity test, can be performed with the FICM installed in the vehicle. More in-depth tests like pulse width and signal analysis also typically use the installed FICM.

Q: How much does it cost to replace a FICM?

A: The cost can vary significantly based on the vehicle make and model, the quality of the replacement part (OEM vs. aftermarket), and your location. Expect the combined cost of the FICM unit and labour to typically range from £400 to £1200 or more for a professional replacement.

Q: Can I drive with a faulty FICM?

A: It is strongly not recommended to drive with a known faulty FICM. Continued operation can lead to further damage to the fuel injectors, the engine's internal components, and potentially leave you stranded. It will also result in significantly poor performance and fuel economy.

Q: What are the long-term effects of a faulty FICM?

A: Prolonged operation with an underperforming FICM can lead to premature failure of the fuel injectors due to incorrect fueling, uneven cylinder wear, reduced engine power, increased fuel consumption, and potential damage to the engine's catalytic converter or diesel particulate filter (DPF) due to unburnt fuel.
