Timing Chain Replacement Guide

The timing chain is a vital component within your vehicle's engine, responsible for synchronising the rotation of the crankshaft and camshafts. This precise coordination ensures that the engine's valves open and close at the correct times during the combustion cycle. Unlike timing belts, which are often made from rubber and require periodic replacement, timing chains are constructed from metal and are generally more durable. However, this doesn't mean they are immune to wear and tear. Over time, timing chains can stretch, tensioners can fail, and poor lubrication can lead to deterioration, necessitating a replacement.

When and Why Replace a Vehicle's Timing Chain?

While timing chains are built for longevity, several factors can lead to their eventual failure. High mileage is a common precursor to timing chain issues. However, even at lower mileages, a chain can stretch or a tensioner can malfunction. You might need to replace your timing chain if you notice:

• A significant drop in engine performance.
• Difficulty starting the engine.
• The engine is overheating.
• Unusual noises or vibrations emanating from the engine.
• The 'check engine' warning light illuminates on your dashboard.

A failing chain tensioner is a critical concern. The tensioner's role is to maintain the correct tension on the timing chain, preventing slack and subsequent wear or misalignment. When a tensioner fails, it can lead to a loose or stretched chain, which can cause severe and potentially irreversible damage to the engine. Ignoring these symptoms can turn a manageable repair into a costly engine overhaul.

Understanding Timing Chain Kits

Replacing a timing chain is a complex procedure that requires specific tools, a service manual tailored to your vehicle's engine model, and a good understanding of mechanical principles. Attempting this job without the necessary expertise can lead to serious engine damage. For this reason, using a comprehensive timing chain kit is highly recommended. These kits typically include all the necessary components for a complete and professional replacement, such as the chain, sprockets, tensioners, and guides. By replacing all related parts simultaneously, you not only reduce the overall cost of the repair but also significantly enhance the reliability and longevity of the new system.

Step-by-Step Timing Chain Installation

Before embarking on this task, ensure you have the correct timing chain kit for your vehicle and the relevant service manual. Safety is paramount; always work on a cool engine and disconnect the battery.

Step 1: Consult Your Owner's Manual

Begin by identifying the location of the timing chain within your engine. Confirm that your vehicle is indeed equipped with a timing chain and not a timing belt. Your owner's manual or a dedicated service guide will be invaluable in locating and identifying various engine components, including vital timing marks and the engine's firing order. Understanding the firing order is crucial for correctly aligning the new timing chain.

Step 2: Prepare the Engine

Allow the engine to cool down completely. Disconnect the vehicle's battery to prevent any accidental electrical shorts. If the engine bay is particularly dirty, clean it using an appropriate degreaser. Ensure your workspace is well-lit, organised, and safe. You will need to drain the engine oil and coolant. Carefully remove any coolant hoses, drive belts, and other components that obstruct access to the timing chain cover.

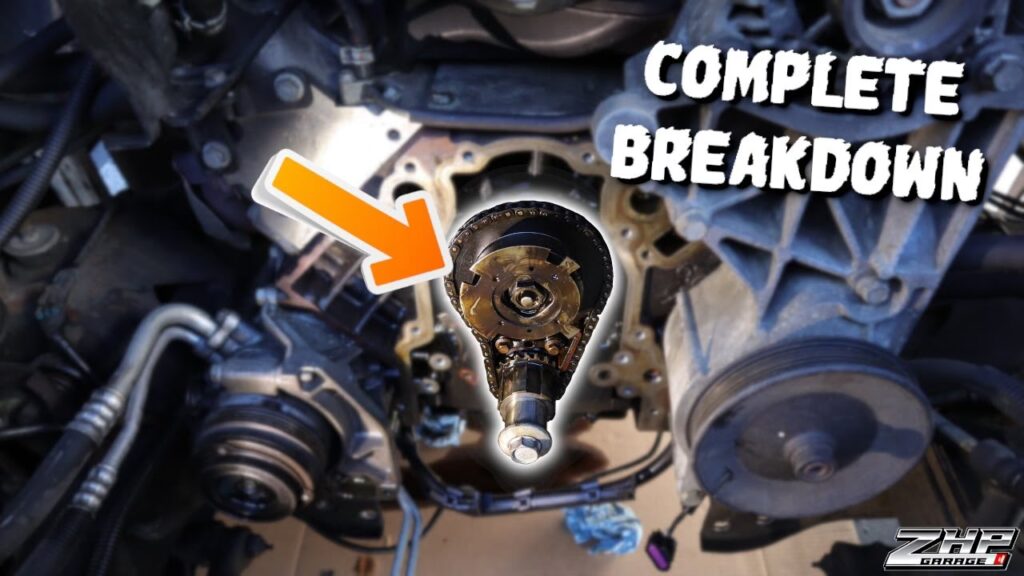

Step 3: Remove the Timing Chain Cover

The timing chain cover is typically secured by several bolts. Carefully unbolt the cover. It's essential to note the length and position of each bolt, as they can vary. Keep them organised to ensure they are reinstalled in their correct locations. Once the cover is removed, you'll need to remove the crankshaft pulley. This often requires a special tool and significant force. Loosen the camshaft sprocket bolts and remove the chain tensioner. With these components removed, you will have better access to the timing chain, guides, and sprockets.

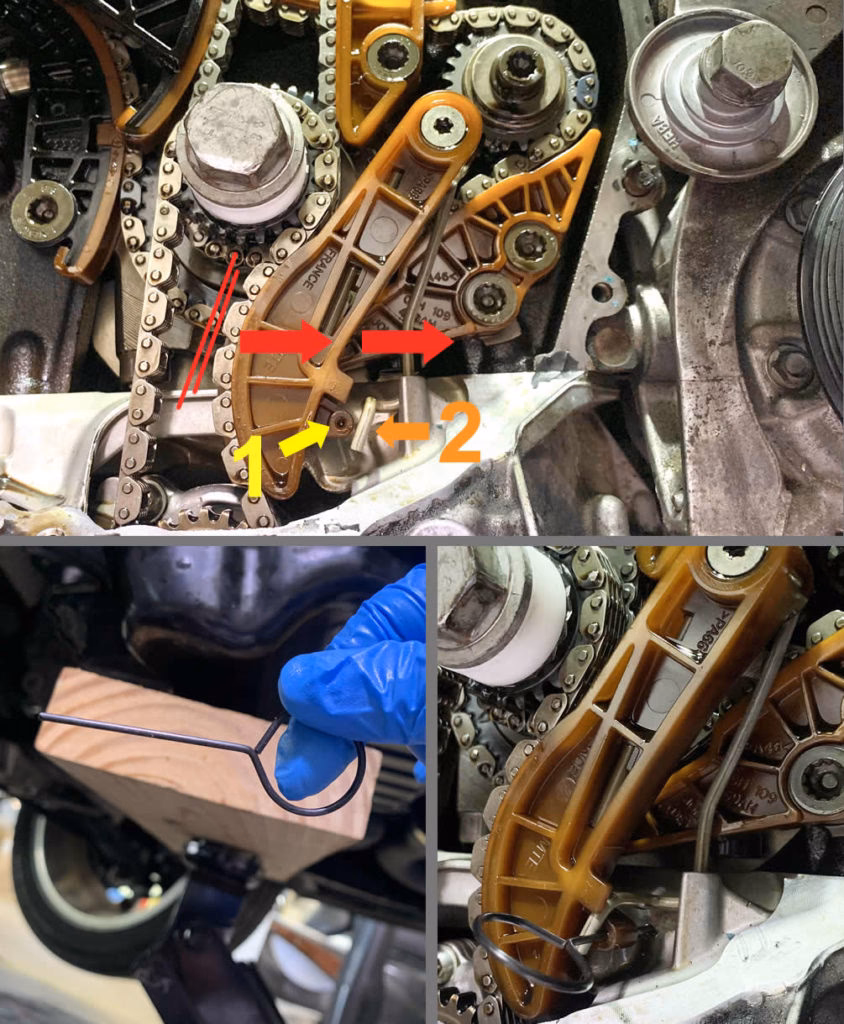

Step 4: Remove the Old Timing Chain

To accurately remove the old timing chain, you must first set the engine to Top Dead Centre (TDC) on cylinder number one. Align the timing marks on the camshaft and crankshaft sprockets with the corresponding marks on the engine block or cylinder head. These marks are critical for ensuring correct timing. Once aligned, you can carefully slide the old timing chain off the gears. Some guides might have shiny links that should align with the marks – pay close attention to your service manual for specific instructions.

Step 5: Install the New Timing Chain

Before fitting the new chain, install any new guides provided in the kit. It's also good practice to lubricate the new chain and sprockets with a suitable gear oil. This initial lubrication is vital for the smooth operation and longevity of the new timing chain system. Carefully place the new chain onto the sprockets, ensuring that the timing marks on the chain align precisely with the marks on the camshaft and crankshaft sprockets. This alignment must be exact. After installing the chain, you'll need to reinstall and tighten the chain tensioner according to the manufacturer's specifications. You may need to adjust the camshaft sprocket to achieve the correct tension.

Step 6: Replace the Crankshaft Oil Seal

The crankshaft oil seal, a rubber gasket around the crankshaft, often needs replacement during a timing chain job. Before reinstalling the timing chain cover, coat the new seal with oil. This lubrication helps the seal compress correctly and ensures it functions effectively, preventing oil leaks. Once the seal is in place, carefully reinstall the timing chain cover, ensuring all bolts are tightened to the specified torque and in the correct order.

Step 7: Reassemble All Components

Begin by reinstalling the crankshaft pulley, ensuring it's torqued to the manufacturer's specifications. Then, proceed to reassemble all other engine components that were removed in the reverse order of their disassembly. This includes refitting the drive belts, coolant hoses, and any other parts that were temporarily removed to gain access. Once everything is reassembled, double-check that the coolant is at the correct level and in good condition before filling the radiator.

Step 8: Final Checks and Testing

Reconnect the vehicle's battery. Start the engine and listen for any unusual noises. Carefully inspect for any signs of leaks, such as dripping oil or coolant. Ensure that all warning lights on the dashboard are extinguished. If the engine runs smoothly and there are no leaks or warning lights, the replacement is likely successful. It's always a good idea to take the vehicle for a short test drive to confirm everything is functioning correctly.

Dolz Timing Chain Kits: A Comprehensive Solution

Industrias Dolz offers a range of timing chain kits designed to provide a complete solution for timing chain replacements. These kits are distinguished by their comprehensiveness, often including not only the timing chain itself but also the crank sprocket, cam sprocket, tensioner, guides, oil seal, and even VVT components where applicable. As a global aftermarket supplier, Dolz prioritises OE quality standards, ensuring that every component in their kits meets the stringent requirements for a professional and high-quality repair.

Frequently Asked Questions (FAQ)

Q1: How often should a timing chain be replaced?
Unlike timing belts, timing chains do not have a fixed replacement interval. They are designed to last the life of the engine. However, they should be inspected periodically, especially if you notice any of the symptoms mentioned above. Factors like driving conditions and maintenance history can influence their lifespan.

Q2: Can I replace a timing chain myself?
Replacing a timing chain is a complex and time-consuming job that requires specific tools and a good mechanical aptitude. If you are not an experienced mechanic, it is highly recommended to have this job performed by a qualified professional to avoid potential engine damage.

Q3: What are the signs of a failing timing chain?
Common signs include rattling noises from the engine, especially on startup, reduced engine performance, misfires, rough idling, and the illumination of the 'check engine' light.

Q4: What is the difference between a timing chain and a timing belt?
Timing chains are made of metal and are generally more durable and longer-lasting than timing belts, which are made of rubber. Timing belts require scheduled replacement, typically every 60,000 to 100,000 miles, while timing chains are designed to last much longer, though they can still fail due to wear or other issues.

Q5: Why is it important to replace the timing chain tensioner and guides as well?
The tensioner and guides are integral parts of the timing chain system and often wear out at a similar rate to the chain itself. Replacing them along with the chain ensures the entire system is functioning optimally and prevents premature failure of the new chain due to worn components.
