Engine Cylinder Boring: Unlocking Your Engine's Potential

When it comes to maintaining or upgrading your vehicle, the term 'engine boring' might sound intimidating, but it's a crucial process that can breathe new life into a tired engine or even unlock hidden performance. Far from being a destructive procedure, boring an engine cylinder is a precise machining operation designed to restore optimal function and, in many cases, enhance the engine's inherent capabilities. Understanding why and how this is done is key to appreciating the intricate engineering beneath your bonnet.

At its core, engine boring involves using specialised machines to meticulously broaden and true the internal diameter of an engine's cylinders. This process is often undertaken for two primary reasons: to compensate for wear and tear, or to strategically increase the engine's displacement. Engine displacement refers to the collective volume swept by all the pistons inside the engine's cylinders during one complete revolution. A larger displacement generally means the engine can draw in more of the air and fuel mixture with each cycle, leading to a more potent combustion process and, consequently, greater horsepower and torque. The mathematical relationship is quite direct: engine displacement can be calculated using the formula π/4 x bore² x stroke x number of cylinders. While larger displacement typically equates to more power, it's worth noting that smaller displacement engines often deliver better fuel economy, a trade-off many manufacturers consider.

Why Do Engine Cylinders Need Boring Out?

The necessity for cylinder boring arises from several factors, primarily wear, damage, or a desire for performance enhancement. An engine is a complex system of moving parts under immense stress, heat, and friction, all of which contribute to cylinder degradation over time.

1. Restoring Worn Cylinders

Over tens of thousands of miles, the constant reciprocating motion of the pistons and their rings against the cylinder walls inevitably leads to wear. This wear is not always uniform, often resulting in a tapered or oval-shaped cylinder bore rather than a perfectly cylindrical one. The most noticeable sign of wear is often a 'ridge' that forms at the very top of the cylinder, just above where the top piston ring travels. This ridge represents the original, un-worn diameter of the cylinder, as the piston ring doesn't quite reach the very top. Below this ridge, the cylinder wears down, with the greatest wear typically occurring at the top of the piston's travel, where combustion pressures are highest and ring pressure against the wall is most significant, gradually tapering off towards the bottom of the stroke where pressures are lighter. If you can catch your fingernail on this ridge, it's a strong indicator that re-boring is necessary.

This uneven wear, coupled with potential scratches or scoring from debris or lubrication issues, compromises the piston rings' ability to seal effectively against the cylinder walls. A poor seal leads to several undesirable outcomes: reduced compression, oil consumption (as oil bypasses the rings and burns in the combustion chamber), increased blow-by (combustion gases leaking past the rings into the crankcase), and ultimately, a significant loss of power and efficiency. Boring removes this worn material, creating a perfectly round and straight cylinder bore to which oversized pistons can then be fitted, restoring the engine to its optimal mechanical state.

2. Performance Enhancement Through Increased Displacement

Beyond restoration, boring can be a deliberate modification to increase an engine's performance. By increasing the bore diameter, even slightly, the overall engine displacement is increased. As mentioned, a larger displacement allows the engine to ingest more air and fuel per cycle, leading to more powerful combustion events. This translates directly into higher horsepower and torque outputs, making the vehicle feel more responsive and powerful. This is a common practice in motorsport and performance tuning, where every bit of power counts. However, it's crucial to understand that displacement is just one factor influencing an engine's output; fuel supply, valvetrain design, forced induction (like turbochargers or superchargers), and ignition systems also play significant roles.

3. Addressing Cylinder Damage

Sometimes, cylinders aren't just worn but are actively damaged. This can be due to a variety of reasons, such as a broken piston ring scoring the cylinder wall, foreign objects entering the combustion chamber, or even severe corrosion from coolant leaks. In such cases, boring is often the only viable solution to remove the damaged material and create a smooth, true surface once more. Without boring, such damage would lead to catastrophic engine failure or severely compromised operation.

The Role of Cylinder Liners

In some engine designs, particularly those with aluminium blocks or where extreme wear is anticipated, cylinder liners are employed. These are pre-manufactured sleeves, typically made from materials superior to the engine block itself, such as cast iron alloyed with chromium, molybdenum, and vanadium. Liners offer several advantages:

• Durability: Their superior material composition often means they can withstand wear better than a bare engine block.
• Repairability: When a liner wears out, it can often be replaced, effectively returning the block to its 'standard' (STD) bore size without needing to over-bore the block itself further.
• Flexibility: Liners themselves can be over-bored in increments (e.g., +.010", +.020", +.030") if they experience wear, providing multiple opportunities for repair before needing full replacement.

Liners come slightly oversized and are then bored and honed to the exact specification required, much like an un-lined cylinder. While a good liner will last a very long time, they do eventually wear and may need replacement. However, it's unlikely to be a frequent occurrence for the average vehicle owner.

The Precision of Measuring Cylinder Wear

Accurately measuring cylinder wear is paramount before any boring operation. It's not a task that can be reliably done with simple calipers, as wear is often uneven and tapered. Professional engine builders use a specialised dial-indicator micrometer mounted on a handle that can traverse the length of the bore. This tool allows for precise measurement of variations in bore diameter at different depths and orientations, revealing the true extent of wear and taper.

A common guideline for wear limits might be around +.005" (five thousandths of an inch) beyond the original specification. If wear exceeds this, then an over-bore is typically recommended. Standard over-bore increments are usually +.010", +.020", +.030", and sometimes even more, depending on the engine design and the severity of wear or damage. The goal is always to remove just enough material to achieve a perfectly round and straight bore, allowing for the fitment of appropriately oversized pistons. In cases of severe corrosion or extensive wear, a larger over-bore might be necessary.

The Engine Boring Process: A Step-by-Step Overview

Boring an engine is a highly skilled and precise machining process that involves several critical steps:

1. Engine Disassembly and Inspection: The engine must be completely disassembled, and the block thoroughly cleaned and inspected for cracks or other damage that might render boring impractical.
2. Measuring and Planning: Precise measurements are taken of each cylinder to determine the extent of wear and the exact oversized dimension required. This dictates the size of the new pistons that will be used.

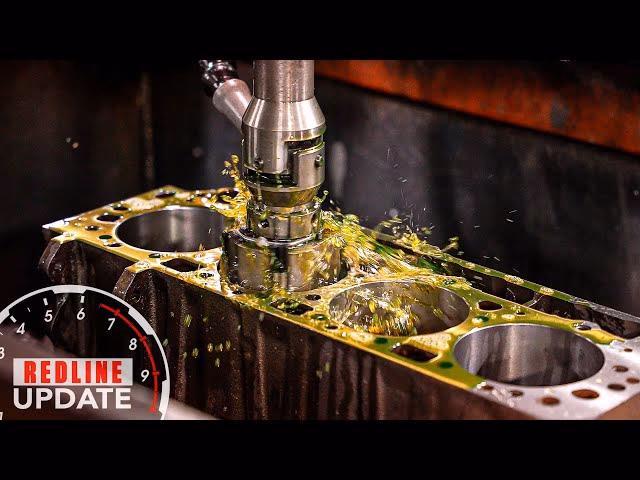

3. Boring: The engine block is securely mounted on a precision boring machine. A cutting tool is then advanced into each cylinder, shaving away material to achieve the desired new, larger diameter. This process is done with extreme accuracy to ensure perfectly straight and round bores.
4. Honing: After boring, the cylinder walls will be relatively smooth but will lack the specific cross-hatch pattern crucial for oil retention and piston ring seating. This is where honing comes in. Honing involves using abrasive stones to create a microscopic cross-hatch pattern on the cylinder walls. This pattern is vital as it holds lubricating oil, allowing the piston rings to glide smoothly while providing an effective seal against combustion gases. The honing process also ensures the bore is perfectly round and within incredibly tight tolerances.
5. Cleaning: After machining, the engine block must be scrupulously cleaned to remove all metal shavings and abrasive particles from the boring and honing processes. Any remaining debris could cause immediate and severe damage once the engine is reassembled.
6. Piston Selection and Assembly: New, oversized pistons and piston rings, specifically matched to the new bore dimensions, are then installed. The engine is then meticulously reassembled with new bearings, gaskets, and seals.

Benefits and Considerations of Engine Boring

The decision to bore an engine is a significant one, offering distinct advantages but also requiring careful consideration.

Benefits:

• Restored Compression: A perfectly round and smooth bore allows piston rings to seal effectively, restoring lost compression and improving combustion efficiency.
• Reduced Oil Consumption: Proper ring sealing prevents oil from entering the combustion chamber, significantly reducing oil burning and exhaust emissions.
• Enhanced Performance: For those seeking more power, increasing the bore size directly translates to increased engine displacement, leading to higher horsepower and torque.
• Extended Engine Life: By addressing wear and damage, boring can extend the usable life of an engine block by many years, making it a cost-effective alternative to a full engine replacement.
• Improved Fuel Efficiency (Restorative): While increased displacement might slightly reduce fuel economy for performance builds, restoring worn cylinders to optimal condition often improves efficiency by reducing blow-by and ensuring complete combustion.

Considerations:

• Cost: Engine boring is a precision machining process that requires specialised equipment and skilled labour, making it a significant investment.
• Downtime: The process requires complete engine removal and disassembly, meaning the vehicle will be off the road for a considerable period.
• Expertise Required: This is not a DIY job. It requires professional engine machinists and experienced mechanics for disassembly, reassembly, and tuning.
• Wall Thickness: While standard over-bores rarely compromise block integrity, extreme over-boring on certain blocks might reduce cylinder wall thickness to a critical level, though this is uncommon for typical repair scenarios.

Common Overbore Increments and Their Applications

Understanding the standard increments for over-boring can help demystify the process. These increments are typically measured in thousandths of an inch (thou or ") and correspond to available oversized pistons.

It's important to note that the actual percentage increase in displacement depends on the original bore and stroke of the engine. A larger original engine will see a proportionally smaller percentage increase from the same overbore increment compared to a smaller engine.

Signs Your Engine Might Need Boring vs. Other Repairs

Frequently Asked Questions (FAQs) About Engine Boring

Q: How often does an engine typically need boring?
A: There's no fixed schedule. It's only done when necessary due to significant wear, damage, or as part of a performance build. A well-maintained engine might never need boring in its lifetime, while a poorly maintained or high-performance engine might require it after considerable mileage or hard use. For example, in older engines with less advanced oils, 30,000 miles might have been typical for a rebuild, whereas modern engines can easily exceed 100,000 miles without such intervention.

Q: Can I bore my engine at home?
A: Absolutely not. Engine boring requires highly specialised, precision machining equipment and the expertise of a professional engine machinist. Attempting it without the correct tools and knowledge would lead to irreversible damage to the engine block.

Q: What's the difference between boring and honing?
A: Boring is the initial process of enlarging and truing the cylinder bore to a specific oversized dimension using a cutting tool. Honing is the subsequent process that creates the microscopic cross-hatch pattern on the cylinder walls, which is crucial for oil retention and proper piston ring seating. Both are essential for a successful rebuild.

Q: Does boring affect fuel economy?
A: When boring is done to restore a worn engine, it often improves fuel economy by restoring compression and reducing oil consumption, leading to more efficient combustion. However, if boring is done purely for performance to significantly increase engine displacement, it might lead to a slight decrease in fuel economy due as the engine is now designed to ingest and burn more fuel for increased power.

Q: What happens if I don't bore a worn cylinder?
A: Ignoring significant cylinder wear will lead to continued degradation. Symptoms like excessive oil consumption, low compression, reduced power, increased blow-by, and potential piston slap will worsen. Ultimately, this can lead to accelerated wear of other engine components and potentially catastrophic engine failure.

Q: Are cylinder liners always an option for repair?
A: Not all engine blocks are designed to accept liners. Blocks that are originally cast with integrated cylinder walls cannot typically be sleeved. However, many modern aluminium blocks are designed with removable liners or are suitable for aftermarket sleeving, offering an additional repair or performance enhancement option.

In conclusion, engine cylinder boring is a vital procedure in the world of automotive mechanics, serving both as a restorative measure for worn or damaged engines and as a strategic modification for those seeking enhanced performance. It's a testament to precision engineering, ensuring that your vehicle's heart beats stronger, more efficiently, and for many more miles. While it represents a significant undertaking, the benefits of a properly bored and rebuilt engine – including improved longevity, power, and reliability – often far outweigh the investment, making it a worthwhile consideration for any serious vehicle owner or enthusiast.
