Few sounds are as unsettling as an unexpected noise from your car's brakes. Whether it's a high-pitched squeal, a deep groan, or an alarming grind, these sounds are your vehicle's way of communicating a problem. While some brake noises can be harmless and temporary, others signal a critical issue that demands immediate attention. Understanding why your brake pads make noise is the first step towards diagnosing the problem and ensuring your safety on the road. Let's delve into the common reasons behind these audible warnings and what you can do about them.
The Common Culprits Behind Noisy Brakes
Brake systems are complex, and a variety of factors can contribute to unwanted sounds. Pinpointing the exact cause often requires a bit of detective work, but knowing the usual suspects can help you narrow it down.
1. Worn Brake Pads
This is perhaps the most common reason for brake noise. Brake pads are designed to wear down over time, and most modern pads come equipped with a small metal wear indicator. When the pad material wears thin, this indicator comes into contact with the brake disc (rotor), producing a distinct, high-pitched squealing sound. This noise is a deliberate warning, signalling that your pads are approaching their minimum thickness and need replacing soon. Ignoring this can lead to the pad's metal backing plate grinding against the disc, causing severe damage to the disc and significantly reducing braking performance. A deep grinding sound typically indicates metal-on-metal contact, a serious condition requiring immediate attention.
2. Contamination
Brake pads can become contaminated with various substances, leading to noise. Dirt, dust, road grime, oil, grease, or even brake fluid can adhere to the pad's surface. When these contaminants get trapped between the pad and the disc, they disrupt the friction process, often resulting in a squealing or chirping sound. For instance, a light squeal might occur after driving through puddles or on dusty roads. Oil or grease, however, can cause a more persistent, often louder, squeal or even a shudder during braking, as they significantly reduce the friction coefficient. Regular cleaning of the brake components can often mitigate issues caused by contamination.
3. Glazing of Pads or Rotors
Excessive heat, often caused by heavy braking, frequent braking in stop-and-go traffic, or even a 'sticky' caliper, can cause the brake pad material to harden and develop a shiny, glassy surface. This is known as glazing. Glazed pads lose their effective friction properties and can lead to a squealing or groaning noise, especially under light braking. Similarly, brake discs can also become glazed, exhibiting a smooth, reflective surface rather than a slightly rough one. Glazing reduces the pad's ability to grip the rotor effectively, leading to reduced stopping power and noise.
4. Improper Installation or Lack of Lubrication
When brake pads are replaced, it's crucial that they are installed correctly and that all contact points are properly lubricated. If the caliper pins, pad backing plates, or shims are not adequately lubricated with high-temperature brake grease, metal-on-metal contact can occur, leading to vibrations and squealing. Furthermore, if anti-squeal shims are missing or incorrectly fitted, the pads can vibrate against the caliper, producing noise. Loose or improperly torqued caliper bolts can also allow components to move excessively, resulting in clunking or rattling sounds.
5. Rust and Corrosion
Living in the UK, rust is a common adversary for vehicle components, and brake systems are no exception. If your car has been parked for an extended period, especially in damp conditions, a thin layer of surface rust can form on the brake discs. This rust is typically scraped off during the first few applications of the brakes, often accompanied by a temporary grinding or scraping sound. While this initial noise is usually harmless and disappears quickly, prolonged exposure to moisture can lead to pitting and uneven wear on the discs, which can cause persistent noise and affect braking performance.
6. Vibration and Resonance (The Primary Cause of Squeal)
The most common cause of high-pitched squealing is high-frequency vibration within the brake system. As the brake pad presses against the disc, friction causes the components to vibrate, much like a violin bow across strings. If these vibrations occur at a frequency audible to the human ear, you hear a squeal. Factors such as pad material composition, disc surface condition, caliper stiffness, and even the temperature can influence these vibrations. Anti-squeal shims, which are thin layers of rubber or metal applied to the back of the brake pads, are designed to dampen these vibrations and prevent noise.
7. Warped Brake Discs (Rotors)
Brake discs can become warped due to excessive heat, improper tightening of wheel nuts, or manufacturing defects. A warped disc is not perfectly flat, leading to uneven contact with the brake pads. This can cause a pulsation through the brake pedal and steering wheel, often accompanied by a rhythmic thumping or grinding sound as the pads make intermittent contact with the uneven surface of the disc. Warped discs severely compromise braking efficiency and require either resurfacing or replacement.
8. Inferior Quality Components
Not all brake pads and discs are created equal. Cheaper, lower-quality components may use materials that are more prone to noise, have less effective anti-squeal properties, or simply wear out faster. These components might not dissipate heat as effectively, leading to glazing and vibration issues more readily. Investing in reputable, high-quality brake parts can often prevent many common noise problems.
9. Brake Dust Accumulation
Over time, brake pads wear down, creating a fine dust that can accumulate on the caliper and other brake components. This dust, especially if mixed with moisture, can become abrasive and contribute to squealing or grinding noises. Regular cleaning of the brake dust can help prevent this issue.
Types of Brake Noises and Their Meanings
Understanding the specific type of noise can provide valuable clues:
- Squealing: High-pitched, often indicates worn pads, vibration, contamination, or glazing. Can be intermittent.

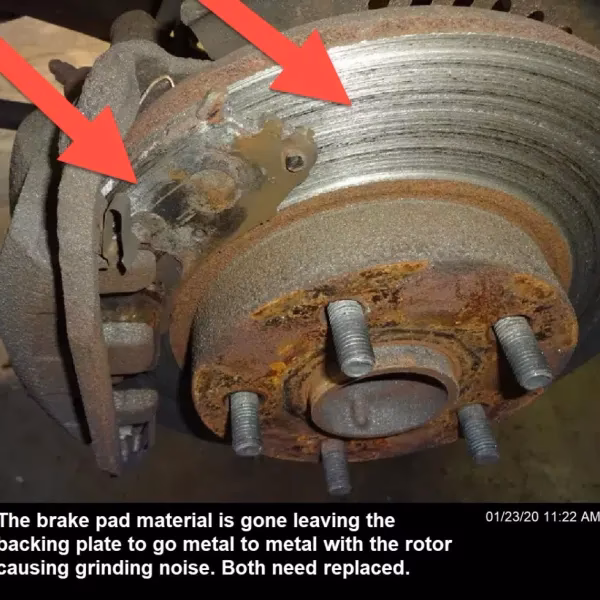

- Grinding: A harsh, metal-on-metal sound. A serious warning that brake pads are completely worn, or foreign material is trapped. Requires immediate attention.
- Clicking: Often heard when initially applying brakes or changing direction. Can indicate loose brake hardware, caliper issues, or excessive play in the pads within the caliper.
- Groaning/Moaning: A low-frequency sound, typically heard during slow stops or when the brakes are cold. Can be due to glazed pads/rotors, caliper issues, or certain pad material characteristics.
- Rattling: Suggests loose components, such as worn brake hardware, retaining clips, or a foreign object lodged in the system.
Diagnosing Brake Noise: What to Look For
To accurately diagnose the source of brake noise, consider the following:
- When does the noise occur? Is it when you first apply the brakes, under hard braking, light braking, or when reversing? Does it happen when the brakes are cold or hot?
- What kind of noise is it? Is it a squeal, grind, click, or groan?
- Is the noise consistent or intermittent? Does it go away after a few brake applications?
- Visual Inspection: Check your brake pads for thickness (they should be at least 3mm), look for any visible damage to the discs (grooves, scoring, warping), and inspect for leaks around the calipers.
Here's a quick reference table to help identify common noise issues:
| Noise Type | Common Cause | Recommended Action |
|---|---|---|
| High-Pitched Squeal | Worn wear indicator, vibration, contamination, glazing, lack of lubrication | Inspect pads/rotors, clean components, apply anti-squeal compound, replace pads if worn |
| Harsh Grinding | Severely worn pads (metal-on-metal), trapped debris, warped rotor | Immediate inspection; replace pads and likely rotors |
| Clicking/Clunking | Loose caliper, worn hardware, excessive pad movement | Inspect mounting bolts, replace worn hardware, check caliper function |
| Groaning/Moaning | Glazed pads/rotors, caliper issues, certain pad materials (low speed) | Inspect/clean/resurface pads/rotors, check caliper operation |
| Rattling | Loose hardware, worn springs, foreign objects | Inspect and secure all brake components |
Solutions and Prevention
Once you've identified the likely cause, you can take appropriate action:
- Replace Worn Pads: If your pads are worn down to the wear indicator or below 3mm, they need immediate replacement. Consider replacing the discs simultaneously for optimal performance.
- Clean Brake Components: Use a dedicated brake cleaner to remove dust, dirt, and light contamination from pads, discs, and calipers.
- Apply Anti-Squeal Compound: A thin layer of anti-squeal paste (often copper grease or a synthetic equivalent) applied to the back of the brake pads where they contact the caliper can help dampen vibrations. Ensure the compound is suitable for brake components and applied correctly.
- Proper Lubrication: Ensure all caliper slide pins and metal-to-metal contact points on the caliper and pad backing plates are lubricated with high-temperature, silicone-based brake grease.
- Rotor Resurfacing or Replacement: If discs are warped, severely scored, or have hard spots, they may need to be machined (resurfaced) or replaced entirely. Resurfacing removes a thin layer of material to create a flat surface, but it's only possible if the disc still meets minimum thickness specifications.
- Bedding-In New Brakes: After installing new pads and/or discs, it's crucial to follow a 'bedding-in' procedure. This involves a series of controlled stops from moderate speeds to high speeds, allowing a thin layer of pad material to transfer evenly onto the disc surface. This process optimises friction, reduces noise, and prevents glazing. Failing to bed-in new brakes properly is a common cause of premature noise and reduced performance.
- Choose Quality Components: When replacing brake parts, opt for reputable brands and quality materials. While cheaper options might save money upfront, they often lead to noise issues and shorter lifespans.
- Regular Maintenance: Have your brakes inspected as part of your regular vehicle servicing. This allows technicians to spot potential issues before they become major problems and perform necessary cleaning and lubrication.
Frequently Asked Questions About Brake Noise
Q1: Is brake noise always serious?
Not always. A slight squeal first thing in the morning due to overnight moisture or a temporary grind after a car wash can be normal and often disappears quickly. However, persistent noise, especially grinding, indicates a problem that needs immediate attention. Any new or worsening brake noise should always be investigated promptly to ensure safety.
Q2: Can I fix brake noise myself?
For simple issues like light surface rust or minor dust accumulation, a quick clean might resolve the noise. However, for more complex issues like worn pads, warped rotors, or internal caliper problems, it's highly recommended to consult a qualified mechanic. Brakes are a critical safety system, and improper repairs can have dangerous consequences.
Q3: How often should I check my brake pads?
It's generally recommended to have your brake pads inspected during every service interval, typically every 6,000 to 12,000 miles, or at least once a year. Your driving style and conditions will heavily influence pad wear, so frequent checks are advisable if you do a lot of city driving or heavy braking.
Q4: What does 'bedding-in' new brakes mean?
'Bedding-in' (also known as 'burnishing') is a crucial process for new brake pads and rotors. It involves a specific sequence of controlled braking to gently heat the components and allow the brake pad material to transfer evenly onto the rotor surface. This creates an optimal friction layer, maximises braking performance, reduces noise, and prolongs the lifespan of your new brake components. Always follow the manufacturer's recommended bedding-in procedure.
Q5: Why do new brakes sometimes squeal?
New brakes can sometimes squeal for several reasons. It might be due to the bedding-in process itself, as the pads and rotors are seating together. Some brake pad compounds are inherently noisier than others, especially high-performance or ceramic pads. Additionally, if anti-squeal shims or proper lubrication were not applied during installation, or if the pads are not correctly seated, new brakes can exhibit noise. This noise often subsides after the bedding-in period, but if it persists, it warrants investigation.
In conclusion, while brake noise can be annoying, it's often a valuable indicator of your vehicle's health. Paying attention to these sounds and understanding their potential causes can help you maintain your car's braking system, ensuring a safer and quieter journey for everyone on the road. Don't let those noises linger – get them checked out!
