Understanding Brake Pad Replacement
Brake pads are a crucial component of your vehicle's braking system, working in conjunction with the brake discs (rotors) to slow and stop your car. Over time, these pads wear down due to friction, and when they reach a certain thickness, they need to be replaced to ensure optimal braking performance and safety. Ignoring worn brake pads can lead to reduced stopping power, damage to your brake discs, and potentially more costly repairs down the line. This guide will walk you through the process of replacing your brake pads, making it a manageable task for the home mechanic.
When to Replace Your Brake Pads
Several indicators suggest it's time to replace your brake pads:
- Audible Squealing or Grinding: Most brake pads have a small metal tab called a wear indicator. When the pad wears down, this tab makes contact with the disc, producing a high-pitched squealing sound when you apply the brakes. A deeper grinding noise often indicates that the pad material has completely worn away, and the metal backing plate is grinding against the disc, which can cause significant damage.
- Reduced Braking Performance: If you notice that your car takes longer to stop, or the brake pedal feels softer or travels further than usual, it's a sign that your brake pads are worn.
- Visual Inspection: You can often visually inspect the thickness of the brake pad material through the spokes of your wheels. If the pad material is less than about 3mm (1/8 inch) thick, it's time for a replacement.
- Brake Warning Light: Some modern vehicles have sensors embedded in the brake pads. When the pads wear down to a certain point, these sensors trigger a warning light on your dashboard.
Essential Tools and Materials
Before you begin, ensure you have the necessary tools and materials:
- New Brake Pads: Ensure you have the correct set for your specific vehicle make, model, and year. It's highly recommended to replace pads in complete sets for each axle (both front or both rear) to ensure even braking performance.
- Jack and Jack Stands: A reliable car jack and a pair of sturdy jack stands are essential for safely lifting and supporting your vehicle. Never work under a vehicle supported only by a jack.
- Lug Wrench: To remove the wheel nuts.
- Socket Set and Ratchet: For removing caliper bolts.
- C-Clamp or Piston Compressor Tool: To compress the brake caliper piston back into its housing.
- Brake Cleaner: To clean components.
- Wire Brush: For cleaning rust and debris.
- Gloves: To protect your hands from brake dust and grease.
- Safety Glasses: To protect your eyes.
- Brake Fluid: It's a good idea to have some new brake fluid on hand, as you may need to top up the reservoir. Check your vehicle's manual for the correct type.
- Torque Wrench: For tightening lug nuts and caliper bolts to the manufacturer's specifications.
Step-by-Step Brake Pad Replacement Process
The following steps outline the general procedure for replacing brake pads. Always refer to your vehicle's service manual for specific instructions relevant to your car.
1. Prepare the Vehicle
Begin by opening the bonnet (hood) and locating the brake fluid reservoir. Unscrew the cap. This allows the brake fluid level to rise as you compress the caliper piston later. Ensure the fluid level is within the MIN/MAX marks and be prepared to soak up any excess fluid with a rag if necessary, as overflowing brake fluid can damage paintwork.
2. Loosen the Wheel Nuts
Before jacking up the vehicle, use your lug wrench to loosen the lug nuts on the wheel you'll be working on. Turn them about half a turn counter-clockwise. Do not remove them completely at this stage.
3. Jack Up and Support the Vehicle
Using your jack, lift the vehicle at the designated jacking point for the wheel you are working on. Once the wheel is off the ground, securely place a jack stand under a strong point of the chassis or frame. Slowly lower the vehicle onto the jack stand. Ensure the vehicle is stable before proceeding.
4. Remove the Wheel
Now, fully unscrew the loosened lug nuts and remove the wheel. Set it aside.
5. Locate and Access the Brake Caliper
You will now see the brake caliper, which encloses the brake pads and the brake disc. The brake pads are typically held in place by caliper bolts.
6. Remove the Caliper Bolts
Most brake calipers are secured by two bolts, often referred to as caliper slide pins or guide pins. These bolts usually have rubber boots covering them. You might need to hold the slide pin with one wrench while loosening the bolt with another. The number and location of these bolts can vary, so consult your vehicle's manual if unsure. Once the bolts are removed, the caliper should be able to be gently pried open or lifted off the caliper bracket.
7. Remove the Old Brake Pads
With the caliper removed or swung out of the way, you should be able to see the old brake pads. They often sit in clips or brackets within the caliper or caliper bracket. Carefully slide or pull the old pads out. Note their orientation, as the new pads will need to be installed in the same way. Some pads may have small clips or shims attached; transfer these to the new pads if they are not pre-installed.
8. Compress the Caliper Piston
Before installing the new, thicker brake pads, you need to push the caliper piston back into its housing. This creates the necessary space. Use a C-clamp or a dedicated brake piston compressor tool. Place the clamp or tool against the piston and the back of the caliper bracket, and gradually tighten it to push the piston back. Keep an eye on the brake fluid reservoir under the bonnet to ensure it doesn't overflow.
9. Install the New Brake Pads
Lubricate the back of the new brake pads and the contact points on the caliper bracket with a small amount of high-temperature brake lubricant. This helps prevent noise and ensures smooth operation. Slide the new brake pads into place, ensuring they are oriented correctly and seated firmly in their clips or brackets. If you transferred any old clips or shims, ensure they are properly installed on the new pads.
10. Reassemble the Caliper
Carefully place the caliper back over the new brake pads and rotor. Reinstall the caliper bolts and tighten them securely. It's crucial to use a torque wrench to tighten these bolts to the manufacturer's specified torque setting. Over-tightening or under-tightening can lead to problems.
11. Reinstall the Wheel
Place the wheel back onto the hub and thread the lug nuts on by hand. Tighten them as much as you can. Then, carefully lower the vehicle off the jack stand.
12. Tighten the Lug Nuts
With the vehicle's weight back on the wheels, use your lug wrench to tighten the lug nuts fully. It's best to tighten them in a star pattern (criss-cross) to ensure the wheel is seated evenly. For optimal safety, use a torque wrench to tighten the lug nuts to the manufacturer's specified torque.
13. Repeat for Other Wheels
Repeat the entire process for the other wheel on the same axle. Remember, brake pads should always be replaced in pairs on an axle for balanced braking.
14. Bleed the Brakes (Optional but Recommended)
After replacing the pads, it's a good practice to "pump" the brake pedal several times with the engine off until it feels firm. This seats the pistons and pads. You may also consider bleeding the brakes to remove any air that may have entered the system, though this is a more advanced procedure. Check your vehicle's manual for specific instructions on brake bleeding.
15. Final Checks
Before driving, double-check that all bolts are tightened correctly and that the wheels are secure. Check the brake fluid level in the reservoir and top up if necessary. Dispose of the old brake pads and any contaminated rags responsibly.
Important Considerations and Tips
- Brake Bedding: New brake pads often require a "bedding-in" procedure to achieve optimal performance. This typically involves a series of moderate to firm stops from various speeds, allowing the pads and rotors to mate properly. Consult the instructions that come with your new brake pads for the specific bedding-in process recommended by the manufacturer.
- Brake Fluid: Brake fluid absorbs moisture over time, reducing its boiling point and effectiveness. It's generally recommended to flush and replace brake fluid every two years, regardless of mileage.

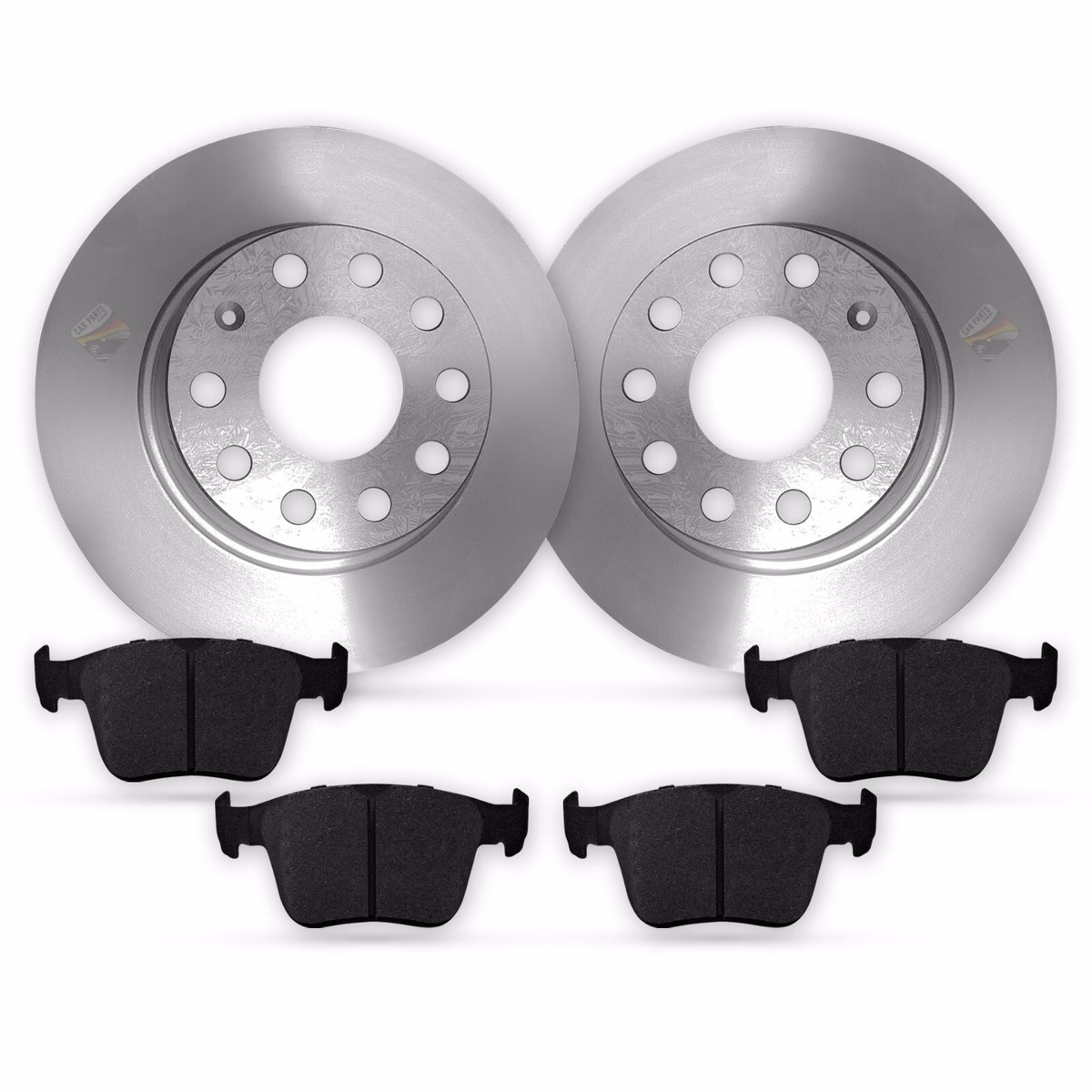

- Brake Discs (Rotors): While replacing brake pads, it's also a good time to inspect your brake discs for wear, scoring, or warping. If the discs are significantly worn or damaged, they should also be replaced.
- Safety First: Always prioritize safety. Ensure your vehicle is securely supported on jack stands, wear safety glasses and gloves, and never rush the process. If you are unsure about any step, it's best to consult a professional mechanic.
Frequently Asked Questions
Q1: How often should I replace my brake pads?
A: The lifespan of brake pads varies greatly depending on driving habits, vehicle type, and the quality of the pads. Generally, front brake pads may need replacing every 25,000-50,000 miles, while rear pads can last longer, around 40,000-60,000 miles. Regular inspection is key.
Q2: Can I replace just one brake pad?
A: No, you must always replace brake pads in pairs on the same axle. Replacing only one pad will lead to uneven braking, reduced stopping power, and potential damage to the braking system.
Q3: What happens if I don't replace my worn brake pads?
A: Worn brake pads can significantly reduce your car's stopping ability, increasing the risk of accidents. They can also lead to severe damage to the brake discs, which are more expensive to replace than pads.
Q4: Do I need to replace the brake discs when I replace the pads?
A: Not always. If the brake discs are still within their minimum thickness specification and do not show signs of significant wear, scoring, or warping, they can often be reused. However, it's a good practice to inspect them thoroughly.
Q5: What is brake bedding-in?
A: Brake bedding-in is a process to properly mate the new brake pads with the brake discs, ensuring optimal performance and preventing issues like noise and vibration. It involves a series of controlled braking applications.
By following these steps and guidelines, you can confidently replace your brake pads and maintain the vital braking system of your vehicle, ensuring your safety and the safety of others on the road.
