Gasket Sealant: To Use or Not to Use?

The question of whether to apply gasket sealant alongside a solid gasket is one that often perplexes even seasoned mechanics and DIY enthusiasts. At first glance, it might seem like a straightforward 'yes' or 'no', but as with many aspects of automotive maintenance, the answer is nuanced. There are countless types of gaskets and an equally vast array of sealants, each designed for specific applications and conditions. Understanding the interplay between these components is crucial for achieving a reliable, leak-free seal and preventing costly future repairs.

For the majority of modern solid gaskets, particularly when installed on new components or perfectly machined surfaces, the addition of a sealant is often entirely unnecessary. In fact, it can sometimes be counterproductive. Many gaskets today, especially those from reputable manufacturers, are engineered to create a perfect seal on their own, relying on precise dimensions and material properties. Our own range, for instance, frequently includes gaskets with adhesive backing. This feature is not for sealing, but rather for ease of installation, ensuring perfect placement and preventing slippage during assembly. This adhesive is stable and designed not to extrude or leak into areas where it could cause issues.

Understanding Solid Gaskets and Their Primary Role

Solid gaskets are designed to fill the microscopic imperfections and irregularities between two mating surfaces, creating a barrier that prevents the escape of fluids or gases. They achieve this through compression, where the gasket material deforms slightly under pressure to conform to the surface contours. Materials vary widely, from cork and rubber to composite fibres and multi-layered steel (MLS), each chosen for its specific resistance to temperature, pressure, and chemicals. When surfaces are perfectly flat and within manufacturer tolerances, a well-designed solid gasket alone provides an effective and durable seal.

The Common Misconception: When Sealant Isn't Needed

It's a common misconception that more sealing capability is always better. However, when a solid gasket is fitted to new, perfectly machined components or flanges, additional sealant is generally not required. The gasket itself is designed to do the job. Introducing an unnecessary layer of sealant can, in some cases, hinder the gasket's ability to compress evenly and create its intended seal. Furthermore, the very act of applying sealant where it's not needed can lead to several problems:

• Increased Difficulty in Disassembly: Sealants, especially those that cure hard, can bond the gasket firmly to the mating surfaces, making future removal a much more arduous task. You might find yourself scraping away stubborn residues for extended periods.
• Potential for Damage: When attempting to remove a gasket that has been over-sealed, there's a higher risk of damaging delicate flange surfaces, particularly those made from softer metals like aluminium. A pitted or dented surface from aggressive scraping will only exacerbate future sealing challenges.
• Risk of Extrusion and Contamination: Applying too much sealant, or applying it unnecessarily, can lead to the sealant extruding into internal passages once the components are bolted together. This can block vital oil galleries, coolant passages, or vacuum lines, leading to engine malfunction or catastrophic failure. This is why understanding the concept of extrusion is so important.

When Gasket Sealant Becomes Your Ally

Despite the caveats, gasket sealants are indispensable tools in specific situations. We would only recommend their use alongside our solid gaskets when there is a clear and demonstrable need. These scenarios typically involve:

• Uneven or Pitted Flanges: If a flange surface is slightly uneven, pitted, or has minor imperfections that a solid gasket alone might not fully bridge, a thin application of sealant can help fill these microscopic gaps. It acts as a gap-filler, enhancing the seal where the solid gasket might struggle.
• Repairing Older Parts: Automotive applications often involve repairing or rebuilding older engines and components where flange surfaces may have suffered wear, corrosion, or minor warping over time. In these cases, a suitable sealant can compensate for the imperfections, allowing an older part to achieve a reliable seal without expensive machining.
• Enhancing Material Properties: For certain applications, particularly with cheaper gasket materials that might lack optimal resistance to specific chemicals or water, a compatible sealant can significantly enhance their durability, adhesion, and resistance properties. This can provide an added layer of protection against leaks in demanding environments.
• Specific OEM Recommendations: Always consult the manufacturer's service manual. Some original equipment manufacturers (OEMs) specifically recommend or even require a thin bead of sealant in conjunction with certain solid gaskets for particular applications, often in areas subjected to high vibration or thermal cycling.

Types of Gasket Sealants: A Brief Overview

The world of gasket sealants is diverse, with each type formulated for specific conditions and applications. Choosing the right sealant is as critical as choosing the right gasket.

A general rule of thumb for any sealant used alongside a solid gasket: you don't need a lot! A tiny, almost imperceptible skim over the surface, just enough to fill any slight indents or irregularities, is all that is typically required. More is definitely not better; it only increases the risk of extrusion and contamination.

The Art of Application: Less is More

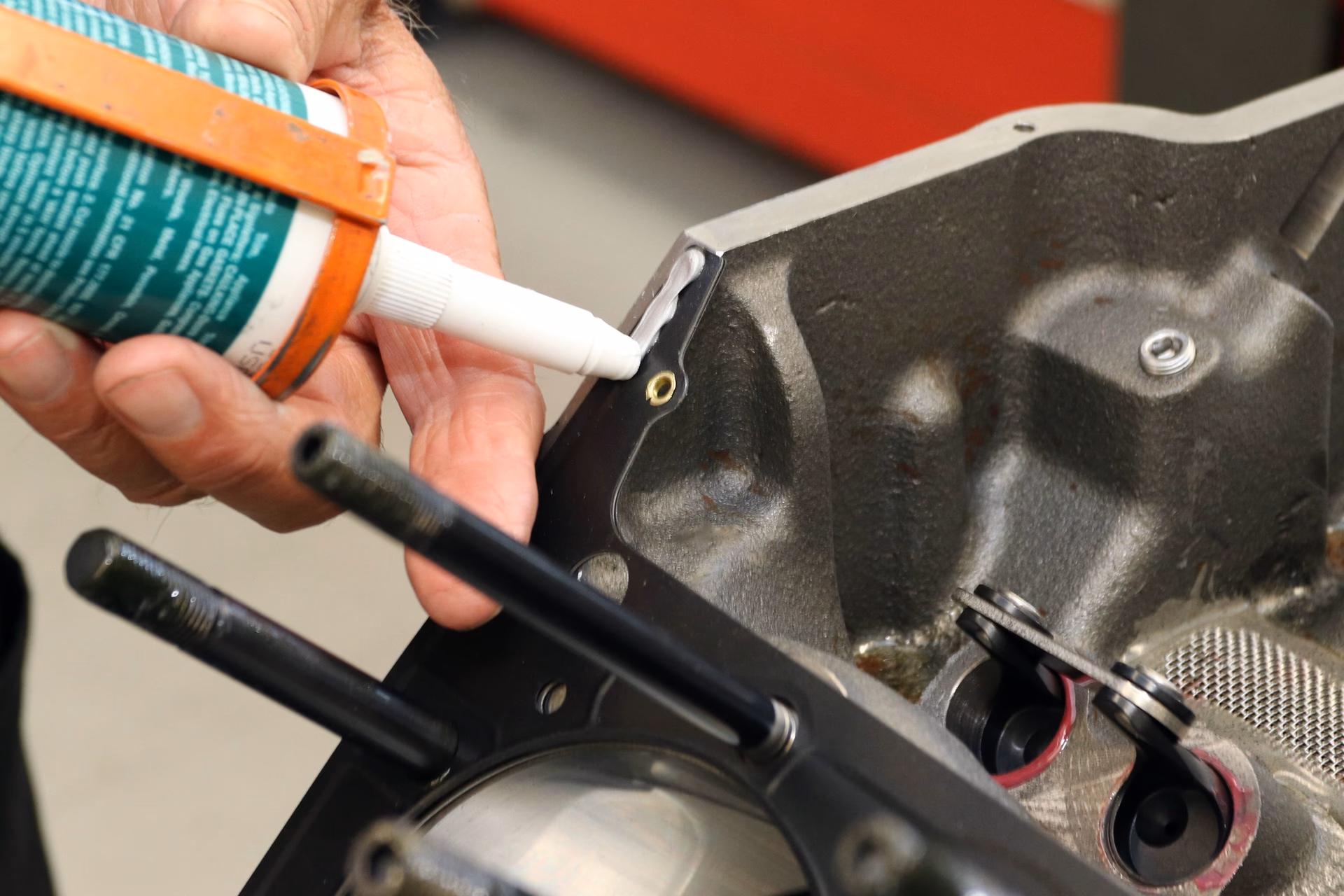

Proper application of gasket sealant, when necessary, is paramount. The goal is not to create a thick layer, but a thin film that aids the primary solid gasket. Here’s how to approach it:

1. Surface Preparation is Key: Before applying any sealant, ensure both mating surfaces are immaculately clean, dry, and free of old gasket material, oil, grease, or dirt. Use appropriate gasket scrapers and solvents (like brake cleaner or gasket remover) to achieve a pristine surface. Any contamination will compromise the sealant’s adhesion and effectiveness.
2. Apply a Thin, Even Bead: If using a tube sealant, apply a continuous, thin bead along one of the mating surfaces, typically around the bolt holes. You want just enough to fill micro-imperfections, not to create a thick layer. A common mistake is to apply too much, leading to squeeze-out.
3. Spread Evenly (Optional, for some types): For some non-setting compounds or very thin applications, you might gently spread the bead with a finger or a plastic spreader to create a uniform, thin film. However, for most RTVs, a consistent bead is sufficient.
4. Allow Flash-off Time (if specified): Some sealants, particularly certain RTVs, require a few minutes of 'flash-off' time for solvents to evaporate before assembly. Always check the product's instructions.
5. Assemble with Care: Position the solid gasket onto one of the treated surfaces, then carefully bring the other component into alignment. Tighten fasteners to the manufacturer’s specified torque settings, following the correct sequence. This ensures even compression of the gasket and sealant.
6. Curing Time: Allow the sealant adequate time to cure before introducing fluids or pressure. This can range from a few hours to 24 hours, depending on the sealant type and environmental conditions. Ignoring curing times can lead to immediate leaks.

Addressing Head Gasket Sealers: A Separate Consideration

It's important to distinguish between general gasket sealants used for component sealing and specific 'head gasket sealers' that are liquid additives poured into an engine's cooling system. These head gasket sealers are typically designed as a last-resort, temporary fix for a leaking head gasket, often containing chemical compounds that react with air to form a plug in the leak. While they might offer a reprieve, they are not a substitute for a proper mechanical repair.

A failing head gasket is a serious issue for your engine, leading to coolant loss, overheating, oil contamination, and ultimately, severe engine damage. While liquid head gasket sealer can sometimes provide a temporary patch, relying on them long-term is bad news. They do not fix the underlying cause of the head gasket failure (e.g., warping, cracking, or material degradation) and can sometimes exacerbate problems by clogging radiator passages or heater cores. If a head gasket sealer fails, which they often do under the immense pressure and heat of the combustion chamber, you are back to square one, often with a more complex problem to resolve. A head gasket replacement is a significant job, but it is the only permanent solution for a failed head gasket.

Summary of Best Practices

• Always consult the manufacturer's service manual or component instructions first.
• If the component is new and surfaces are pristine, a solid gasket alone is usually sufficient.
• Use sealant sparingly – a thin film, not a thick bead. Less is truly more.
• Ensure surfaces are immaculately clean and dry before application. This crucial surface preparation step cannot be overlooked.
• Choose the correct type of sealant for the application (temperature, chemical resistance, flexibility).
• Allow adequate curing time before operating the vehicle.
• Distinguish between general purpose gasket sealants and liquid 'head gasket sealers' – the latter is a temporary fix, not a repair.

Frequently Asked Questions (FAQs)

Q: Can I reuse a gasket with sealant?

A: Generally, no. Once a gasket has been compressed and sealed, its integrity is compromised upon removal. Reusing it, even with new sealant, significantly increases the risk of leaks. Always use a new gasket for a reliable seal.

Q: What happens if I use too much sealant?

A: Using too much sealant can lead to several problems: it can squeeze out into internal passages (like oil or coolant channels), potentially causing blockages; it can prevent the solid gasket from compressing properly, leading to a leak; and it makes future disassembly and cleaning much more difficult.

Q: How do I clean old gasket sealant from a surface?

A: Start by carefully scraping off the bulk of the old material with a plastic or brass scraper to avoid damaging the metal surface. For stubborn residues, use a chemical gasket remover spray (always follow safety instructions) or a fine abrasive pad designed for gasket removal. Ensure the surface is completely clean and dry before reassembly.

Q: Is sealant always necessary for exhaust gaskets?

A: Not always. Many exhaust gaskets, particularly those made of graphite or multi-layer steel, are designed to seal dry. However, some applications may benefit from a high-temperature exhaust sealant, especially if surfaces are warped or pitted. Always use a sealant specifically rated for extreme exhaust temperatures.

Q: Can I use RTV sealant as a standalone gasket?

A: Yes, certain RTV sealants are designed to be used as 'Formed-in-Place' (FIP) gaskets, meaning they create the entire seal without a pre-cut solid gasket. This is common for complex shapes or when a traditional gasket isn't available. However, ensure the RTV product is specifically labelled for FIP gasket applications and follow its instructions carefully.
