Understanding Diesel Fuel Injection Systems: Common Rail vs. Direct Injection

Modern vehicles, particularly those powered by diesel engines, rely heavily on sophisticated fuel injection systems to deliver optimal performance, fuel efficiency, and reduced emissions. These systems are the heart of a diesel engine, ensuring the precise delivery of fuel into the combustion chamber. Among the most prevalent types are Common Rail Diesel (CRD) and Direct Injection (DI). While both serve the fundamental purpose of supplying fuel, they employ distinct methodologies, each with its own set of advantages and disadvantages. This article delves into the intricacies of these two systems, comparing and contrasting their operational mechanisms, historical development, benefits, and applications within the automotive industry.

What is a Diesel Fuel Injection System?

At its core, a diesel fuel injection system is responsible for atomising diesel fuel and injecting it under high pressure into the engine's combustion chamber. Unlike petrol engines that typically use spark plugs to ignite the fuel-air mixture, diesel engines rely on the heat generated by the compression of air within the cylinder. The fuel injection system's role is critical in ensuring that the fuel is introduced at the right moment and in the correct form (as a fine mist) to achieve efficient combustion. Without a functioning fuel injection system, a diesel engine simply cannot operate.

Direct Injection (DI): The Classic Approach

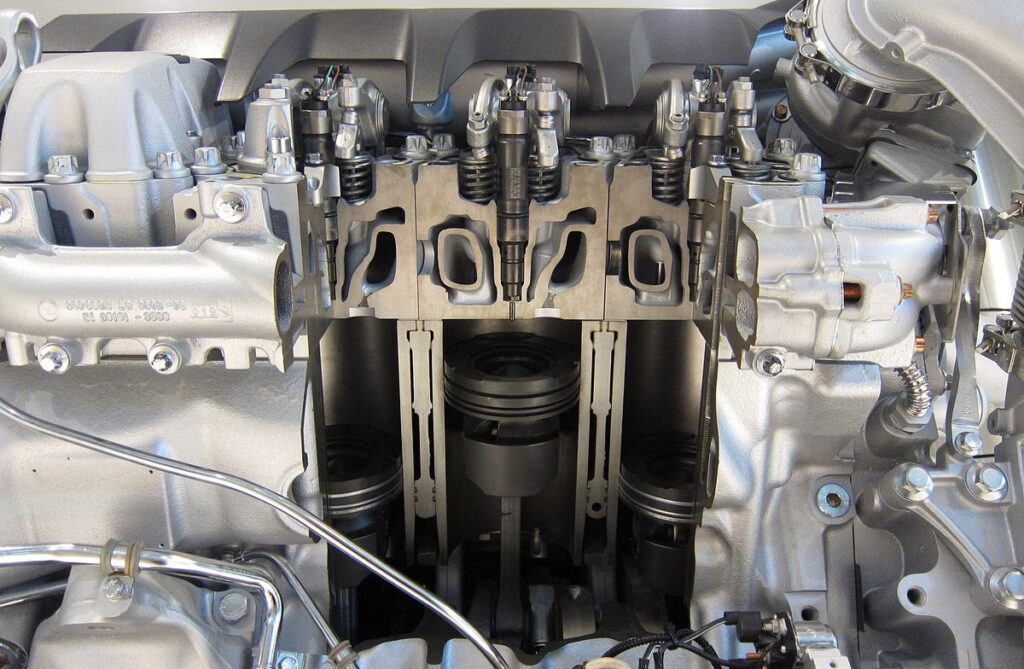

Direct Injection (DI) represents the more traditional method of fuel delivery in diesel engines. In a DI system, fuel is injected directly into the combustion chamber. The system typically employs a mechanical fuel pump, often a distributor or inline pump, to generate the necessary pressure for injection. This pump is directly linked to the engine's crankshaft, meaning its speed and the pressure it generates are directly proportional to engine speed. Older diesel engines predominantly utilised DI systems, and their relative simplicity and robustness have contributed to their enduring presence.

Historical Evolution of Direct Injection

The origins of direct injection can be traced back to the very inception of the diesel engine itself. The earliest systems, dating back to the late 1890s, were known as "air-blast injection." These early designs relied on a high-pressure air blast to atomise and inject the fuel. While groundbreaking for their time, these systems were bulky and inefficient due to the large compressors required. Over decades, significant advancements were made, leading to the development of jerk pumps and, eventually, sophisticated mechanical injection pumps that eliminated the need for external air compressors. This evolution made diesel engines more compact, reliable, and accessible.

Advantages of Direct Injection

• Improved Fuel Efficiency: DI systems generally offer better fuel atomisation compared to older indirect injection systems. This finer spray allows for more complete combustion, leading to improved fuel economy and less wasted fuel.
• Enhanced Engine Power and Performance: The direct delivery of fuel into the combustion chamber can contribute to a more immediate power delivery. In some DI setups, particularly those with turbocharging, it can also help to reduce turbo lag, resulting in a more responsive engine.
• Reduced Emissions: More efficient fuel atomisation and combustion inherently lead to lower levels of certain harmful emissions, such as particulate matter and unburned hydrocarbons.
• Cost-Effectiveness: Historically, DI systems have been less complex and therefore more affordable to manufacture and maintain compared to more advanced systems.

Common Rail Diesel (CRD): The Modern Standard

Common Rail Diesel (CRD) is a more contemporary and sophisticated fuel injection system that has become the benchmark for modern diesel engines. In a CRD system, a high-pressure pump pressurises fuel and stores it in a central "rail," which acts as a pressurised reservoir. This pressurised fuel is then delivered to each injector via individual fuel lines. The key innovation is that each injector is electronically controlled by the engine's control unit (ECU). This electronic control allows for highly precise timing and duration of fuel injection, enabling multiple injections per combustion cycle.

Evolution and Adoption of Common Rail Diesel

The concept of a common rail system isn't entirely new, with early developments dating back to 1916, initially finding application in submarines. However, its widespread adoption in road vehicles began to gain momentum in the mid-1990s. The integration of sophisticated electronic control units (ECUs) was pivotal. These ECUs receive data from various sensors around the engine and precisely control the opening and closing of the injectors, optimising fuel delivery for a wide range of operating conditions. This electronic management is what truly sets CRD apart from purely mechanical systems.

Advantages of Common Rail Diesel

• Better Fuel Distribution and Combustion: The electronic control of injectors in CRD systems allows for extremely precise fuel metering and atomisation. This leads to more uniform fuel distribution within the combustion chamber, promoting more complete and efficient combustion.
• Higher Torque and Improved Engine Response: CRD systems can often achieve higher injection pressures than traditional DI systems. This, combined with the ability for multiple injections, results in significantly higher torque output and a more responsive engine, especially at lower RPMs.
• Lower Noise Levels: One of the most noticeable benefits of CRD is its quieter operation. The flexibility in injection timing, including pilot injections (small fuel injections before the main one), helps to smooth out the combustion process, reducing the characteristic diesel "knock" and improving overall noise, vibration, and harshness (NVH) characteristics.
• Reduced Emissions: The precise control over fuel delivery and combustion allows CRD systems to minimise the formation of pollutants. By optimising injection timing and quantity, emissions of NOx and particulate matter can be significantly reduced.

Key Differences: CRDi vs. Direct Injection

The fundamental divergence between CRD and traditional DI lies in their fuel delivery mechanisms and control systems.

Performance Comparison: CRDi vs. Direct Injection

The performance characteristics of CRD and DI systems are markedly different, primarily due to the advancements in control and pressure capabilities of CRD.

Fuel Efficiency Comparisons

CRD systems generally hold an edge in fuel efficiency. The ability to perform multiple injections per combustion cycle allows the ECU to fine-tune the fuel delivery for optimal burn at various engine loads and speeds. This precise control minimises fuel wastage and maximises the energy extracted from each drop of diesel. While DI systems are efficient, they lack the sophisticated multi-injection strategies that contribute to CRD's superior economy.

Power Output and Torque Differences

The higher injection pressures achievable with CRD systems, often exceeding 2000 bar (compared to typically below 1000 bar for older mechanical DI), translate directly into greater power and torque. This increased pressure aids in better fuel atomisation and penetration into the combustion chamber, allowing for more complete combustion of a larger fuel charge. Consequently, CRD-equipped vehicles often exhibit superior acceleration and towing capabilities.

Emission Levels and Environmental Impact

Environmental considerations are a significant factor in the dominance of CRD. The precise electronic management of fuel injection in CRD systems allows for a much finer degree of control over the combustion process. By carefully timing and shaping the injection events, manufacturers can significantly reduce the formation of harmful emissions like nitrogen oxides (NOx) and particulate matter (soot). This makes CRD technology a key enabler for meeting stringent modern emissions regulations.

Application and Usage in the Automotive Industry

The choice between DI and CRD in vehicles is often dictated by a balance of performance requirements, cost considerations, and emissions targets.

Different Applications of CRD and DI in Various Vehicles

Direct Injection (DI): Due to its relative simplicity and lower cost, traditional mechanical DI systems are still found in some older diesel vehicles, smaller commercial vehicles, and in applications where extreme cost sensitivity is a factor. They offer a reliable and economical solution for basic diesel propulsion.

Common Rail Diesel (CRD): CRD systems are now the de facto standard for most modern diesel passenger cars, SUVs, light commercial vehicles, and heavy-duty trucks. Their superior performance, fuel efficiency, and emissions control make them ideal for meeting the demands of contemporary driving and regulatory standards. They are also increasingly used in agricultural machinery and industrial engines.

Industry Trends and Prospects

The automotive industry is in constant pursuit of improvement. Technological advancements continue to refine CRD systems, with ongoing developments focusing on even higher injection pressures, more advanced injector designs allowing for finer control over spray patterns, and sophisticated software algorithms within the ECU. These enhancements aim to further boost fuel economy, increase power output, and minimise emissions. The increasing popularity of diesel vehicles, driven by their inherent fuel efficiency and torque, ensures a strong demand for advanced injection systems like CRD. The ongoing evolution of these systems, coupled with stricter environmental regulations, indicates a bright future and continued growth for CRD technology in the automotive sector and beyond.

Frequently Asked Questions (FAQs)

Q1: Is Common Rail Diesel better than Direct Injection?
In most modern applications, CRD is considered superior due to its better fuel efficiency, higher performance, quieter operation, and lower emissions, all stemming from its precise electronic control.

Q2: Can I convert a Direct Injection diesel to Common Rail?
This is an extremely complex and generally unfeasible conversion. The entire fuel system, including the pump, rail, injectors, and ECU, would need to be replaced, along with significant modifications to the engine and wiring harness.

Q3: What are the signs of a failing diesel fuel injection system?
Symptoms can include rough idling, loss of power, increased smoke from the exhaust (black or white), poor fuel economy, difficulty starting, and unusual engine noises.

Q4: Does Common Rail Diesel use more fuel than Direct Injection?
No, typically the opposite is true. CRD systems are designed for greater fuel efficiency due to their precise control and ability to optimise combustion.

Conclusion

The journey from early air-blast injection to sophisticated Common Rail Diesel systems highlights the remarkable progress in automotive engineering. While traditional Direct Injection systems laid the foundation, Common Rail Diesel technology has redefined what is possible in diesel engine performance, efficiency, and environmental responsibility. Understanding the fundamental differences between these systems—particularly in their fuel delivery mechanisms, pressure capabilities, and control strategies—is crucial for appreciating the advancements that make modern diesel engines so capable. As technology continues to evolve, CRD systems are set to remain at the forefront, driving innovation and meeting the ever-increasing demands of drivers and regulators alike.
