Understanding Your Car's Clicking CV Joint

There's little more unnerving for a driver than an unfamiliar sound emanating from their vehicle. Among the symphony of potential mechanical woes, a distinctive 'clicking' noise, particularly when turning, often signals an issue with your car's Constant Velocity (CV) joints. These vital components are the unsung heroes of your drivetrain, ensuring power flows smoothly from your transmission to the wheels, even as they navigate turns and undulations. When they start to protest with a click, it's a clear indicator that attention is needed. This comprehensive guide will delve into everything you need to know about CV joint clicking, from pinpointing the underlying cause and understanding the potential risks, to exploring repair options and preventing future problems, ensuring you're well-equipped to keep your vehicle in top condition.

What Exactly Are CV Joints?

Before we delve into the 'why', let's clarify 'what'. CV joints are sophisticated mechanical couplings that allow a drive shaft to transmit power through a variable angle, at a constant rotational speed, without an appreciable increase in friction or play. Essentially, they enable your wheels to steer and move up and down with the suspension while continuously receiving power from the engine.

Most front-wheel-drive cars, and many rear-wheel-drive, all-wheel-drive, and four-wheel-drive vehicles, utilise CV joints. A typical car will have two CV joints per drive axle:

• Inner CV Joint: Connects the drive shaft to the transmission.
• Outer CV Joint: Connects the drive shaft to the wheel hub.

Each CV joint is encased in a protective rubber or thermoplastic boot, known as a CV boot, which is filled with a special high-temperature grease. This boot is absolutely critical as it prevents dirt, water, and other contaminants from entering the joint, while simultaneously keeping the vital lubricant sealed inside. The integrity of this boot is paramount to the longevity of the CV joint itself.

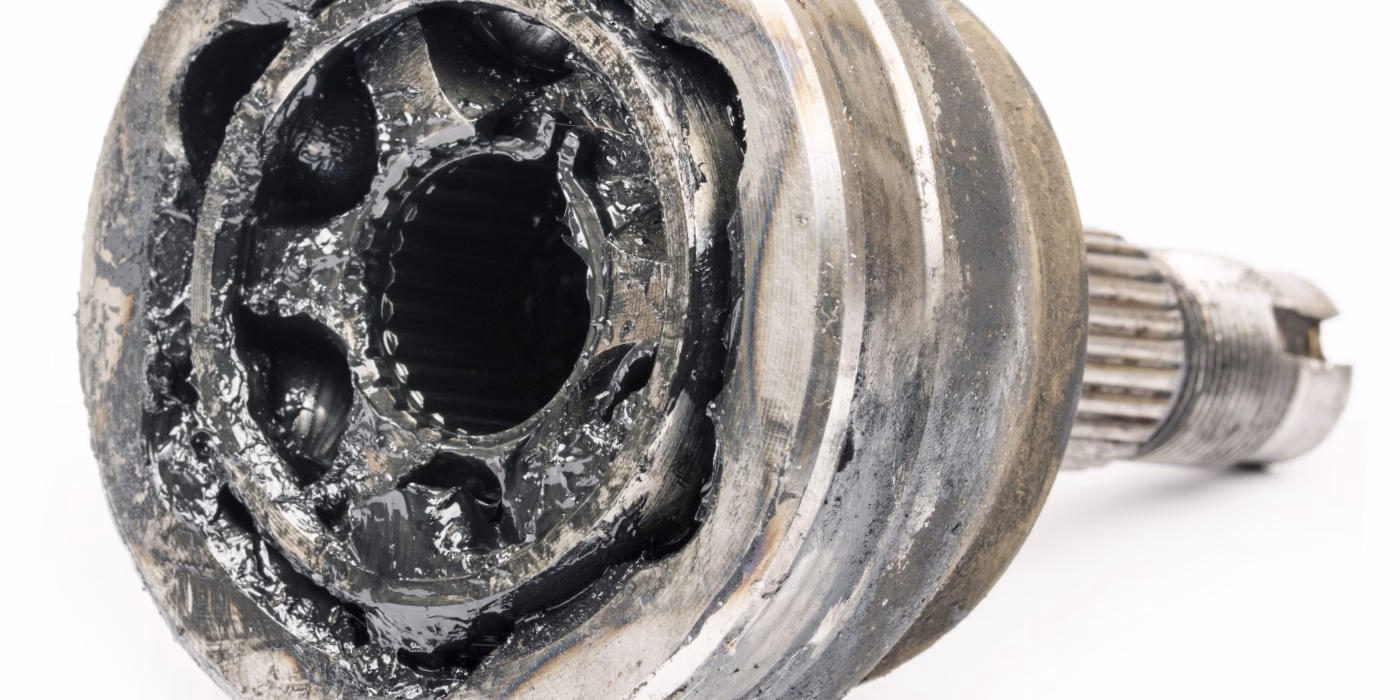

The Distinctive Sound: Why Your CV Joint is Clicking

The most common and tell-tale sign of a failing CV joint is that characteristic clicking, popping, or clunking sound. But what precisely causes this unsettling noise? The primary culprit is almost always wear and tear, exacerbated by a compromised CV boot.

When the protective CV boot suffers damage – be it a tear, crack, or puncture – a cascade of problems begins:

1. Grease Leakage: The vital high-temperature grease, which lubricates the internal components of the joint, begins to leak out. Without this lubrication, the metal parts inside the joint start to rub against each other with increased friction.
2. Contaminant Ingress: With the boot compromised, road grit, dirt, dust, and moisture are free to enter the joint. These abrasive contaminants act like sandpaper, accelerating the wear of the precision-machined metal surfaces within the joint.
3. Component Wear: Over time, the internal bearings and races (the grooves in which the bearings run) become pitted and worn due to the lack of lubrication and the presence of abrasive particles. This excessive play and friction between the worn components create the distinctive clicking or popping sound, particularly when the joint is under stress, such as during turns.

While a damaged boot is the most frequent instigator, sometimes severe driving conditions, aggressive driving habits, or simply the age of the vehicle can lead to wear even with an intact boot. However, in the vast majority of cases, a clicking CV joint points directly back to a breach in its protective rubber shield.

Beyond the Click: Other Symptoms and Dangers

While a clicking sound is the primary indicator, a failing CV joint can manifest other symptoms that should not be ignored. These can include a clunking noise when shifting from drive to reverse, or a shudder or vibration during acceleration. However, the clicking sound serves as an early warning that this critical component is nearing its end.

Ignoring a clicking CV joint is a perilous gamble. What starts as a minor auditory annoyance can rapidly escalate into a significant safety hazard and lead to far more extensive, and expensive, repairs. Here’s why a clicking CV joint is a serious concern:

• Complete Joint Failure: The most immediate and severe risk is the complete failure of the CV joint. If the joint breaks while driving, the drive shaft can disconnect, leading to an instantaneous loss of power to the affected wheel. This can cause the vehicle to become suddenly undrivable, potentially leaving you stranded in an unsafe location.
• Loss of Vehicle Control: In more extreme cases, a catastrophic CV joint failure, especially at speed, could lead to a sudden and dangerous loss of steering control. The wheel might lock up or become unpredictable, significantly increasing the risk of an accident.
• Damage to Surrounding Components: A malfunctioning CV joint doesn't operate in isolation. The excessive vibration and abnormal movement can put undue stress on other vital drivetrain components, such as the transmission, differential, and wheel bearings, leading to premature wear and additional costly repairs.
• Increased Repair Costs: What might have started as a relatively straightforward (though not inexpensive) CV joint replacement can quickly become a much larger bill if associated components are damaged due to neglect. Early intervention is always the most economical approach.

In essence, a clicking CV joint is a ticking time bomb for your vehicle's drivetrain. It signals an impending failure that could compromise your safety and lead to significant inconvenience and expense. Prompt diagnosis and repair are not merely recommended; they are essential.

When the Click Happens Driving Straight: A Grave Warning

While the classic scenario for a clicking CV joint is during turns, some drivers unfortunately experience this distinctive noise even when driving in a straight line. This is a crucial distinction and a far more serious indicator.

A CV joint that clicks while driving straight suggests that the internal wear and damage have progressed to an advanced, critical stage. At this point, the degradation is so severe that the joint is struggling to maintain smooth power delivery even without the added stress of steering input. It indicates that the internal components are significantly compromised, with considerable play and friction even under minimal load.

If you hear a CV joint clicking when driving straight, it means a complete joint failure is imminent. Continuing to drive under these circumstances significantly increases the risk of a sudden breakdown, loss of power, or even a loss of control. It’s a red alert that demands immediate attention from a qualified mechanic. Do not delay seeking professional help if you observe this symptom.

Diagnosing a Clicking CV Joint: What a Mechanic Looks For

Pinpointing a clicking CV joint usually involves a combination of observation, a test drive, and a thorough visual inspection.

When you bring your vehicle to a garage with a suspected CV joint issue, here's what a professional mechanic will typically do:

1. Test Drive: The mechanic will often take your car for a short test drive to replicate the clicking sound. They'll pay close attention to when the sound occurs – during left turns, right turns, acceleration, or even when driving straight – as this can help identify which specific joint (inner or outer, left or right) is failing.
2. Visual Inspection of CV Boots: Once the car is on a lift, the mechanic will carefully inspect all the CV boots. They'll look for any signs of tears, cracks, punctures, or grease leakage. A damaged boot is often the smoking gun for a failing joint.
3. Checking for Play: They may also try to manually check for excessive play in the drive shaft and the CV joints themselves. While not always conclusive, noticeable looseness can further confirm internal wear.

A damaged boot, combined with the audible clicking, provides a strong diagnosis. It's rare for a clicking CV joint to be caused by something else, especially when the characteristic symptoms are present.

How to Address a Clicking CV Joint: Repair or Replace?

Once a clicking CV joint has been identified, the next crucial step is rectification. Generally, you're looking at two main approaches: attempting a repair or, more commonly, opting for a complete replacement.

1. Repairing the CV Joint (Boot Replacement & Regrease)

In very specific, early-stage scenarios, a repair might be considered. This typically involves:

• Boot Replacement: If the CV boot is torn but the joint itself has not yet suffered significant contamination or wear, a mechanic might replace just the boot.
• Cleaning and Regreasing: The joint would then be thoroughly cleaned of any minor contaminants that may have entered and repacked with fresh, high-quality CV joint grease.

However, it's vital to understand the limitations of this approach. A boot replacement and regrease is usually only effective if the damage to the boot was caught extremely early, before the clicking began, and before any significant wear to the internal components has occurred. Once the clicking starts, it almost invariably means the metal surfaces inside the joint are already worn and pitted. In such cases, merely replacing the boot and grease will not reverse the existing damage, and the clicking will likely return, often quite quickly. Therefore, this is generally considered a temporary or short-term fix at best, and often not recommended if the clicking sound is already present.

2. Replacing the CV Joint (or Entire Drive Axle)

For a reliable and long-lasting solution to a clicking CV joint, replacement is almost always the recommended course of action. This can involve replacing just the faulty CV joint, or, more commonly, replacing the entire drive axle assembly, which comes with both inner and outer CV joints pre-assembled.

The replacement process typically involves:

1. Lifting the Vehicle: The car is raised on a lift for access.
2. Removing the Wheel and Brake Components: The affected wheel, brake calliper, and rotor are removed.
3. Disconnecting the Drive Axle: The drive axle is disconnected from the transmission and the wheel hub.
4. Installing the New Axle/Joint: A new or refurbished drive axle (with new CV joints) is installed, or the individual faulty CV joint is replaced on the existing shaft.
5. Reassembly and Test: All components are reassembled, and the vehicle is test-driven to ensure the clicking sound has been eliminated and proper functionality restored.

Replacing the entire drive axle is often preferred by mechanics because it's typically more time-efficient, ensures both joints on that axle are new, and often comes with a better warranty. While replacing only the joint is possible, it can be more labour-intensive for the mechanic and might not always be significantly cheaper.

DIY vs. Professional Repair

For those with a strong mechanical aptitude and the right tools, replacing a CV joint or drive axle can be a DIY project. However, it is a complex and potentially dangerous task that requires:

• Specialised tools (e.g., axle nut socket, torque wrench, possibly a ball joint separator).
• Knowledge of suspension and brake components.
• Experience working with high-torque fasteners and critical drivetrain parts.

For most drivers, entrusting this repair to a professional mechanic is the safest and most reliable option. A qualified technician has the expertise, tools, and experience to perform the replacement correctly, ensuring your vehicle's safety and proper operation, and often providing a warranty on parts and labour.

CV Joint Clicking Replacement Cost: What to Expect

Understanding the potential cost of addressing a clicking CV joint is crucial for budgeting. The price can vary significantly based on several factors, including your vehicle's make and model, whether you replace just the joint or the entire axle, labour rates in your area, and the quality of the parts used (OEM vs. aftermarket).

Estimated Costs (UK):

• CV Boot Replacement (if caught very early, before clicking): £80 - £180. This is for labour and the cost of the boot kit and grease. As mentioned, this is generally not effective if clicking has already started.
• Single CV Joint Replacement (part only, labour extra): £50 - £150 for an aftermarket part; £150 - £300+ for an OEM part.
• Complete Drive Axle Replacement (including both CV joints): £150 - £400+ for an aftermarket assembly; £300 - £700+ for an OEM assembly. This is the most common and often recommended approach.

When factoring in labour, which can be substantial due to the complexity of the job, the total cost for a professional replacement typically falls into these ranges:

It’s important to remember that these are estimates. Always obtain a detailed quote from a reputable garage. Labour costs typically account for a significant portion of the total expense, as CV joint or axle replacement can be quite time-consuming. Don't simply opt for the cheapest quote; consider the garage's reputation, warranty on parts and labour, and the quality of the replacement parts they intend to use.

Preventing Future CV Joint Problems: Drive Smart, Maintain Well

Once you’ve successfully addressed a clicking CV joint, the natural next step is to adopt habits and practices that can prolong the life of these crucial components and prevent future issues. Prevention is always better, and certainly cheaper, than cure.

Here are some key tips to keep your CV joints healthy:

• Regular Visual Inspections: Make it a habit to periodically inspect your CV boots. This can be done when you’re changing a tyre, checking your oil, or simply when the car is parked. Look for any signs of cracks, tears, punctures, or grease leakage around the rubber boots. Early detection of a damaged boot can prevent the joint itself from failing.
• Prompt Boot Repair: If you do spot a damaged boot, get it addressed immediately. Even if the joint isn't clicking yet, replacing a torn boot and regreasing the joint is significantly cheaper and less invasive than replacing the entire joint or axle.
• Avoid Aggressive Driving: Sharp turns, rapid acceleration, and sudden braking, especially when combined with uneven surfaces, put immense stress on CV joints. Try to drive smoothly, anticipate turns, and avoid harsh manoeuvres where possible.
• Mind Your Parking: If you frequently park with your steering wheel fully turned, this can put constant stress on the outer CV joints. Try to straighten your wheels when parked for extended periods.
• Steer Clear of Potholes and Bumps: Hitting potholes, kerbs, and other road hazards can cause sudden, jarring impacts that can damage CV boots or even the joint itself. Drive carefully, especially on uneven roads.
• Address Suspension Issues: Worn suspension components (like ball joints or track rod ends) can alter the angles at which the CV joints operate, leading to premature wear. Ensure your suspension system is in good working order.
• Listen to Your Car: Pay attention to any unusual noises your car makes. A faint clicking, even if not yet severe, should prompt an investigation. The earlier you catch a problem, the better.

By being proactive and attentive to your vehicle's needs, you can significantly extend the lifespan of your CV joints and avoid the inconvenience and expense of a premature failure.

Frequently Asked Questions About Clicking CV Joints

Q: Can I drive with a clicking CV joint?

A: While you might be able to drive for a short period, it is strongly advised against. A clicking CV joint indicates severe wear and is at risk of complete failure, which can lead to a sudden loss of power or control, making your vehicle unsafe to drive. Seek professional inspection and repair as soon as possible.

Q: How long can a CV joint click before it completely fails?

A: There's no definitive answer, as it depends on the severity of the damage, driving conditions, and how much stress is put on the joint. It could be weeks, days, or even hours. Driving with a clicking joint is a gamble, and failure can occur without warning, particularly during turns or acceleration.

Q: Do both CV joints on an axle usually fail at the same time?

A: Not necessarily. Typically, only one joint (either inner or outer) on an axle will fail first, often due to a damaged boot on that specific joint. However, if one fails, it's a good idea to inspect the other, as they are subject to similar age and wear. Mechanics often replace the entire axle assembly, which includes both joints, for convenience and a more comprehensive repair.

Q: Can a CV joint clicking sound be mistaken for something else?

A: Yes, other issues can sometimes produce similar noises, such as worn wheel bearings, ball joints, or steering components. However, the characteristic rhythmic clicking or popping that increases with speed and is particularly noticeable during turns is highly indicative of a CV joint problem. A professional diagnosis is always recommended to confirm the exact cause.

Q: Is it safe to replace a CV joint myself?

A: Replacing a CV joint or drive axle requires specific tools, mechanical knowledge, and the ability to work safely under a vehicle. While some experienced DIYers can tackle it, it's a critical safety component. Incorrect installation can lead to further damage or dangerous driving conditions. If you're not confident, it's best left to a qualified mechanic.

Q: Does a clicking CV joint affect fuel economy?

A: A severely worn CV joint can increase friction within the drivetrain, which theoretically could lead to a minor reduction in fuel efficiency. However, the primary concerns are safety and the potential for catastrophic failure, not necessarily fuel economy.

Conclusion

A clicking sound from your car is never a welcome development, and when it emanates from a CV joint, it's a clear signal that attention is urgently required. These unsung heroes of your drivetrain are fundamental for smooth power delivery and safe handling, and their degradation should never be overlooked.

Understanding why your CV joint is clicking – often due to a compromised protective boot leading to lubrication loss and contamination – is the first step towards a solution. Recognising the severe dangers of driving with a failing joint, from potential loss of control to costly secondary damage, underscores the importance of prompt action. Whether the click is heard only during turns or, more alarmingly, when driving straight, it’s a warning that necessitates professional intervention.

While the prospect of repair costs might be daunting, addressing the issue early by either replacing the faulty joint or the entire drive axle assembly is always the wisest and most economical approach in the long run. Furthermore, adopting proactive maintenance habits, such as regular boot inspections and careful driving, can significantly extend the life of these critical components.

Don't let a minor clicking noise evolve into a major breakdown or, worse, a safety hazard. Heed the warning signs, consult a trusted mechanic, and ensure your vehicle remains a reliable and safe mode of transport on the roads of the UK.
